◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#75906) — 20 parça

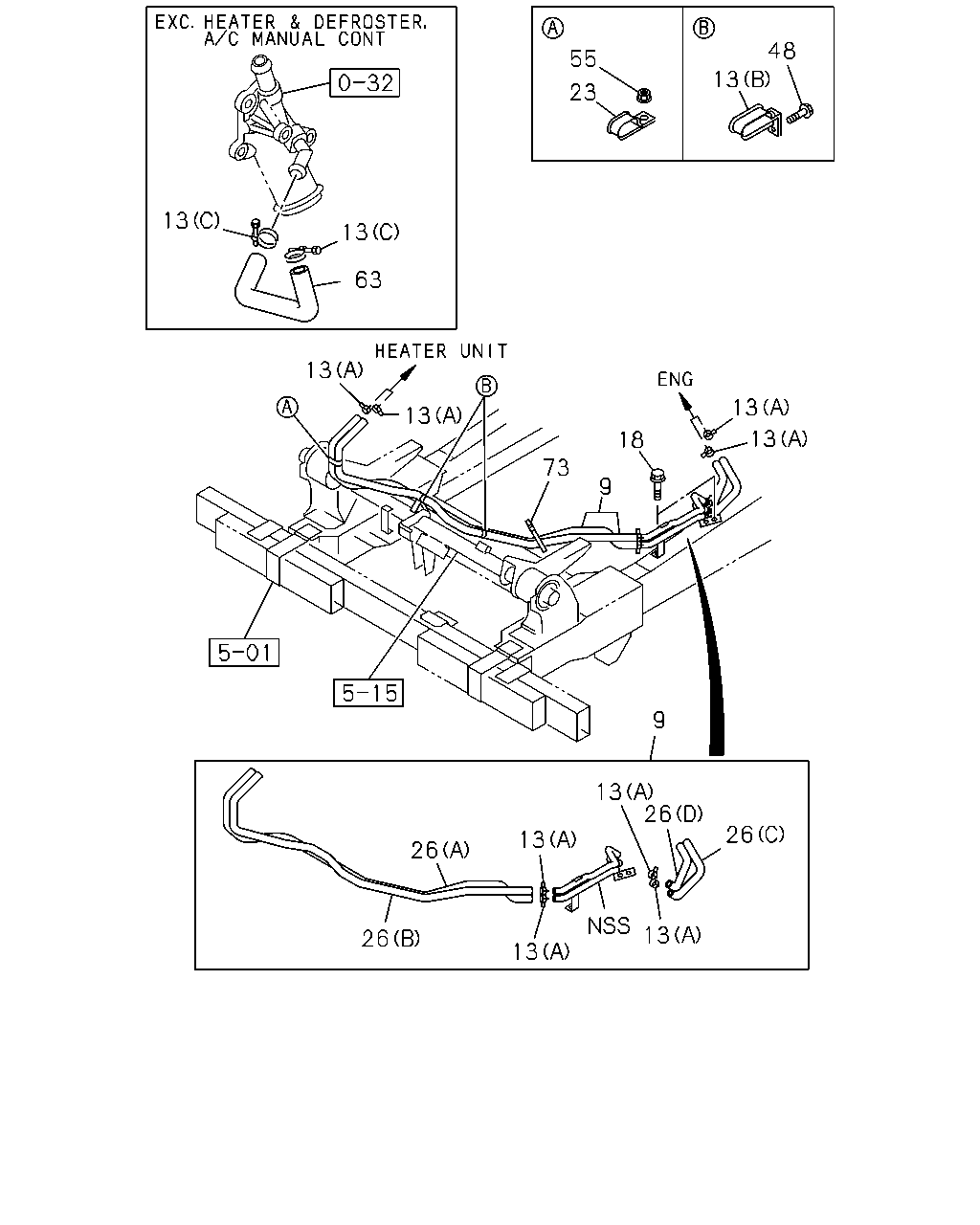

çizim 141038
48 55 13 23 13 13 63 13 13 13 13 18 73 9 9 13 26 26 13 26 13 26 13
BalonParca AdiParca NoAdetTipApplied Date A B
9 PIPE; HTR 8-98097-844-0 01 1 0807- ● ●
13 CLIP; HTR HOSE
(A) ID=22 		8-97359-141-0 04 1 1001- ● ●
13 CLIP; HTR HOSE
MINI BUS CHASSIS<V4B> (C) ID=25 		8-94233-115-0 02 1 1001- ●
13 CLIP; HTR HOSE
(A) ID=22 		8-97359-141-0 04 1 0807-0912 ● ●
13 CLIP; HTR HOSE
(A) ID=22 		8-97359-141-0 04 1 0807-0912 ● ●
13 CLIP; HTR HOSE
(A) ID=22 		8-97359-141-0 02 1 1001- ● ●
13 CLIP; HTR HOSE
(A) ID=22 		8-97359-141-0 02 1 1001- ●
13 CLIP; HTR HOSE
EXC. MINI BUS CHASSIS<V4B> (A) ID=22 		8-97359-141-0 02 1 1001- ●
13 CLIP; HTR HOSE
(B) 		8-98032-129-0 02 1 0807- ● ●
18 BOLT; WATER HOSE
M8X25 FLANGE 		0-28650-825-0 02 1 0807- ● ●
23 CLIP; WATER HOSE,DASH LWR
B=18 		8-97359-144-0 01 1 0807-1205 ● ●
23 CLIP; WATER HOSE,DASH LWR
B=18 		8-98166-023-0 01 1 1206- ● ●
26 HOSE; HTR
(B) 		8-98105-169-0 01 1 0807- ● ●
26 HOSE; HTR
(C) 		8-98050-295-0 01 1 0807- ● ●
26 HOSE; HTR
(D) 		8-98050-296-0 01 1 0807- ● ●
26 HOSE; HTR
(A) 		8-98059-457-1 01 1 0807- ● ●
48 BOLT; CLIP FIX
M6X12 FLANGE 		0-28050-612-0 02 1 0807- ● ●
55 NUT; CLAMP
M6 FLANGE 		0-91180-106-0 01 1 0807- ● ●
63 HOSE; WATER
MINI BUS CHASSIS<V4B> 		8-94134-250-1 01 1 1001- ●
73 CLIP; HTR HOSE
L=250 		5-09707-030-1 01 1 0807- ● ●
