51174 - ELF400/500/600/BUS
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#75905) — 39 parça
Tümü
A - NPR7SN
B - NPR7SS
◀

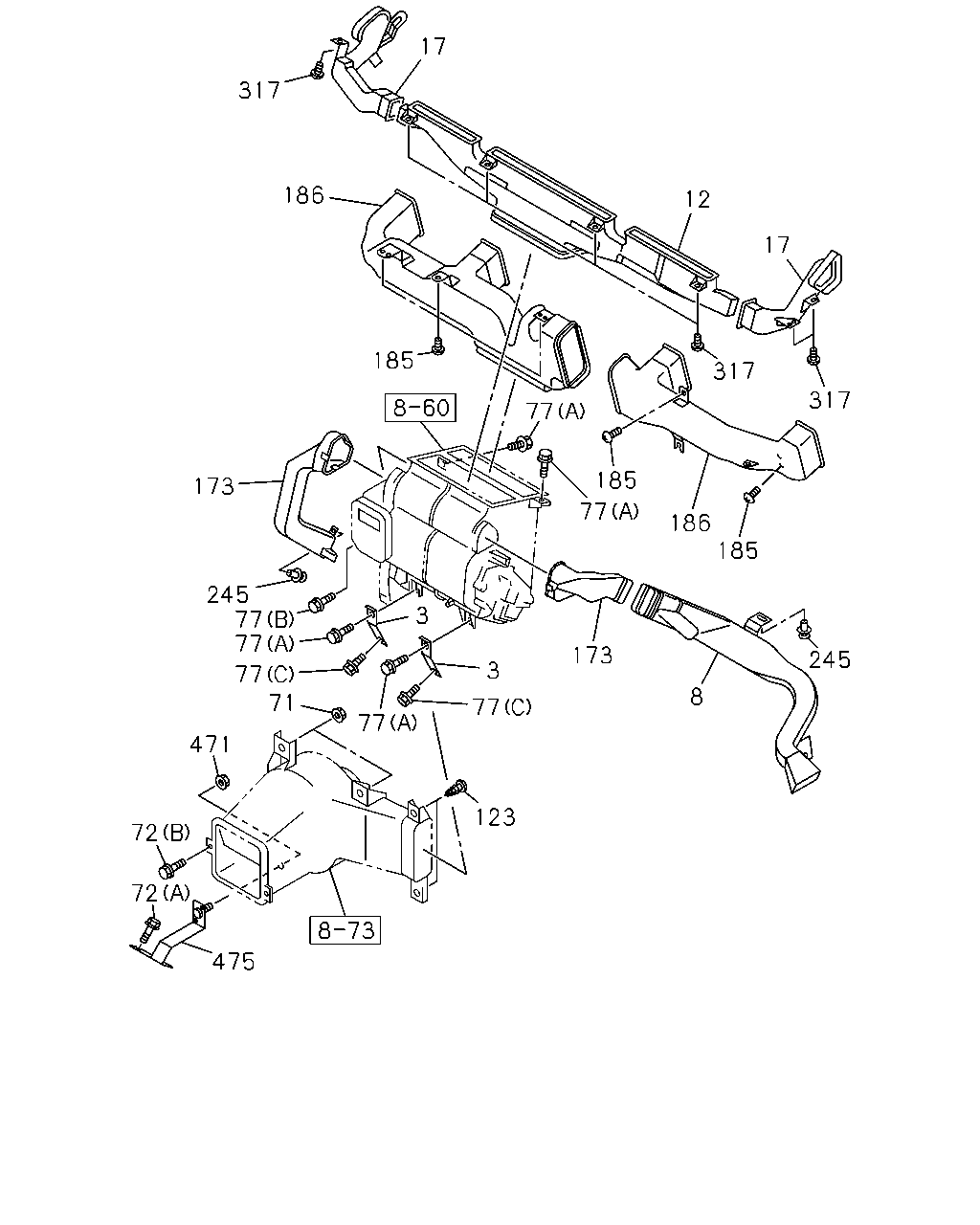

[840A] NO.1 (34 parça)

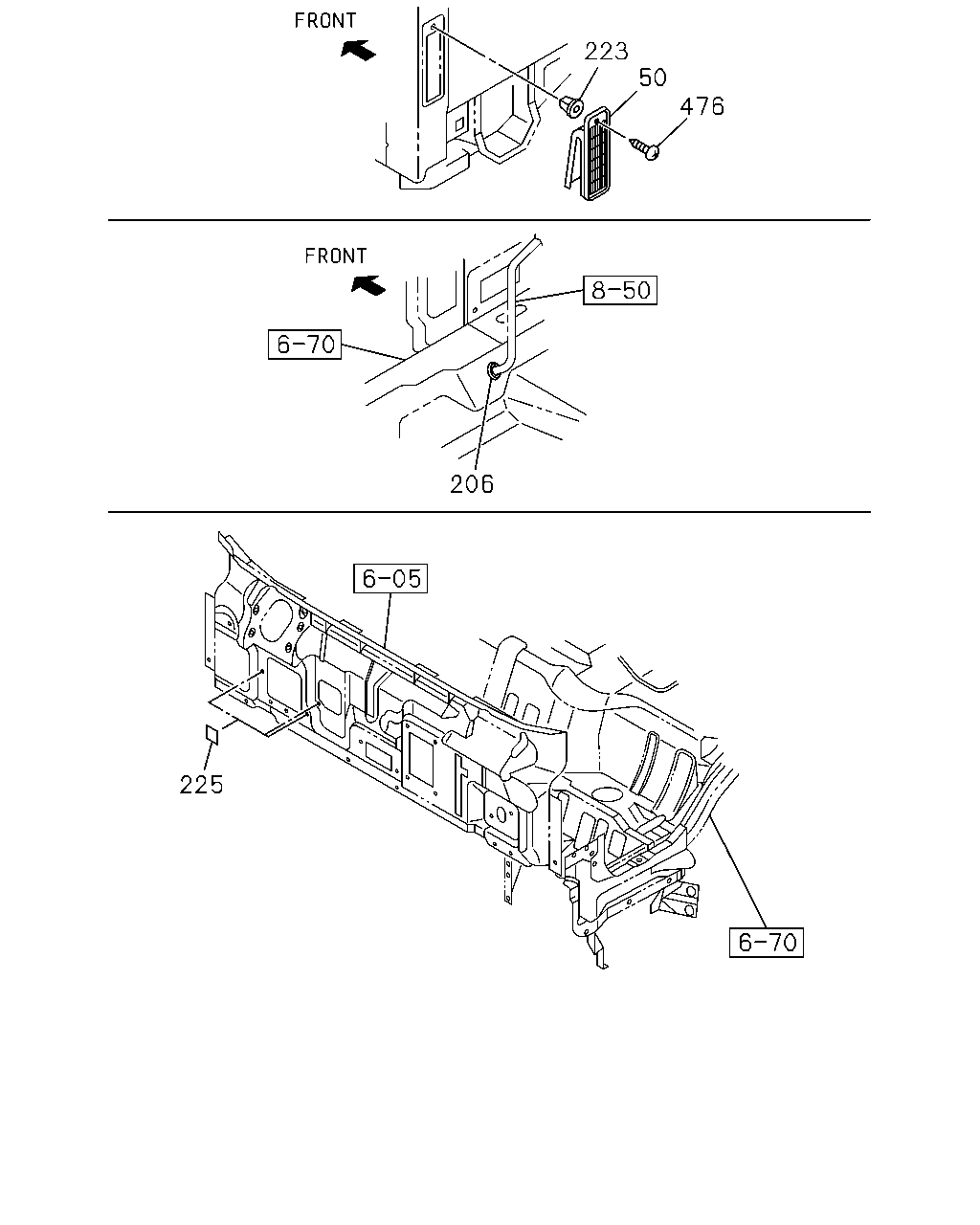

[840A] NO.2 (5 parça)
▶
17
317
186
12
17
185
317
317
77
185
173
77
186
185
245
77
77
3
173
245
3
77
71
8
77
77
471
123
72
72
475
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
BRACKET; HTR UNIT
8-98082-473-1
02
1
0807-
●
●
8
DUCT; HTR AIR,DRIVER FOOT
8-97585-498-4
01
1
0807-1106
●
●
12
NOZZLE; DEFROSTER
8-98040-490-3
01
1
0807-
●
●
17
NOZZLE; DEFROSTER,SIDE
8-98040-497-1
01
1
0807-
●
●
17
NOZZLE; DEFROSTER,SIDE
8-98040-498-4
01
1
0807-
●
●
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE
0-91180-106-0
02
1
0807-
●
●
72
BOLT; BLOWER UNIT
(A) M8X20 W/LK&PL WASHER
8-97359-709-0
01
1
0807-
●
●
72
BOLT; BLOWER UNIT
(B) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
0807-
●
●
77
BOLT; HTR UNIT
(A) M6X16 FLANGE
0-28650-616-0
04
1
0807-
●
●
77
BOLT; HTR UNIT
(B) M6X20 W/LK&PL WASHER
8-98081-030-0
01
1
0807-
●
●
77
BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
0807-
●
●
123
SCREW; DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
0807-1101
●
●
123
SCREW; DUCT
M5X16 HEXALOBULAR SOCKET
8-98177-744-0
02
1
1102-1212
●
●
123
SCREW; DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1301-
●
●
173
DUCT; FOOT,HTR
8-97585-494-3
01
1
0807-1106
●
●
173
DUCT; FOOT,HTR
8-98163-183-0
01
1
1107-
●
●
173
DUCT; FOOT,HTR
8-97585-505-3
01
1
0807-1106
●
●
173
DUCT; FOOT,HTR
8-98163-188-0
01
1
1107-
●
●
185
SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
05
1
0807-1003
●
●
185
SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1004-1101
●
●
185
SCREW; VENT DUCT
M5X16 HEXALOBULAR SOCKET
8-98177-744-0
04
1
1102-1212
●
●
185
SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1301-
●
●
186
DUCT; VENTILATOR
8-98042-899-6
01
1
0807-1410
●
●
186
DUCT; VENTILATOR
8-98285-584-0
01
1
1411-
●
●
186
DUCT; VENTILATOR
8-98042-900-5
01
1
0807-1410
●
●
186
DUCT; VENTILATOR
8-98285-586-0
01
1
1411-
●
●
245
CLIP; FOOT DUCT
1-09987-144-0
03
1
0807-1106
●
●
245
CLIP; FOOT DUCT
1-09987-144-0
02
1
1107-
●
●
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
07
1
0807-0808
●
●
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
06
1
0809-1101
●
●
317
SCREW; DEFROSTER NOZZLE
M5X16 HEXALOBULAR SOCKET
8-98177-744-0
06
1
1102-1212
●
●
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
06
1
1301-
●
●
471
NUT; BLOWER
M6 FLANGE
0-91180-106-0
01
1
0807-
●
●
475
BRACKET; BLOWER
8-98005-980-2
01
1
0807-
●
●
223
50
476
206
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
50
VALVE ASM; HTR
8-98080-998-1
01
1
0807-
●
●
206
GROMMET; A/C PIPE TO BLOWER UNIT
8-98019-649-0
01
1
0807-
●
●
223
GROMMET; SCREW
D=7.9X7.9 L=20 M5
8-94441-539-0
01
1
0807-
●
●
225
SEAL; WATER
8-97856-616-0
03
1
0807-
●
●
476
SCREW; VALVE
M5X16 TAPPING HEXALOBULAR
8-98062-675-0
01
1
0807-
●
●
