8-28 — CHASSIS ELECTRICAL (#75904) — 14 parça

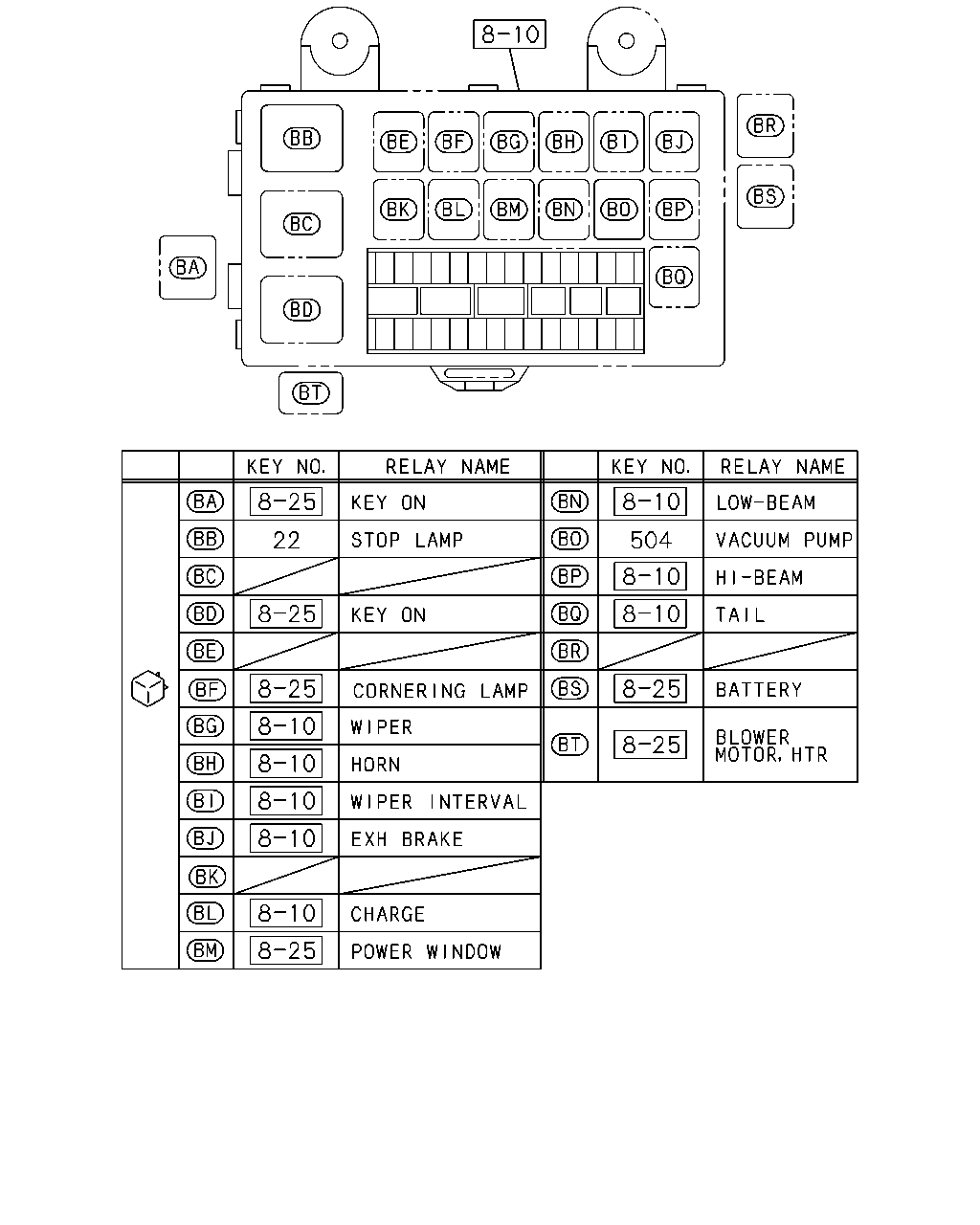

çizim 143824
504 22
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
12V 30A 		8-97210-972-1 01 1 0807- ● ●
504 RELAY; VACUUM PUMP
12V 20A 		8-97173-037-1 01 1 0807- ●

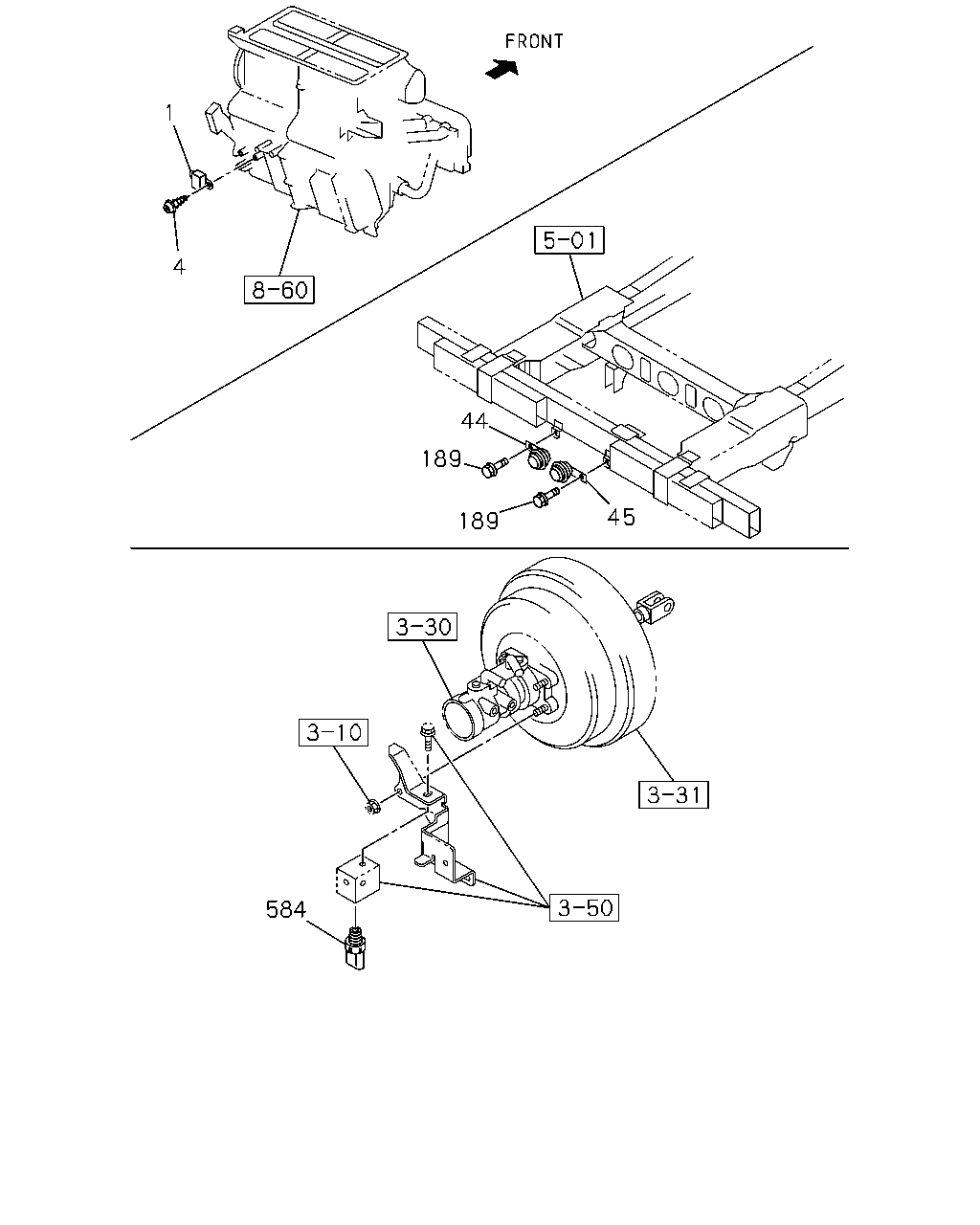

çizim 144131
1 4 44 189 45 189 584
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98006-815-0 01 1 0807- ● ●
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0807-1101 ● ●
4 SCREW; FLASHER UNIT
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
44 HORN; HIGH NOTE 8-98022-024-0 01 1 0807- ● ●
45 HORN; LOW NOTE 8-98022-025-0 01 1 0807- ● ●
189 BOLT; HORN
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0807-1004 ● ●
189 BOLT; HORN
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1005- ● ●
584 SENSOR; PRESSURE 8-97387-682-0 01 1 0807- ● ●
çizim 185901
531 666
BalonParca AdiParca NoAdetTipApplied Date A B
531 RELAY; MAIN
12V 20A 		8-97173-037-1 01 1 0807- ● ●
666 RELAY; STARTER
12V 20A 		8-97173-037-1 01 1 0807- ● ●

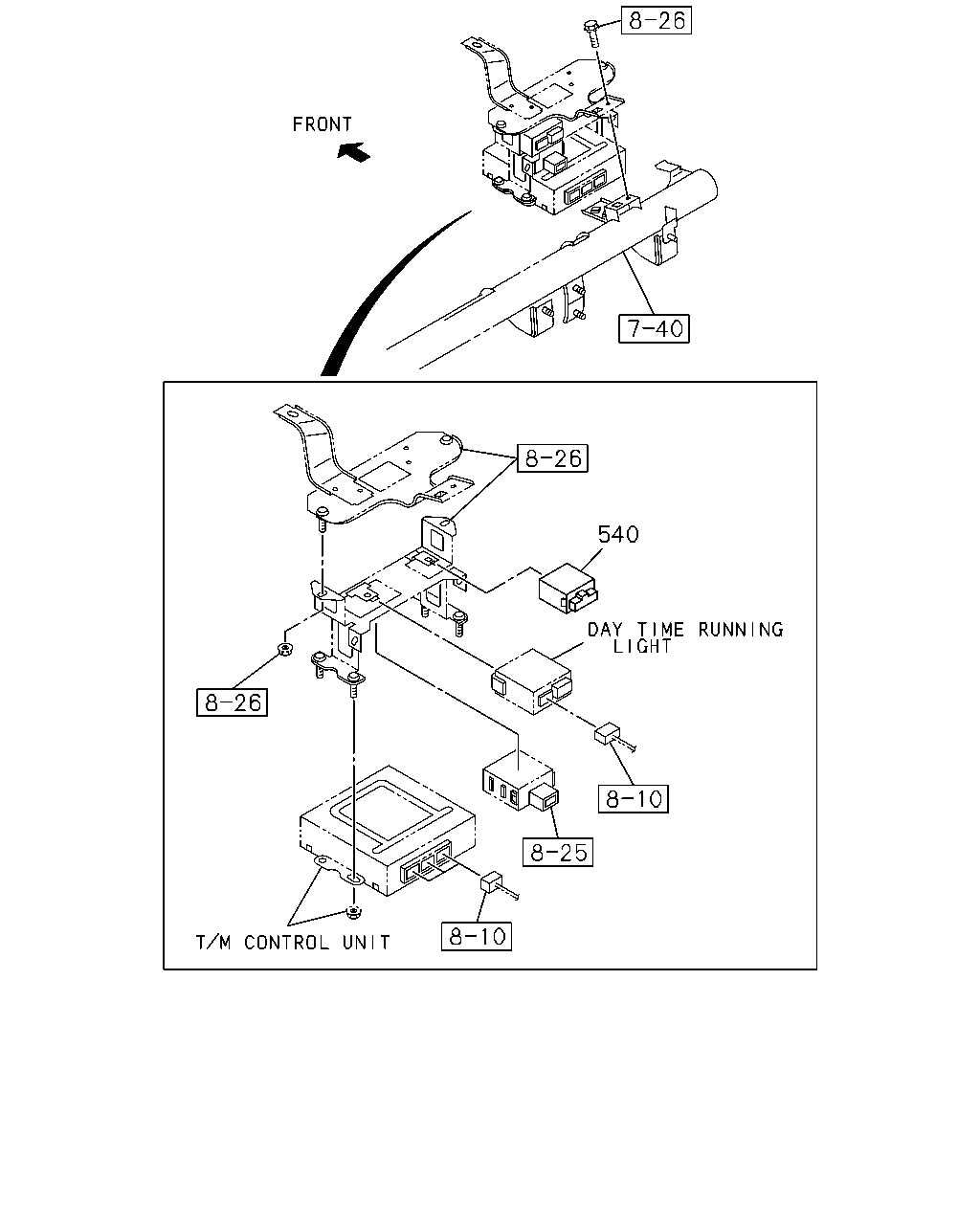

çizim 185903
540
BalonParca AdiParca NoAdetTipApplied Date A B
540 RELAY; WIPER INTERVAL 8-98032-320-1 01 1 0807- ● ●
