8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#75903) — 30 parça
çizim 138424
68 67 67 67 69
BalonParca AdiParca NoAdetTipApplied Date A B
67 BRACKET; CONT UNIT
(A) 		8-98062-653-0 01 1 0807-1102 ● ●
67 BRACKET; CONT UNIT
(C) 		8-98022-206-2 01 1 1103-1111 ● ●
67 BRACKET; CONT UNIT
(D) 		8-98203-057-0 01 1 1112-1207 ● ●
67 BRACKET; CONT UNIT
(D) 		8-98217-377-0 01 1 1208-1212 ● ●
67 BRACKET; CONT UNIT
(D) 		8-98237-555-0 01 1 1301-1404 ● ●
67 BRACKET; CONT UNIT
(D) 		8-98217-377-0 01 1 1405- ● ●
67 BRACKET; CONT UNIT
(B) 		8-98006-731-1 01 1 0807-1102 ● ●
67 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 1103- ● ●
68 BOLT; BRKT
M6X12 FLANGE 		0-28450-612-0 01 1 0807- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0807- ● ●

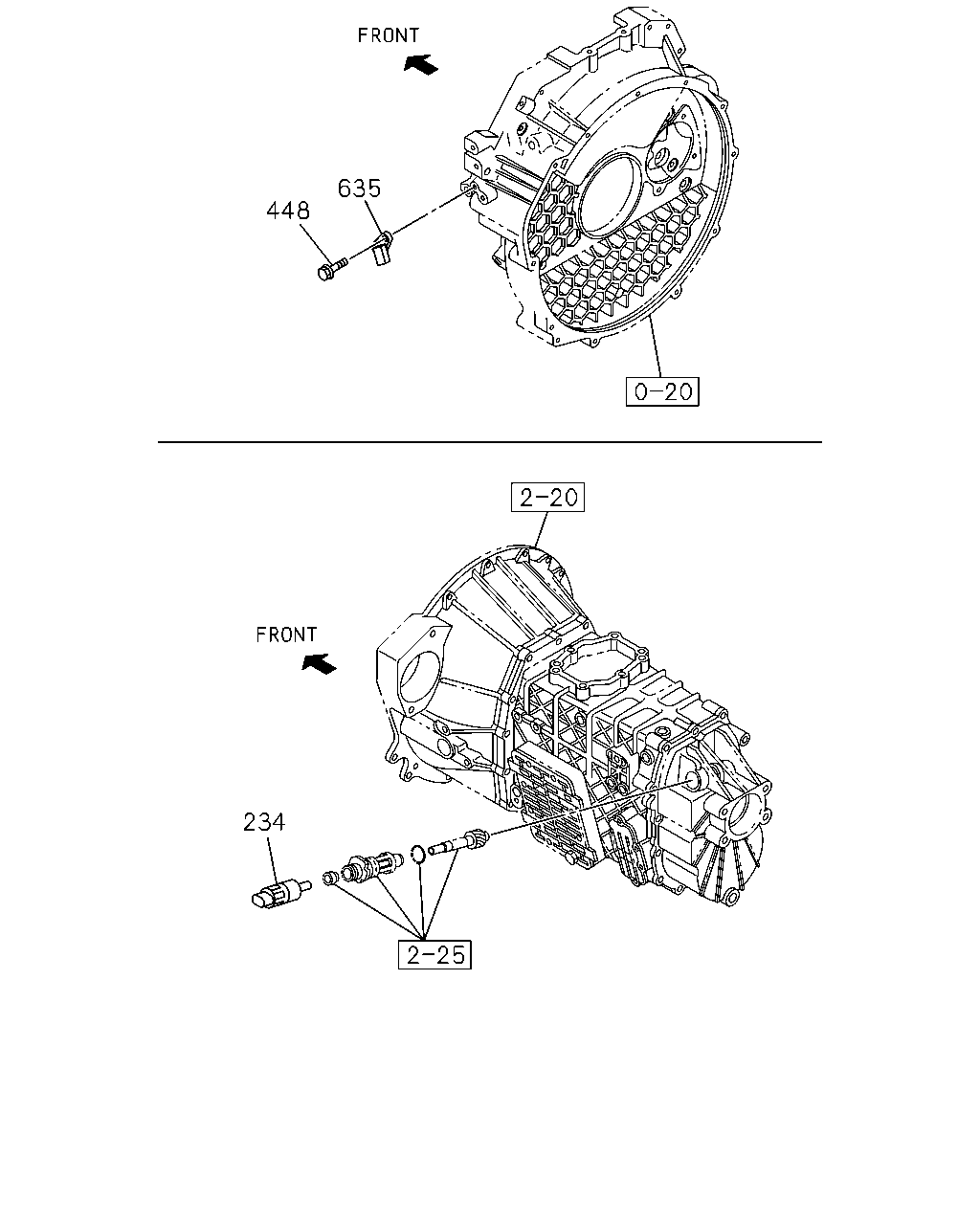

çizim 138432
635 448 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0807- ● ●
448 BOLT; SENSOR
M6X16 FLANGE 		0-28050-616-0 01 1 0807- ● ●
635 SENSOR; TACHOMETER
DENSO 		8-97306-113-1 01 1 0807- ● ●

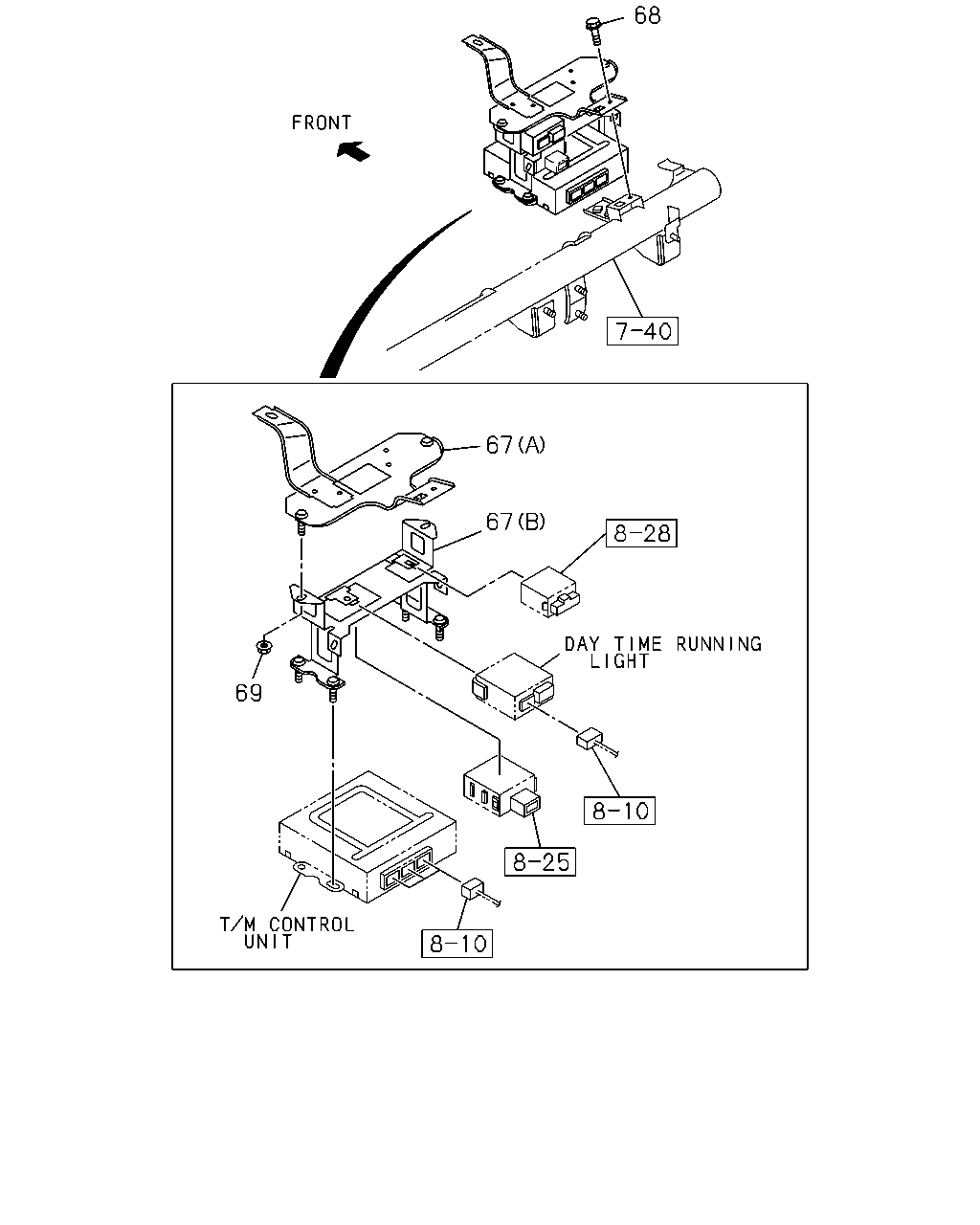

çizim 185904
68 67 67 69
BalonParca AdiParca NoAdetTipApplied Date A B
67 BRACKET; CONT UNIT
(A) 		8-98062-653-0 01 1 0807-1102 ● ●
67 BRACKET; CONT UNIT
(C) 		8-98022-206-2 01 1 1103-1111 ● ●
67 BRACKET; CONT UNIT
(D) 		8-98203-057-0 01 1 1112-1207 ● ●
67 BRACKET; CONT UNIT
(D) 		8-98217-377-0 01 1 1208-1212 ● ●
67 BRACKET; CONT UNIT
(D) 		8-98237-555-0 01 1 1301-1404 ● ●
67 BRACKET; CONT UNIT
(D) 		8-98217-377-0 01 1 1405- ● ●
67 BRACKET; CONT UNIT
(B) 		8-98006-731-1 01 1 0807-1102 ● ●
67 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 1103- ● ●
68 BOLT; BRKT
M6X12 FLANGE 		0-28450-612-0 01 1 0807- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0807- ● ●
çizim 185908
221 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97320-322-0 01 1 0807-0906 ● ●
1 LIGHTER; CIGAR 8-97314-003-0 01 1 0907- ● ●
3 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0807-0906 ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0807-0909 ● ●
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 0910- ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0807-0909 ● ●
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 0910- ● ●
