8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#75902) — 46 parça

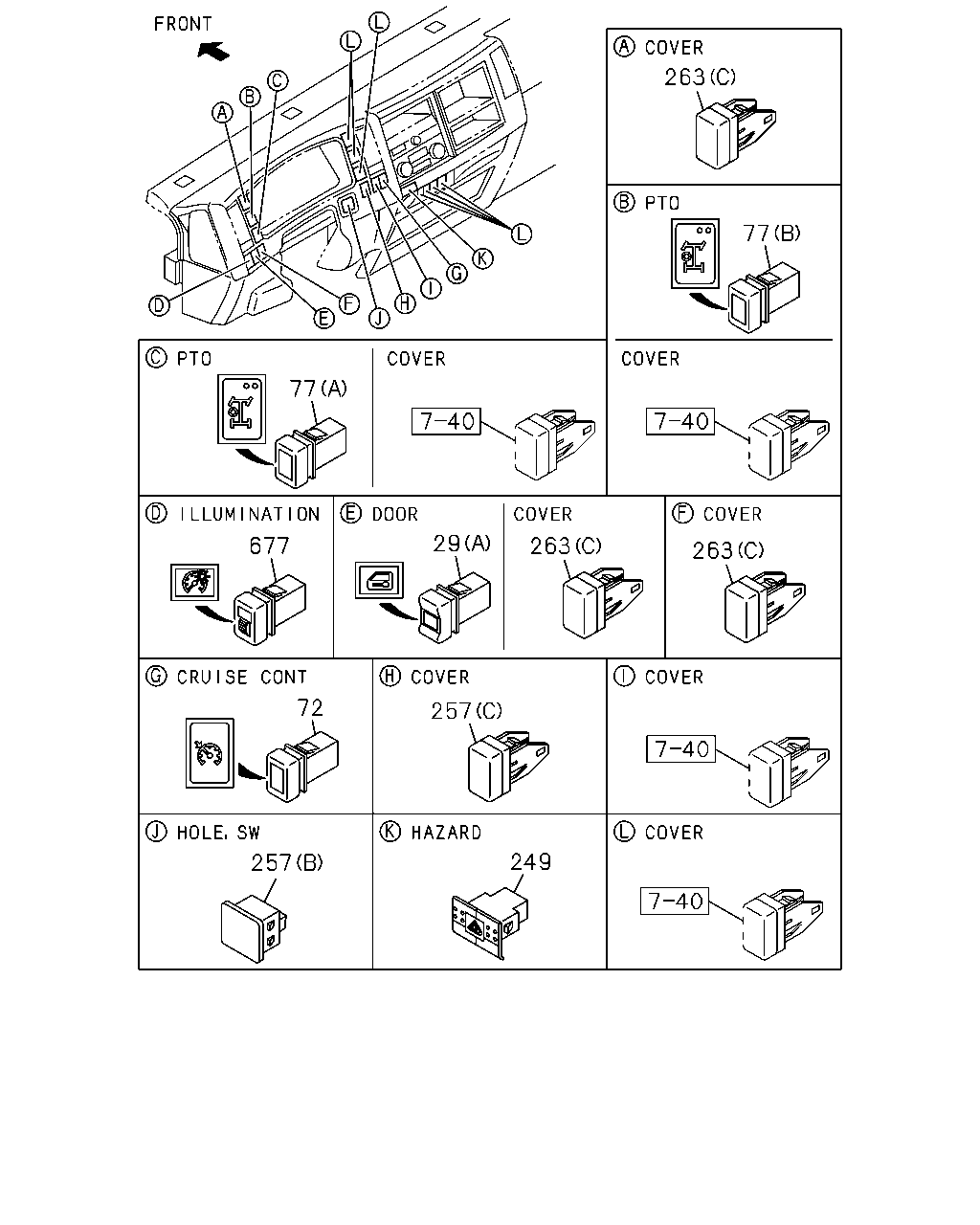

çizim 137770
263 77 77 29 677 263 263 72 257 249 257
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
AUTO DOOR LOCK<AU4> (A) 		8-98011-710-3 01 1 0807-0909 ● ●
29 SWITCH; DOOR
(B) BLACK 		8-98022-211-0 01 1 0807- ● ●
72 SWITCH; CRUISE CONT 8-98006-748-3 01 1 0807- ● ●
77 SWITCH; PTO
DEALER INSTALLED OPTION<6JJ> (A) PTO MAIN 		8-98032-058-4 01 1 0807- ● ●
77 SWITCH; PTO
DEALER INSTALLED OPTION<6JJ> (B) ENG IDLE CONT 		8-98061-161-1 01 1 0807- ● ●
249 SWITCH; HAZARD 8-98011-707-2 01 1 0807- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0807- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0807- ● ●
257 COVER; HOLE,SW
(A) 		8-98029-917-0 01 1 0807- ● ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-838-0 01 1 0807-0909 ● ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-843-0 01 1 0807-0909 ● ●
263 COVER; SW
(C) 		8-98025-954-1 02 1 0807- ● ●
263 COVER; SW
EXC. AUTO DOOR LOCK<AU4> (C) 		8-98025-954-1 01 1 0807-0909 ● ●
263 COVER; SW
(C) 		8-98025-954-1 01 1 0910- ● ●
677 SWITCH; ILLUMINATION 8-98006-775-3 01 1 0807- ● ●

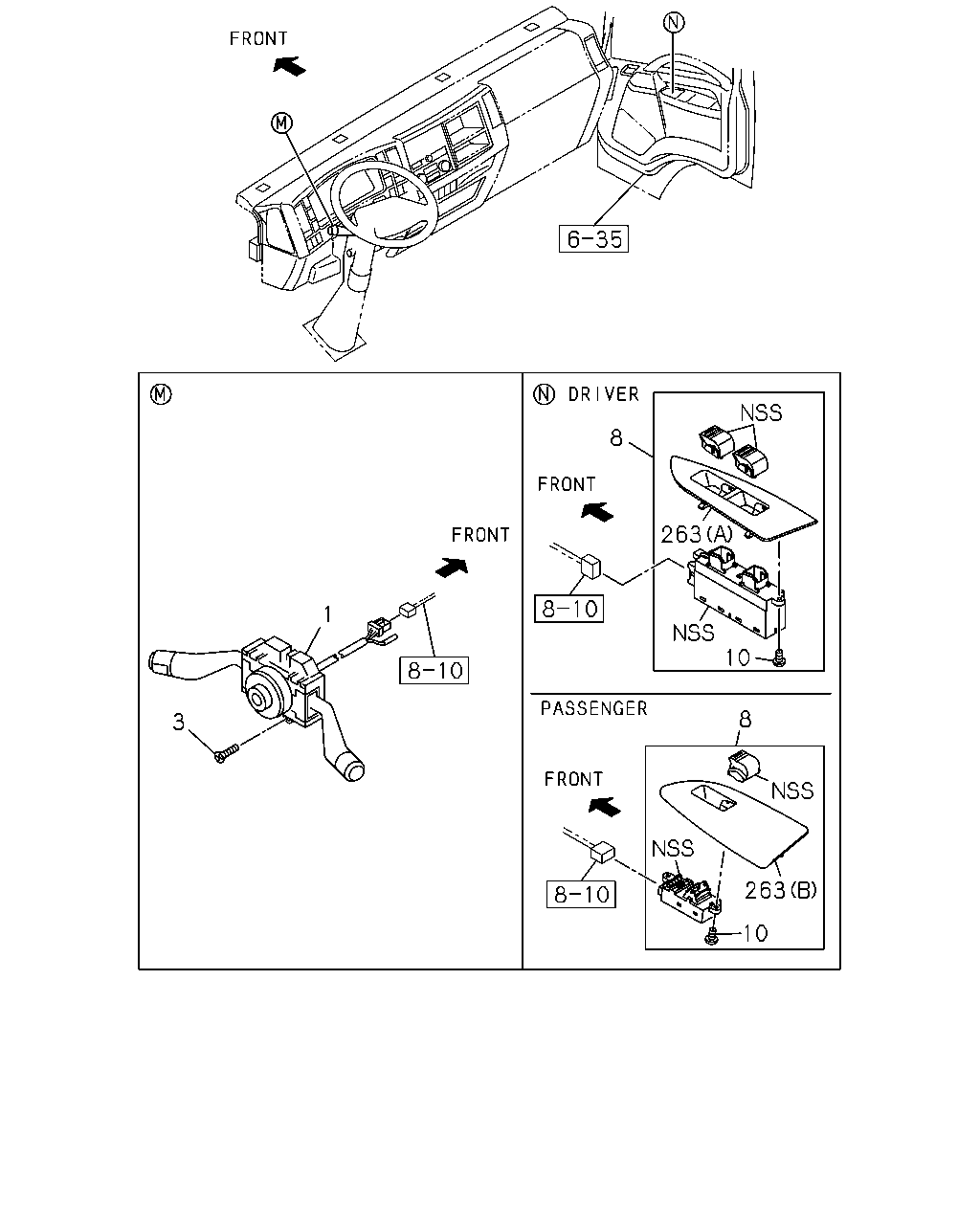

çizim 138019
8 263 1 10 8 3 263 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 8-98032-068-3 01 1 0807-1310 ● ●
1 SWITCH; COMB 8-98243-747-0 01 1 1311- ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0807- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98001-737-2 01 1 0807-0909 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98028-816-4 01 1 0807-0809 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98129-848-0 01 1 0810-0909 ● ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 0807-0909 ● ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-838-0 01 1 0807-0909 ● ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-843-0 01 1 0807-0909 ● ●
263 COVER; SW
(C) 		8-98025-954-1 02 1 0807- ● ●
263 COVER; SW
EXC. AUTO DOOR LOCK<AU4> (C) 		8-98025-954-1 01 1 0807-0909 ● ●
263 COVER; SW
(C) 		8-98025-954-1 01 1 0910- ● ●
çizim 138148
314 191 315 151 154
BalonParca AdiParca NoAdetTipApplied Date A B
151 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 12V 30A 		8-97210-972-1 01 1 0807- ● ●
154 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 12V 20A 		8-97173-037-1 01 1 0807- ● ●
191 RELAY; EXH BRK CUT
12V 20A 		8-97173-037-1 01 1 0807- ● ●
314 RELAY; ID LAMP
12V 20A 		8-97173-037-1 01 1 0807- ● ●
315 RELAY; EXH BRAKE CONT
12V 20A 		8-97173-037-1 01 1 0807- ● ●

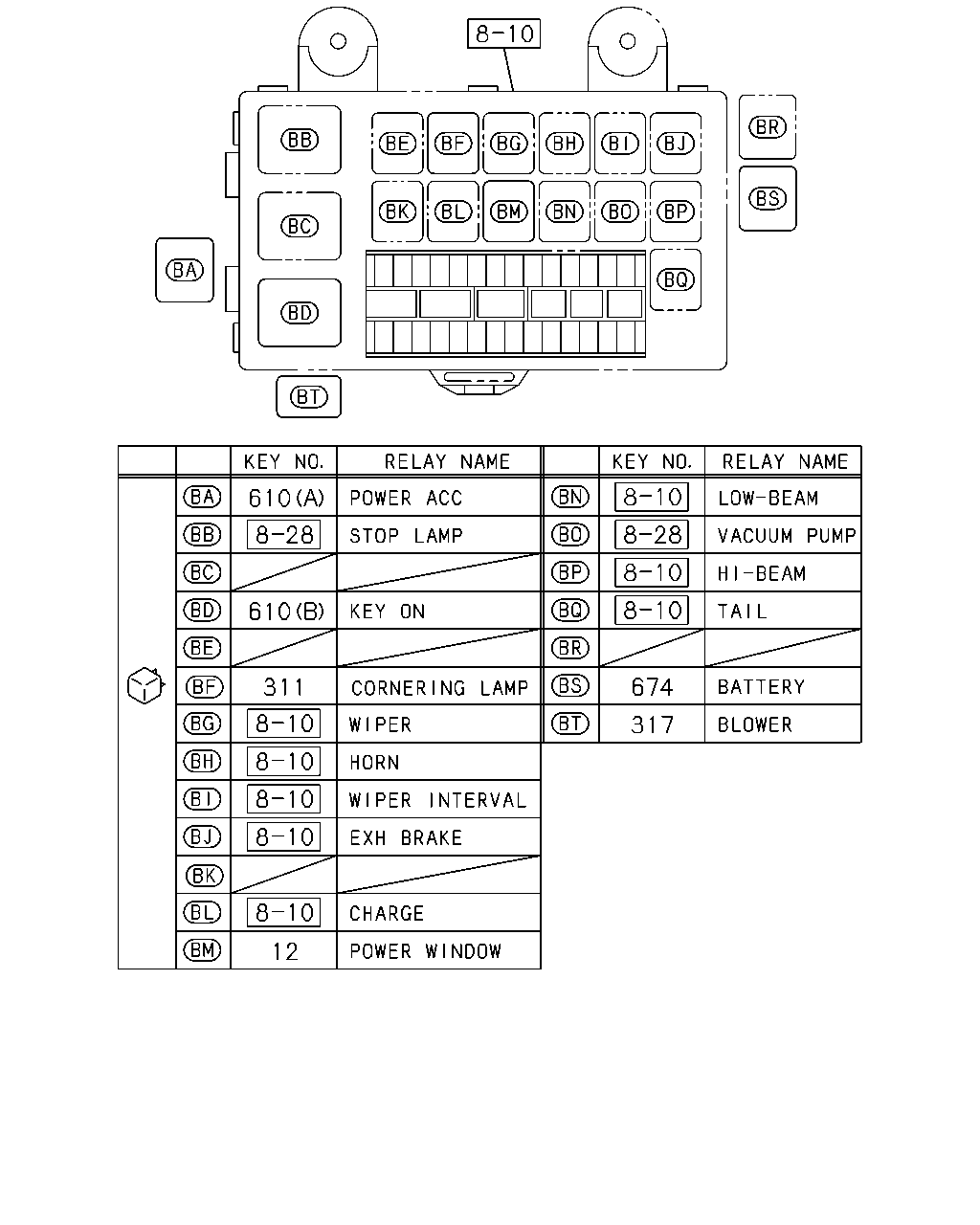

çizim 138274
610 610 311 674 317 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97173-037-1 01 1 0807-0909 ● ●
311 RELAY; CORNERING LAMP
12V 20A 		8-97173-037-1 01 1 0807- ● ●
317 RELAY; BLOWER MOTOR,HTR
12V 35A 		8-97180-794-1 01 1 0807- ● ●
610 RELAY; KEY ON
(A) 12V 35A 		8-97180-794-1 01 1 0807- ● ●
610 RELAY; KEY ON
(B) 12V 30A 		8-97210-972-1 01 1 0807- ● ●
674 RELAY; BATTERY
12V 20A 		8-97173-037-1 01 1 0807- ● ●

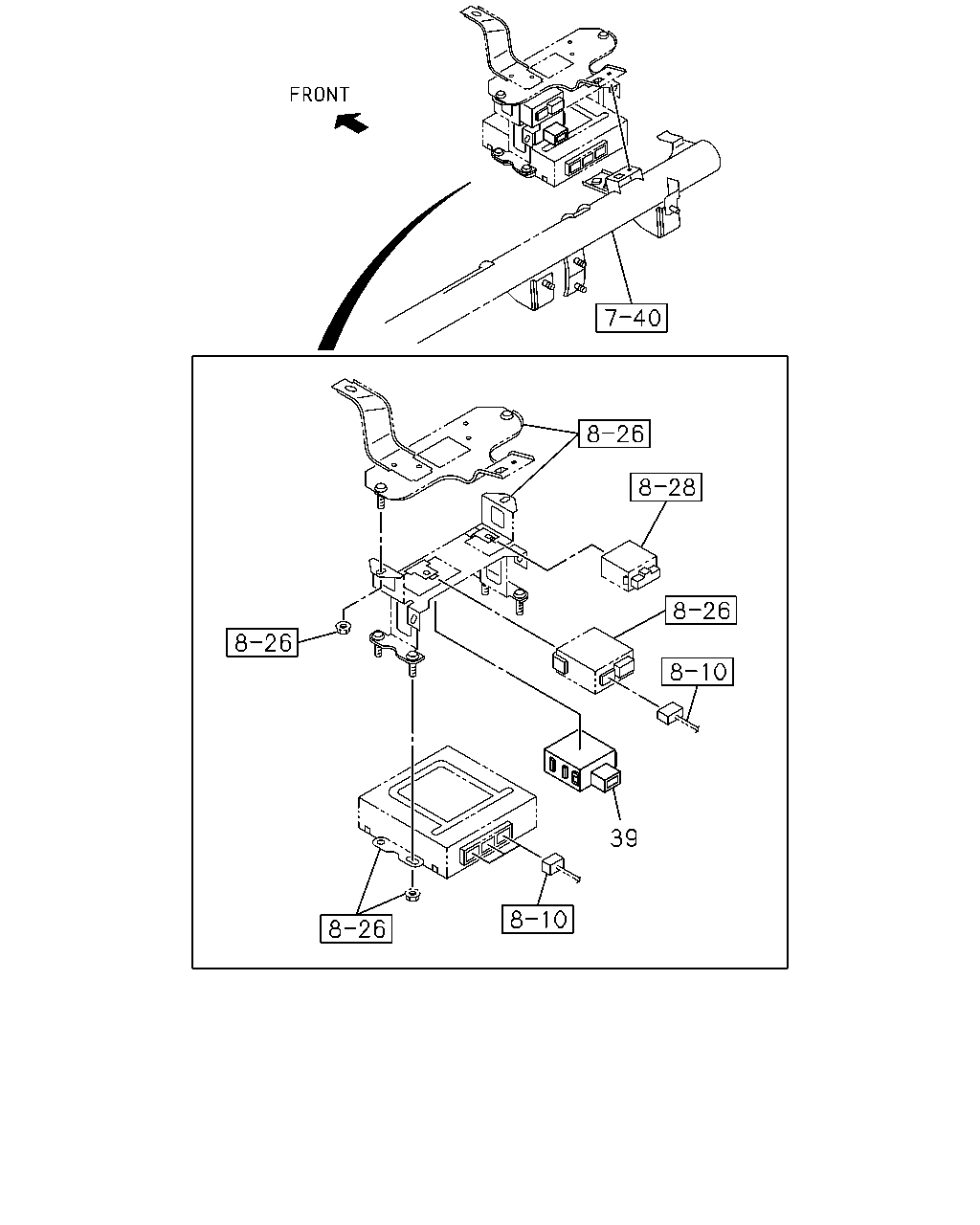

çizim 138509
39
BalonParca AdiParca NoAdetTipApplied Date A B
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98010-030-0 01 1 0807-0909 ● ●

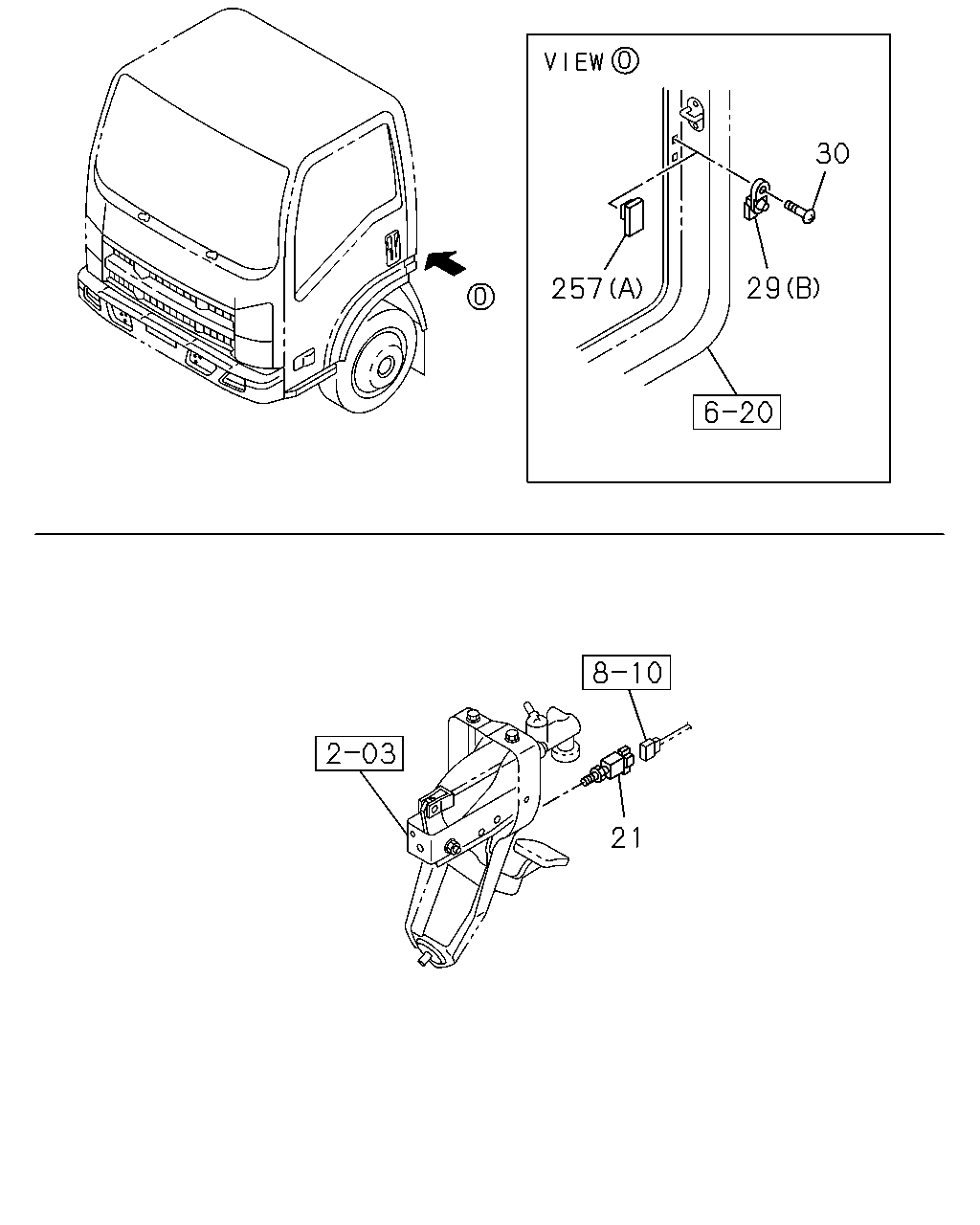

çizim 185900
30 29 257 21
BalonParca AdiParca NoAdetTipApplied Date A B
21 SWITCH; CLU 8-97358-248-0 01 1 0807- ● ●
29 SWITCH; DOOR
AUTO DOOR LOCK<AU4> (A) 		8-98011-710-3 01 1 0807-0909 ● ●
29 SWITCH; DOOR
(B) BLACK 		8-98022-211-0 01 1 0807- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0807- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0807- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0807- ● ●
257 COVER; HOLE,SW
(A) 		8-98029-917-0 01 1 0807- ● ●
