◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#75900) — 175 parça

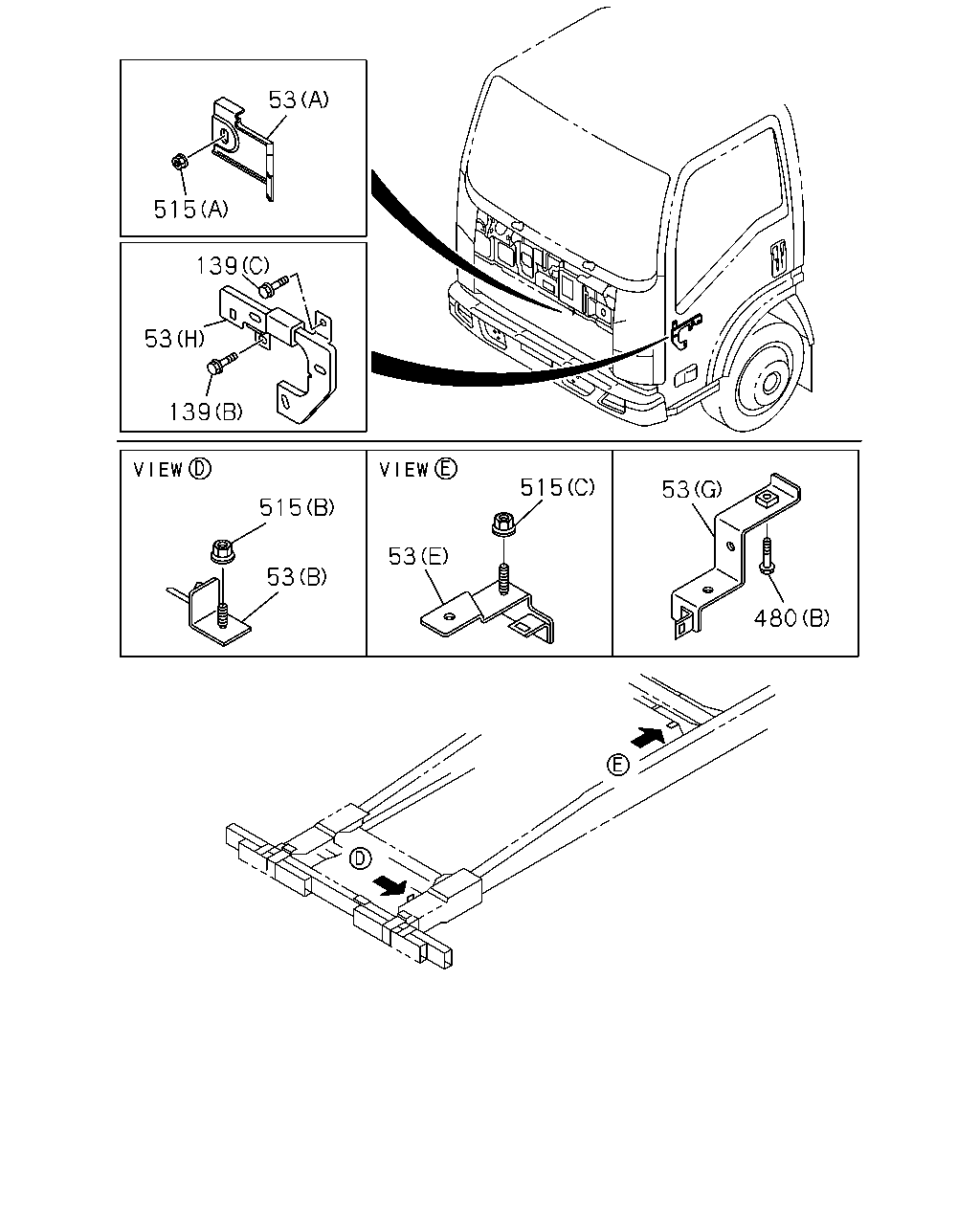

çizim 137015
53 515 139 53 139 515 53 515 53 53 480
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
(A) 		8-98014-410-2 01 1 0807- ● ●
53 BRACKET; HARNESS
(B) 		8-98032-016-1 01 1 0807- ● ●
53 BRACKET; HARNESS
(D) 		8-98052-458-0 01 1 0807- ● ●
53 BRACKET; HARNESS
(E) 		8-98055-731-1 01 1 0807-1011 ● ●
53 BRACKET; HARNESS
(E) 		8-98173-085-0 01 1 1012- ● ●
53 BRACKET; HARNESS
(G) 		8-98077-504-0 01 1 0807- ● ●
53 BRACKET; HARNESS
(H) 		8-98089-765-1 01 1 0807- ● ●
53 BRACKET; HARNESS
(C) 		8-98099-005-4 01 1 0807- ● ●
53 BRACKET; HARNESS
(F) 		8-98116-013-0 01 1 0807-1011 ● ●
139 BOLT; BRKT
(D) M6X16 FLANGE 		0-28050-616-0 02 1 0807- ● ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0807- ● ●
139 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0807- ● ●
139 BOLT; BRKT
(C) M6X12 FLANGE 		0-28450-612-0 01 1 0807-0809 ● ●
139 BOLT; BRKT
(E) M6X12 FLANGE 		8-97108-669-0 01 1 0810- ● ●
480 BOLT; BRKT
FRONT WIDE TREAD<7GV> (C) M8X16 FLANGE 		0-28050-816-0 02 1 1202- ●
480 BOLT; BRKT
(B) M10X40 FLANGE 		0-28651-040-0 01 1 0807-1011 ● ●
480 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0807- ● ●
515 NUT; BRKT
(D) M10 FLANGE 		0-91180-110-0 01 1 0807-1011 ● ●
515 NUT; BRKT
(D) M10 FLANGE 		0-91180-110-0 01 1 0807-1011 ● ●
515 NUT; BRKT
(D) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
515 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 0807- ● ●
515 NUT; BRKT
(C) M8 FLANGE 		0-91180-108-0 01 1 0807- ● ●
515 NUT; BRKT
(C) M8 FLANGE 		0-91180-108-0 02 1 0807- ● ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0807- ● ●
çizim 137018
53 53 459 459
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
(A) 		8-98014-410-2 01 1 0807- ● ●
53 BRACKET; HARNESS
(B) 		8-98032-016-1 01 1 0807- ● ●
53 BRACKET; HARNESS
(D) 		8-98052-458-0 01 1 0807- ● ●
53 BRACKET; HARNESS
(E) 		8-98055-731-1 01 1 0807-1011 ● ●
53 BRACKET; HARNESS
(E) 		8-98173-085-0 01 1 1012- ● ●
53 BRACKET; HARNESS
(G) 		8-98077-504-0 01 1 0807- ● ●
53 BRACKET; HARNESS
(H) 		8-98089-765-1 01 1 0807- ● ●
53 BRACKET; HARNESS
(C) 		8-98099-005-4 01 1 0807- ● ●
53 BRACKET; HARNESS
(F) 		8-98116-013-0 01 1 0807-1011 ● ●
459 BRACKET; SUPPORT,HARNESS
(B) 		8-97324-451-1 01 1 0807- ● ●
459 BRACKET; SUPPORT,HARNESS
(A) 		8-98101-457-0 01 1 0807- ● ●
çizim 137244
16 22 22 22 14 14 22 488 14 16 22 48 102 48 48 16
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(C) L=197 		1-83574-032-0 04 1 0807- ● ●
14 CLIP; BAND,HARNESS
(A) L=140 		5-09707-031-1 02 1 0807- ● ●
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 0807-0905 ● ●
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 0807-0905 ●
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 0906- ●
16 CLIP; HARNESS
(L) 		8-97229-356-0 01 1 0905-0905 ● ●
16 CLIP; HARNESS
(L) 		8-97229-356-0 02 1 0906- ● ●
16 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0807- ● ●
16 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0807- ● ●
16 CLIP; HARNESS
(K) ID=18 H=23 L=28 		1-09700-860-0 01 1 0807- ● ●
16 CLIP; HARNESS
(C) L=135 		1-09987-143-1 01 1 0807-1108 ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0807- ● ●
16 CLIP; HARNESS
(H) ID=3.8 WHITE 		8-94217-699-0 01 1 0807-0906 ● ●
16 CLIP; HARNESS
(I) L=91 ID=8.5 		8-94329-956-0 01 1 0807- ● ●
16 CLIP; HARNESS
(F) ID=10 & 16 		8-94413-325-0 01 1 0807- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 14 1 0807- ● ●
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 0807- ● ●
16 CLIP; HARNESS
(J) D8.5X19 PUSH RIVET 		8-97857-210-0 01 1 0807- ● ●
16 CLIP; HARNESS
(E) 		8-98052-679-0 02 1 0807- ● ●
22 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 0807- ● ●
22 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 0807- ● ●
22 CLIP; ENG HARNESS
(E) L=250 		5-09707-030-1 01 1 0807- ● ●
22 CLIP; ENG HARNESS
(B) L=100 		5-09707-036-1 02 1 0807- ● ●
22 CLIP; ENG HARNESS
(D) L=170 		5-09707-054-0 02 1 0807- ● ●
22 CLIP; ENG HARNESS
(C) L=350 		8-97373-487-0 01 1 0807- ● ●
48 CLIP; FRAME HARNESS
FUEL TANK 140L,37GAL<N19> (H) T=5.5 		8-97371-951-0 01 1 0807- ● ●
48 CLIP; FRAME HARNESS
FUEL TANK 125L,33GAL<NL7> (A) ID=14 L=47 		5-09700-319-0 01 1 0807-1411 ● ●
48 CLIP; FRAME HARNESS
FUEL TANK 125L,33GAL<NL7> (F) T=4.5 & 9 		8-97371-947-0 01 1 0807-1411 ● ●
48 CLIP; FRAME HARNESS
(D) L=450 		1-09707-142-1 01 1 0807- ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0807- ● ●
48 CLIP; FRAME HARNESS
(E) ID=20 		5-09700-321-0 01 1 0807- ● ●
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 01 1 0807- ● ●
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 01 1 0807- ● ●
48 CLIP; FRAME HARNESS
(G) L=350 		8-94152-256-1 01 1 0807- ● ●
48 CLIP; FRAME HARNESS
(B) ID=10 & 16.5 		8-94424-440-0 01 1 0807- ● ●
102 CLIP; BAND
L=170 		5-09707-054-0 01 1 0807- ● ●
488 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 0807- ● ●
çizim 137784
16 48 48 48 16 48 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(L) 		8-97229-356-0 01 1 0905-0905 ● ●
16 CLIP; HARNESS
(L) 		8-97229-356-0 02 1 0906- ● ●
16 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0807- ● ●
16 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0807- ● ●
16 CLIP; HARNESS
(K) ID=18 H=23 L=28 		1-09700-860-0 01 1 0807- ● ●
16 CLIP; HARNESS
(C) L=135 		1-09987-143-1 01 1 0807-1108 ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0807- ● ●
16 CLIP; HARNESS
(H) ID=3.8 WHITE 		8-94217-699-0 01 1 0807-0906 ● ●
16 CLIP; HARNESS
(I) L=91 ID=8.5 		8-94329-956-0 01 1 0807- ● ●
16 CLIP; HARNESS
(F) ID=10 & 16 		8-94413-325-0 01 1 0807- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 14 1 0807- ● ●
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 0807- ● ●
16 CLIP; HARNESS
(J) D8.5X19 PUSH RIVET 		8-97857-210-0 01 1 0807- ● ●
16 CLIP; HARNESS
(E) 		8-98052-679-0 02 1 0807- ● ●
48 CLIP; FRAME HARNESS
FUEL TANK 140L,37GAL<N19> (H) T=5.5 		8-97371-951-0 01 1 0807- ● ●
48 CLIP; FRAME HARNESS
FUEL TANK 125L,33GAL<NL7> (A) ID=14 L=47 		5-09700-319-0 01 1 0807-1411 ● ●
48 CLIP; FRAME HARNESS
FUEL TANK 125L,33GAL<NL7> (F) T=4.5 & 9 		8-97371-947-0 01 1 0807-1411 ● ●
48 CLIP; FRAME HARNESS
(D) L=450 		1-09707-142-1 01 1 0807- ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0807- ● ●
48 CLIP; FRAME HARNESS
(E) ID=20 		5-09700-321-0 01 1 0807- ● ●
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 01 1 0807- ● ●
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 01 1 0807- ● ●
48 CLIP; FRAME HARNESS
(G) L=350 		8-94152-256-1 01 1 0807- ● ●
48 CLIP; FRAME HARNESS
(B) ID=10 & 16.5 		8-94424-440-0 01 1 0807- ● ●

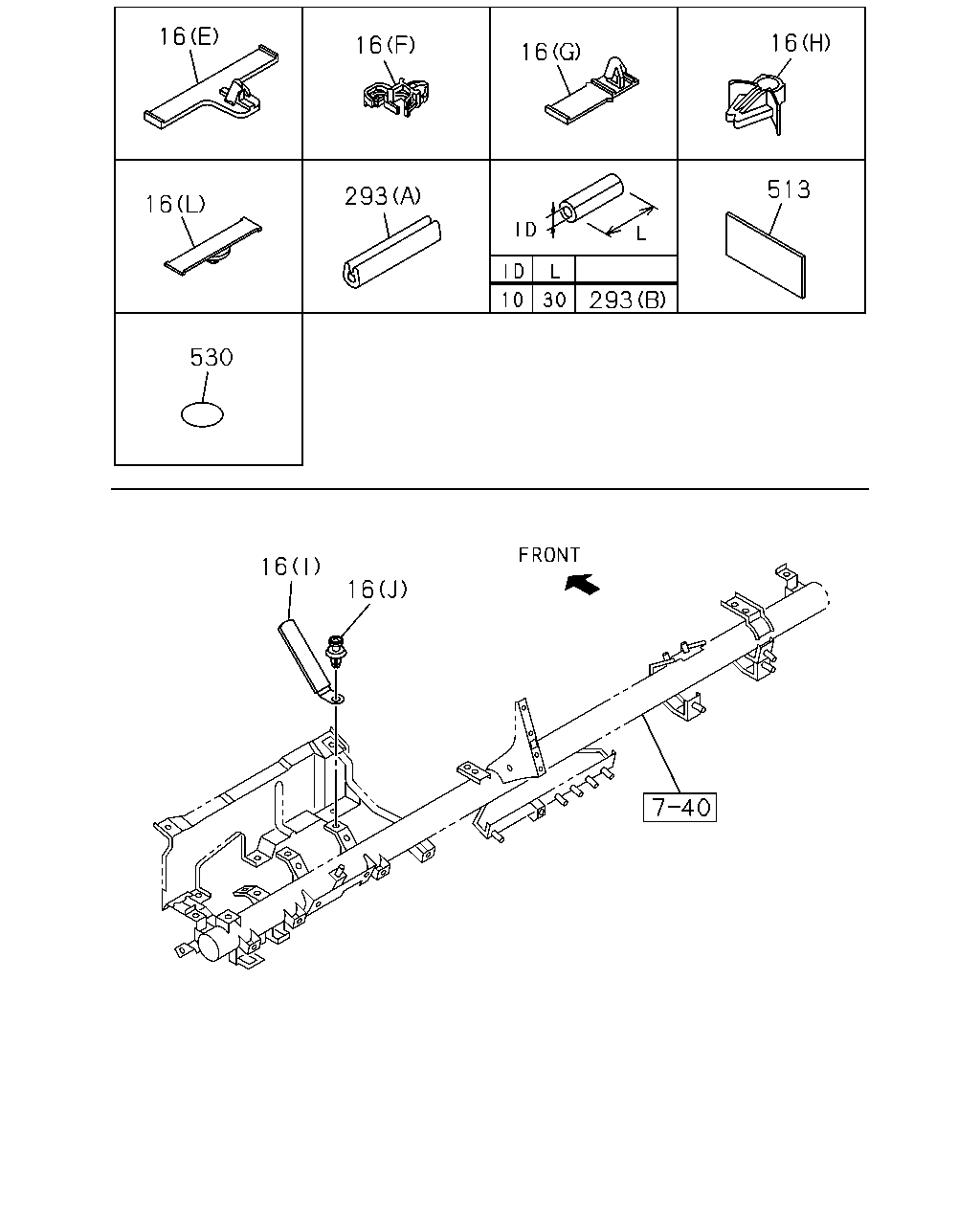

çizim 137788
16 16 16 16 513 293 16 293 530 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(L) 		8-97229-356-0 01 1 0905-0905 ● ●
16 CLIP; HARNESS
(L) 		8-97229-356-0 02 1 0906- ● ●
16 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0807- ● ●
16 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0807- ● ●
16 CLIP; HARNESS
(K) ID=18 H=23 L=28 		1-09700-860-0 01 1 0807- ● ●
16 CLIP; HARNESS
(C) L=135 		1-09987-143-1 01 1 0807-1108 ● ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0807- ● ●
16 CLIP; HARNESS
(H) ID=3.8 WHITE 		8-94217-699-0 01 1 0807-0906 ● ●
16 CLIP; HARNESS
(I) L=91 ID=8.5 		8-94329-956-0 01 1 0807- ● ●
16 CLIP; HARNESS
(F) ID=10 & 16 		8-94413-325-0 01 1 0807- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 14 1 0807- ● ●
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 0807- ● ●
16 CLIP; HARNESS
(J) D8.5X19 PUSH RIVET 		8-97857-210-0 01 1 0807- ● ●
16 CLIP; HARNESS
(E) 		8-98052-679-0 02 1 0807- ● ●
293 INSULATOR
(A) L=40 		8-94212-660-0 01 1 0807- ● ●
293 INSULATOR
(B) ID=10 OD=14 L=30 		9-09956-682-0 01 1 0807- ●
513 TAPE; SOFT,HARNESS
70X45 		8-97304-372-0 01 1 0907-1309 ● ●
530 SEAL; HARNESS
OD=32 BLACK 		8-98031-126-0 01 1 0807- ● ●
çizim 185897
139 38 139 139 313 139 150 139 150 480 529 516 480 38 358 480 377 377 377 386 377 386 386 377 386 516 82 515 577 294 515 515 552 219 515 519 524 552
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(A) M6X12 FLANGE 		0-28050-612-0 01 1 0807- ● ●
38 BOLT; CLIP,HARNESS
(B) M10X12 FLANGE 		0-28151-012-0 01 1 0807- ● ●
82 WASHER; PL BRKT,HARNESS
ID=10.5 		0-91610-710-0 01 1 0807- ● ●
139 BOLT; BRKT
(D) M6X16 FLANGE 		0-28050-616-0 02 1 0807- ● ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0807- ● ●
139 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0807- ● ●
139 BOLT; BRKT
(C) M6X12 FLANGE 		0-28450-612-0 01 1 0807-0809 ● ●
139 BOLT; BRKT
(E) M6X12 FLANGE 		8-97108-669-0 01 1 0810- ● ●
150 BOLT; CLIP
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0807- ● ●
150 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0807- ● ●
219 NUT
M10 FLANGE 		0-91180-110-0 01 1 0807- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0807- ● ●
313 BOLT; BRKT
M6X16 FLANGE 		0-28450-616-0 01 1 0807- ● ●
358 BOLT; EARTH
M10X12 FLANGE 		0-28151-012-0 01 1 0807- ● ●
377 BOLT; CAB EARTH
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0807-1004 ● ●
377 BOLT; CAB EARTH
(D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1005- ● ●
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0807-1004 ● ●
377 BOLT; CAB EARTH
(E) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1005- ● ●
377 BOLT; CAB EARTH
(C) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0807-1004 ● ●
386 BOLT; GRAND HARNESS
(C) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008- ● ●
386 BOLT; GRAND HARNESS
(C) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-1005 ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0807-1004 ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 1005-1005 ● ●
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0807-1004 ● ●
386 BOLT; GRAND HARNESS
(D) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1005-1005 ● ●
386 BOLT; GRAND HARNESS
(D) M8X24 W/PL WASHER 		8-98141-256-1 03 1 1006-1007 ● ●
386 BOLT; GRAND HARNESS
(D) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1008- ● ●
480 BOLT; BRKT
FRONT WIDE TREAD<7GV> (C) M8X16 FLANGE 		0-28050-816-0 02 1 1202- ●
480 BOLT; BRKT
(B) M10X40 FLANGE 		0-28651-040-0 01 1 0807-1011 ● ●
480 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0807- ● ●
515 NUT; BRKT
(D) M10 FLANGE 		0-91180-110-0 01 1 0807-1011 ● ●
515 NUT; BRKT
(D) M10 FLANGE 		0-91180-110-0 01 1 0807-1011 ● ●
515 NUT; BRKT
(D) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
515 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 0807- ● ●
515 NUT; BRKT
(C) M8 FLANGE 		0-91180-108-0 01 1 0807- ● ●
515 NUT; BRKT
(C) M8 FLANGE 		0-91180-108-0 02 1 0807- ● ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0807- ● ●
516 BOLT; HARNESS
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0807- ● ●
516 BOLT; HARNESS
(A) SCREW M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0807- ● ●
519 NUT; EARTH CABLE
M10 FLANGE 		0-91180-110-0 01 1 0807- ● ●
524 NUT; HARNESS
M10 FLANGE 		0-91180-110-0 02 1 0807- ● ●
529 BOLT; RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 0807- ● ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE 		0-91180-108-0 02 1 0807- ● ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE 		0-91180-110-0 01 1 0807- ● ●
577 NUT; FUSE BOX
M6 FLANGE 		0-91180-106-0 02 1 0807- ● ●

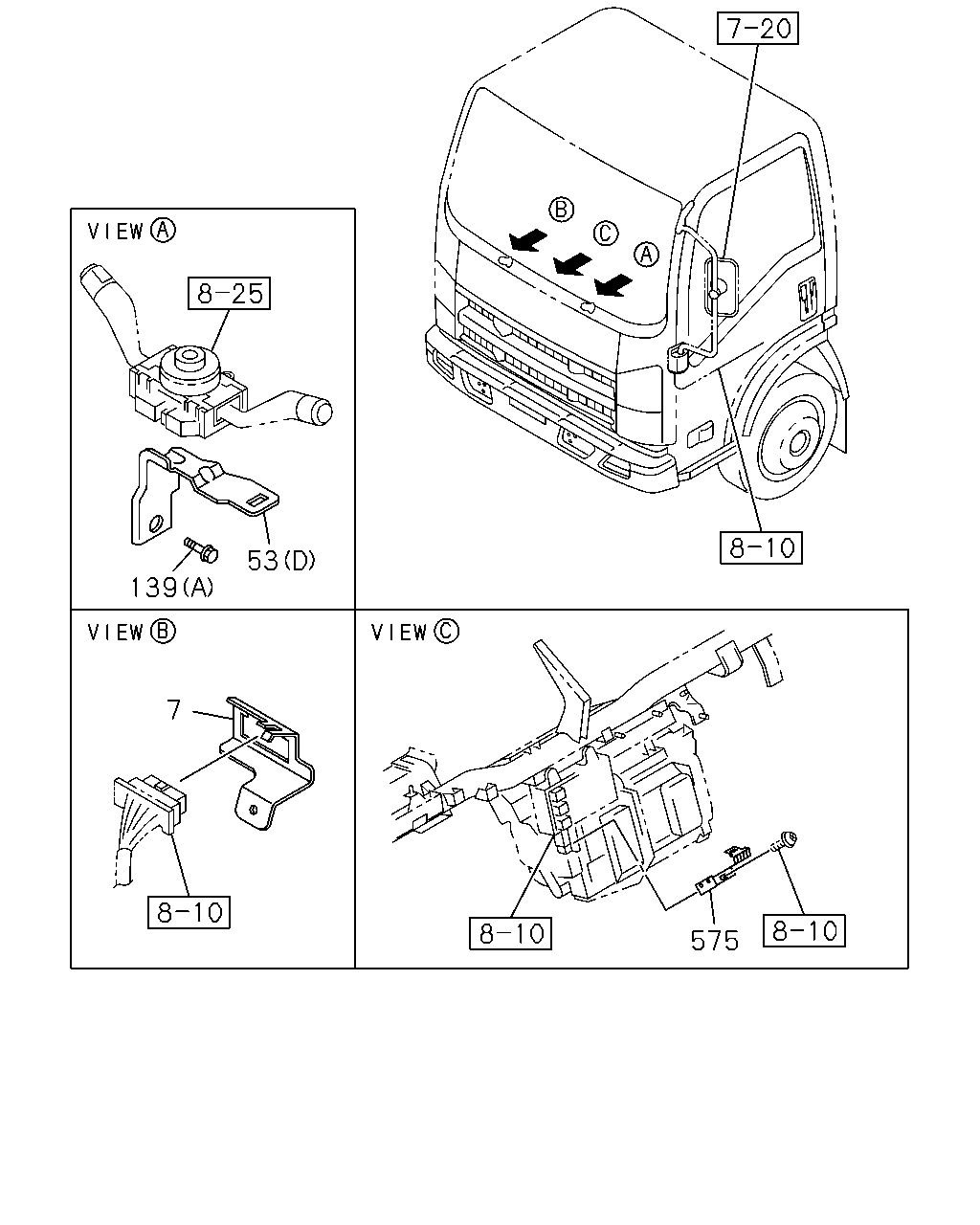

çizim 185899
53 139 7 575
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98043-070-1 01 1 0807- ● ●
53 BRACKET; HARNESS
(A) 		8-98014-410-2 01 1 0807- ● ●
53 BRACKET; HARNESS
(B) 		8-98032-016-1 01 1 0807- ● ●
53 BRACKET; HARNESS
(D) 		8-98052-458-0 01 1 0807- ● ●
53 BRACKET; HARNESS
(E) 		8-98055-731-1 01 1 0807-1011 ● ●
53 BRACKET; HARNESS
(E) 		8-98173-085-0 01 1 1012- ● ●
53 BRACKET; HARNESS
(G) 		8-98077-504-0 01 1 0807- ● ●
53 BRACKET; HARNESS
(H) 		8-98089-765-1 01 1 0807- ● ●
53 BRACKET; HARNESS
(C) 		8-98099-005-4 01 1 0807- ● ●
53 BRACKET; HARNESS
(F) 		8-98116-013-0 01 1 0807-1011 ● ●
139 BOLT; BRKT
(D) M6X16 FLANGE 		0-28050-616-0 02 1 0807- ● ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0807- ● ●
139 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0807- ● ●
139 BOLT; BRKT
(C) M6X12 FLANGE 		0-28450-612-0 01 1 0807-0809 ● ●
139 BOLT; BRKT
(E) M6X12 FLANGE 		8-97108-669-0 01 1 0810- ● ●
575 BRACKET; FUSE BOX 8-98054-320-2 01 1 0807- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
