4-01 — PROPELLER SHAFT (#759) — 127 parça

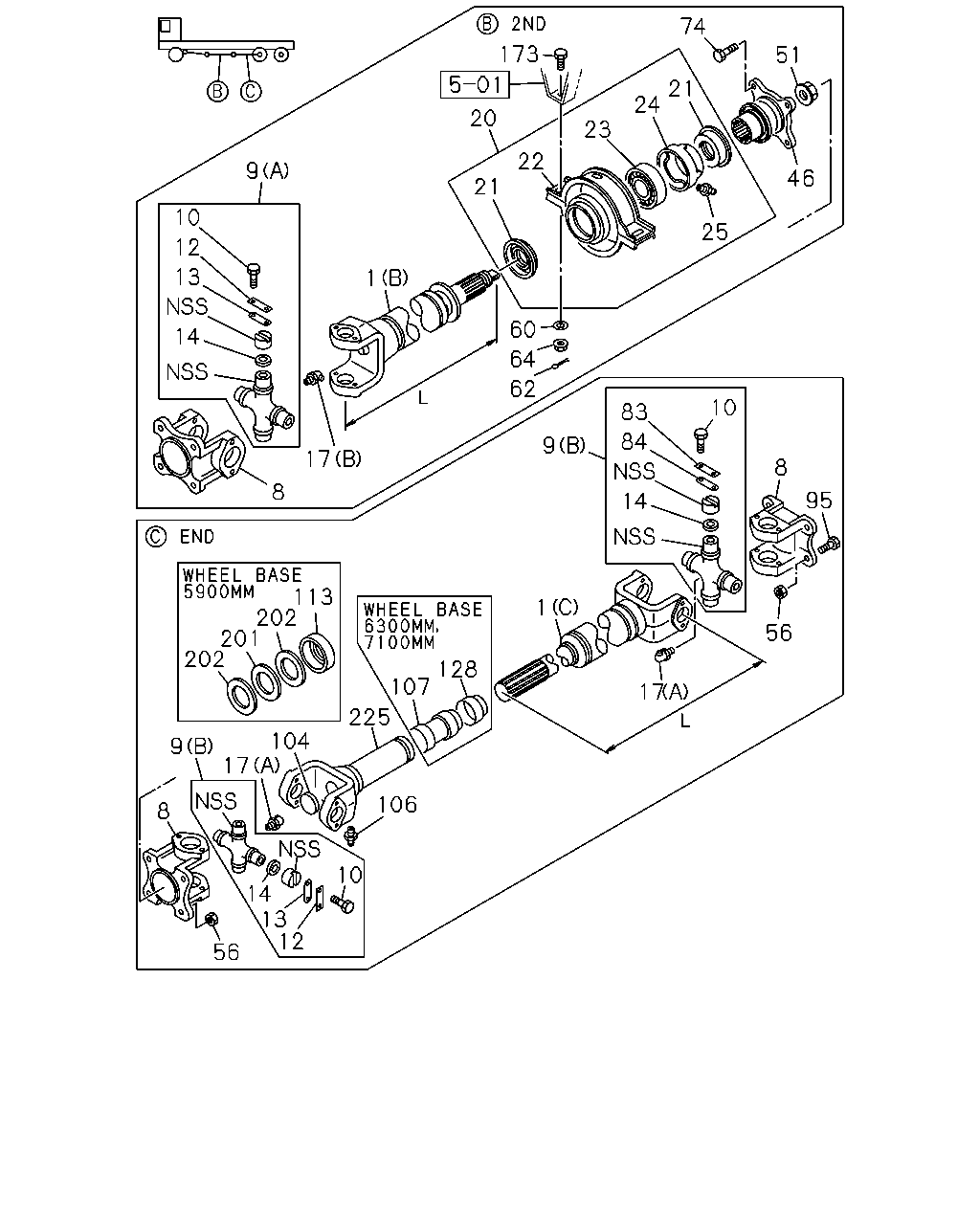

çizim 29236
74 173 51 21 24 20 23 22 9 46 21 10 25 12 13 1 60 14 64 62 10 83 84 9 17 8 8 95 14 113 202 201 202 1 128 56 107 17 225 104 9 17 106 8 10 14 13 12 56
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(C) L=957 		1-37117-362-0 01 1 9204- ●
1 SHAFT; PROP
(A),(B) L=768 		1-37123-592-0 02 1 9204-9208 ●
1 SHAFT; PROP
(A),(B) L=768 		1-37123-592-0 01 1 9209- ●
1 SHAFT; PROP
FULLER RT6609 M/T(X8M) (A),(B) L=768 		1-37123-592-0 01 1 9209- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=678 		1-37117-706-0 01 1 9209- ●
1 SHAFT; PROP
(C) L=1232 		1-37117-590-0 01 1 9204- ●
1 SHAFT; PROP
(B) L=1053 		1-37123-621-0 01 1 9204- ●
1 SHAFT; PROP
(A) L=993 		1-37151-214-0 01 1 9204- ●
1 SHAFT; PROP
(A) L=1090 		1-37116-843-0 01 1 9505- ●
1 SHAFT; PROP
(C) L=1236 		1-37123-208-0 01 1 9505- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 04 1 9204- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-040-0 03 1 9505- ●
9 JOURNAL ASM; PROP SHAFT
(A),(B) 		1-37300-082-0 04 1 9204- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-004-0 01 1 9505- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-087-0 02 1 9505- ●
10 BOLT; UJT
M8X20 		9-09802-702-0 32 1 9204- ● ●
10 BOLT; UJT
M8X20 		9-09802-702-0 24 1 9505- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-006-1 12 1 9204- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-007-0 08 1 9505- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-003-1 12 1 9204- ● ●
13 COVER; FRT UJT,PROP SHAFT
T=4.5 		1-37355-011-0 08 1 9505- ●
14 COVER; DUST,SPIDER 1-37249-130-0 16 1 9204- ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 12 1 9505- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9204- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9204- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(C) PT1/8 ELBOW 		9-09031-210-0 01 1 9505- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 02 1 9204- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 9505- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 04 1 9204- ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 9505- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 02 1 9204- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 9505- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 02 1 9204- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 9505- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 02 1 9204- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 9505- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9204- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9204- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 9204- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-052-0 02 1 9204-9408 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 02 1 9409- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 9505- ●
51 NUT; FLANGE,SPLINED
M39 		1-09440-035-0 02 1 9204- ● ●
51 NUT; FLANGE,SPLINED
M33 		1-09449-001-0 01 1 9505- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 9204- ● ● ●
60 WASHER; PL,RET TO BRKT
ID=17 		1-09503-241-0 02 1 9204- ● ●
62 PIN; SPLIT,BRKT,PROP SHAFT
OD=3.7 L=25 		9-08114-025-0 02 1 9204- ● ● ●
62 PIN; SPLIT,BRKT,PROP SHAFT
OD=3.7 L=25 		9-08114-025-0 02 1 9204- ● ●
64 NUT; RET TO BRKT
M16 SLOTTED 		9-99116-516-0 02 1 9204- ● ● ●
64 NUT; RET TO BRKT
M16 SLOTTED 		9-99116-516-0 02 1 9204- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9204- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9204- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9204- ● ●
83 PLATE; LK,UJT,PROP SHAFT 9-37356-006-1 04 1 9204- ● ●
83 PLATE; LK,UJT,PROP SHAFT 9-37356-007-0 04 1 9505- ●
84 COVER; UJT,PROP SHAFT 1-37355-003-1 04 1 9204- ● ●
84 COVER; UJT,PROP SHAFT
T=4.5 		1-37355-011-0 04 1 9505- ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9204- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 9204- ● ●
104 PLUG; SLEEVE YOKE 9-09860-507-0 01 1 9505- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9204- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9505- ●
107 COVER; RET,SLEEVE 1-37249-039-1 01 1 9204- ● ●
113 RETAINER; OIL SEAL,SLEEVE 9-37248-013-0 01 1 9505- ●
128 SEAL; SLEEVE 1-37247-016-0 01 1 9204- ● ●
173 BOLT; BRKT
M16X45 		1-09042-030-0 02 1 9204- ● ●
201 RING; FELT,SLEEVE 9-09922-121-0 01 1 9505- ●
202 RING; FELT SEAL,SLEEVE 9-37249-105-0 02 1 9505- ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-097-0 01 1 9204- ● ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-100-0 01 1 9505- ●

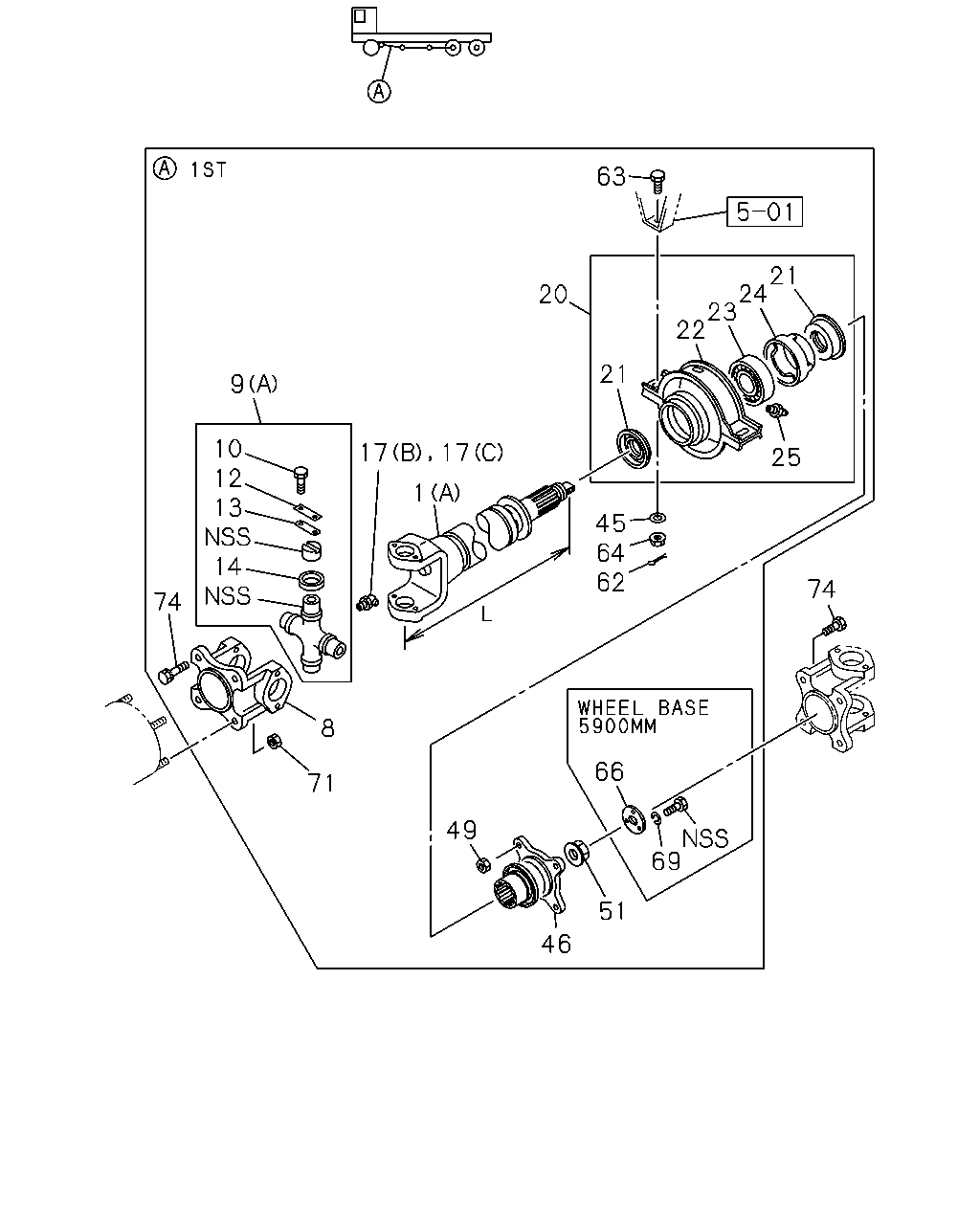

çizim 95023
63 21 24 23 22 20 21 9 10 12 13 14 17 17 25 1 45 64 62 74 74 8 66 71 49 69 51 46
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(C) L=957 		1-37117-362-0 01 1 9204- ●
1 SHAFT; PROP
(A),(B) L=768 		1-37123-592-0 02 1 9204-9208 ●
1 SHAFT; PROP
(A),(B) L=768 		1-37123-592-0 01 1 9209- ●
1 SHAFT; PROP
FULLER RT6609 M/T(X8M) (A),(B) L=768 		1-37123-592-0 01 1 9209- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=678 		1-37117-706-0 01 1 9209- ●
1 SHAFT; PROP
(C) L=1232 		1-37117-590-0 01 1 9204- ●
1 SHAFT; PROP
(B) L=1053 		1-37123-621-0 01 1 9204- ●
1 SHAFT; PROP
(A) L=993 		1-37151-214-0 01 1 9204- ●
1 SHAFT; PROP
(A) L=1090 		1-37116-843-0 01 1 9505- ●
1 SHAFT; PROP
(C) L=1236 		1-37123-208-0 01 1 9505- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 04 1 9204- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-040-0 03 1 9505- ●
9 JOURNAL ASM; PROP SHAFT
(A),(B) 		1-37300-082-0 04 1 9204- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-004-0 01 1 9505- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-087-0 02 1 9505- ●
10 BOLT; UJT
M8X20 		9-09802-702-0 32 1 9204- ● ●
10 BOLT; UJT
M8X20 		9-09802-702-0 24 1 9505- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-006-1 12 1 9204- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 9-37356-007-0 08 1 9505- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-003-1 12 1 9204- ● ●
13 COVER; FRT UJT,PROP SHAFT
T=4.5 		1-37355-011-0 08 1 9505- ●
14 COVER; DUST,SPIDER 1-37249-130-0 16 1 9204- ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 12 1 9505- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9204- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9204- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(C) PT1/8 ELBOW 		9-09031-210-0 01 1 9505- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 02 1 9204- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 9505- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 04 1 9204- ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 9505- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 02 1 9204- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 9505- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 02 1 9204- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 9505- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 02 1 9204- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 9505- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9204- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9204- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 9204- ●
45 WASHER; PL,RET TO BRKT
ID=17 		1-09503-241-0 02 1 9204- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-052-0 02 1 9204-9408 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 02 1 9409- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 9505- ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9204- ● ●
51 NUT; FLANGE,SPLINED
M39 		1-09440-035-0 02 1 9204- ● ●
51 NUT; FLANGE,SPLINED
M33 		1-09449-001-0 01 1 9505- ●
62 PIN; SPLIT,BRKT,PROP SHAFT
OD=3.7 L=25 		9-08114-025-0 02 1 9204- ● ● ●
62 PIN; SPLIT,BRKT,PROP SHAFT
OD=3.7 L=25 		9-08114-025-0 02 1 9204- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M16X45 		1-09042-030-0 02 1 9204- ● ● ●
64 NUT; RET TO BRKT
M16 SLOTTED 		9-99116-516-0 02 1 9204- ● ● ●
64 NUT; RET TO BRKT
M16 SLOTTED 		9-99116-516-0 02 1 9204- ● ●
66 WASHER 1-09509-001-0 01 1 9505- ●
69 WASHER; LK,SPLINED
ID=6.1 		9-09150-606-0 03 1 9505- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9204- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9204- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9204- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9204- ● ●
