◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#75899) — 101 parça

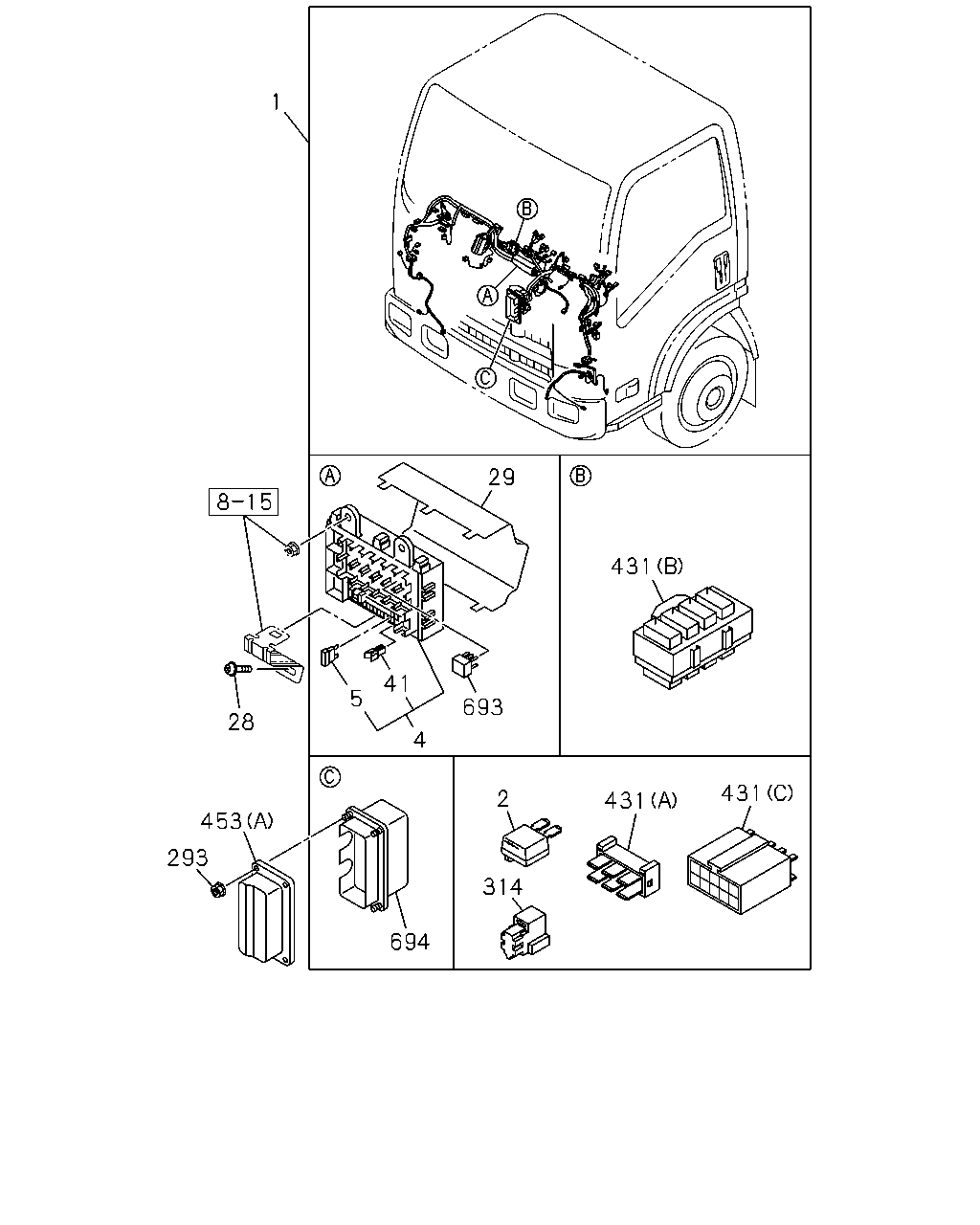

çizim 136052
1 29 431 41 5 693 28 4 431 2 431 453 293 314 694
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB 8-98098-677-1 01 1 0807-1102 ● ●
1 HARNESS; CAB 8-98155-976-1 01 1 1103- ● ●
2 DIODE; CABLE HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 0807- ● ●
4 BOX ASM; FUSE,HARNESS 8-98083-232-0 01 1 0807- ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0807- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0807- ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0807- ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 0807- ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0807-1101 ● ●
28 SCREW; FUSE BOX
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 0807- ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 0807- ● ●
293 NUT
M6 FLANGE 		0-91180-106-0 04 1 0807- ● ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0807- ● ●
431 CONNECTOR; JOINT
(C) 10P 		8-97077-943-0 02 1 0807- ● ●
431 CONNECTOR; JOINT
(A) 6P WHITE 		8-98024-584-0 01 1 0807- ● ●
431 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 0807- ● ●
453 PROTECTOR; HARNESS
(C) 		8-94417-716-0 01 1 0807- ● ●
453 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 0807- ● ●
453 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 0807- ● ●
693 RELAY; FUSE BOX
12V 20A 		8-97173-037-1 AR 1 0807- ● ●
694 BOX ASM; CONNECTOR 8-98057-640-0 01 1 0807-1208 ● ●
694 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1209- ● ●

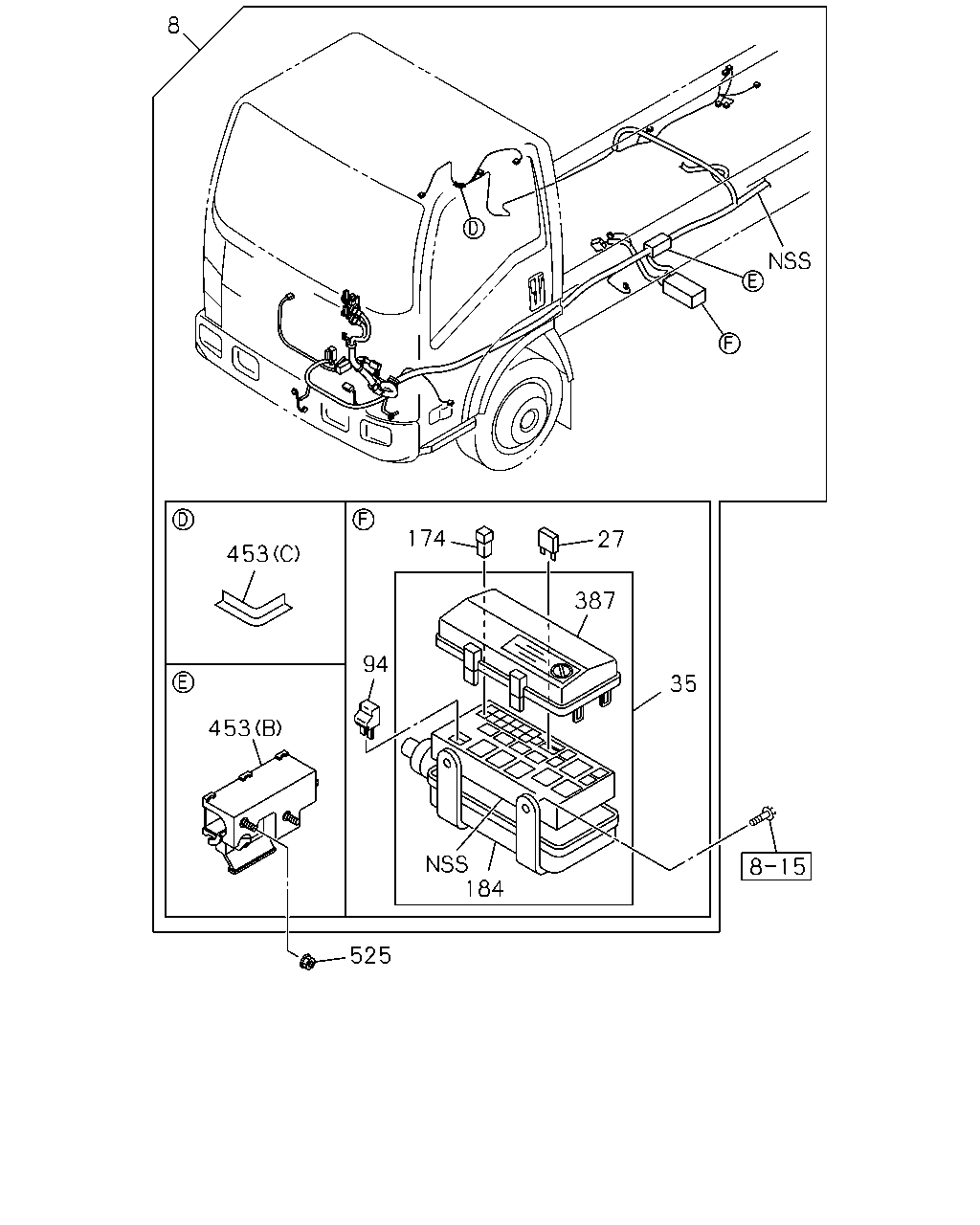

çizim 136242
8 174 27 453 387 94 35 453 184 525
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> 		8-98159-120-0 01 1 1001-1006 ● ●
8 HARNESS; FRAME,FRT
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> 		8-98171-859-1 01 1 1007-1411 ● ●
8 HARNESS; FRAME,FRT
EXC. FUEL TANK 140L,37GAL<N19> 		8-98171-859-1 01 1 1412- ● ●
8 HARNESS; FRAME,FRT 8-98098-780-3 01 1 0807-0912 ● ●
8 HARNESS; FRAME,FRT
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> 		8-98098-780-3 01 1 1001-1006 ● ●
8 HARNESS; FRAME,FRT
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> 		8-98171-858-1 01 1 1007-1411 ● ●
8 HARNESS; FRAME,FRT
FUEL TANK 140L,37GAL<N19> 		8-98171-858-1 01 1 1412- ● ●
27 FUSE UNIT
10A RED 		8-98054-257-0 AR 1 0807- ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 AR 1 0807- ● ●
27 FUSE UNIT
20A YELLOW 		8-98054-259-0 AR 1 0807- ● ●
35 BOX; RELAY & FUSE 8-98030-763-0 01 1 0807- ● ●
94 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 03 1 0807- ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 0807- ● ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 0807- ● ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 0807- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 0807- ● ●
184 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 0807- ● ●
387 COVER; RELAY BOX 8-98057-626-0 01 1 0807- ● ●
453 PROTECTOR; HARNESS
(C) 		8-94417-716-0 01 1 0807- ● ●
453 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 0807- ● ●
453 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 0807- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0807- ● ●
çizim 136500
4 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS 8-98083-232-0 01 1 0807- ● ●
693 RELAY; FUSE BOX
12V 20A 		8-97173-037-1 AR 1 0807- ● ●
çizim 136642
626 8 189 339 374
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> 		8-98159-120-0 01 1 1001-1006 ● ●
8 HARNESS; FRAME,FRT
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> 		8-98171-859-1 01 1 1007-1411 ● ●
8 HARNESS; FRAME,FRT
EXC. FUEL TANK 140L,37GAL<N19> 		8-98171-859-1 01 1 1412- ● ●
8 HARNESS; FRAME,FRT 8-98098-780-3 01 1 0807-0912 ● ●
8 HARNESS; FRAME,FRT
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> 		8-98098-780-3 01 1 1001-1006 ● ●
8 HARNESS; FRAME,FRT
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> 		8-98171-858-1 01 1 1007-1411 ● ●
8 HARNESS; FRAME,FRT
FUEL TANK 140L,37GAL<N19> 		8-98171-858-1 01 1 1412- ● ●
189 HARNESS; EXT 8-98098-781-1 01 1 0807- ● ●
339 HARNESS; EXT,FUEL
FUEL TANK 125L,33GAL<NL7> 		8-98041-583-3 01 1 0807-1411 ● ●
339 HARNESS; EXT,FUEL
WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> 		8-98295-870-0 01 1 1412- ● ●
339 HARNESS; EXT,FUEL
FUEL TANK 140L,37GAL<N19> 		8-98114-720-1 01 1 0807-1411 ● ●
339 HARNESS; EXT,FUEL
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> 		8-98114-720-1 01 1 1412- ●
339 HARNESS; EXT,FUEL
WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> 		8-98114-720-1 01 1 1412- ●
374 PLUG; HARNESS CONNECTOR
OD=32 BLACK 		8-98031-126-0 01 1 0807- ● ●
626 HARNESS; FLEX HOSE 8-97207-700-1 01 1 0807- ● ●
626 HARNESS; FLEX HOSE 8-97253-968-1 01 1 0807- ● ●

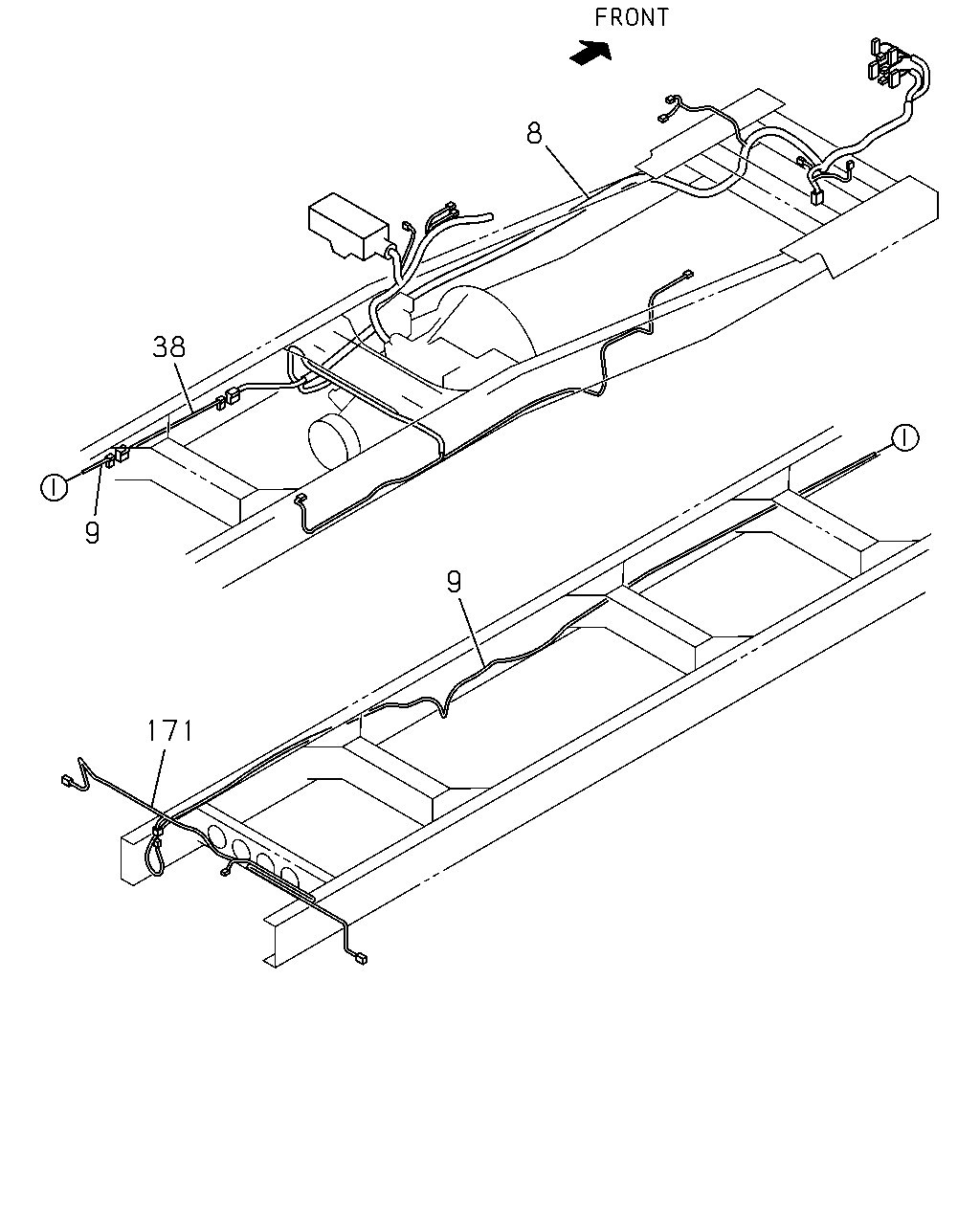

çizim 136720
8 38 9 171 9
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> 		8-98159-120-0 01 1 1001-1006 ● ●
8 HARNESS; FRAME,FRT
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> 		8-98171-859-1 01 1 1007-1411 ● ●
8 HARNESS; FRAME,FRT
EXC. FUEL TANK 140L,37GAL<N19> 		8-98171-859-1 01 1 1412- ● ●
8 HARNESS; FRAME,FRT 8-98098-780-3 01 1 0807-0912 ● ●
8 HARNESS; FRAME,FRT
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> 		8-98098-780-3 01 1 1001-1006 ● ●
8 HARNESS; FRAME,FRT
FUEL TANK 125L,33GAL<NL7>,FUEL TANK 140L, 37GAL<N19> 		8-98171-858-1 01 1 1007-1411 ● ●
8 HARNESS; FRAME,FRT
FUEL TANK 140L,37GAL<N19> 		8-98171-858-1 01 1 1412- ● ●
9 HARNESS; FRAME,RR
WHEEL BASE 2800MM(28W) 		8-98117-240-0 01 1 0807- ● ●
9 HARNESS; FRAME,RR
WHEEL BASE 3400MM(34W) 		8-98117-241-0 01 1 0807- ● ●
9 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 		8-98117-242-0 01 1 0807- ● ●
9 HARNESS; FRAME,RR
WHEEL BASE 4500MM(45W) 		8-98117-243-0 01 1 0807- ●
38 HARNESS; CHAS 8-98163-731-0 01 1 1001- ● ●
171 HARNESS; CABLE,TAIL LAMP 8-98039-668-0 01 1 0807- ● ●

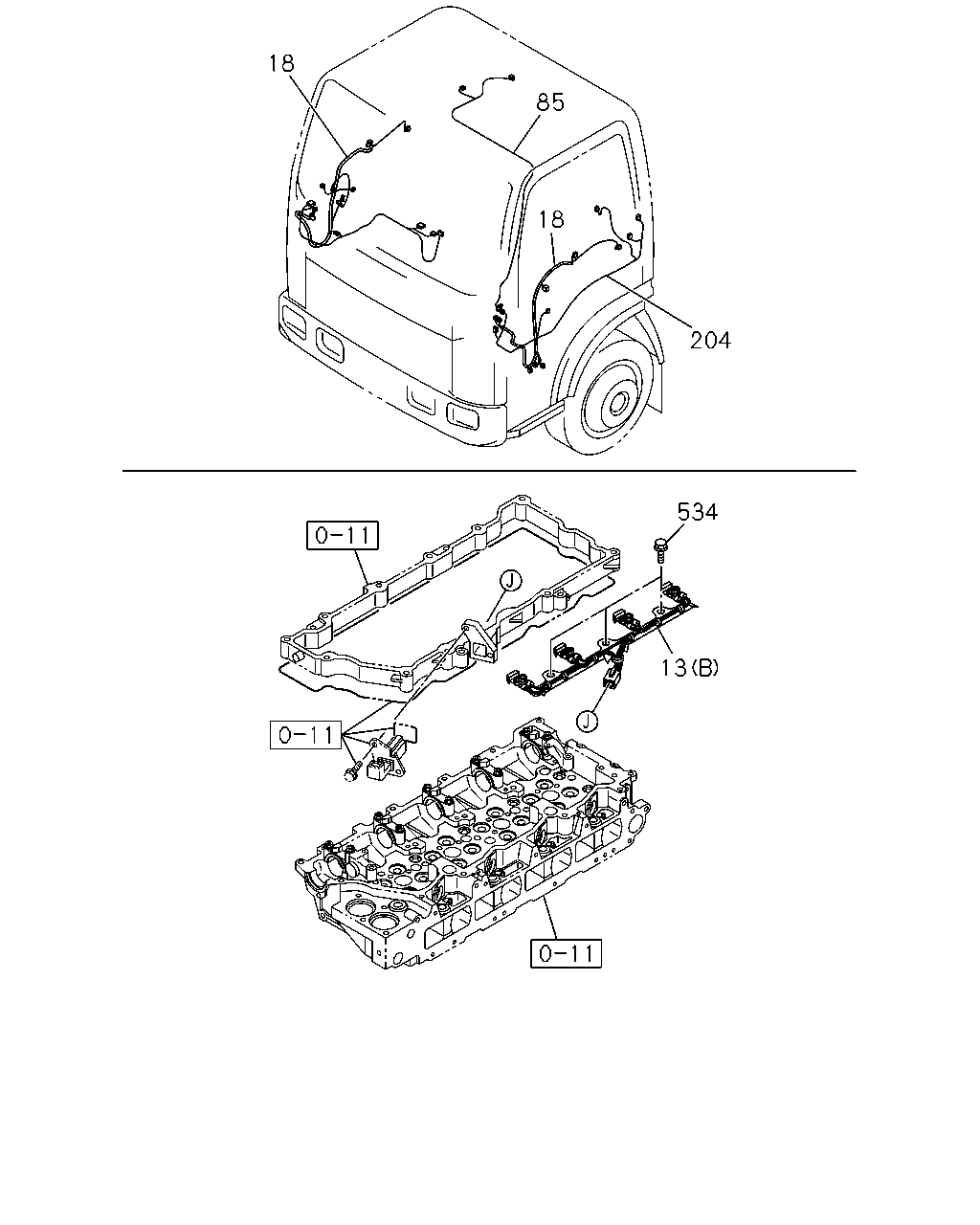

çizim 136769
18 85 204 534 13 18
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
(B) 		8-97332-133-3 01 1 0807- ● ●
13 HARNESS; ENG
(A) 		8-98023-702-0 01 1 0807- ● ●
13 HARNESS; ENG
(C) 		8-98099-950-1 01 1 0807- ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98099-588-2 01 1 0807-0909 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98099-590-2 01 1 0807-0909 ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98099-587-2 01 1 0807-0909 ● ●
18 HARNESS; DOOR 8-98099-587-2 01 1 0910- ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98099-589-2 01 1 0807-0909 ● ●
18 HARNESS; DOOR 8-98099-589-2 01 1 0910- ● ●
85 HARNESS; ROOM LAMP 8-98050-519-4 01 1 0807- ● ●
204 HARNESS; CABLE,FLOOR 8-98071-321-4 01 1 0807- ● ●
534 BOLT
M10X55 FLANGE 		8-97365-449-0 03 1 0807- ● ●

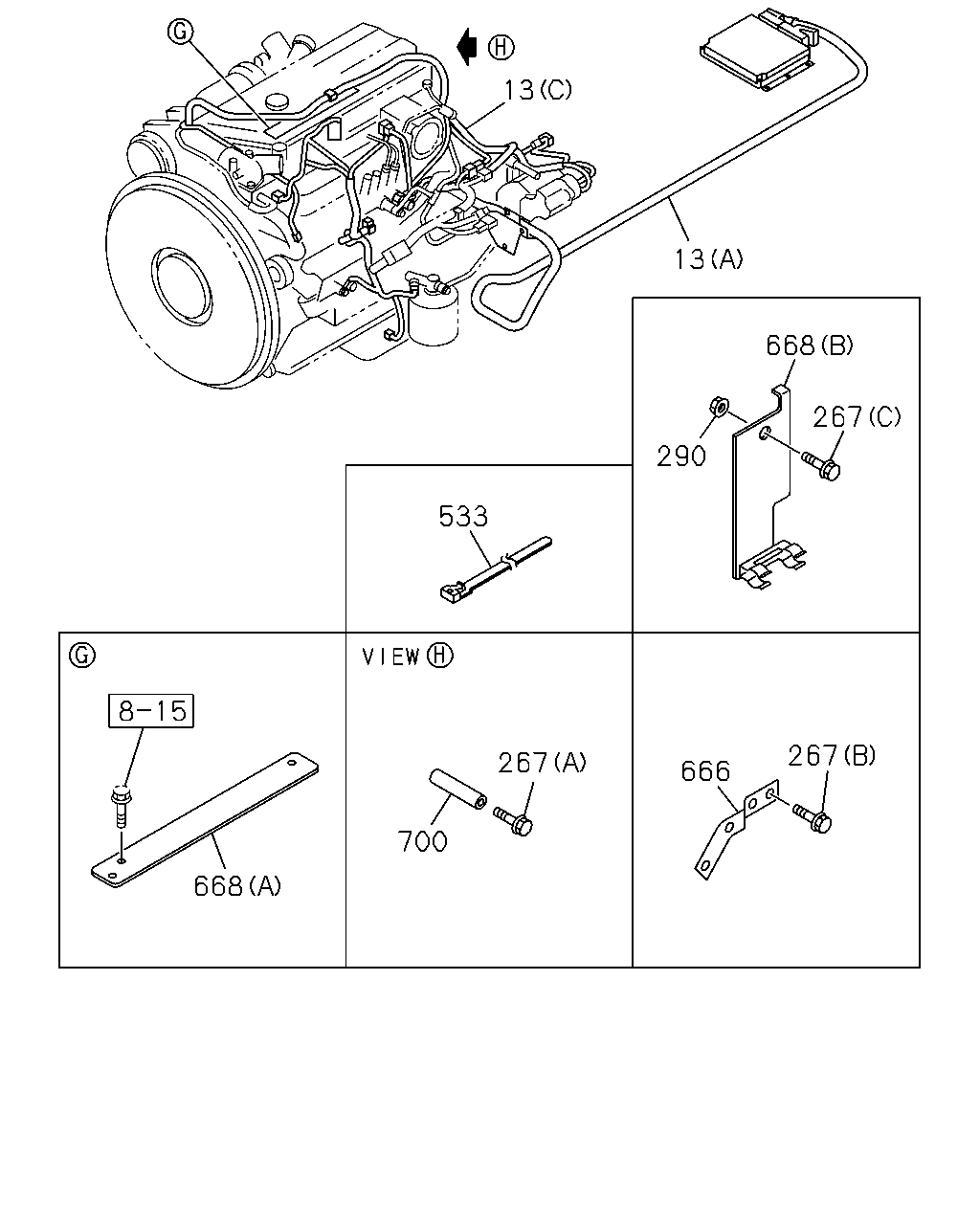

çizim 185898
13 13 668 267 290 533 267 267 666 700 668
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
(B) 		8-97332-133-3 01 1 0807- ● ●
13 HARNESS; ENG
(A) 		8-98023-702-0 01 1 0807- ● ●
13 HARNESS; ENG
(C) 		8-98099-950-1 01 1 0807- ● ●
267 BOLT; BRKT
(C) M14X25 FLANGE 		0-28851-425-0 01 1 1001- ● ●
267 BOLT; BRKT
(B) M6X10 FLANGE 		0-28050-610-0 02 1 0807- ● ●
267 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE 		0-28156-012-0 01 1 0807-0906 ● ●
290 NUT; BRKT
M14 FLANGE 		0-91180-114-0 01 1 1001- ● ●
533 CLIP
L=250 		5-09707-030-1 20 1 1001- ● ●
666 BRACKET; CLIP 8-98043-080-0 01 1 0807- ● ●
668 BRACKET; HARNESS
(B) 		8-98163-732-0 01 1 1001- ● ●
668 BRACKET; HARNESS
(A) 		8-98022-106-2 01 1 0807- ● ●
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 0807-0808 ● ●
