7-50 — FRONT SEAT (#75894) — 81 parça

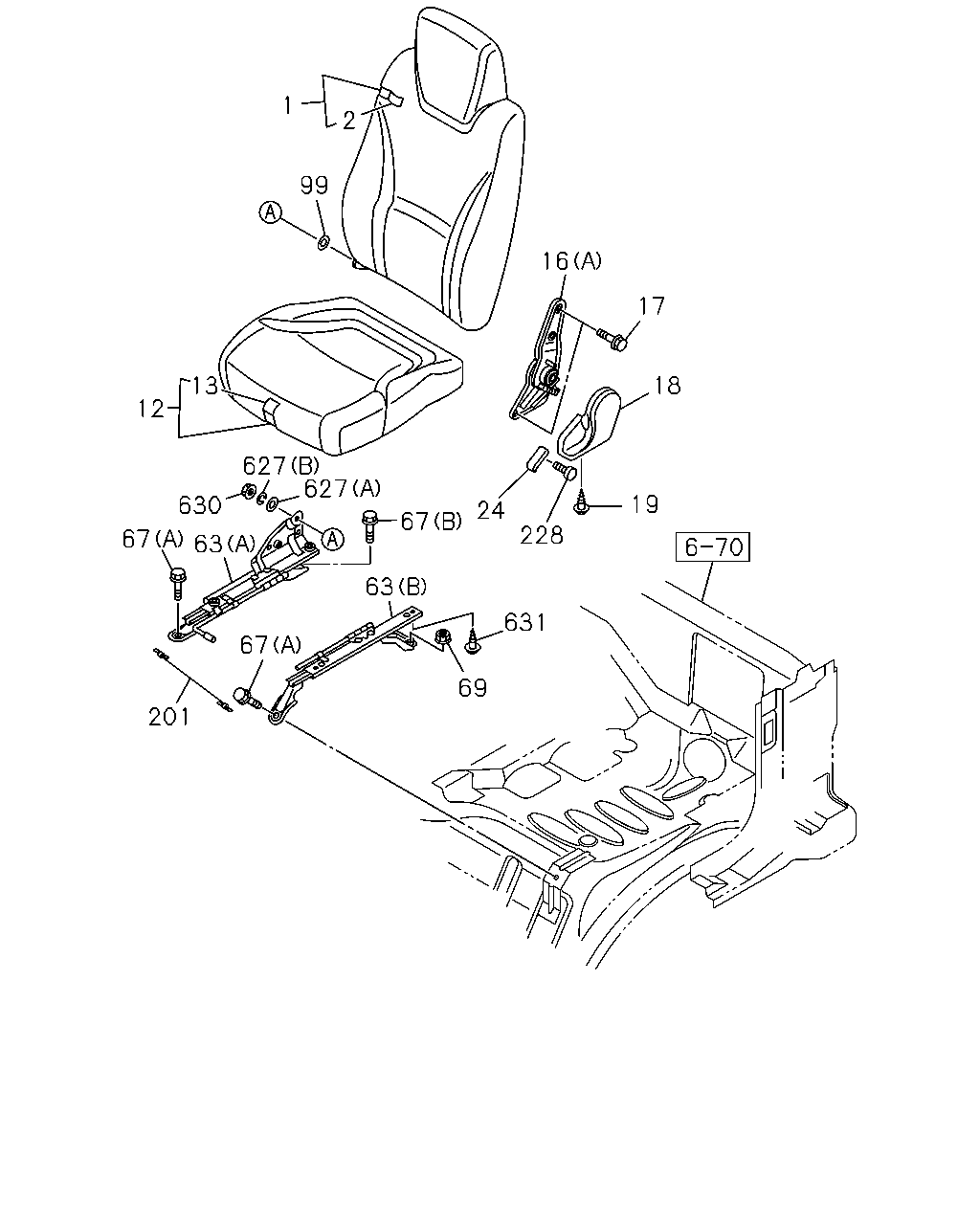

çizim 134247
1 2 99 16 17 18 13 12 627 627 19 630 24 67 228 67 63 63 631 67 69 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
FACE LIFT MODEL<TX7> DARK GRAY 		8-97429-980-0 01 1 1501- ● ●
1 BACK ASM; SEAT
DARK GRAY 		8-97409-357-4 01 1 0807-1009 ● ●
1 BACK ASM; SEAT
DARK GRAY 		8-97421-237-1 01 1 1010-1412 ● ●
1 BACK ASM; SEAT
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-237-1 01 1 1501- ● ●
2 COVER; TRIM,FRT SEAT,BACK
FACE LIFT MODEL<TX7> DARK GRAY 		8-97429-981-0 01 1 1501- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97409-358-2 01 1 0807-1009 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97421-256-0 01 1 1010-1412 ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-256-0 01 1 1501- ● ●
12 CUSHION; SEAT,FRT
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-008-0 01 1 1501- ● ●
12 CUSHION; SEAT,FRT
DARK GRAY 		8-97409-359-3 01 1 0807-0902 ● ●
12 CUSHION; SEAT,FRT
DARK GRAY 		8-97416-254-1 01 1 0903-1009 ● ●
12 CUSHION; SEAT,FRT
DARK GRAY 		8-97421-243-1 01 1 1010-1412 ● ●
12 CUSHION; SEAT,FRT
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-243-1 01 1 1501- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-014-0 01 1 1501- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97409-360-3 01 1 0807-0902 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97416-262-0 01 1 0903-1009 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97421-262-1 01 1 1010-1412 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-262-1 01 1 1501- ● ●
16 ADJUSTER ASM; RECLINING
(C) BLACK W/KNOB 		8-97859-273-3 01 1 0807- ● ●
16 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB 		8-97859-274-3 01 1 0807- ● ●
16 ADJUSTER ASM; RECLINING
(A) 		8-98005-418-1 01 1 0807- ● ●
17 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 0807- ● ●
18 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 0807- ● ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 0807- ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 0807- ● ●
63 ADJUSTER; SEAT SLIDE
(A) INNER 		8-98002-907-2 01 1 0807- ● ●
63 ADJUSTER; SEAT SLIDE
(B) OUTER 		8-98002-908-1 01 1 0807- ● ●
67 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 0807- ● ●
67 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 0807- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 0807- ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 0807- ● ●
201 CABLE; ADJ 8-98003-086-1 01 1 0807- ● ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 0807- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0807- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0807- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 0807- ● ●
631 BOLT; ADJ,SEAT
OUTER M8X25 W/LK WASHER 		8-98062-658-0 02 1 0807- ● ●
631 BOLT; ADJ,SEAT
INNER M8X32 W/LK WASHER 		8-98062-659-0 02 1 0807- ● ●

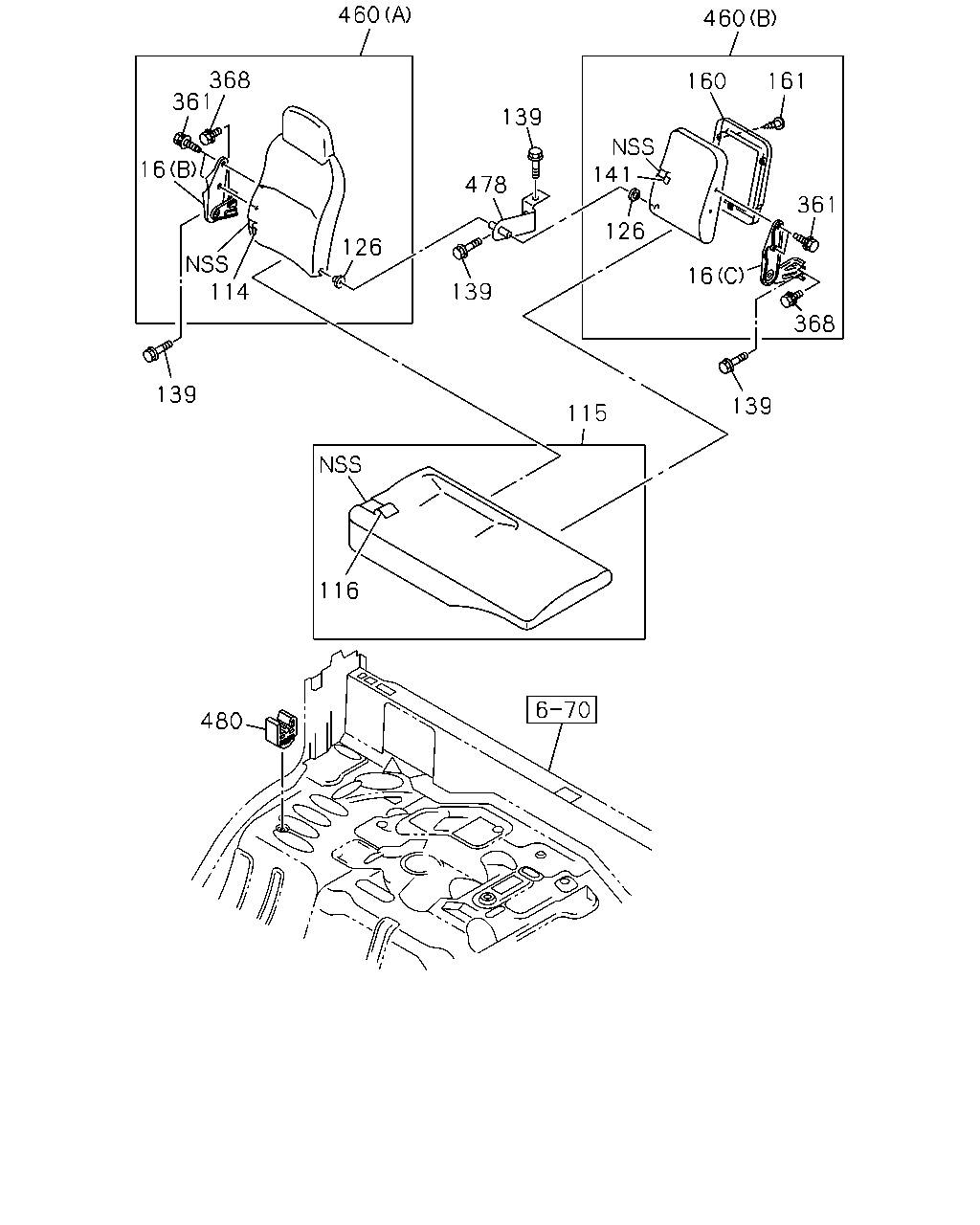

çizim 135276
460 460 368 361 161 160 139 141 16 478 361 126 126 114 16 13 368 139 139 115 116 480
BalonParca AdiParca NoAdetTipApplied Date A B
13 COVER; TRIM,FRT SEAT,CUSHION
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-014-0 01 1 1501- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97409-360-3 01 1 0807-0902 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97416-262-0 01 1 0903-1009 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97421-262-1 01 1 1010-1412 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-262-1 01 1 1501- ● ●
16 ADJUSTER ASM; RECLINING
(C) BLACK W/KNOB 		8-97859-273-3 01 1 0807- ● ●
16 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB 		8-97859-274-3 01 1 0807- ● ●
16 ADJUSTER ASM; RECLINING
(A) 		8-98005-418-1 01 1 0807- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-031-0 01 1 1501- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97409-364-1 01 1 0807-1009 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-295-0 01 1 1010-1412 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-295-0 01 1 1501- ● ●
115 CUSHION ASM; PASSENGER SEAT
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-044-0 01 1 1501- ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97406-047-3 01 1 0807-0902 ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-277-0 01 1 0903-1009 ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-325-2 01 1 1010-1412 ● ●
115 CUSHION ASM; PASSENGER SEAT
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-325-2 01 1 1501- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-053-0 01 1 1501- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97409-365-2 01 1 0807-0902 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-292-0 01 1 0903-1009 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-345-1 01 1 1010-1412 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-345-1 01 1 1501- ● ●
126 BUSHING; HINGE,RECLINING 8-98069-558-0 02 1 0807- ● ●
139 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 0807- ● ●
141 COVER; TRIM,BENCH SEAT,BACK
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-037-0 01 1 1501- ● ●
141 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97409-368-1 01 1 0807-1009 ● ●
141 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97421-307-1 01 1 1010-1412 ● ●
141 COVER; TRIM,BENCH SEAT,BACK
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-307-1 01 1 1501- ● ●
160 CONSOLE; UPR,BACK CENTER
GRAY 		8-97405-361-1 01 1 0807- ● ●
161 SCREW; CONSOLE
M4X12 		8-94279-351-0 03 1 0807-0812 ● ●
161 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0901- ● ●
361 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 04 1 0807- ● ●
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0807- ● ●
460 BACK ASM; PASSENGER SEAT
FACE LIFT MODEL<TX7> (A) DARK GRAY 		8-97465-024-0 01 1 1501- ● ●
460 BACK ASM; PASSENGER SEAT
FACE LIFT MODEL<TX7> (B) DARK GRAY 		8-97465-034-0 01 1 1501- ● ●
460 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97406-045-4 01 1 0807-1009 ● ●
460 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97421-282-0 01 1 1010-1412 ● ●
460 BACK ASM; PASSENGER SEAT
EXC. FACE LIFT MODEL<TX7> (A) DARK GRAY 		8-97421-282-0 01 1 1501- ● ●
460 BACK ASM; PASSENGER SEAT
(B) DARK GRAY 		8-97406-046-3 01 1 0807-1009 ● ●
460 BACK ASM; PASSENGER SEAT
(B) DARK GRAY 		8-97421-301-1 01 1 1010-1412 ● ●
460 BACK ASM; PASSENGER SEAT
EXC. FACE LIFT MODEL<TX7> (B) DARK GRAY 		8-97421-301-1 01 1 1501- ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT 8-98002-092-0 01 1 0807- ● ●
480 CLIP; CUSHION 8-94279-977-0 05 1 0807- ● ●
