7-43 — SUN VISOR AND ASSIST GRIP (#75892) — 27 parça

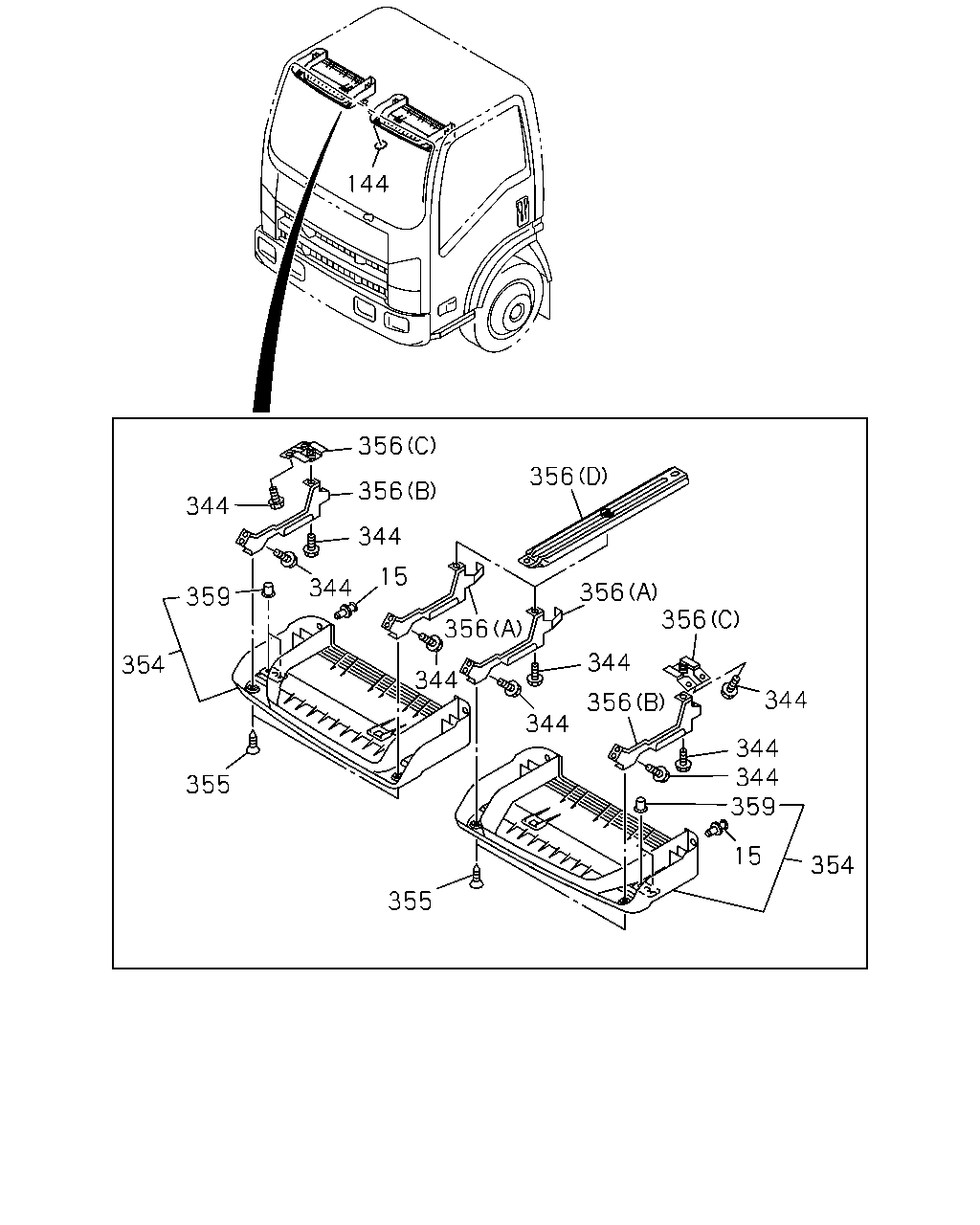

çizim 133257
144 356 356 356 344 344 15 344 356 356 359 356 344 354 344 344 356 344 344 344 359 355 15 354 355
BalonParca AdiParca NoAdetTipApplied Date A B
15 FASTENER; HEADER SHELF BOARD
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97406-299-0 04 1 0807- ● ●
144 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR PENSKE YELLOW(987),BODY COLOR SUNBELT GREEN(989) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0807-1503 ● ●
144 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR PENSKE YELLOW(987),BODY COLOR SUNBELT GREEN(989) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 08 1 1504- ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0807-1503 ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 08 1 1504- ● ●
344 BOLT; BRKT,FRT
INTERIOR TRIM-FULL TRIMMING<WM3> M6X12 FLANGE 		0-28450-612-0 16 1 0807-0809 ● ●
344 BOLT; BRKT,FRT
INTERIOR TRIM-FULL TRIMMING<WM3> M6X12 FLANGE 		8-97108-669-0 16 1 0810- ● ●
354 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-060-2 01 1 0807- ● ●
354 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-061-2 01 1 0807- ● ●
355 SCREW; TRAY
INTERIOR TRIM-FULL TRIMMING<WM3> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 08 1 0807- ● ●
356 BRACKET; ROOF OUTER
INTERIOR TRIM-FULL TRIMMING<WM3> (C) 		8-97386-874-1 02 1 0807- ● ●
356 BRACKET; ROOF OUTER
INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-97585-576-4 02 1 0807- ● ●
356 BRACKET; ROOF OUTER
INTERIOR TRIM-FULL TRIMMING<WM3> (D) 		8-97585-577-1 02 1 0807- ● ●
356 BRACKET; ROOF OUTER
INTERIOR TRIM-FULL TRIMMING<WM3> (A) 		8-98036-022-4 01 1 0807- ● ●
356 BRACKET; ROOF OUTER
INTERIOR TRIM-FULL TRIMMING<WM3> (A) 		8-98036-023-4 01 1 0807- ● ●
359 HOLDER; HEADER TRAY
INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98041-754-0 04 1 0807- ● ●
çizim 134008
26 39 34 23 53 26 34 51 23
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-059-1 01 1 0807- ● ●
23 SUN VISOR
DARK GRAY 		8-97407-903-0 01 1 0807- ● ●
23 SUN VISOR
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-989-2 01 1 0807- ● ●
26 HOLDER; SUN VISOR
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-171-0 01 1 0807- ● ●
26 HOLDER; SUN VISOR
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-171-0 01 1 0807- ● ●
26 HOLDER; SUN VISOR
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97406-200-0 01 1 0807- ● ●
26 HOLDER; SUN VISOR
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97406-200-0 01 1 0807- ● ●
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 04 1 0807- ● ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 02 1 0807- ● ●
51 HOOK; COAT HANGER
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-302-1 01 1 0807- ● ●
53 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 0807- ● ●
