◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#75890) — 139 parça

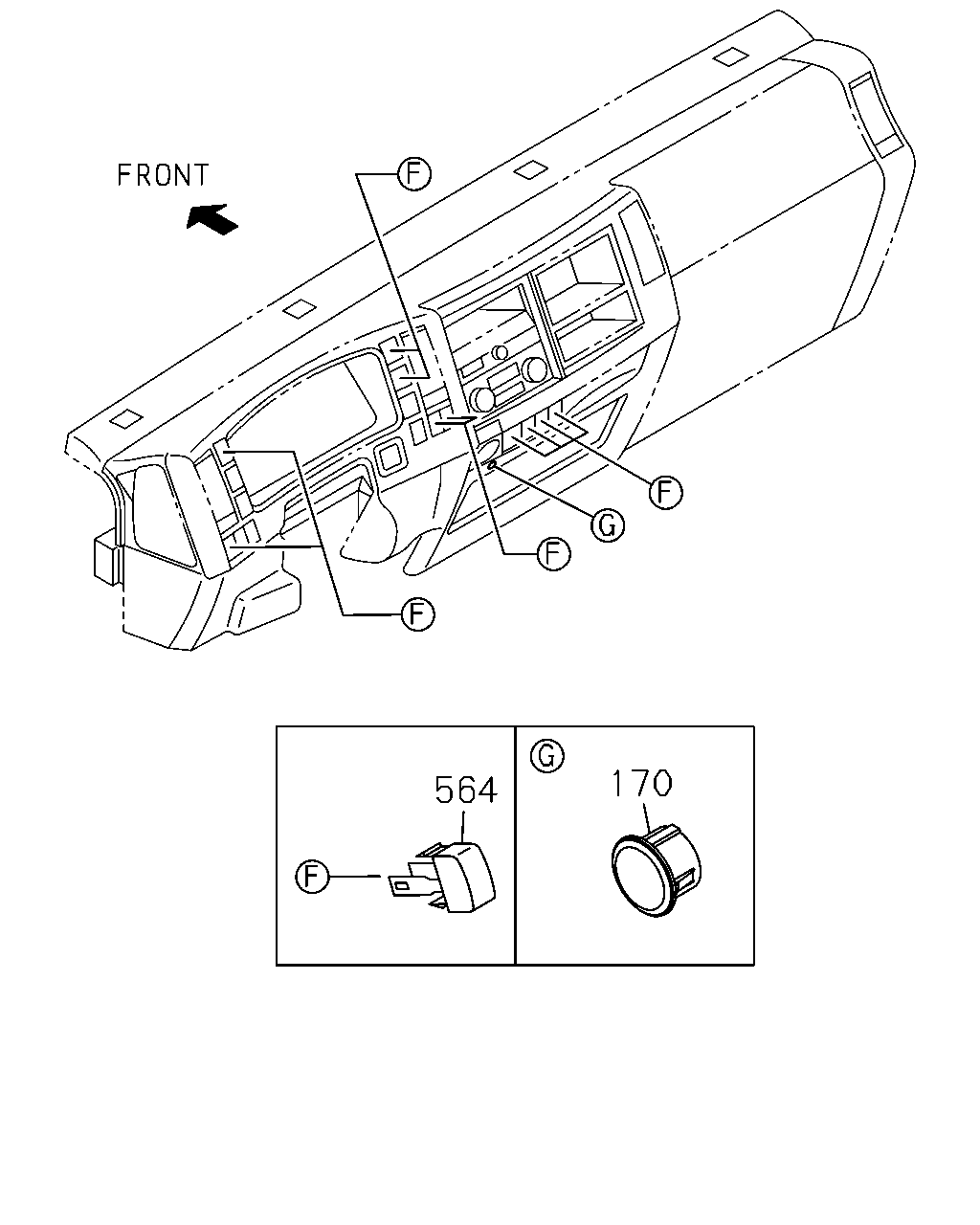

çizim 185892
170 564
BalonParca AdiParca NoAdetTipApplied Date A B
170 COVER; HOLE 8-98070-401-2 01 1 0807- ● ●
564 COVER; SW 8-98025-954-1 10 1 0807- ● ●

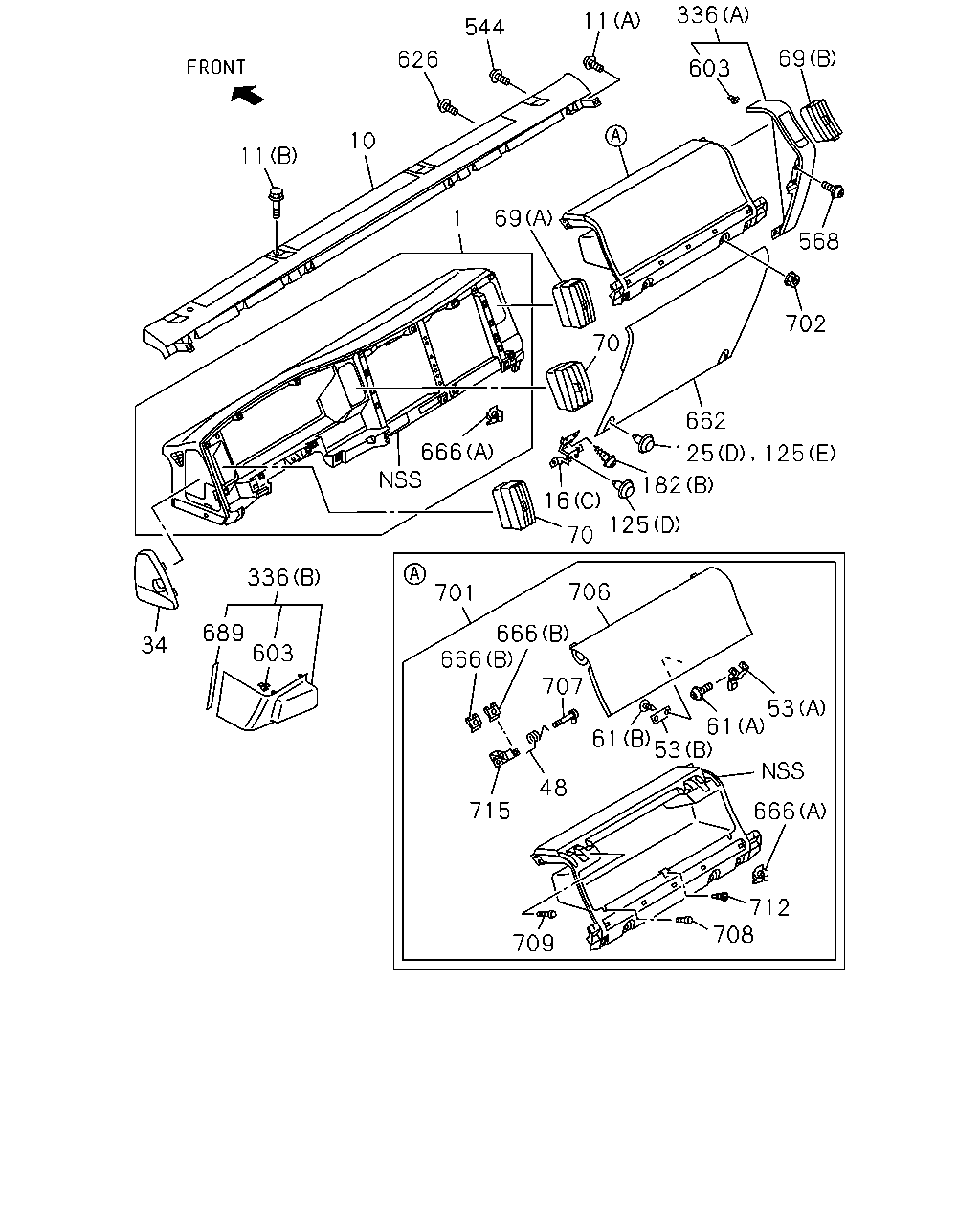

çizim 185895
16 70 125 182 125 125 662 702 568 69 336 603 11 544 626 10 11 69 70 666 336 603 689 34 701 666 706 61 53 666 712 61 53 48 715 666 709 708 707 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97406-004-4 01 1 0807- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97405-265-4 01 1 0807-1003 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1004- ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0807-1101 ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212 ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0807- ● ●
16 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 0807- ● ●
16 BRACKET; INST PNL
(C) 		8-97585-612-2 01 1 0807- ● ●
16 BRACKET; INST PNL
(A) 		8-98081-718-1 01 1 0807- ● ●
34 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 0807- ● ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 0807-1311 ● ●
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 0807-1311 ● ●
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0807-1405 ● ●
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406- ● ●
61 SCREW; GLOVE BOX
(A) 		8-98108-915-0 01 1 0807-1405 ● ●
61 SCREW; GLOVE BOX
(B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 0807- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0807- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 0807- ● ●
125 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1002- ● ●
125 CLIP; INST PANEL
(E) GRAY 		8-97418-529-0 02 1 0910-0911 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0807-0909 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0910-0911 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0912-1001 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1002- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0807- ● ●
125 CLIP; INST PANEL
(C) 		8-98004-025-0 01 1 0807- ● ●
125 CLIP; INST PANEL
(B) 		8-98021-271-0 03 1 0807- ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0807-1101 ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0807-1101 ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0807- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97406-000-4 01 1 0807- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 0807- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0807-1101 ● ●
544 SCREW; TRAY
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ●
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0807-1010 ● ●
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1011-1101 ● ●
568 BOLT; COVER
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
603 CLIP; COVER 8-98021-271-0 06 1 0807- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0807- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 0807- ● ●
666 INSERT; INST PANEL
(A) 		8-98037-629-0 19 1 0807-1003 ● ●
666 INSERT; INST PANEL
(A) 		8-98037-629-0 17 1 1004- ● ●
666 INSERT; INST PANEL
(B) 		8-98038-450-0 04 1 0807-1311 ● ●
666 INSERT; INST PANEL
(B) M5 		8-97926-400-0 04 1 1312- ● ●
689 SEAL; INST 8-98068-244-0 01 1 0807- ● ●
701 TRAY; INST
GRAY 		8-97415-542-6 01 1 0807-1405 ● ●
701 TRAY; INST
GRAY 		8-97429-702-1 01 1 1406- ● ●
702 NUT; TRAY
M6 FLANGE 		0-91180-106-0 02 1 0807- ● ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 0807-1405 ● ●
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0807-1311 ● ●
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0807- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0807- ● ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0807- ● ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 0807-1311 ● ●
715 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 0807-1311 ● ●
715 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312- ● ●

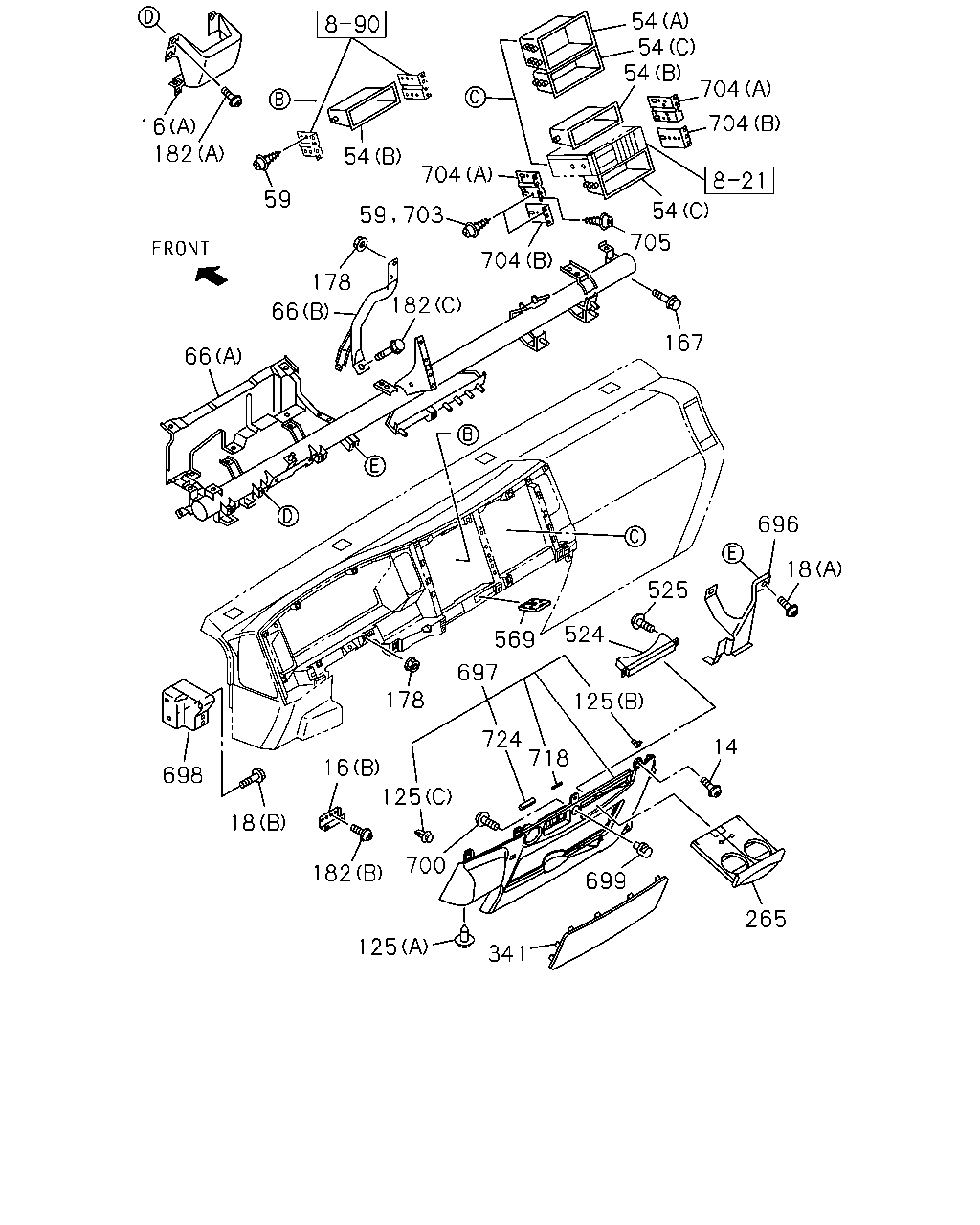

çizim 185896
341 125 700 699 14 125 718 724 125 182 18 18 525 696 524 569 697 178 16 698 167 705 54 704 704 54 54 54 704 182 66 66 178 59 703 704 54 59 182 16 265
BalonParca AdiParca NoAdetTipApplied Date A B
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0807-1101 ● ●
14 SCREW; INST PNL
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
16 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 0807- ● ●
16 BRACKET; INST PNL
(C) 		8-97585-612-2 01 1 0807- ● ●
16 BRACKET; INST PNL
(A) 		8-98081-718-1 01 1 0807- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0807- ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0807-1101 ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0807- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0807- ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0807- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0807- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0807- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-579-1 01 1 0807- ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98089-365-3 01 1 0807-1309 ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98192-944-0 01 1 1310- ● ●
125 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1002- ● ●
125 CLIP; INST PANEL
(E) GRAY 		8-97418-529-0 02 1 0910-0911 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0807-0909 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0910-0911 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0912-1001 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1002- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0807- ● ●
125 CLIP; INST PANEL
(C) 		8-98004-025-0 01 1 0807- ● ●
125 CLIP; INST PANEL
(B) 		8-98021-271-0 03 1 0807- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0807- ● ●
178 NUT; INST PANEL
M6 FLANGE 		0-91180-106-0 03 1 0807- ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0807-1101 ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0807-1101 ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0807- ● ●
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0807-0909 ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910- ● ●
341 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 0807-1205 ● ●
341 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1206- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0807- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0807-1101 ● ●
525 SCREW; CUP STAND
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 0807- ● ●
696 BRACKET; KNEE 8-98098-126-0 01 1 0807-1109 ● ●
696 BRACKET; KNEE 8-98071-234-0 01 1 1110-1211 ● ●
696 BRACKET; KNEE 8-98201-847-0 01 1 1212- ● ●
697 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 0807-1205 ● ●
697 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1206- ● ●
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0807- ● ●
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0807- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0807- ● ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0807-1101 ● ●
700 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0807- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0807- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0807- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0807-1101 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 08 1 1102-1212 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1301- ● ●
718 SEAL; COVER
5X30 		8-98176-199-0 01 1 1206- ● ●
718 SEAL; COVER
8X80 		8-98200-040-0 01 1 1110- ● ●
718 SEAL; COVER
4X35 		8-98200-041-0 01 1 1110- ● ●
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ●
