◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#75889) — 17 parça

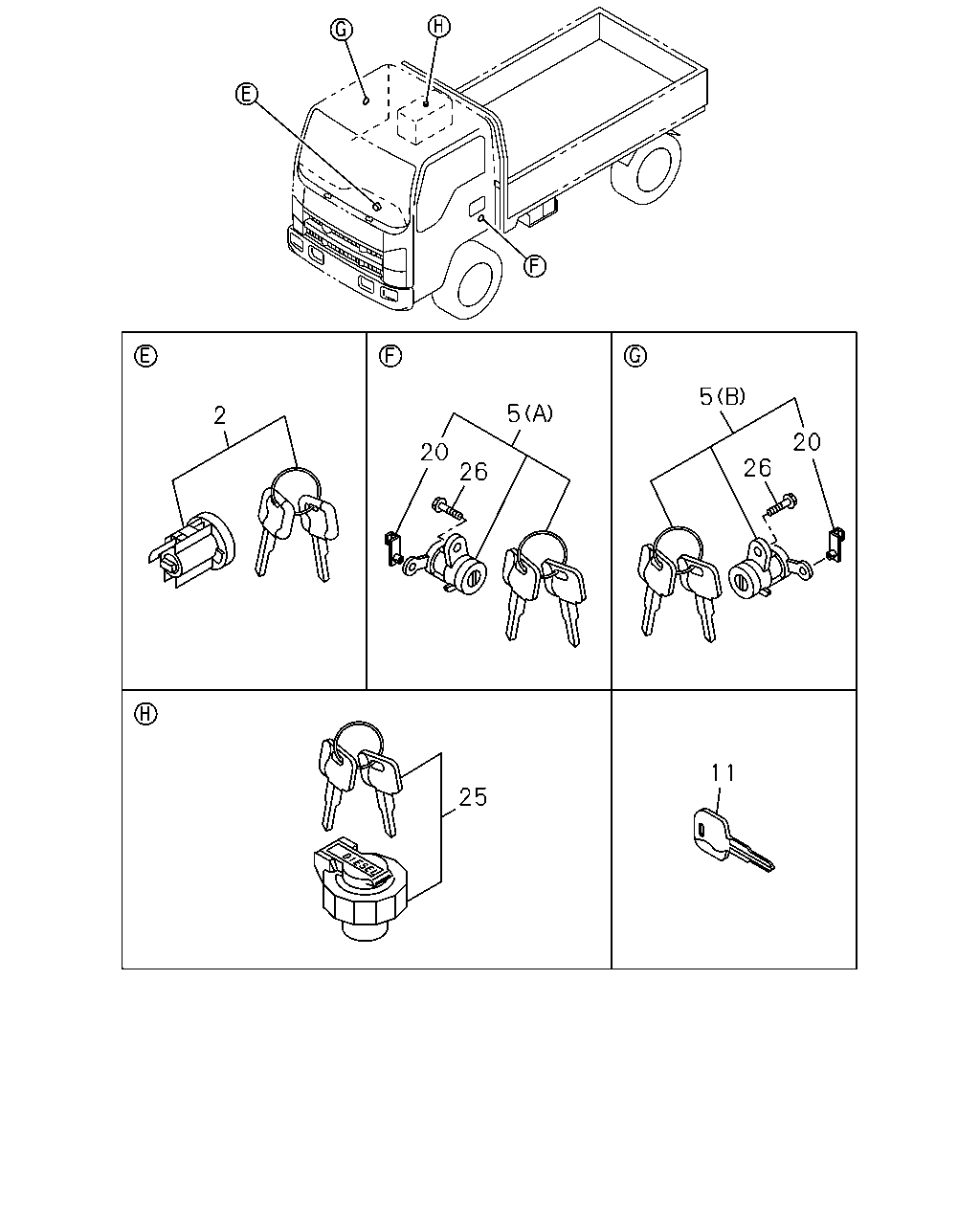

çizim 133119
5 5 2 20 20 26 26 11 25
BalonParca AdiParca NoAdetTipApplied Date A B
2 BARREL ASM; W/KEY,STRG LOCK 8-98055-148-0 01 1 0807-1203 ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1204- ● ●
5 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0807- ● ●
5 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0807- ● ●
11 KEY; BLANK 8-98055-170-0 AR 1 0807- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0807- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0807- ● ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98088-982-0 01 1 0807-0912 ● ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98146-010-0 01 1 1001- ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0807- ● ●
çizim 133219
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98088-954-0 01 1 0807-0912 ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98145-979-0 01 1 1001-1203 ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98201-216-0 01 1 1204- ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98056-003-0 01 1 0807-1203 ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1204- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0807- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0807- ● ●
