7-20 — MIRROR AND MIRROR STAY (#75888) — 36 parça
çizim 132920
152 87 88 69 69 88 88 64 312 307 88 72 88 69 71 22 26 51 26 72
BalonParca AdiParca NoAdetTipApplied Date A B
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98060-390-1 01 1 0807-1204 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-740-0 01 1 1205- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98060-391-1 01 1 0807-1204 ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-741-0 01 1 1205- ● ●
22 STAY; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98031-790-3 01 1 0807-1204 ● ●
22 STAY; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-737-0 01 1 1205- ● ●
22 STAY; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98031-791-3 01 1 0807-1204 ● ●
22 STAY; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-738-0 01 1 1205- ● ●
26 COVER; OUTSIDE MIRROR
(A) 		8-98031-802-2 01 1 0807- ● ●
26 COVER; OUTSIDE MIRROR
(A) 		8-98031-803-2 01 1 0807- ● ●
26 COVER; OUTSIDE MIRROR
(B) 		8-98031-805-0 01 1 0807- ● ●
26 COVER; OUTSIDE MIRROR
(B) 		8-98031-806-0 01 1 0807- ● ●
51 SCREW; MIRROR
M8X23 		8-97310-216-1 08 1 0807- ● ●
64 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR PENSKE YELLOW(987),BODY COLOR SUNBELT GREEN(989) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0807- ● ●
64 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0807- ● ●
64 SEAL; MIRROR
(B) OD=25 BLACK 		1-76798-019-0 02 1 0807- ● ●
64 SEAL; MIRROR
(C) OD=52 BLACK 		1-76798-041-0 02 1 0807- ● ●
69 NUT; CAP
(A) M10 CAP NUT 		8-98059-913-0 02 1 0807-1404 ● ●
69 NUT; CAP
(A) M10 CAP NUT 		1-09984-134-0 02 1 1405- ● ●
69 NUT; CAP
(B) M8 CAP NUT 		8-98059-914-0 10 1 0807- ● ●
71 BRACKET; OUTSIDE MIRROR 8-98031-793-2 01 1 0807- ● ●
71 BRACKET; OUTSIDE MIRROR 8-98031-794-2 01 1 0807- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 0807- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 0807- ● ●
72 SHEET
(B) 		8-98080-418-0 02 1 0807- ● ●
87 SPACER 8-98063-789-0 02 1 0807- ● ●
88 WASHER; PL,SUPPORT STAY
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0807- ● ●
88 WASHER; PL,SUPPORT STAY
(A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0807- ● ●
152 SHEET; MIRROR STAY 8-98063-786-0 02 1 0807- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0807- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0807- ● ●
312 TAPE 8-98164-812-0 02 1 1003- ● ●

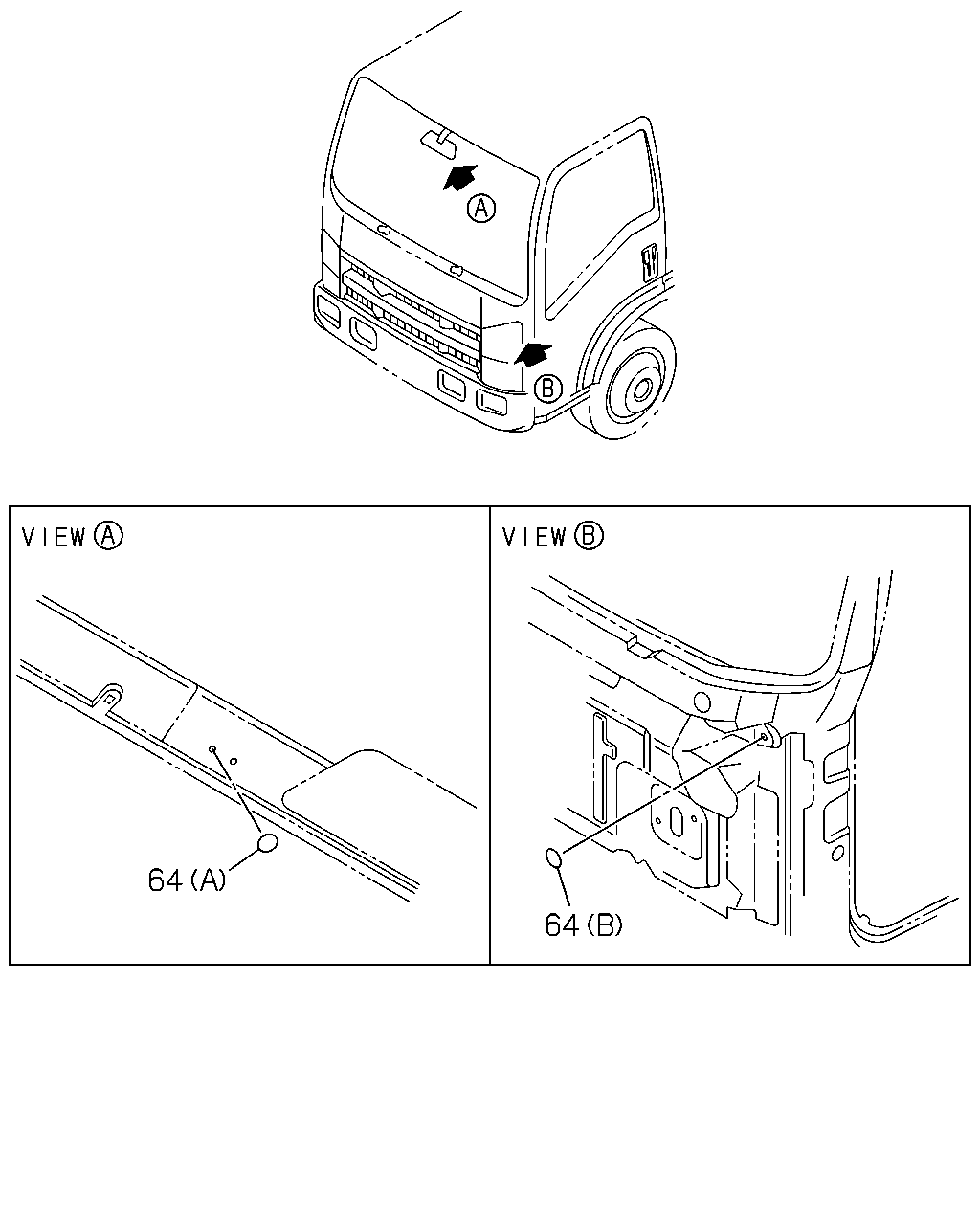

çizim 185888
64 64
BalonParca AdiParca NoAdetTipApplied Date A B
64 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR PENSKE YELLOW(987),BODY COLOR SUNBELT GREEN(989) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0807- ● ●
64 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0807- ● ●
64 SEAL; MIRROR
(B) OD=25 BLACK 		1-76798-019-0 02 1 0807- ● ●
64 SEAL; MIRROR
(C) OD=52 BLACK 		1-76798-041-0 02 1 0807- ● ●
