7-10 — CAUTION PLATE AND LABEL (#75887) — 34 parça
çizim 132686
49 151 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION
FUEL TANK 113L,30GAL<NH2> (A) 		8-98070-422-0 01 1 0807-0904 ● ●
2 LABEL; FUEL CAUTION
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (A) 		8-98070-422-0 01 1 0905-1411 ● ●
2 LABEL; FUEL CAUTION
FUEL TANK 113L,30GAL<NH2> (A) 		8-98070-422-0 01 1 1412- ● ●
2 LABEL; FUEL CAUTION
(B) 		8-98069-856-0 01 1 0807- ● ●
49 PLATE; CAUTION,FUSE BOX 8-98098-678-1 01 1 0807- ● ●
151 PLATE; CAUTION,EXH WARNING 8-98057-161-1 01 1 0807-0905 ● ●
çizim 132960
105 303 6 190 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER<P10> DEALER INSTALLED OPTION<6JJ> (A) 		1-85887-680-0 01 1 0807- ● ●
6 PLATE; CAUTION,SPARE TIRE
(B) 		8-98053-701-0 01 1 0807- ● ●
105 PLATE; CAUTION,START AIDS 8-97382-932-1 01 1 0807- ● ●
190 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0807- ● ●
303 PLATE; CAUTION,CONTROL 8-98063-430-0 01 1 0807- ● ●

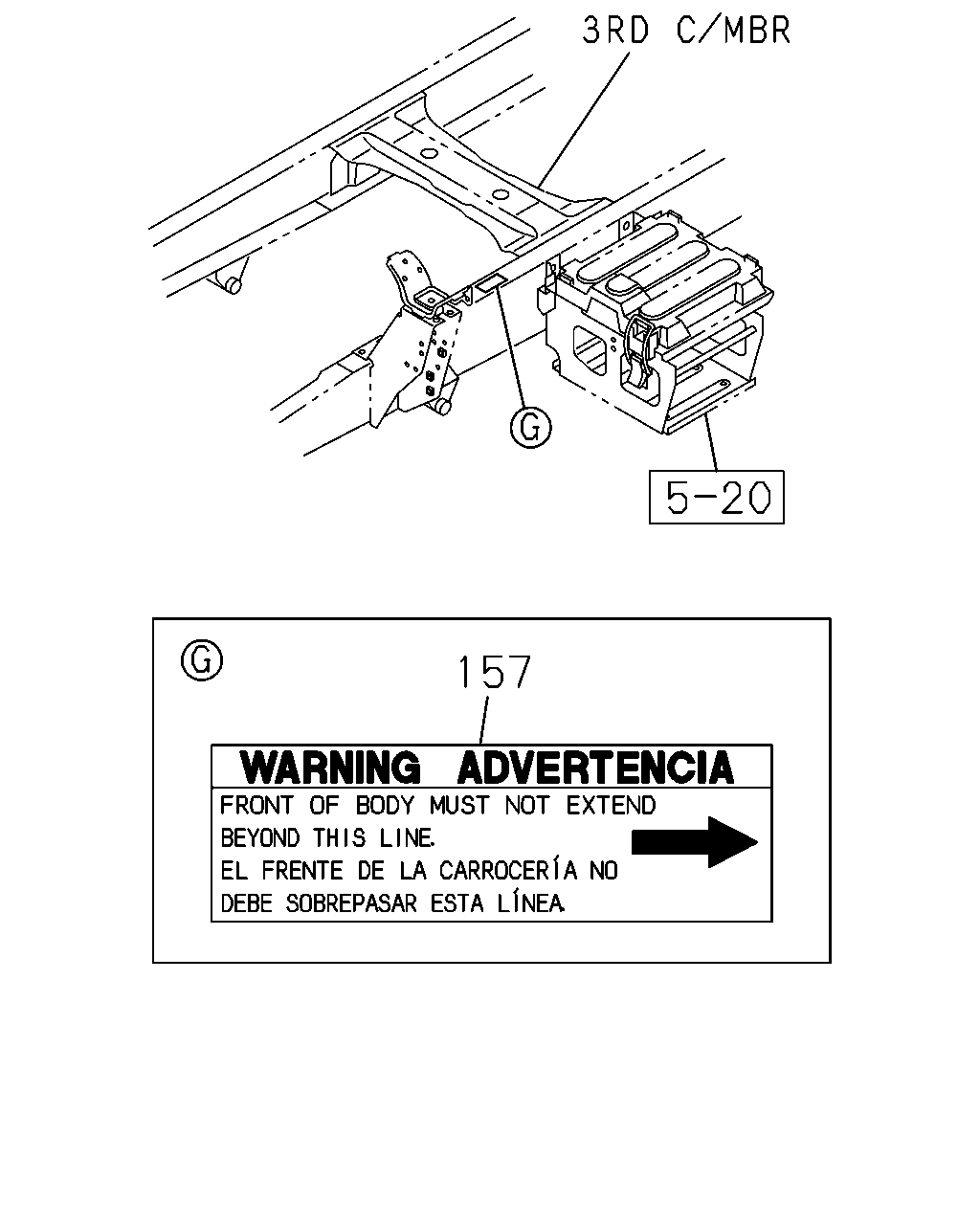

çizim 133009
157
BalonParca AdiParca NoAdetTipApplied Date A B
157 PLATE; CAUTION,RR BODY INSTALLATION 8-98022-261-0 01 1 0807- ● ●
çizim 133010
35 193 58 229 104 84 280 273 297 145 300 299
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB 8-98070-512-0 01 1 0807- ● ●
58 PLATE; CAUTION,ENG START 8-98024-248-0 01 1 0807- ● ●
84 PLATE; CAUTION,BRAKE FLUID 8-98022-467-0 01 1 0807- ● ●
104 PLATE; CAUTION,FAN BLADE 8-98024-247-0 01 1 0807- ● ●
145 PLATE; CAUTION,RADIATOR 8-98057-420-0 01 1 0807- ● ●
193 PLATE; CAUTION,EGR
L=65 		8-98025-362-0 01 1 0807- ● ●
193 PLATE; CAUTION,EGR
L=60 		8-98025-936-0 01 1 0807- ● ●
229 PLATE; CAUTION 8-98058-334-0 01 1 0807- ● ●
273 LABEL; CAUTION,OIL 8-98021-118-1 01 1 0807- ●
280 LABEL; EXH BRAKE 8-97377-803-0 01 1 0807- ● ●
297 PLATE; CAUTION,P/S TANK 8-98022-474-1 01 1 0807- ● ●
299 PLATE; CAUTION,STEERING LEVER LOCK 8-98022-473-0 01 1 0807- ● ●
300 PLATE; CAUTION,ENG COOLING 8-98058-333-0 01 1 0807- ● ●
çizim 133170
35 78 122 51
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB 8-98070-512-0 01 1 0807- ● ●
51 PLATE; CAUTION,WARNING 8-97315-109-0 01 1 0807- ● ●
78 PLATE; CAUTION,ENG COOLAN 8-97315-104-0 01 1 0807- ● ●
122 PLATE; CAUTION,BELT ROUTING 8-97315-101-0 01 1 0807- ● ●

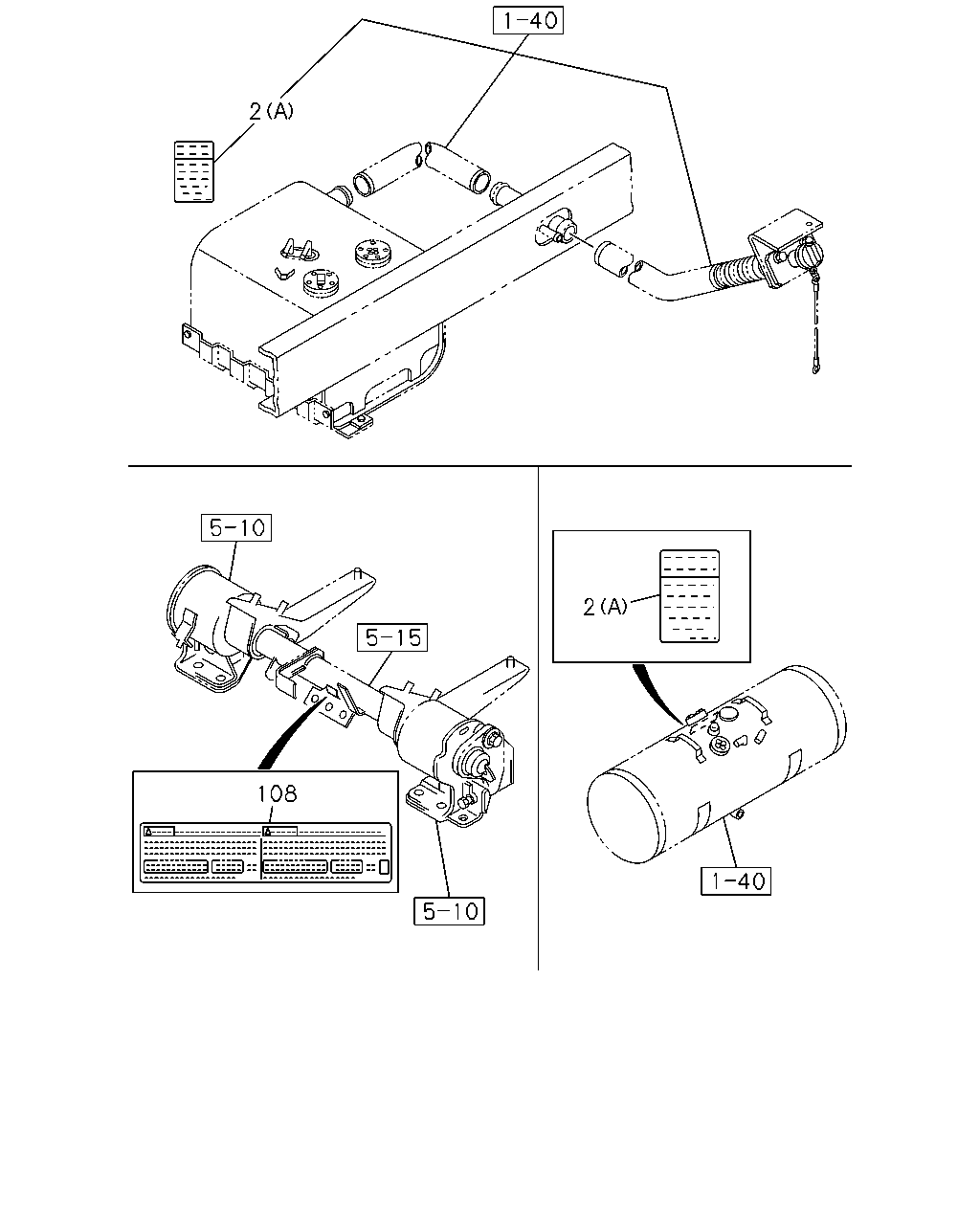

çizim 185886
2 2 108
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION
FUEL TANK 113L,30GAL<NH2> (A) 		8-98070-422-0 01 1 0807-0904 ● ●
2 LABEL; FUEL CAUTION
FUEL TANK 113L,30GAL<NH2>,FUEL TANK 125L, 33GAL<NL7> (A) 		8-98070-422-0 01 1 0905-1411 ● ●
2 LABEL; FUEL CAUTION
FUEL TANK 113L,30GAL<NH2> (A) 		8-98070-422-0 01 1 1412- ● ●
2 LABEL; FUEL CAUTION
(B) 		8-98069-856-0 01 1 0807- ● ●
108 LABEL; CAUTION,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98009-323-1 01 1 0807- ● ●
