6-84 — BACK TRIM (#75884) — 9 parça

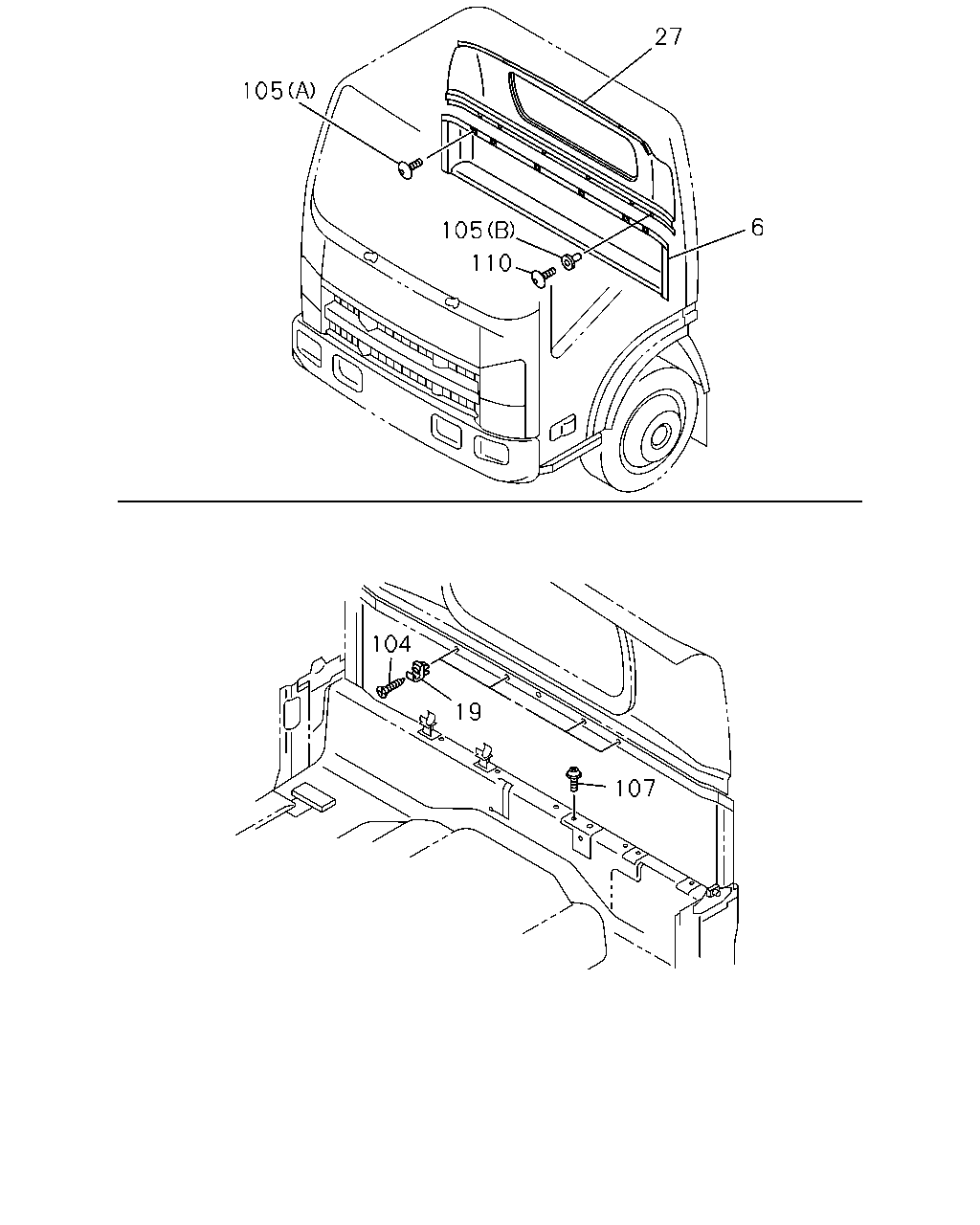

çizim 132200
27 105 6 105 110 104 19 107
BalonParca AdiParca NoAdetTipApplied Date A B
6 MAT; SILENCER,CAB BACK
GRAY 		8-97405-289-3 01 1 0807- ● ●
19 HOOK; RET
GRAY 		8-97406-042-0 04 1 0807- ● ●
27 COVER; TRIM,BACK
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-293-3 01 1 0807-0902 ● ●
27 COVER; TRIM,BACK
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97417-129-1 01 1 0903- ● ●
104 SCREW; BACK TRIM
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 0807- ● ●
105 CLIP; BACK TRIM
INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98033-680-0 02 1 0807- ● ●
105 CLIP; BACK TRIM
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) GRAY 		8-97405-295-0 02 1 0807- ● ●
107 SCREW; BRKT
M6X16 		0-38050-616-0 01 1 0807- ● ●
110 CLIP; TRIM COVER
INTERIOR TRIM-FULL TRIMMING<WM3> GRAY 		8-97406-433-0 02 1 0807- ● ●
