6-80 — BACK PANEL (#75882) — 8 parça

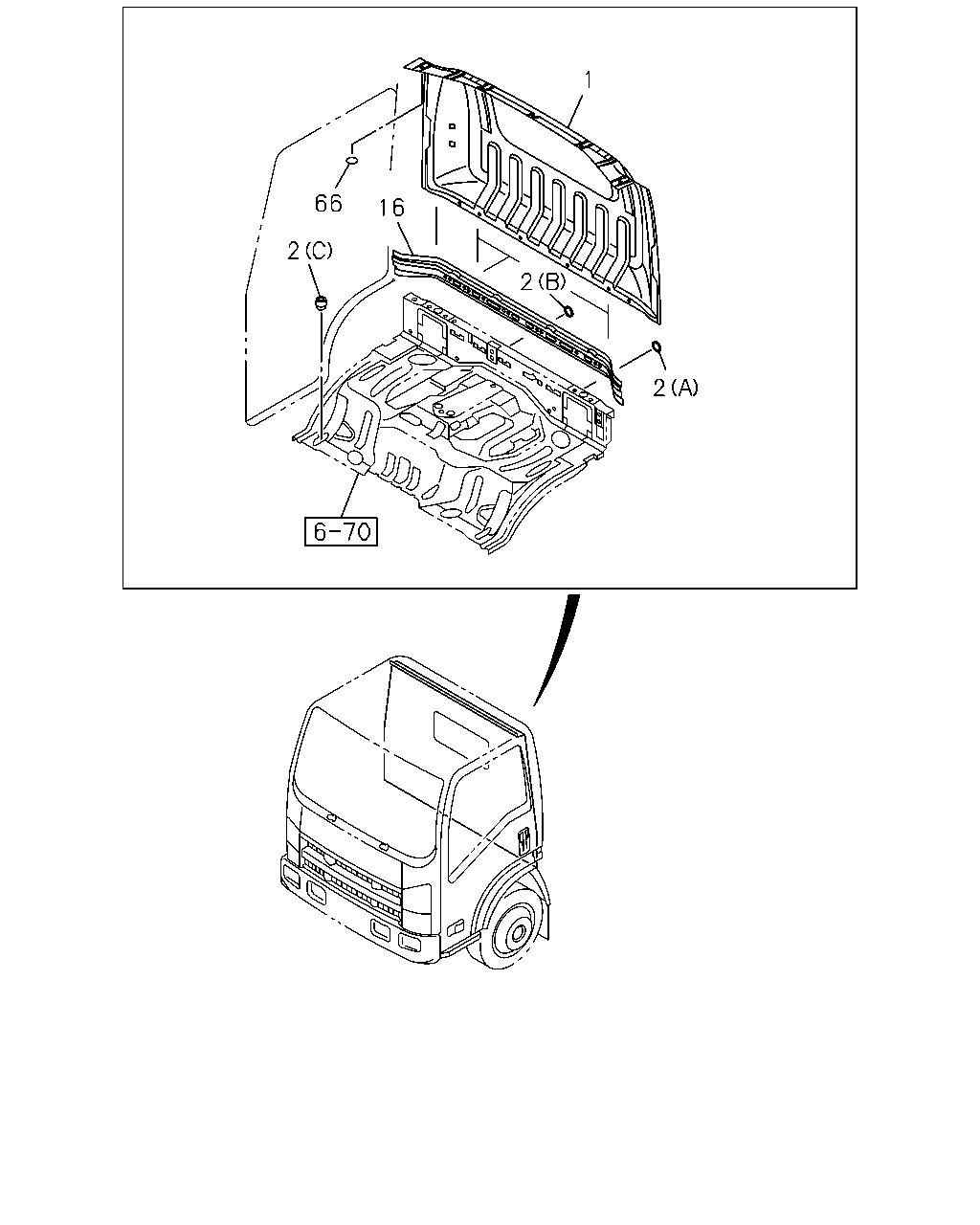

çizim 132140
1 66 16 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER 8-97584-304-3 01 1 0807- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK 		1-76798-019-0 02 1 0807- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=12.1 		8-97898-423-0 04 1 0807- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=32 BLACK 		8-98031-126-0 08 1 0807- ● ●
16 REINFORCEMENT; BACK OUTER PNL 8-97584-608-2 01 1 0807- ● ●
66 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR PENSKE YELLOW(987) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 0807-1102 ● ●
66 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR PENSKE YELLOW(987),BODY COLOR SUNBELT GREEN(989) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1103- ● ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 0807- ● ●
