6-70 — FLOOR PANEL (#75878) — 37 parça

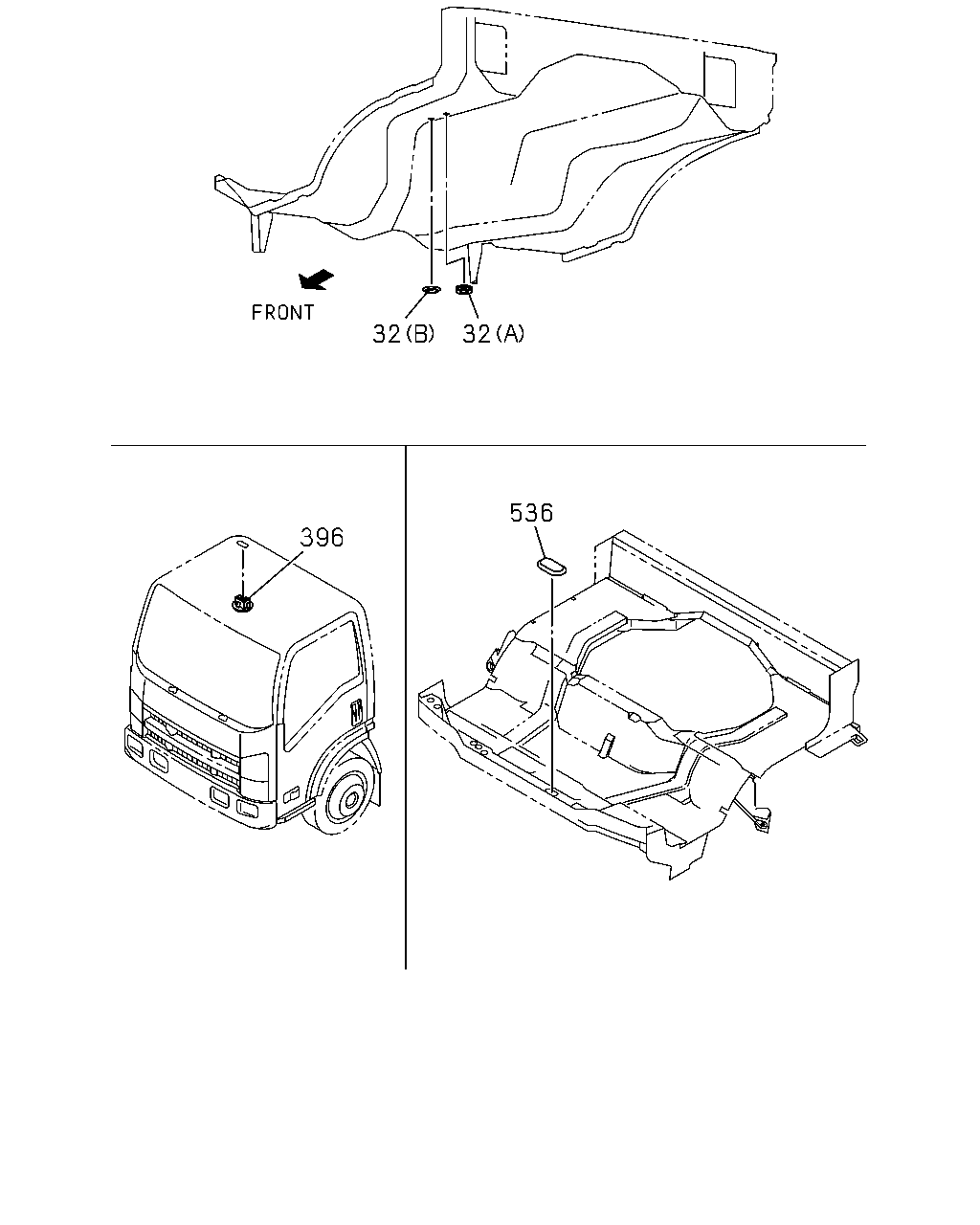

çizim 131929
32 32 536 396
BalonParca AdiParca NoAdetTipApplied Date A B
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=16.2 		8-94492-493-0 02 1 0807-0908 ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=15.0 		8-94279-040-0 02 1 0909- ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(B) OD=12.1 		8-97898-423-0 02 1 0807- ● ●
396 GROMMET; LOCATION HOLE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98054-990-0 02 1 0807- ● ●
536 PLUG; CABLE,PTO 8-98029-219-1 01 1 0807- ● ●

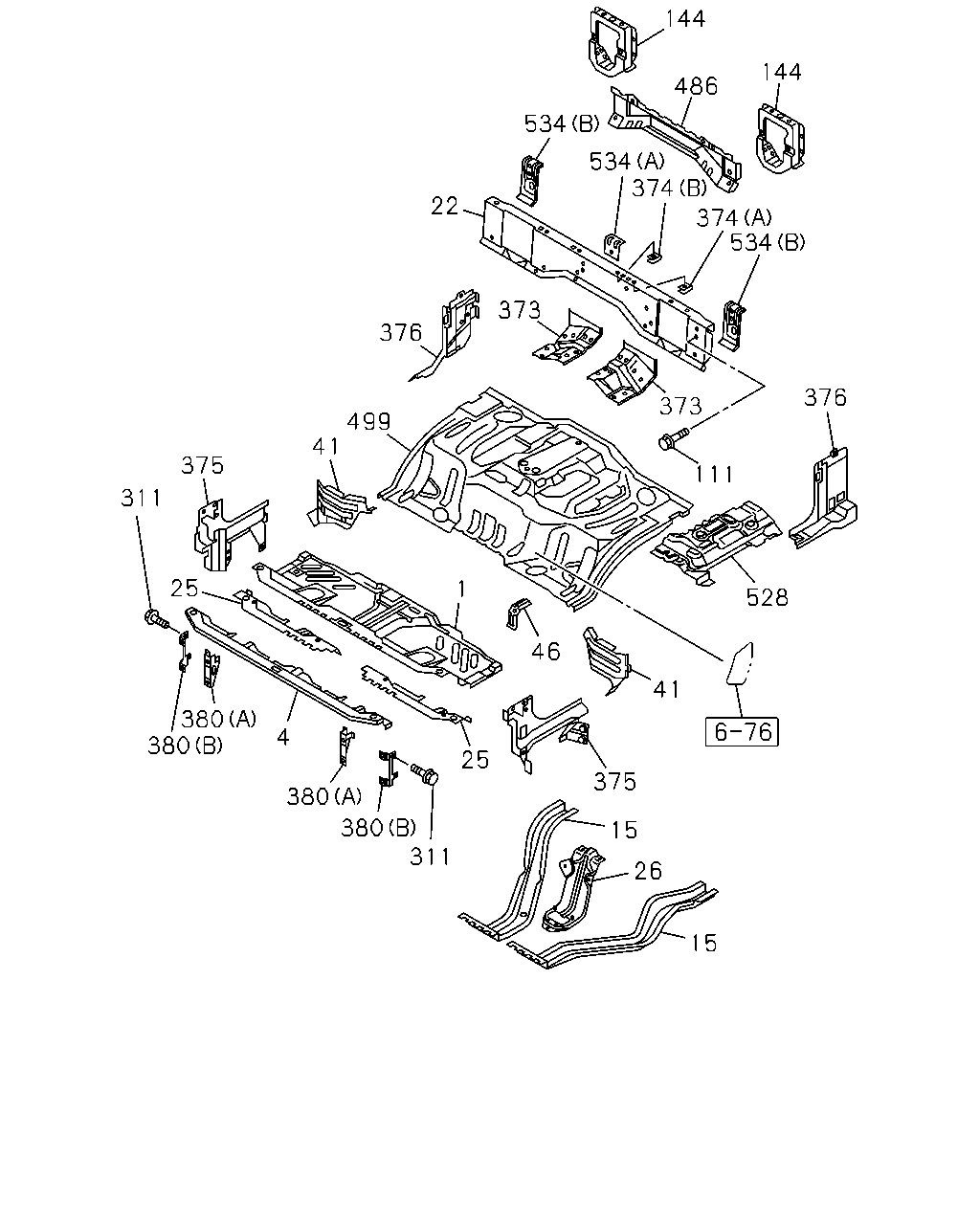

çizim 185889
144 144 486 534 534 374 22 374 534 373 376 376 373 499 41 375 111 311 25 1 528 46 41 380 380 4 25 375 380 380 311 15 26 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-97589-407-4 01 1 0807- ● ●
4 FRAME; FLOOR,FRT 8-98107-595-0 01 1 0807- ● ●
15 FRAME; UNDER 8-98059-497-1 01 1 0807- ● ●
15 FRAME; UNDER 8-98059-498-1 01 1 0807- ● ●
22 FRAME; FLOOR REAR 8-97589-418-4 01 1 0807- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 0807- ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 0807- ● ●
26 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 0807- ● ●
41 SUPPORT; STEP,RR 8-97583-880-1 01 1 0807- ● ●
41 SUPPORT; STEP,RR 8-97583-881-1 01 1 0807- ● ●
46 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 0807- ● ●
111 BOLT; PANEL
M8X25 FLANGE 		0-28650-825-0 01 1 0807- ● ●
144 BRACKET; MTG,RR 8-97589-544-3 02 1 0807- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0807- ● ●
373 REINFORCEMENT; SEAT BELT 8-98014-525-2 01 1 0807- ● ●
373 REINFORCEMENT; SEAT BELT 8-98014-526-2 01 1 0807- ● ●
374 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 0807- ● ●
374 NUT; FLOOR
(A) M8 		1-09984-111-0 01 1 0807- ● ●
375 CLOSING; PILLAR 8-97583-882-3 01 1 0807- ● ●
375 CLOSING; PILLAR 8-97583-883-2 01 1 0807- ● ●
376 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 0807- ● ●
376 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 0807- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 0807- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 0807- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 0807- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 0807- ● ●
486 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-613-2 01 1 0807- ● ●
499 PANEL; FLOOR,RR 8-97589-409-5 01 1 0807-1207 ● ●
499 PANEL; FLOOR,RR 8-98204-799-0 01 1 1208- ● ●
528 REINFORCEMENT; PARKING BRAKE 8-97589-410-2 01 1 0807- ● ●
534 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 0807- ● ●
534 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 0807- ● ●
