◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#75877) — 30 parça

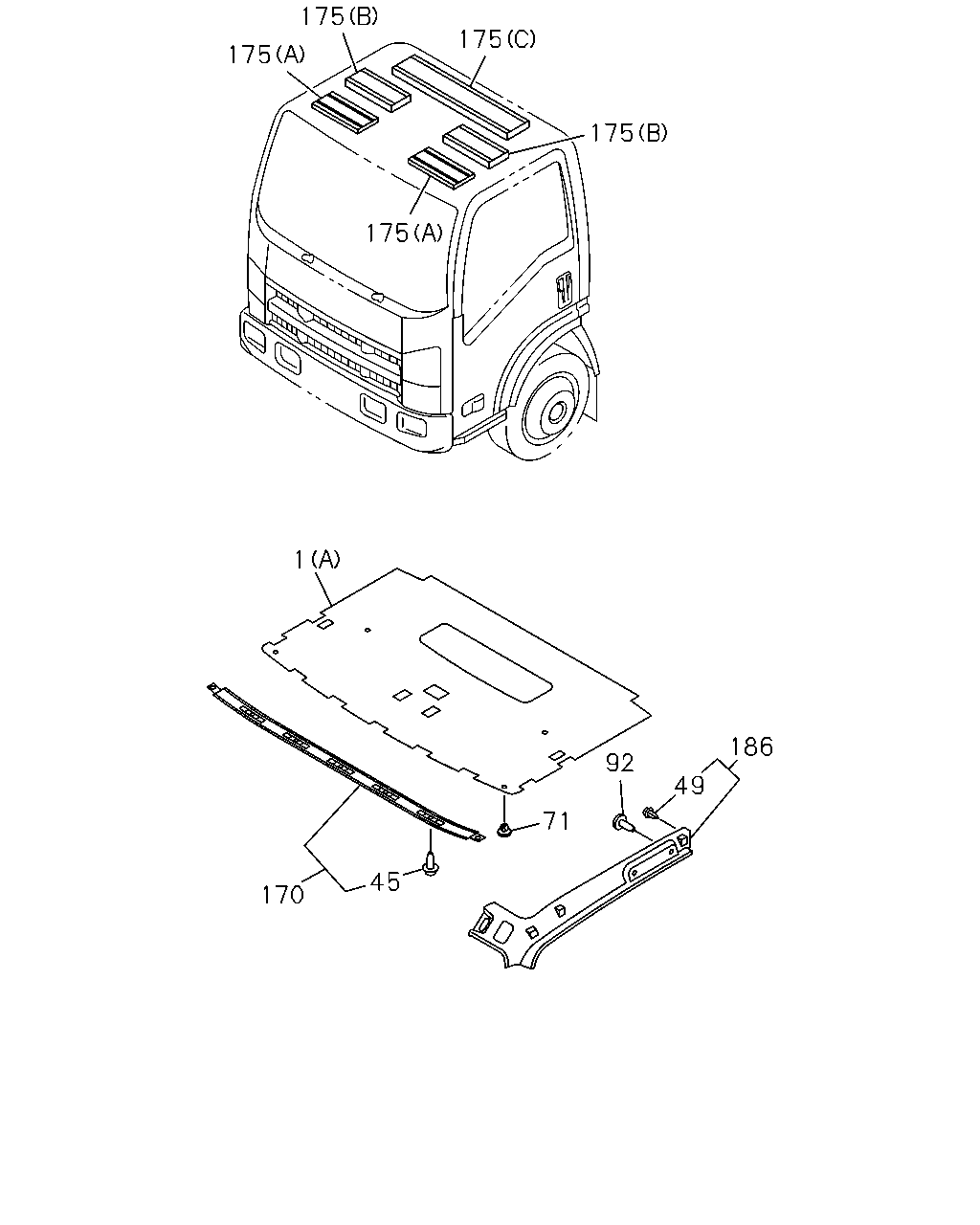

çizim 131784
175 175 175 175 175 1 186 92 49 71 45 170
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97405-269-7 01 1 0807- ● ●
1 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY 		8-97407-899-2 01 1 0807-1211 ● ●
1 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY 		8-97425-056-0 01 1 1212- ● ●
45 CLIP; FINISHER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98035-592-1 05 1 0807-0911 ● ●
45 CLIP; FINISHER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98035-592-1 03 1 0912- ● ●
49 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98059-610-0 06 1 0807-1410 ● ●
49 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98059-610-0 04 1 1411- ● ●
71 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 02 1 0807- ● ●
71 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY 		8-97405-301-2 04 1 0807- ● ●
71 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 0807- ● ●
92 RETAINER; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97407-768-0 04 1 0807- ● ●
170 FINISHER; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-281-5 01 1 0807- ● ●
175 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 0807-1301 ● ●
175 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (A) 		8-98082-685-1 02 1 1302- ● ●
175 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98037-299-3 02 1 0807- ● ●
175 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) 		8-98037-300-3 01 1 0807- ● ●
175 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (D) 		8-98037-298-3 01 1 0807- ● ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-251-3 01 1 0807- ● ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-263-3 01 1 0807- ● ●
çizim 185885
175 175 175 1 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97405-269-7 01 1 0807- ● ●
1 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY 		8-97407-899-2 01 1 0807-1211 ● ●
1 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY 		8-97425-056-0 01 1 1212- ● ●
71 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 02 1 0807- ● ●
71 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY 		8-97405-301-2 04 1 0807- ● ●
71 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 0807- ● ●
175 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 0807-1301 ● ●
175 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (A) 		8-98082-685-1 02 1 1302- ● ●
175 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) 		8-98037-299-3 02 1 0807- ● ●
175 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) 		8-98037-300-3 01 1 0807- ● ●
175 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3> (D) 		8-98037-298-3 01 1 0807- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
