◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#75874) — 14 parça

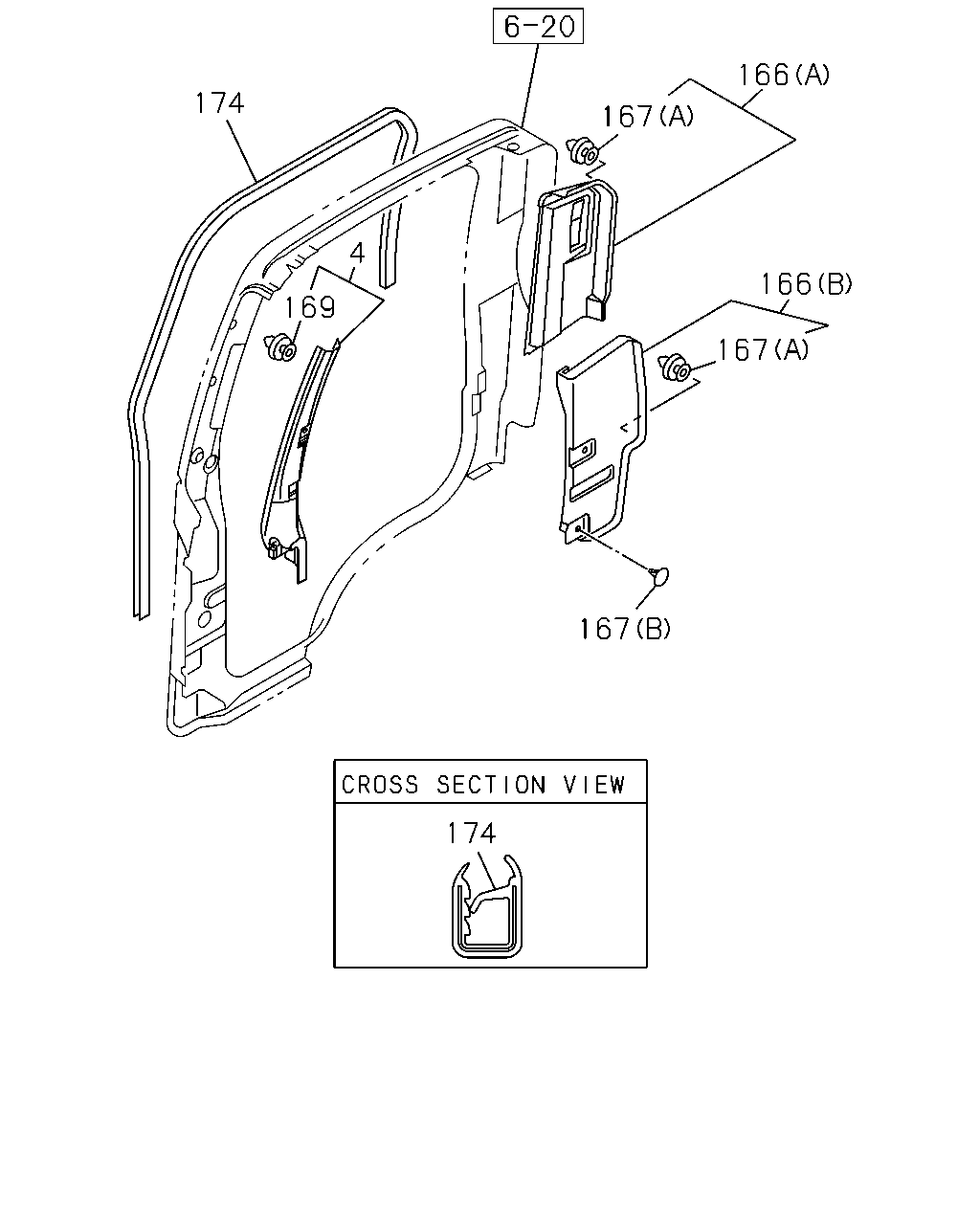

çizim 130695
166 174 167 4 166 169 167 167 174
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 0807- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 0807- ● ●
166 TRIM; RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97406-796-1 01 1 0807- ● ●
166 TRIM; RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY 		8-97407-900-0 01 1 0807- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97405-296-2 01 1 0807- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97405-297-2 01 1 0807- ● ●
167 CLIP; TRIM,RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) 		8-98059-610-0 04 1 0807- ● ●
167 CLIP; TRIM,RR PILLAR
(B) GRAY 		8-97406-421-0 04 1 0807- ● ●
167 CLIP; TRIM,RR PILLAR
(A) 		8-98059-610-0 06 1 0807- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0807- ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97405-283-3 01 1 0807-1007 ● ●
174 FINISHER; BODY SIDE
L=2609 		8-98154-665-0 01 1 1008- ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97405-288-3 01 1 0807-1007 ● ●
174 FINISHER; BODY SIDE
L=2609 		8-98154-666-0 01 1 1008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
