6-35 — FRONT DOOR TRIM (#75873) — 23 parça

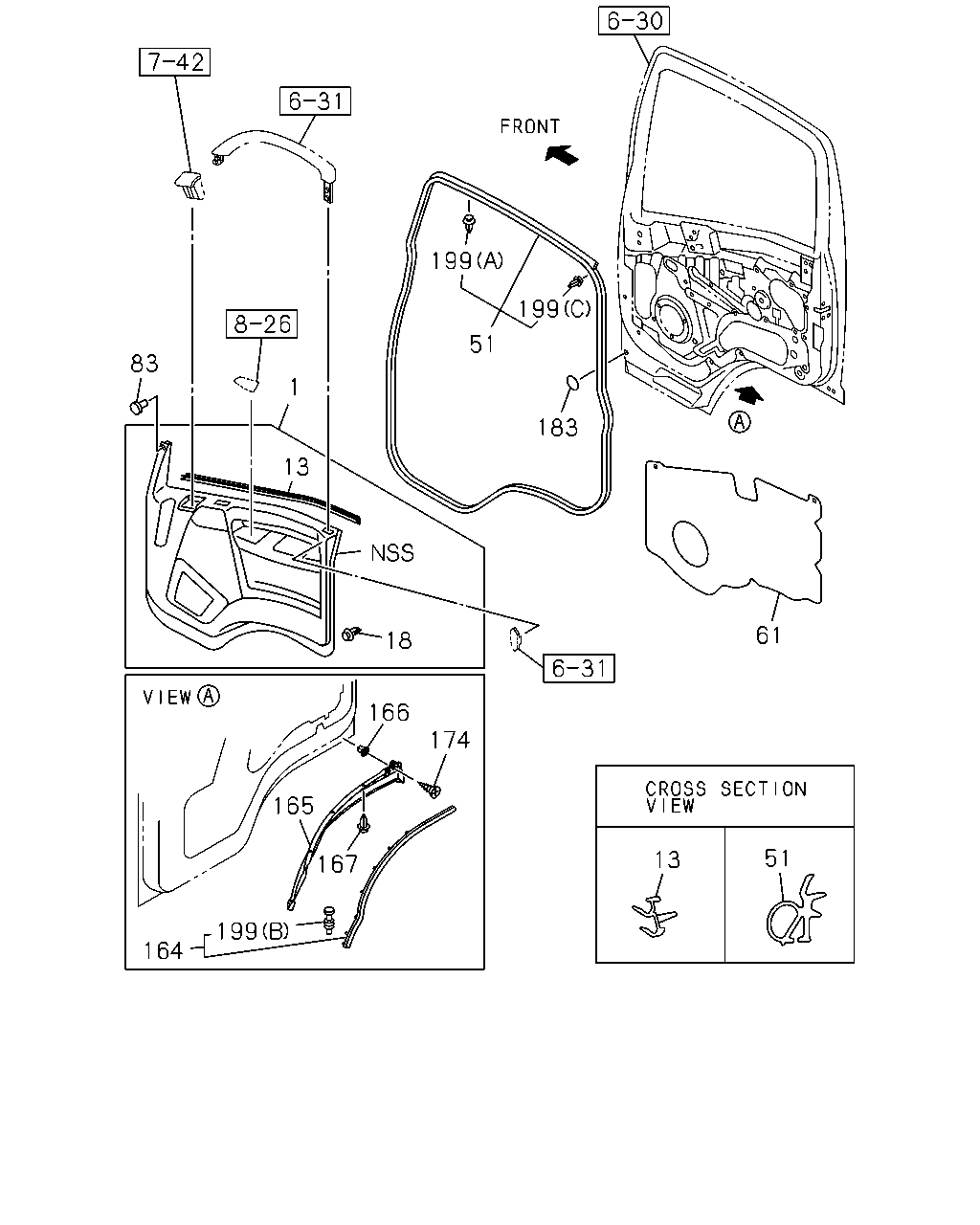

çizim 130729
199 199 51 83 1 183 13 61 18 166 174 165 51 167 13 199 164
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-304-6 01 1 0807-0909 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-306-6 01 1 0807-0909 ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-305-6 01 1 0807-0909 ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-305-6 01 1 0910- ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-307-6 01 1 0807-0909 ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-307-6 01 1 0910- ● ●
13 SEAL; DOOR TRIM 8-98029-201-1 01 1 0807- ● ●
13 SEAL; DOOR TRIM 8-98029-202-1 01 1 0807- ● ●
18 CLIP; DOOR PAD 8-98004-025-0 14 1 0807- ● ●
51 WEATHERSTRIP; FRONT DOOR 8-98029-198-3 01 1 0807- ● ●
51 WEATHERSTRIP; FRONT DOOR 8-98029-199-3 01 1 0807- ● ●
61 SEAL; WATER,DOOR PAD 8-98029-396-0 02 1 0807- ● ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 0807- ● ●
164 SEAL; SUB,SILL SIDE 8-98022-741-1 02 1 0807- ● ●
165 LINER; DOOR LWR 8-98022-738-1 01 1 0807- ● ●
165 LINER; DOOR LWR 8-98022-739-1 01 1 0807- ● ●
166 PLUG; HOLE
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0807- ● ●
167 CLIP; LINER
D6X16 PUSH RIVET 		1-09983-105-0 06 1 0807- ● ●
174 SCREW; LINER
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 0807- ● ●
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0807- ● ●
199 CLIP; SEAL
(B) NATURAL 		8-98027-457-0 20 1 0807- ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 80 1 0807- ● ●
199 CLIP; SEAL
(C) RED 		8-98062-271-0 02 1 0807- ● ●
