6-30 — FRONT DOOR AND HINGE (#75870) — 19 parça

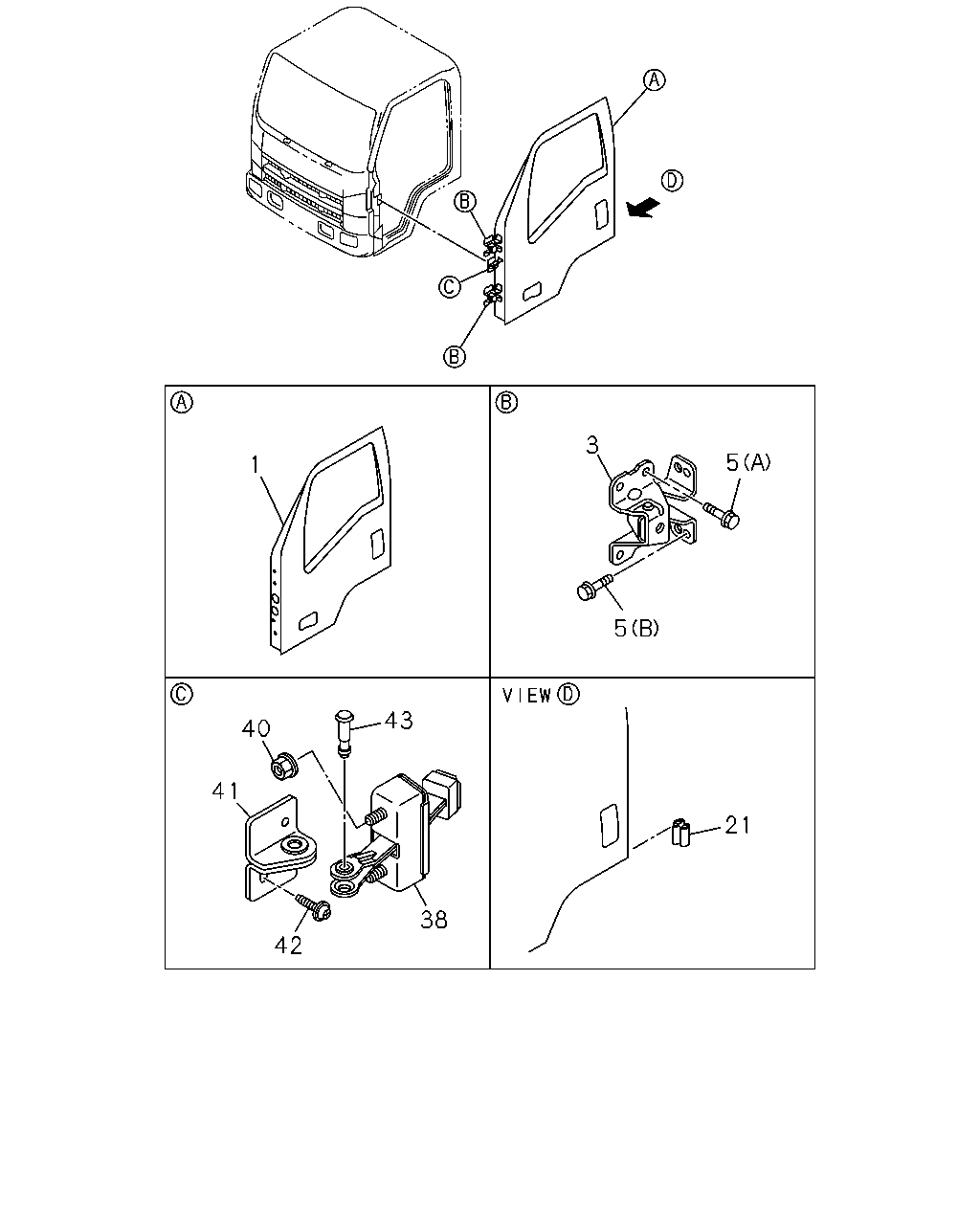

çizim 185880
1 3 5 5 43 21 40 41 38 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM 8-98084-118-0 01 1 0807-1012 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98171-227-0 01 1 1101-1411 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98260-605-0 01 1 1412- ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98084-119-0 01 1 0807-1012 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98171-236-0 01 1 1101-1411 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98260-606-0 01 1 1412- ● ●
3 HINGE; DOOR FRT 8-98038-293-0 04 1 0807-1104 ● ●
3 HINGE; DOOR FRT 8-98191-302-0 04 1 1105- ● ●
5 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 0807- ● ●
5 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 0807- ● ●
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 0807- ● ●
21 PROTECTOR; DOOR EDGE 8-94272-930-0 02 1 0807-0904 ● ●
38 CHECKER ASM; DOOR 8-98031-730-6 02 1 0807-1508 ● ●
38 CHECKER ASM; DOOR 8-98296-602-0 02 1 1509- ● ●
40 NUT; CHECKER
M8 FLANGE 		8-98029-441-0 04 1 0807-1012 ● ●
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1101- ● ●
41 BRACKET; CHECKER 8-98029-290-3 02 1 0807- ● ●
42 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 0807- ● ●
43 PIN 8-98037-152-2 02 1 0807- ● ●
