6-20 — SIDE PANEL AND STEP (#75869) — 47 parça

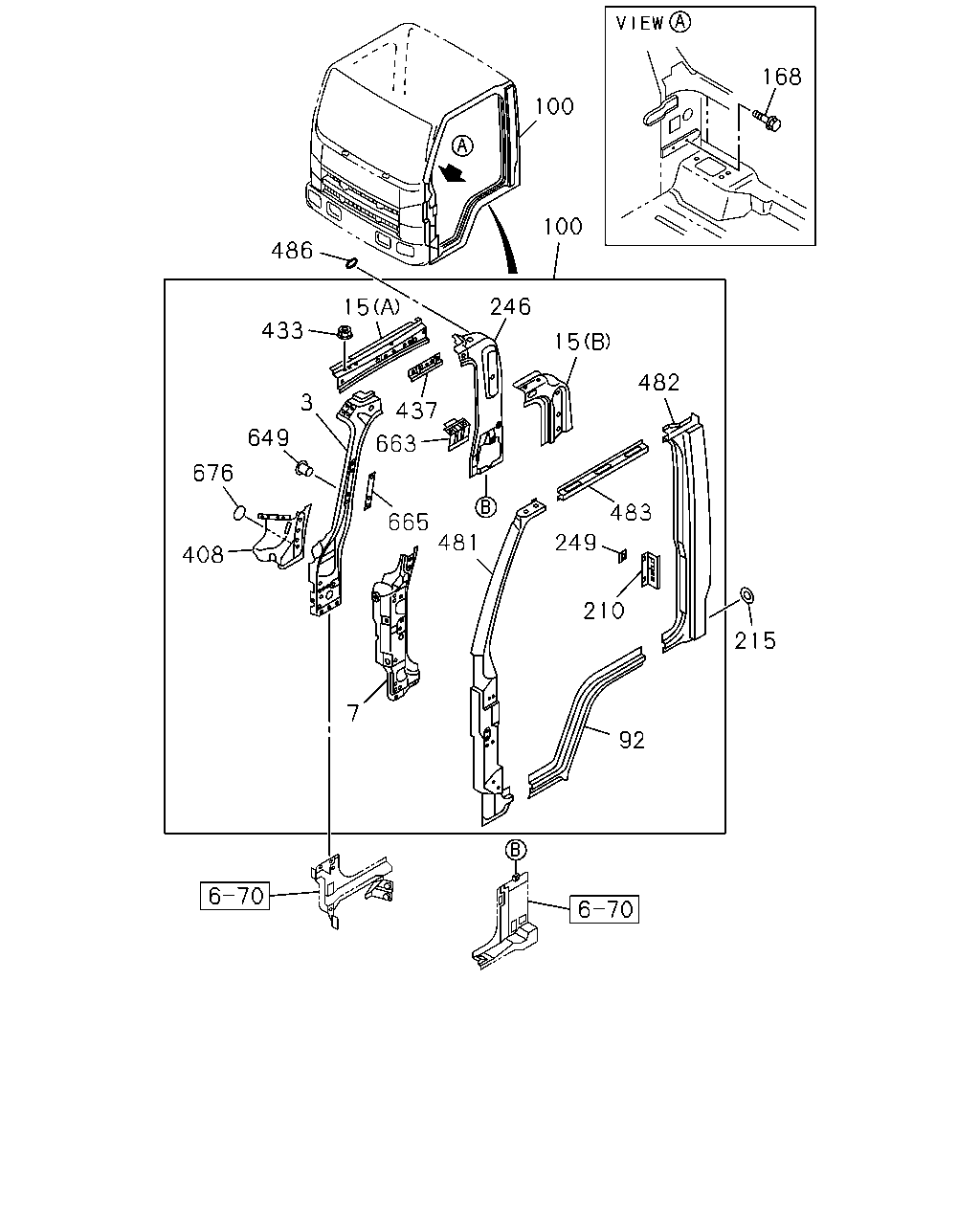

çizim 126691
168 100 100 486 246 15 433 15 482 3 437 649 663 676 483 665 481 249 408 210 215 7 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0807- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0807- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0807- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0807- ● ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 0807- ● ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 0807- ● ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 0807- ● ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 0807- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0807- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0807- ● ●
100 PANEL ASM; BODY SIDE 8-97586-053-9 01 1 0807- ● ●
100 PANEL ASM; BODY SIDE 8-98099-654-1 01 1 0807- ● ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0807- ● ●
210 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 0807- ● ●
210 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 0807- ● ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 0807- ● ●
246 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 0807- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 0807- ● ●
249 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 0807- ● ●
249 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 0807- ● ●
408 GUSSET; PILLAR 8-97585-316-3 01 1 0807- ● ●
408 GUSSET; PILLAR 8-97585-317-4 01 1 0807- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0807- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0807- ● ●
437 BRACKET; ROOF RAIL 8-98039-019-0 01 1 0807- ● ●
437 BRACKET; ROOF RAIL 8-98039-020-0 01 1 0807- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-581-0 01 1 0807- ● ●
481 PANEL; SIDE FRT PILLAR 8-98072-715-1 01 1 0807- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-463-0 01 1 0807- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 0807- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0807- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0807- ● ●
486 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BOD Y COLOR PENSKE YELLOW(987),BODY COLOR SUNBELT GREEN(989) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0807- ● ●
486 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0807- ● ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0807- ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 0807- ● ●
663 BRACKET; AIR 8-97585-208-2 01 1 0807- ● ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0807- ● ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0807- ● ●
676 SEAL
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0807- ● ●

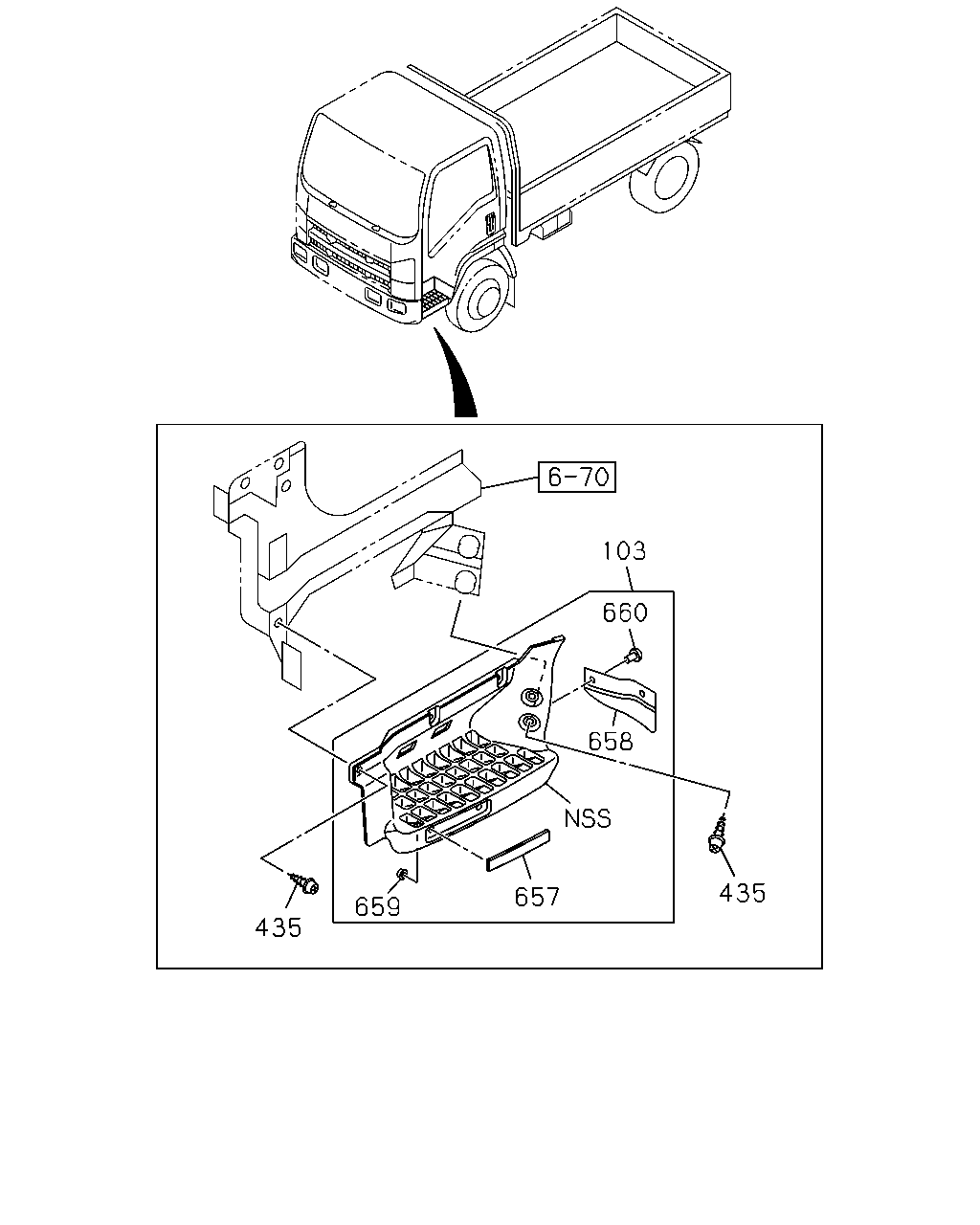

çizim 185881
103 660 658 435 657 659 435
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98022-774-3 01 1 0807- ● ●
103 PLATE; STEP 8-98022-775-3 01 1 0807- ● ●
435 BOLT; RR STEP
M8X18 		8-98004-345-0 12 1 0807- ● ●
657 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 0807- ● ●
658 FLAP; STEP 8-98037-560-1 02 1 0807- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0807- ● ●
660 CLIP; FLAP 8-98111-558-0 04 1 0807- ● ●
