◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#75868) — 15 parça

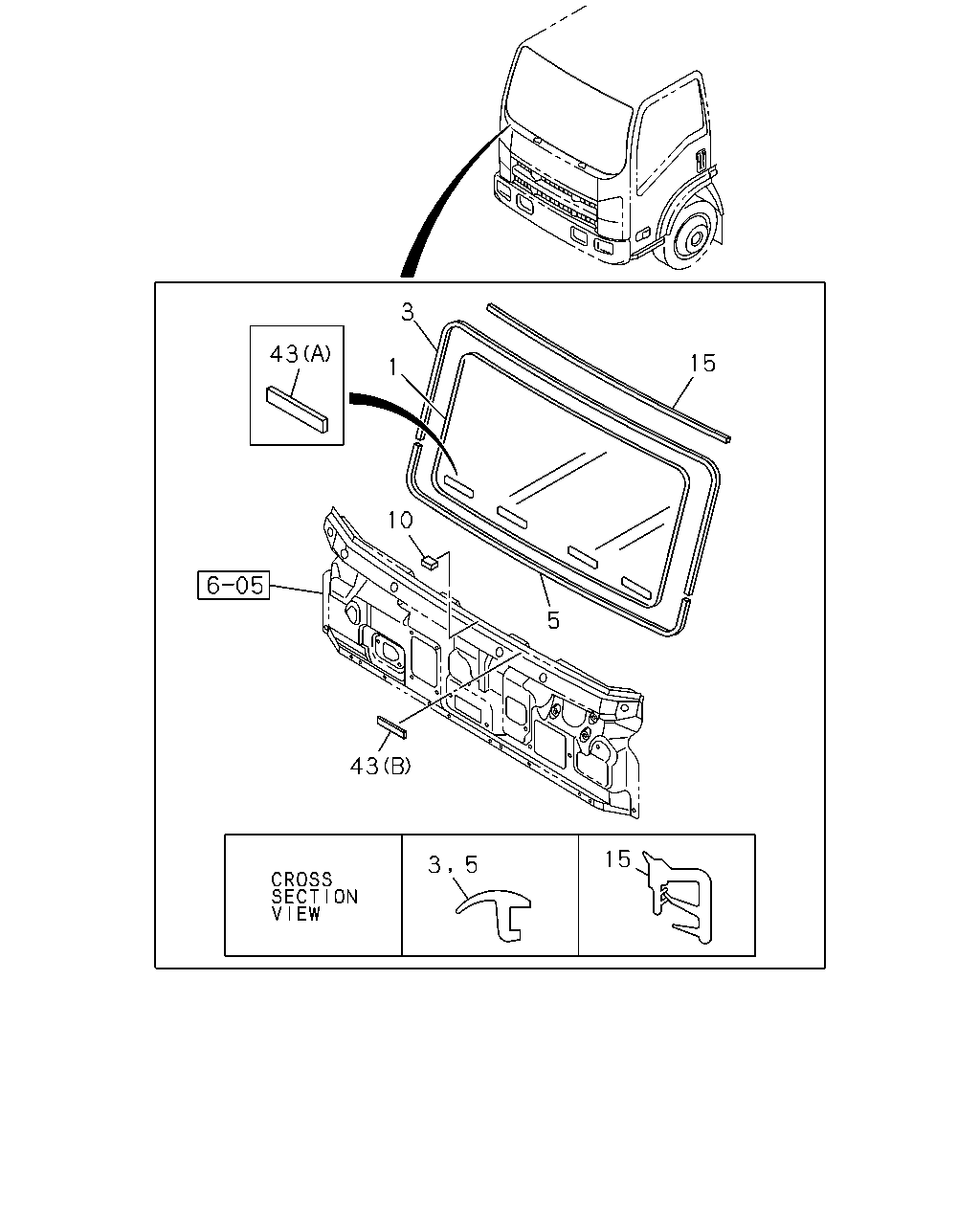

çizim 126351
3 43 15 1 10 5 43 15 3 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; WINDSHIELD 8-98029-064-1 01 1 1007- ● ●
1 GLASS; WINDSHIELD 8-98029-064-1 01 1 0807-1006 ● ●
3 MOLDING; WINDSHIELD 8-98029-079-1 01 1 0807- ● ●
5 MOLDING; WINDSHIELD,LWR 8-98083-542-1 01 1 0807- ● ●
10 SPACER; WINDSHIELD GLASS
L=100 B=1.5 		8-98095-044-0 02 1 1007- ● ●
10 SPACER; WINDSHIELD GLASS
L=100 B=1.5 		8-98095-044-0 02 1 0807-1006 ● ●
15 FINISHER; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97412-958-0 01 1 0807- ● ●
43 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 09 1 1007- ● ●
43 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 09 1 1007- ● ●
43 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 04 1 1007- ● ●
43 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 04 1 1007- ● ●
43 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 09 1 0807-1006 ● ●
43 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 09 1 0807-1006 ● ●
43 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 04 1 0807-1006 ● ●
43 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 04 1 0807-1006 ● ●
