6-05 — FRONT PANEL (#75867) — 58 parça

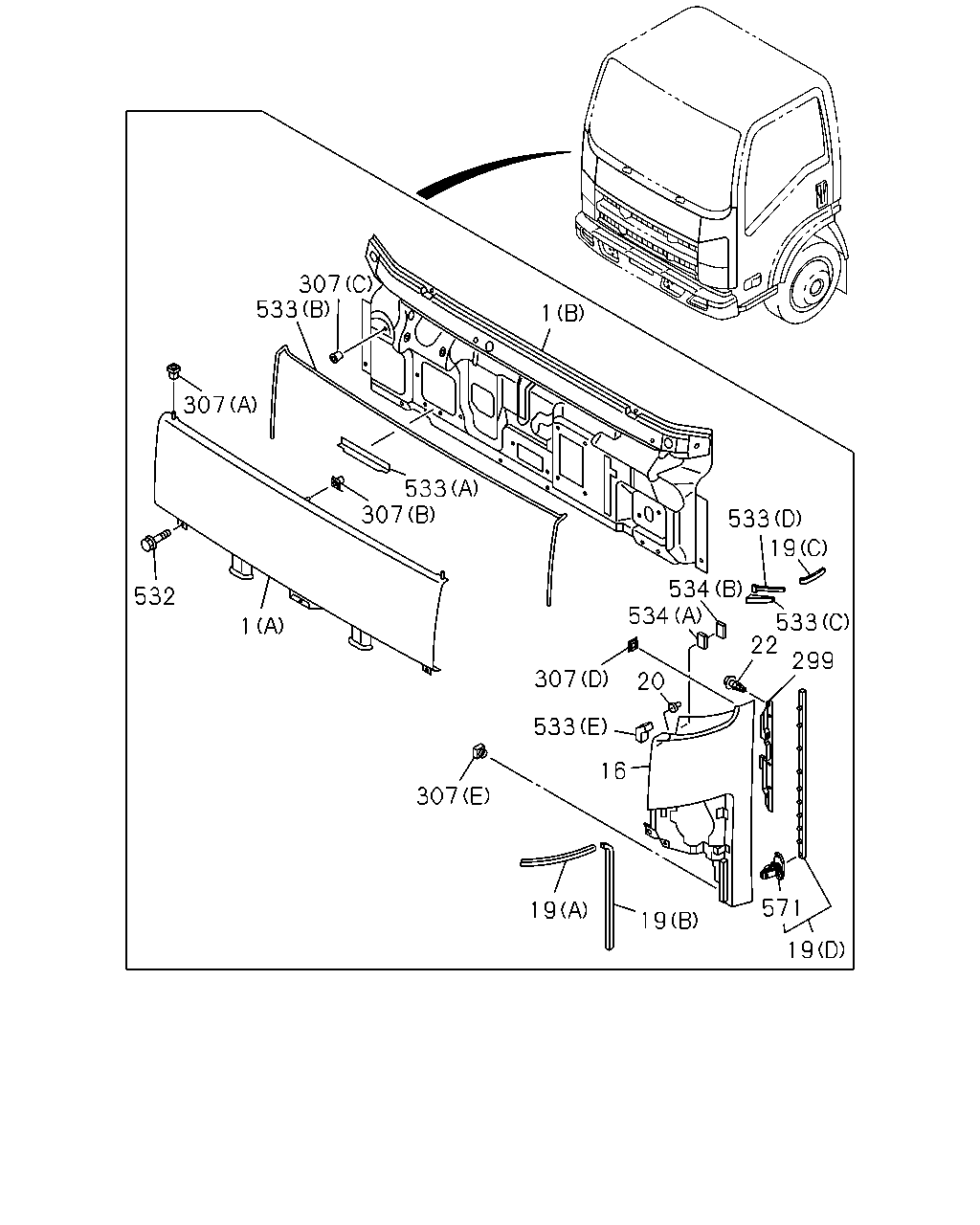

çizim 126369
307 533 1 307 533 307 533 19 534 534 532 533 22 1 299 307 20 533 16 307 571 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(A) 		8-98021-859-5 01 1 0807-0807 ● ●
1 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 0808- ● ●
1 PANEL ASM; FRT
(B) 		8-98089-897-1 01 1 0807-1012 ● ●
1 PANEL ASM; FRT
(B) 		8-98182-392-0 01 1 1101- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97407-904-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97407-909-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97407-905-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97407-910-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-039-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-040-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97407-342-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97407-343-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97407-906-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97407-911-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97407-907-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97407-912-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PENSKE YELLOW(987) YELLOW 		8-97407-908-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PENSKE YELLOW(987) YELLOW 		8-97407-913-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-842-9 01 1 0807- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-843-9 01 1 0807- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 0807- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 0807- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 0807- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 0807- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 0807- ● ●
20 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 0807- ● ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0807- ● ●
299 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 0807- ● ●
299 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 0807- ● ●
307 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 0807- ● ●
307 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 0807- ● ●
307 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 0807- ● ●
307 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 0807- ● ●
307 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 0807- ● ●
307 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 0807- ● ●
532 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 0807- ● ●
533 SEAL; FRT PANEL
(A) 		8-98049-007-0 01 1 0807- ● ●
533 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 0807-1506 ● ●
533 SEAL; FRT PANEL
(B) 		8-98309-764-0 01 1 1507- ● ●
533 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 0807- ● ●
533 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 0807- ● ●
533 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 0807- ● ●
533 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 0807- ● ●
534 FASTENER
(A) 40X25 		8-98089-412-1 02 1 0807- ● ●
534 FASTENER
(B) 40X25 		8-98089-411-1 02 1 0807- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0807- ● ●
çizim 126541
1 647 198 646 198 654 646 645 543 540
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(A) 		8-98021-859-5 01 1 0807-0807 ● ●
1 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 0808- ● ●
1 PANEL ASM; FRT
(B) 		8-98089-897-1 01 1 0807-1012 ● ●
1 PANEL ASM; FRT
(B) 		8-98182-392-0 01 1 1101- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 06 1 0807- ● ●
540 PANEL; FRONT,OUTER 8-97586-202-6 01 1 0807- ● ●
543 CLOSING; FRT MTG RAIL 8-98008-131-4 01 1 0807- ● ●
645 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 0807- ● ●
646 REINFORCEMENT; DASH 8-98023-098-1 01 1 0807- ● ●
646 REINFORCEMENT; DASH 8-98023-099-1 01 1 0807- ● ●
647 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 0807- ● ●
654 PIN; FRT PANEL 8-98021-967-2 02 1 0807- ● ●
