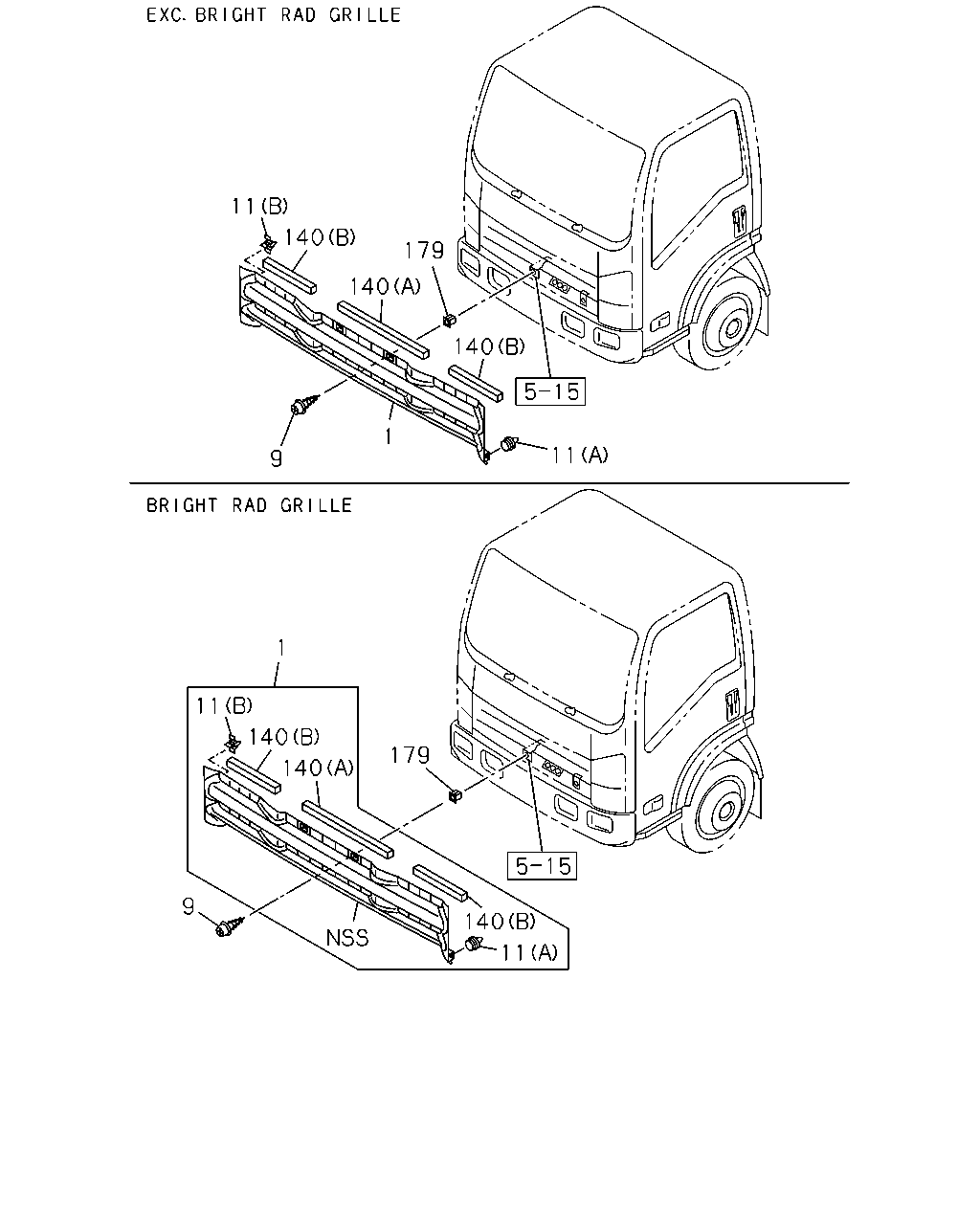

6-03 — RADIATOR GRILLE (#75865) — 69 parça

11 140 179 140 140 1 11 9 1 11 140 179 140 9 140 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GRILLE; RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> PLATED	8-98241-071-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR EBONY BLACK(508) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLACK	8-97465-139-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR DARK BLUE(695) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE	8-97428-986-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> WHITE	8-97428-977-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> RED	8-97428-995-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> DARK GREEN	8-97428-990-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> YELLOW	8-97428-993-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR PENSKE YELLOW(987) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> YELLOW	8-97465-140-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR SUNBELT GREEN(989) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> GREEN	8-97428-991-1	01	1	1412-	●	●
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> PLATED	8-98025-458-4	01	1	0807-1411	●	●
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> EXC. FACE LIFT MODEL<TX7> PLATED	8-98025-458-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR EBONY BLACK(508) EXC. BRIGHT RAD GRILLE<V22> BLACK	8-97408-224-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR EBONY BLACK(508) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> BLACK	8-97408-224-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> BLUE	8-97408-225-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR DARK BLUE(695) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> BLUE	8-97408-225-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> WHITE	8-97407-294-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> WHITE	8-97407-294-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> RED	8-97407-344-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> RED	8-97407-344-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> DARK GREEN	8-97408-226-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> DARK GREEN	8-97408-226-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> YELLOW	8-97408-227-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> YELLOW	8-97408-227-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR PENSKE YELLOW(987) EXC. BRIGHT RAD GRILLE<V22> YELLOW	8-97408-228-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR PENSKE YELLOW(987) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> YELLOW	8-97408-228-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR SUNBELT GREEN(989) EXC. BRIGHT RAD GRILLE<V22> GREEN	8-97412-401-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR SUNBELT GREEN(989) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> GREEN	8-97412-401-4	01	1	1412-	●	●
9	SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74165-516-0	01	1	0807-	●	●
11	CLIP; RAD GRILLE (A)	8-97581-651-2	02	1	0807-	●	●
11	CLIP; RAD GRILLE (B)	8-98025-698-0	05	1	0807-	●	●
140	SEAL; RAD GRILLE (A)	8-98054-280-0	01	1	0807-1411	●	●
140	SEAL; RAD GRILLE EXC. FACE LIFT MODEL<TX7> (A)	8-98054-280-0	01	1	1412-	●	●
140	SEAL; RAD GRILLE (B)	8-98054-281-0	02	1	0807-1411	●	●
140	SEAL; RAD GRILLE EXC. FACE LIFT MODEL<TX7> (B)	8-98054-281-0	02	1	1412-	●	●
179	RETAINER; GRILLE,RAD D=7X7 L=7.5	8-94291-927-0	01	1	0807-	●	●

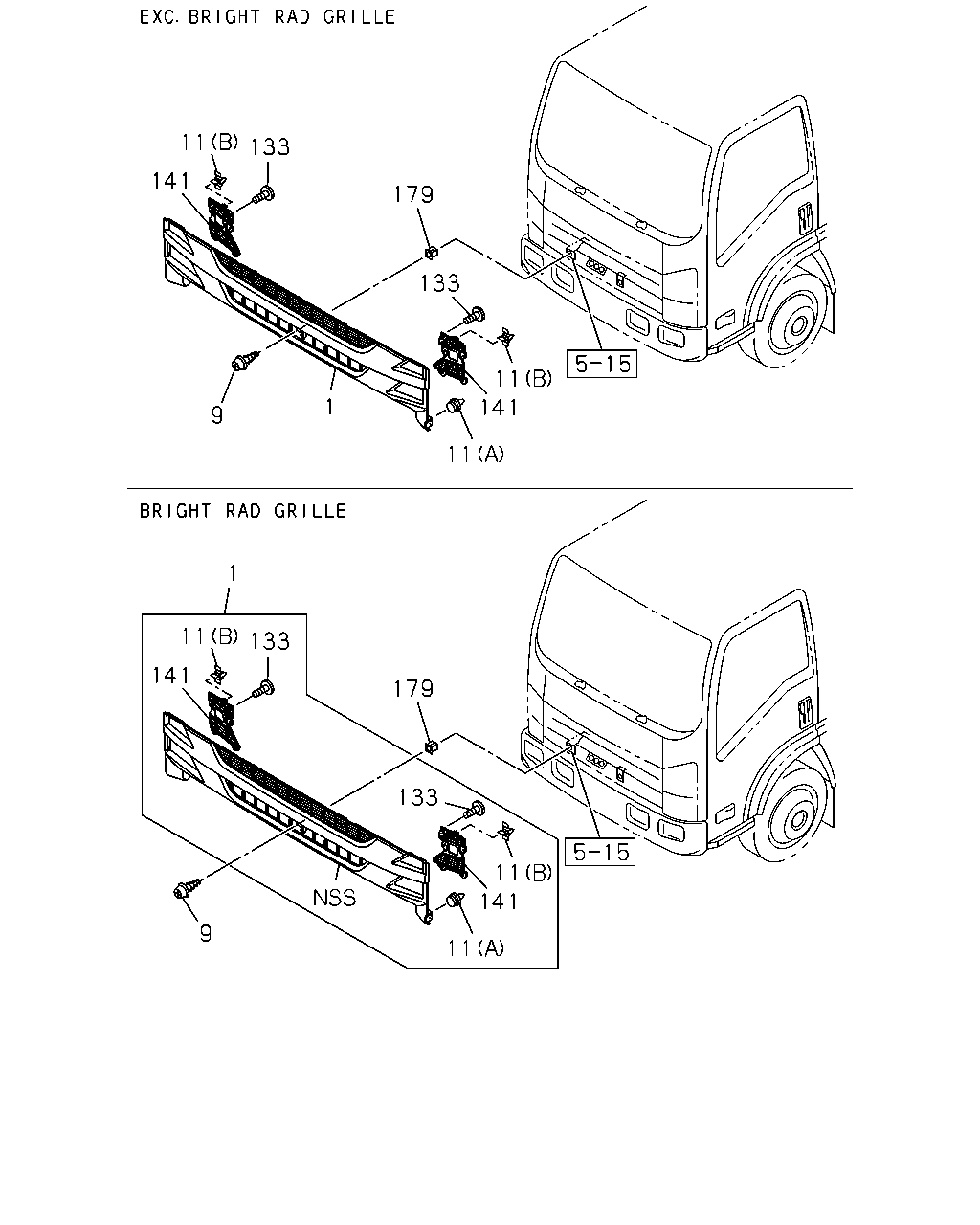

11 141 133 179 133 11 141 11 1 9 1 133 11 141 179 133 11 141 11 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GRILLE; RAD FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> PLATED	8-98241-071-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR EBONY BLACK(508) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLACK	8-97465-139-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR DARK BLUE(695) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> BLUE	8-97428-986-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> WHITE	8-97428-977-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> RED	8-97428-995-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> DARK GREEN	8-97428-990-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> YELLOW	8-97428-993-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR PENSKE YELLOW(987) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> YELLOW	8-97465-140-1	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR SUNBELT GREEN(989) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22> GREEN	8-97428-991-1	01	1	1412-	●	●
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> PLATED	8-98025-458-4	01	1	0807-1411	●	●
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> EXC. FACE LIFT MODEL<TX7> PLATED	8-98025-458-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR EBONY BLACK(508) EXC. BRIGHT RAD GRILLE<V22> BLACK	8-97408-224-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR EBONY BLACK(508) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> BLACK	8-97408-224-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> BLUE	8-97408-225-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR DARK BLUE(695) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> BLUE	8-97408-225-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> WHITE	8-97407-294-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> WHITE	8-97407-294-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> RED	8-97407-344-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> RED	8-97407-344-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> DARK GREEN	8-97408-226-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> DARK GREEN	8-97408-226-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> YELLOW	8-97408-227-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> YELLOW	8-97408-227-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR PENSKE YELLOW(987) EXC. BRIGHT RAD GRILLE<V22> YELLOW	8-97408-228-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR PENSKE YELLOW(987) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> YELLOW	8-97408-228-4	01	1	1412-	●	●
1	GRILLE; RAD BODY COLOR SUNBELT GREEN(989) EXC. BRIGHT RAD GRILLE<V22> GREEN	8-97412-401-4	01	1	0807-1411	●	●
1	GRILLE; RAD BODY COLOR SUNBELT GREEN(989) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22> GREEN	8-97412-401-4	01	1	1412-	●	●
9	SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74165-516-0	01	1	0807-	●	●
11	CLIP; RAD GRILLE (A)	8-97581-651-2	02	1	0807-	●	●
11	CLIP; RAD GRILLE (B)	8-98025-698-0	05	1	0807-	●	●
133	SCREW; COVER FACE LIFT MODEL<TX7> T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	10	1	1412-	●	●
141	COVER; RAD GRILLE FACE LIFT MODEL<TX7>	8-98244-212-0	01	1	1412-	●	●
141	COVER; RAD GRILLE FACE LIFT MODEL<TX7>	8-98244-213-0	01	1	1412-	●	●
179	RETAINER; GRILLE,RAD D=7X7 L=7.5	8-94291-927-0	01	1	0807-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
