◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#75864) — 13 parça

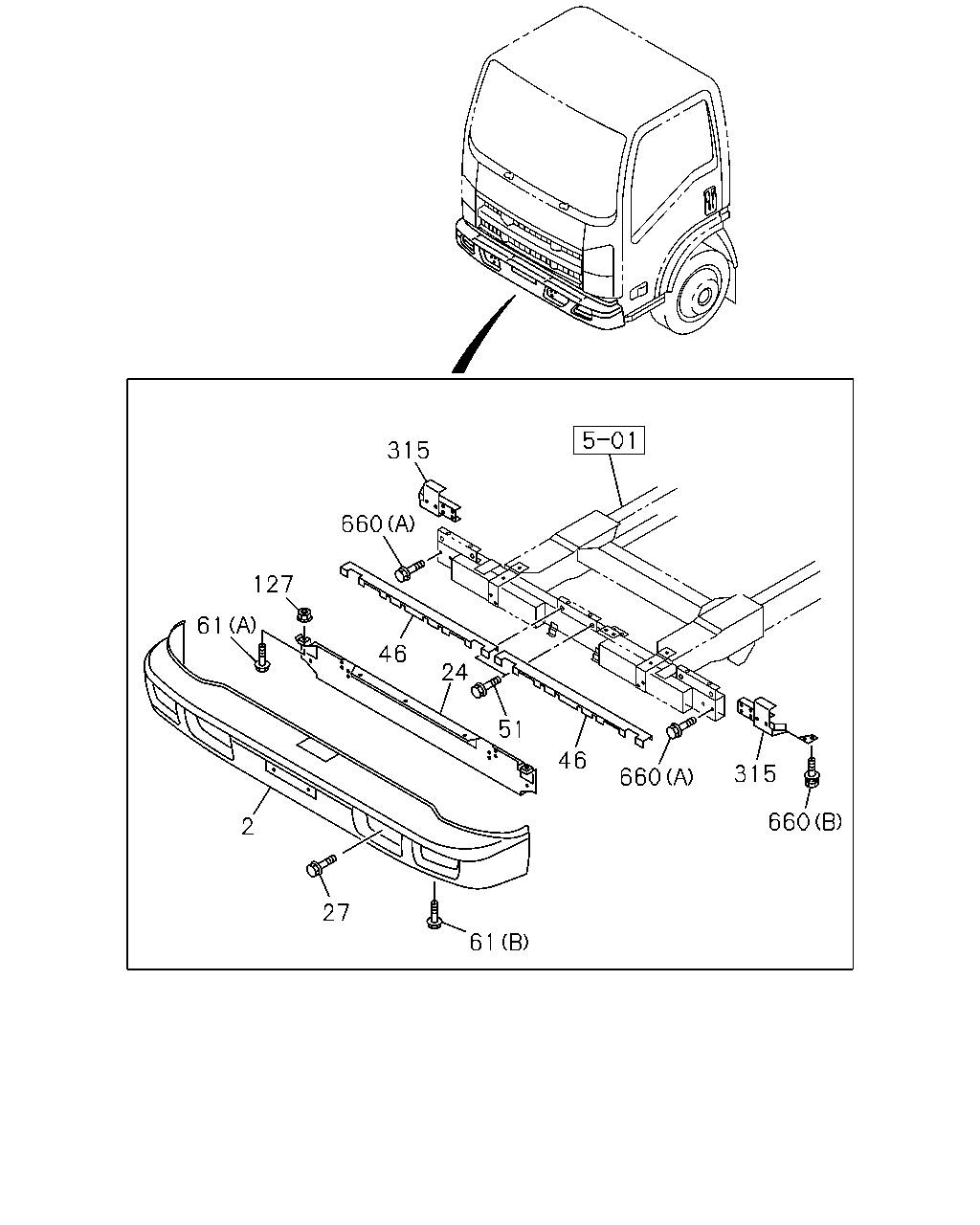

çizim 126007
315 660 127 61 46 24 51 46 315 660 660 2 27 61
BalonParca AdiParca NoAdetTipApplied Date A B
2 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-082-1 01 1 0807- ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRONT BUMPER PAINTED<VB5> WHITE 		8-97406-962-2 01 1 0807- ● ●
24 BAR; FRT BUMPER 8-98056-684-0 01 1 0807- ● ●
27 BOLT; BUMPER TO BACK BAR
M10X30 W/TORQUES 		8-98092-250-0 04 1 0807- ● ●
46 REINFORCEMENT; BUMPER 8-98063-109-0 02 1 0807- ● ●
51 BOLT; REINF,BUMPER
M8X20 FLANGE 		0-28650-820-0 04 1 0807- ● ●
61 BOLT; BACK BAR
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0807- ● ●
61 BOLT; BACK BAR
(B) M6X16 FLANGE 		8-98016-982-0 03 1 0807- ● ●
127 NUT; FRT BUMPER
M8 		8-98040-792-0 05 1 0807- ● ●
315 STAY; BUMPER 8-98031-754-0 01 1 0807- ● ●
315 STAY; BUMPER 8-98031-755-0 01 1 0807- ● ●
660 BOLT; STAY
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0807- ● ●
660 BOLT; STAY
(B) M8X25 W/LK&PL WASHER 		8-98018-439-0 02 1 0807- ● ●
