Isuzu WW
▶
TRUCKS
▶
ELF
▶
51174 - ELF400/500/600/BUS
▶
5 - Frame, Cab Mounting
▶

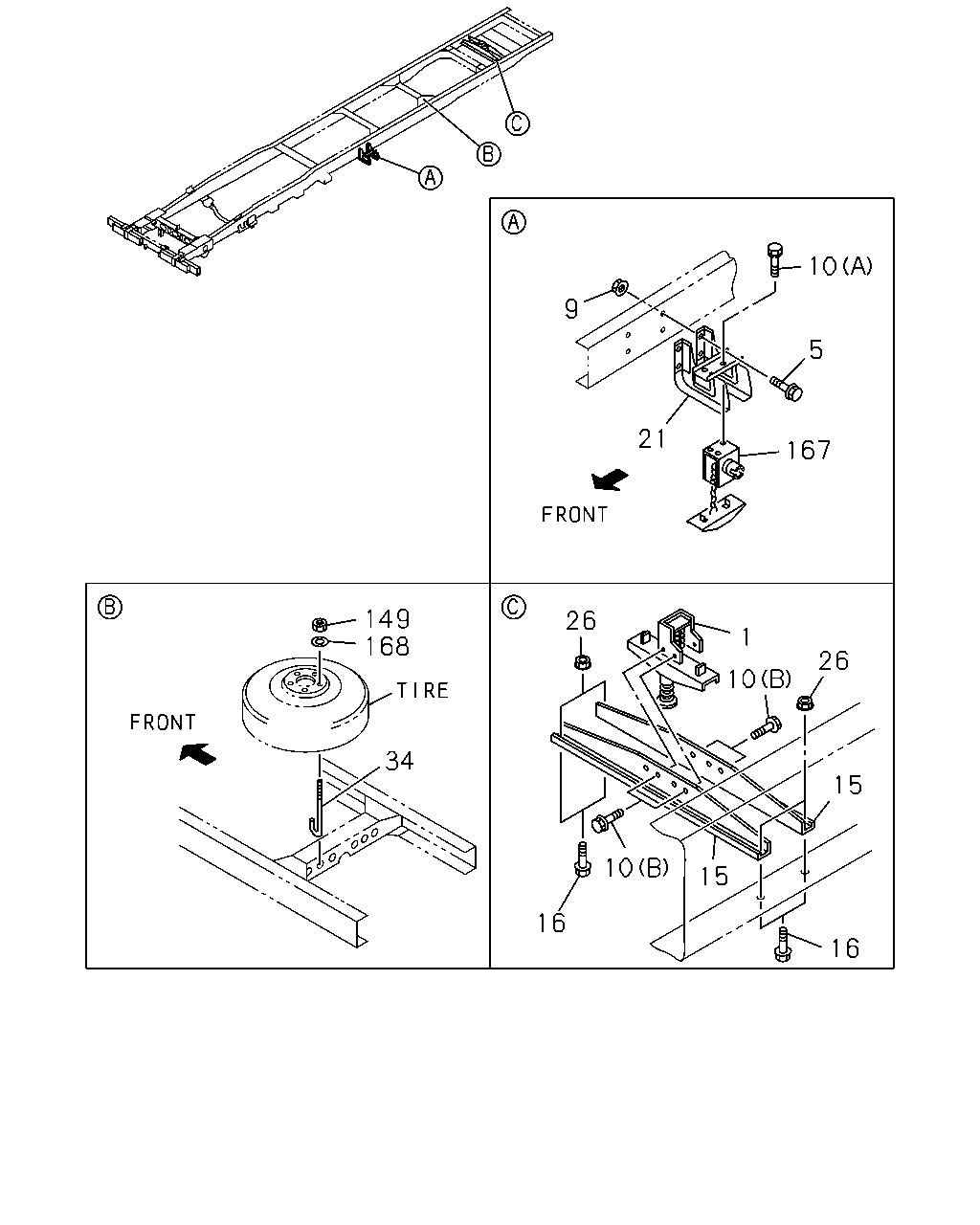

5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#75863) — 14 parça
Tümü
A - NPR7SN
B - NPR7SS
10
9
5
21
167
149
168
26
1
26
10
34
15
10
15
16
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER<P10> DEALER INSTALLED OPTION<6JJ>
1-53630-188-3
01
1
0807-
●
●
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER<P10> EXC. DEALER INSTALLED OPTION<6JJ> M10X25 FLANGE
0-28051-025-0
04
1
0807-
●
●
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER<P10> EXC. DEALER INSTALLED OPTION<6JJ> M10 FLANGE
0-91180-110-0
04
1
0807-
●
●
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER<P10> DEALER INSTALLED OPTION<6JJ> (B) M10X25 FLANGE
0-28651-025-0
04
1
0807-
●
●
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER<P10> EXC. DEALER INSTALLED OPTION<6JJ> (A) M8X20 FLANGE
0-28650-820-0
03
1
0807-
●
●
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER<P10> DEALER INSTALLED OPTION<6JJ>
8-97167-802-0
02
1
0807-
●
●
16
BOLT; MEMBER
SPARE WHEEL CARRIER<P10> DEALER INSTALLED OPTION<6JJ> M10X30 FLANGE
0-28651-030-0
04
1
0807-
●
●
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER<P10> EXC. DEALER INSTALLED OPTION<6JJ>
8-98072-378-2
01
1
0807-
●
●
26
NUT; BRKT FIX
SPARE WHEEL CARRIER<P10> DEALER INSTALLED OPTION<6JJ> M10 FLANGE
0-91180-210-0
04
1
0807-
●
●
34
BOLT; SPARE TIRE
M12X305
8-94441-189-0
02
1
0807-1209
●
●
34
BOLT; SPARE TIRE
M12X330
8-98226-501-0
02
1
1210-
●
●
149
NUT; CARRIER
M12
0-91110-512-0
02
1
0807-
●
●
167
HANGER; TIRE
SPARE WHEEL CARRIER<P10> EXC. DEALER INSTALLED OPTION<6JJ>
8-97010-955-1
01
1
0807-
●
●
168
WASHER; SPARE TIRE
ID=12.5 OD=54
8-94466-483-0
02
1
0807-
●
●
