◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#75862) — 14 parça

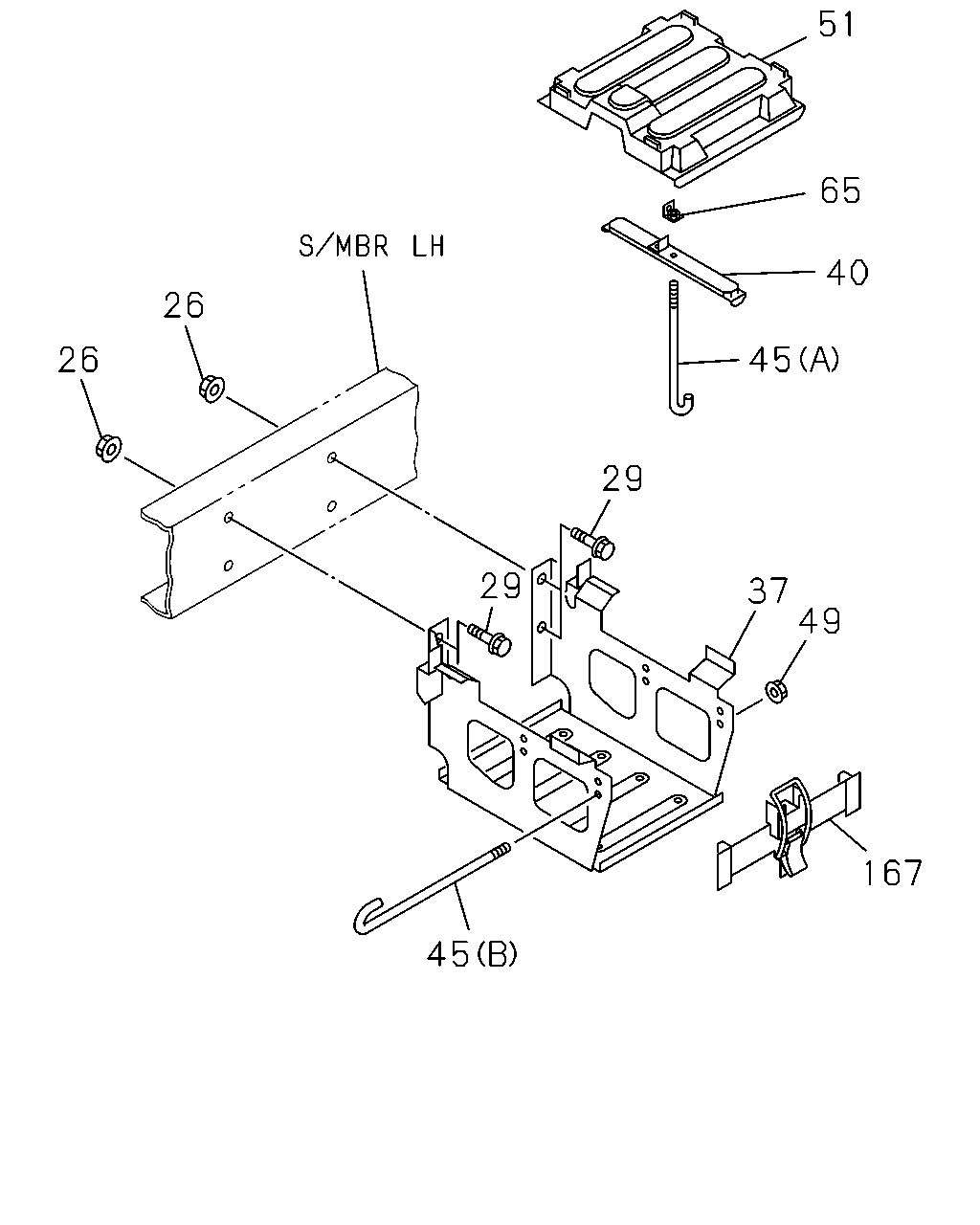

çizim 125929
51 65 40 26 26 45 29 29 37 49 167 45
BalonParca AdiParca NoAdetTipApplied Date A B
26 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0807- ● ●
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28661-035-0 04 1 0807- ● ●
37 BRACKET; BATTERY 8-98060-873-1 01 1 0807-0901 ● ●
37 BRACKET; BATTERY 8-98089-450-0 01 1 0902- ● ●
40 CLAMP; BATTERY 8-98073-452-0 01 1 0807- ● ●
45 ROD; TENSION,BATTERY
(A) L=250 		1-53616-081-0 01 1 0807-1003 ● ●
45 ROD; TENSION,BATTERY
(A) L=250 		1-53616-108-0 01 1 1004-1305 ● ●
45 ROD; TENSION,BATTERY
(A) L=250 		8-98239-958-0 01 1 1306- ● ●
45 ROD; TENSION,BATTERY
(B) L=365 		8-97122-608-0 01 1 0807- ● ●
49 NUT; ROD,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0807- ● ●
51 COVER; BATTERY 1-53612-029-1 01 1 0807-1412 ● ●
51 COVER; BATTERY 8-98303-307-1 01 1 1501- ● ●
65 PLATE; LOCK,BATTERY BRKT 1-53618-040-0 01 1 0807- ● ●
167 BRACKET; STOPPER 8-98060-301-2 01 1 0807- ● ●
