5-15 — CAB MOUNTING; CAB SIDE (#75861) — 54 parça

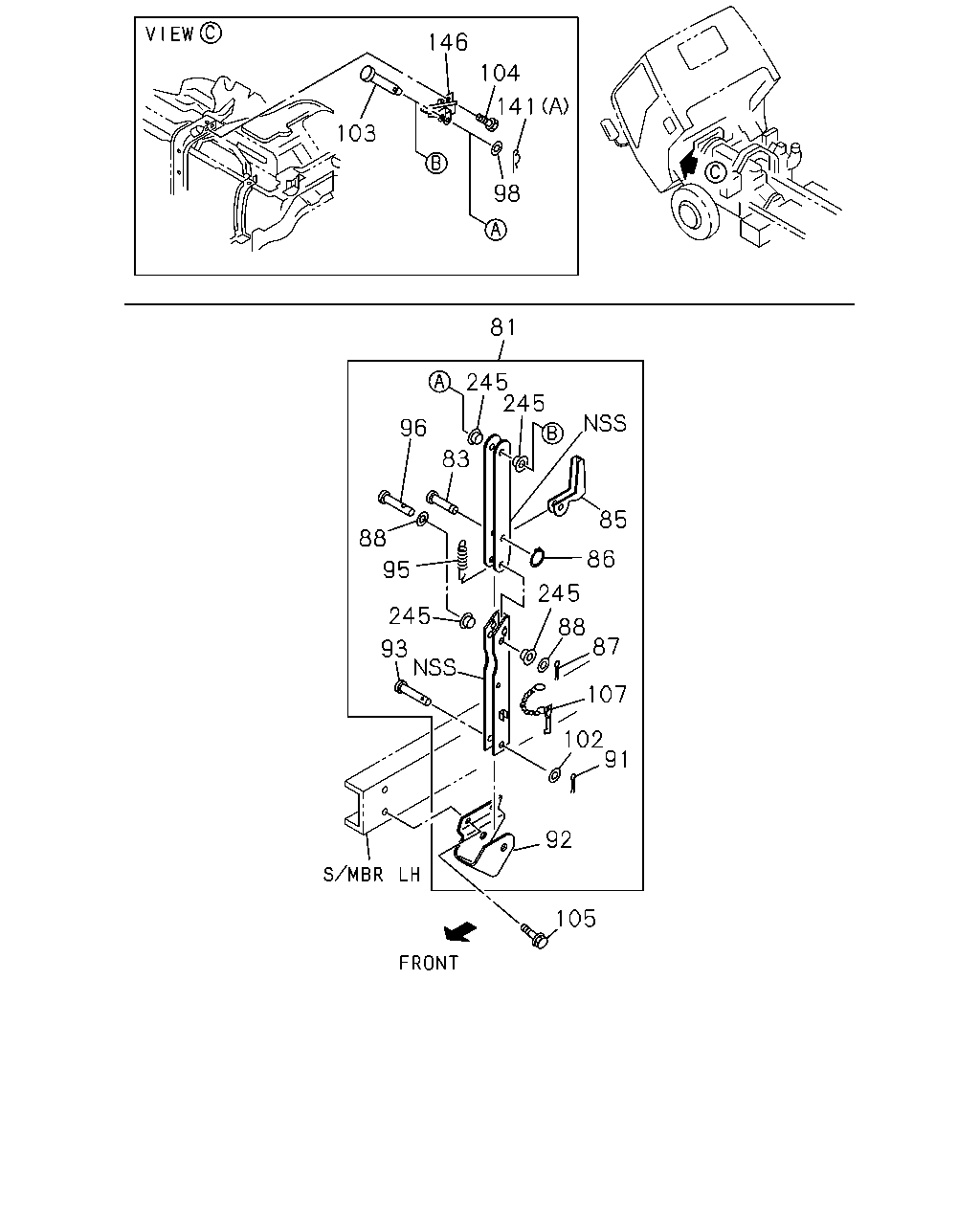

146 104 141 103 98 81 245 245 96 83 85 88 86 95 245 245 88 87 93 107 102 91 92 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	STAY ASM; CAB TILT	8-98123-310-0	01	1	0807-	●	●
83	PIN; JOINT,CAB STAY	8-98122-493-0	01	1	0807-	●	●
85	LEVER; LOCK,CAB STAY	8-94331-481-0	01	1	0807-	●	●
86	RING; SNAP,LOCK LEVER,CAB STAY ID=6	0-91805-506-0	01	1	0807-	●	●
87	PIN; SPLIT,CAB STAY PIN OD=2.8 L=20	0-81123-020-0	01	1	0807-	●	●
88	WASHER; PL,CAB STAY PIN ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	0807-	●	●
91	PIN; SPLIT,CAB STAY OD=3.7 L=20	0-81124-020-0	01	1	0807-	●	●
92	BRACKET; CAB STAY TO FRAME	8-98011-317-0	01	1	0807-	●	●
93	PIN; CAB STAY	8-98122-498-0	01	1	0807-	●	●
95	SPRING; RETURN,CAB STAY	8-94160-167-2	01	1	0807-	●	●
96	PIN; JOINT	8-98123-513-0	01	1	0807-	●	●
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	0807-	●	●
102	WASHER; PL,CAB STAY ID=12.5 OD=26	0-91610-612-0	01	1	0807-	●	●
103	PIN; JOINT,CAB STAY OD=10 L=48	1-09744-107-0	01	1	0807-	●	●
104	BOLT; CAB STAY BRKT M8X20 FLANGE	0-28660-820-0	03	1	0807-	●	●
105	BOLT; CAB STAY M10X35 FLANGE	0-28651-035-0	02	1	0807-0807	●	●
105	BOLT; CAB STAY M10X30 FLANGE	0-28651-030-0	02	1	0808-	●	●
107	PIN; LK LEVER	8-94331-482-0	01	1	0807-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	01	1	0807-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=25.3	8-98039-045-1	01	1	0807-	●	●
141	PIN; SNAP,CAB LOCK ROD (C) L=34	8-98039-426-1	03	1	0807-	●	●
146	BRACKET ASM; CAB STAY UPR	8-97387-328-2	01	1	0807-	●	●
245	BUSHING; CAB STAY	1-62500-587-0	04	1	0807-	●	●

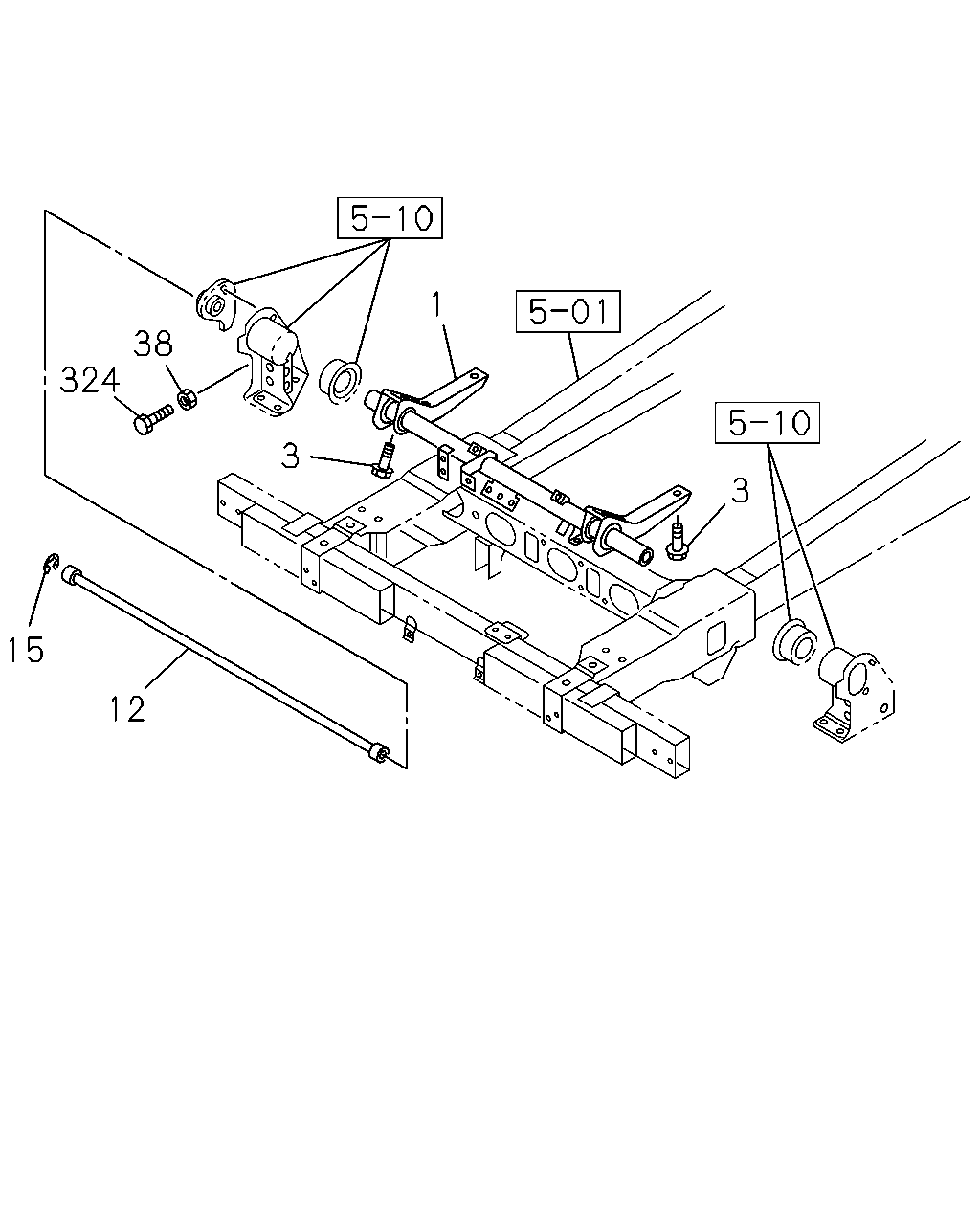

1 38 324 3 3 15 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR	8-98088-215-1	01	1	0807-	●	●
3	BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	0807-	●	●
12	BAR; TORSION,UPR	8-97261-872-0	01	1	0807-1005	●	●
12	BAR; TORSION,UPR	8-98166-029-0	01	1	1006-	●	●
15	RING; SNAP,TORSION BAR	8-97359-034-0	01	1	0807-	●	●
38	NUT; LK M14	8-98039-988-0	01	1	0807-	●	●
324	BOLT; ADJUST M14X55	8-98004-319-1	01	1	0807-	●	●

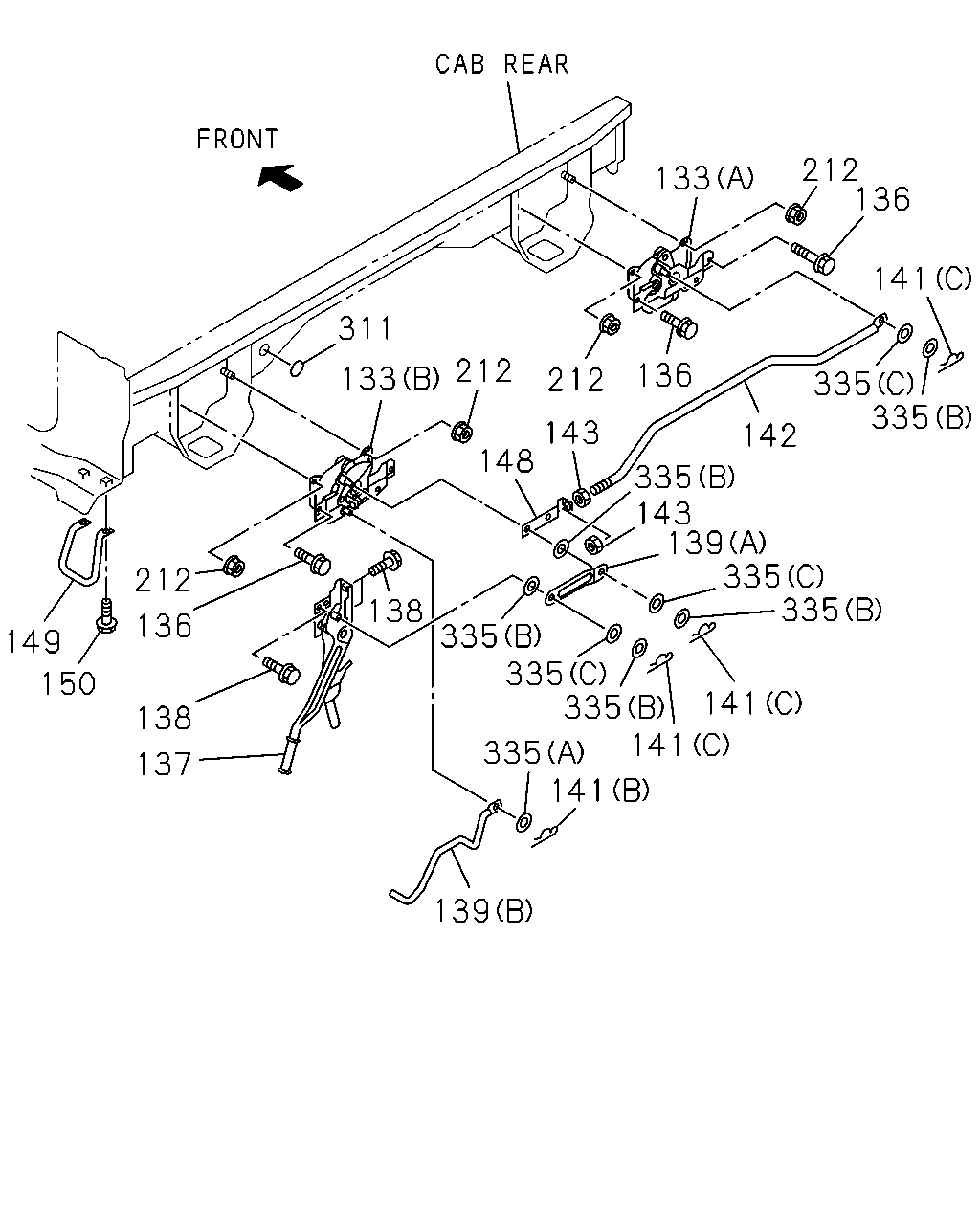

212 136 133 141 311 212 136 133 212 335 335 143 148 142 335 143 139 335 335 212 138 136 335 335 335 141 149 150 141 138 335 141 137 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	LOCK ASM; CAB (B)	8-97410-270-2	01	1	0807-	●	●
133	LOCK ASM; CAB (A)	8-97584-486-4	01	1	0807-1105	●	●
133	LOCK ASM; CAB (A)	8-98182-353-0	01	1	1106-	●	●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	04	1	0807-	●	●
137	CONTROL UNIT; CAB LOCK	8-98036-742-3	01	1	0807-	●	●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	03	1	0807-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK (B)	8-97410-269-1	01	1	0807-0810	●	●
139	ROD; CAB LOCK,LEVER TO HOOK (B)	8-98128-202-0	01	1	0811-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK (A)	8-97584-483-2	01	1	0807-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	01	1	0807-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=25.3	8-98039-045-1	01	1	0807-	●	●
141	PIN; SNAP,CAB LOCK ROD (C) L=34	8-98039-426-1	03	1	0807-	●	●
142	ROD; HOOK TO HOOK	8-97410-633-0	01	1	0807-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	0807-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	0807-	●	●
149	HANDLE; TILT	8-98067-938-0	01	1	0807-	●	●
150	BOLT; TILT HANDLE M8X20 FLANGE	0-28650-820-0	02	1	0807-1103	●	●
150	BOLT; TILT HANDLE M8X25 FLANGE	0-28650-825-0	02	1	1104-	●	●
212	NUT; BRKT,CAB LOCK M8 FLANGE	0-91180-108-0	04	1	0807-	●	●
311	SEAL; CAB LOCK OD=32 BLACK	8-98031-126-0	01	1	0807-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=22	0-91610-512-0	05	1	0807-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.8 OD=12.5	8-98060-837-0	01	1	0807-0810	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=14	5-09550-002-0	01	1	0811-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	03	1	0807-	●	●
