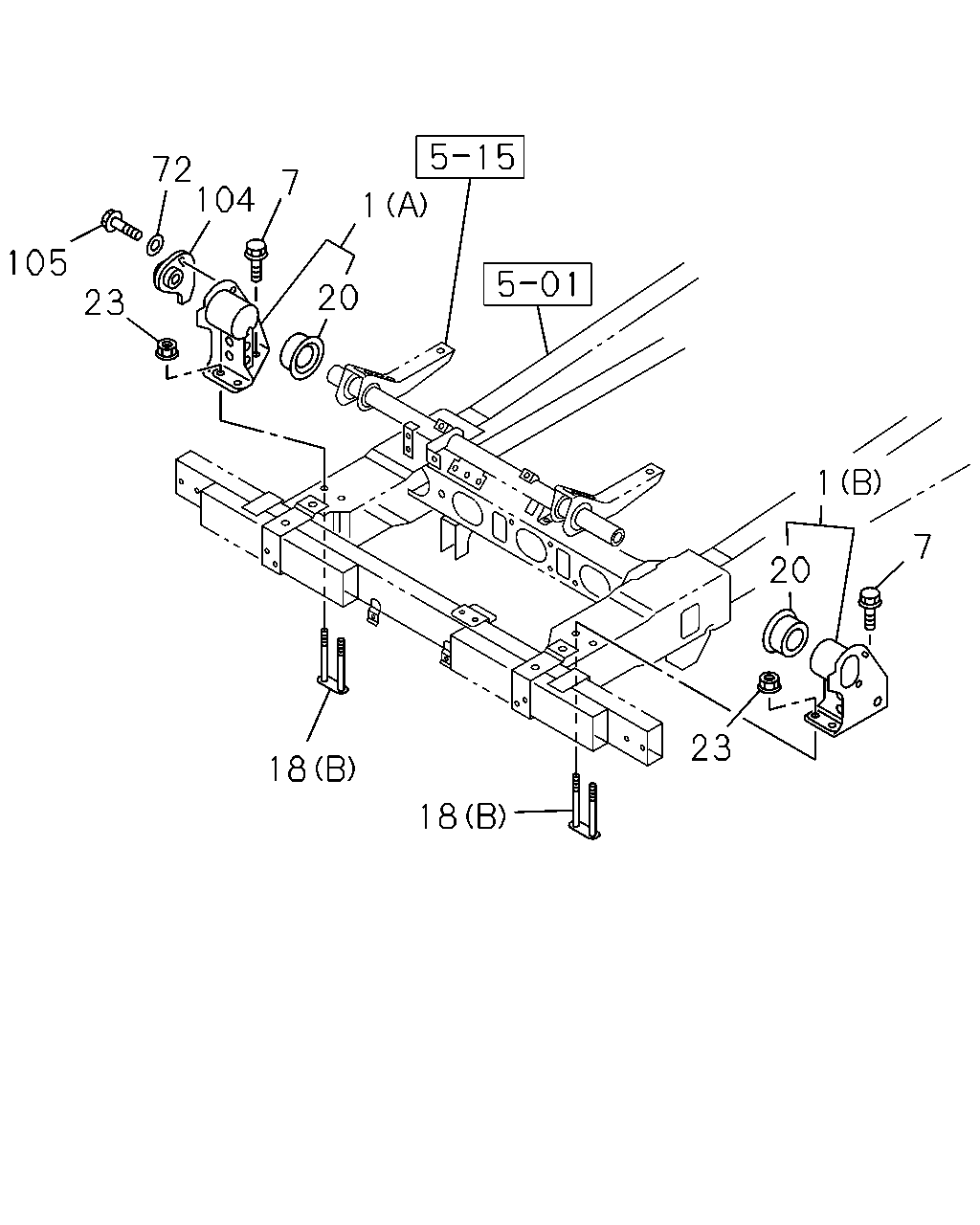

5-10 — CAB MOUNTING; FRAME SIDE (#75860) — 24 parça

72 104 7 1 105 20 23 1 7 20 23 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG (A)	8-98074-799-0	01	1	0807-	●	●
1	BRACKET; CAB MTG (B)	8-98074-800-0	01	1	0807-	●	●
7	BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	0807-	●	●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0807-	●	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	0807-	●	●
20	RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	0807-	●	●
20	RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	0807-	●	●
23	NUT; MTG BRKT M14	8-98039-989-0	04	1	0807-	●	●
72	WASHER; PL,BRKT TO FRAME ID=15 OD=36	0-91614-714-0	01	1	0807-	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98006-455-1	01	1	0807-	●	●
105	BOLT; BRKT TO CAB FRAME M14X35 FLANGE	0-28661-435-0	01	1	0807-	●	●

159 199 159 199 300 300 168 168 149 149 199 199 151 156 151 156 199 191 191 192 199 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0807-	●	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	0807-	●	●
149	RUBBER; MTG,CAB,UPR RR H=62	8-98021-561-1	02	1	0807-	●	●
151	WASHER; CAB MTG,RR UPR ID=17 OD=62	8-97359-042-1	02	1	0807-	●	●
156	NUT; CAB MTG RR M16	0-91111-516-0	02	1	0807-	●	●
159	RUBBER; CUSHION,CAB MTG	8-97113-340-0	04	1	0807-	●	●
168	NUT; CUSHION RUBBER,BODY MTG M8 FLANGE	0-91180-108-0	04	1	0807-	●	●
191	BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	0807-	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	08	1	0807-	●	●
199	BRACKET; CAB RR MTG (A)	8-98024-773-1	01	1	0807-	●	●
199	BRACKET; CAB RR MTG (B)	8-98036-883-0	02	1	0807-	●	●
199	BRACKET; CAB RR MTG (C)	8-98099-144-1	01	1	0807-	●	●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0807-	●	●
