5-01 — FRAME AND OTHER PARTS (#75859) — 96 parça

376 376 376 376 376 376 376 376 376 376 376 376 221 176 176 296 118 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
67	NUT; C/MBR WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> M10 FLANGE	0-91180-210-0	16	1	0809-	●	●
67	NUT; C/MBR M10 FLANGE	0-91180-210-0	13	1	0807-0808	●	●
67	NUT; C/MBR WHEEL BASE 2800MM(28W) M10 FLANGE	0-91180-210-0	13	1	0809-	●	●
67	NUT; C/MBR WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) EXC. FUEL TANK 140L,37GAL<N19> M10 FLANGE	0-91180-210-0	13	1	0809-	●	●
118	NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	0807-0910	●	●
118	NUT; STOPPER EXC. MINI BUS CHASSIS<V4B> M8 LOCK NUT	0-91370-008-0	02	1	0911-	●	●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (A) M10X25 FLANGE	0-28051-025-0	04	1	0809-	●	●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B) M10X30 FLANGE	0-28051-030-0	04	1	0809-	●	●
176	BOLT; C/MBR,ENG MTG (A) M10X25 FLANGE	0-28051-025-0	08	1	0807-0808	●	●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 2800MM(28W) (A) M10X25 FLANGE	0-28051-025-0	08	1	0809-	●	●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) EXC. FUEL TANK 140L,37GAL<N19> (A) M10X25 FLANGE	0-28051-025-0	08	1	0809-	●	●
221	BOLT; RAD MTG BRKT,FRAME M8X20 FLANGE	0-28650-820-0	02	1	0807-0808	●	●
296	BOLT; 3RD C/MBR WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> M10X30 FLANGE	0-28651-030-0	14	1	0809-	●	●
296	BOLT; 3RD C/MBR M10X30 FLANGE	0-28651-030-0	16	1	0807-0808	●	●
296	BOLT; 3RD C/MBR WHEEL BASE 2800MM(28W) M10X30 FLANGE	0-28651-030-0	16	1	0809-	●	●
296	BOLT; 3RD C/MBR WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) EXC. FUEL TANK 140L,37GAL<N19> M10X30 FLANGE	0-28651-030-0	16	1	0809-	●	●
376	RIVET; FRAME (A) D8X24 TAPER END	9-06750-824-0	AR	1	0807-	●	●
376	RIVET; FRAME (B) D8X26 TAPER END	9-06750-826-0	AR	1	0807-	●	●
376	RIVET; FRAME (C) D10X24 TAPER END	9-06751-024-0	AR	1	0807-	●	●
376	RIVET; FRAME (D) D10X26 TAPER END	9-06751-026-0	AR	1	0807-	●	●
376	RIVET; FRAME (E) D10X28 TAPER END	9-06751-028-0	AR	1	0807-	●	●
376	RIVET; FRAME (F) D10X32 TAPER END	9-06751-032-0	AR	1	0807-	●	●
376	RIVET; FRAME (G) D10X36 TAPER END	9-06751-036-0	AR	1	0807-	●	●
376	RIVET; FRAME (H) D11X26 TAPER END	9-06751-126-0	AR	1	0807-	●	●
376	RIVET; FRAME (I) D11X30 TAPER END	9-06751-130-0	AR	1	0807-	●	●
376	RIVET; FRAME (J) D12X30 TAPER END	9-06751-230-0	AR	1	0807-	●	●
376	RIVET; FRAME (K) D12X36 TAPER END	9-06751-236-0	AR	1	0807-	●	●
376	RIVET; FRAME (L) D12X40 TAPER END	9-06751-240-0	AR	1	0807-	●	●

24 101 103 165 325 31 39 31 103 446 147 215 105 215 196 140 51 103 446 147 140 217 141 141

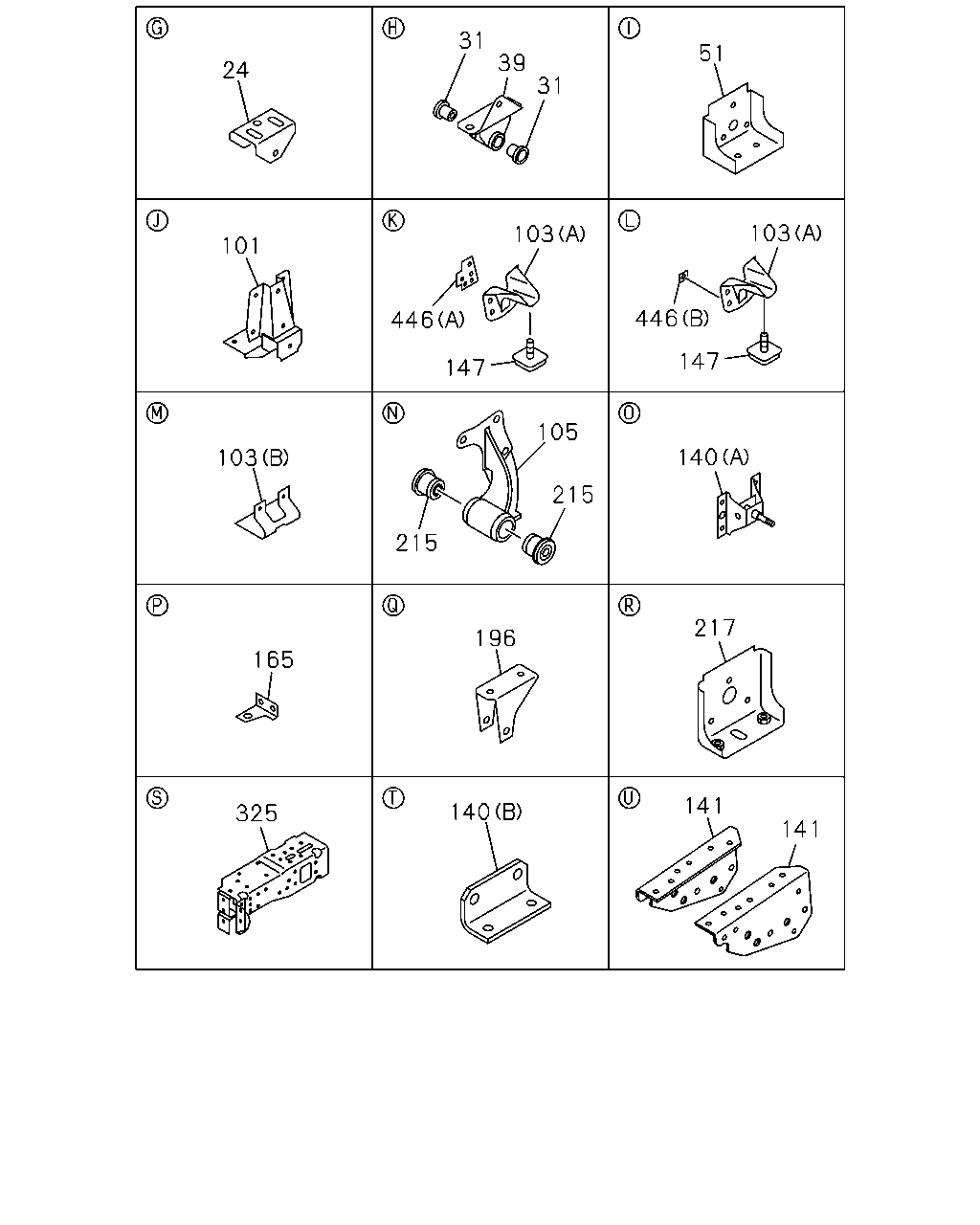

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; FRT SPR,FRT	8-98015-274-0	02	1	0807-	●	●
31	BUSHING; FRT SPR,RR	8-97184-699-1	04	1	0807-	●	●
39	BRACKET; FRT SPR,RR	8-98014-125-0	02	1	0807-	●	●
51	BRACKET; ENG SUPPORT,OUTER	8-98034-961-0	02	1	0807-	●	●
101	BRACKET; RR SPR,FRT	8-97034-156-1	02	1	0807-	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	0807-	●	●
103	STOPPER; SUB SPR (A)	8-97223-748-0	04	1	0807-0910	●	●
103	STOPPER; SUB SPR EXC. MINI BUS CHASSIS<V4B> (A)	8-97223-748-0	04	1	0911-	●	●
105	BRACKET; RR SPR,RR	8-98032-488-0	01	1	0807-	●	●
105	BRACKET; RR SPR,RR	8-98032-489-0	01	1	0807-	●	●
140	BRACKET; S/ABS,RR (B)	8-97302-511-0	02	1	0807-	●	●
140	BRACKET; S/ABS,RR (A)	8-97080-884-1	02	1	0807-	●	●
141	STIFFENER	8-98064-354-2	01	1	0807-	●	●
141	STIFFENER	8-98064-355-2	01	1	0807-	●	●
147	RUBBER; SUB SPRING	8-97254-387-0	04	1	0807-0910	●	●
147	RUBBER; SUB SPRING EXC. MINI BUS CHASSIS<V4B>	8-97254-387-0	04	1	0911-	●	●
165	BRACKET; RAD STAY	8-98000-886-0	01	1	0807-	●	●
196	BRACKET; STAB TO FRAME WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> MINI BUS CHASSIS<V4B>	8-98033-523-0	04	1	0911-		●
196	BRACKET; STAB TO FRAME	8-98033-523-0	02	1	0807-0910	●	●
196	BRACKET; STAB TO FRAME EXC. MINI BUS CHASSIS<V4B>	8-98033-523-0	02	1	0911-	●	●
215	BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0807-	●	●
217	BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	0807-	●	●
325	EXTENSION; FRAME	8-98014-076-3	01	1	0807-	●	●
325	EXTENSION; FRAME	8-98014-077-3	01	1	0807-	●	●
446	STIFFENER; SPRING STOPPER (B) REAR	8-97122-173-0	02	1	0807-0910	●	●
446	STIFFENER; SPRING STOPPER EXC. MINI BUS CHASSIS<V4B> (B) REAR	8-97122-173-0	02	1	0911-	●	●
446	STIFFENER; SPRING STOPPER (A) FRONT	8-98014-080-1	02	1	0807-0808	●	●
446	STIFFENER; SPRING STOPPER WHEEL BASE 2800MM(28W) (A) FRONT	8-98014-080-1	02	1	0809-	●	●
446	STIFFENER; SPRING STOPPER WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) EXC. FUEL TANK 140L,37GAL<N19> (A) FRONT	8-98014-080-1	02	1	0809-	●	●

1 1

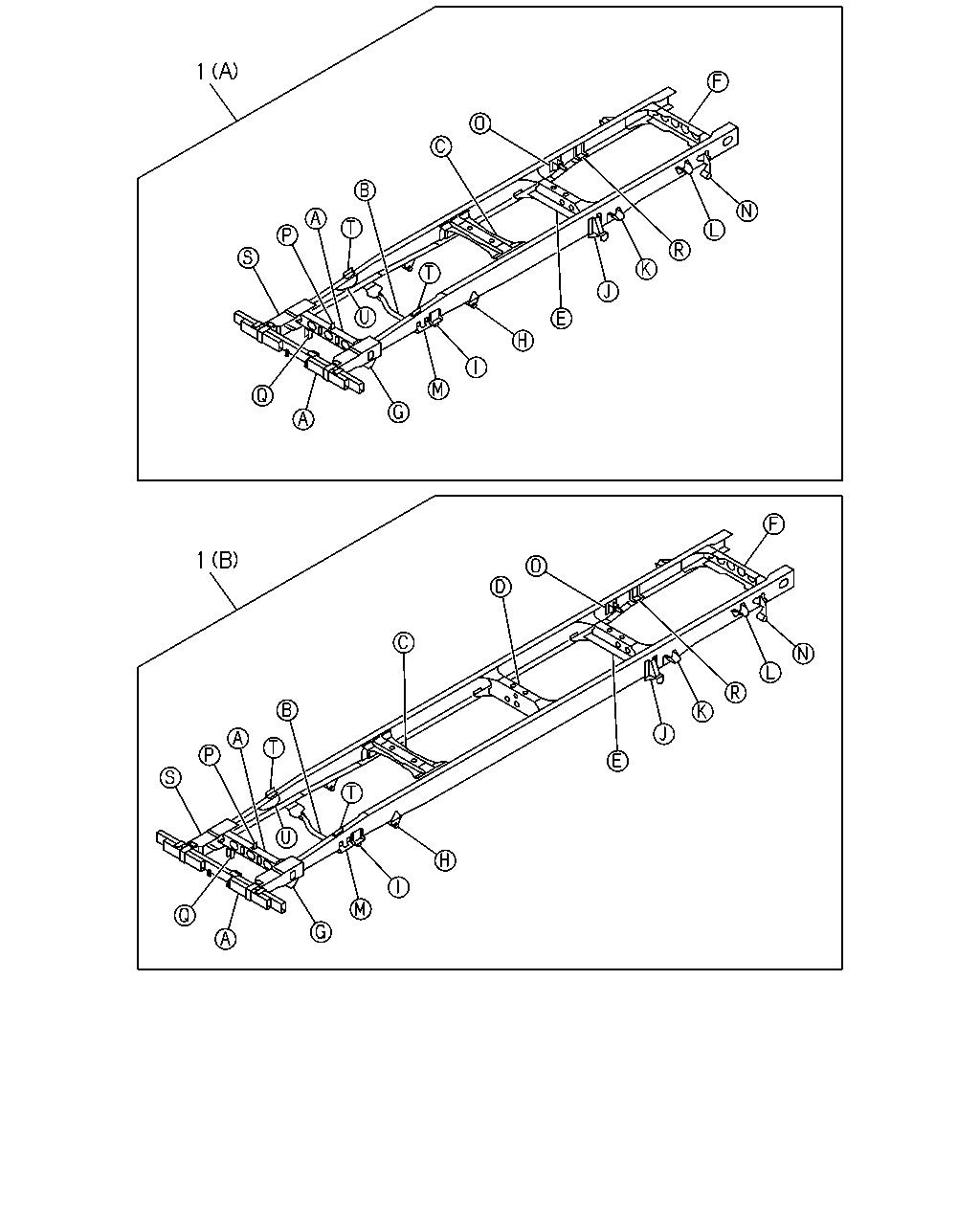

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FRAME ASM WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> MINI BUS CHASSIS<V4B> (B)	8-98156-528-1	01	1	0911-		●
1	FRAME ASM WHEEL BASE 2800MM(28W) FUEL TANK 125L,33GAL<NL7> (A)	8-98101-797-3	01	1	0807-1411	●	●
1	FRAME ASM WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19> (A)	8-98101-797-4	01	1	1412-	●	●
1	FRAME ASM WHEEL BASE 2800MM(28W) EXC. FUEL TANK 125L,33GAL<NL7> (A)	8-98101-798-2	01	1	0807-1411	●	●
1	FRAME ASM WHEEL BASE 2800MM(28W) EXC. FUEL TANK 140L,37GAL<N19> (A)	8-98101-798-2	01	1	1412-	●	●
1	FRAME ASM WHEEL BASE 3400MM(34W) FUEL TANK 140L,37GAL<N19> (B)	8-98101-799-2	01	1	0807-	●	●
1	FRAME ASM WHEEL BASE 3400MM(34W) EXC. FUEL TANK 140L,37GAL<N19> (B)	8-98101-800-2	01	1	0807-	●	●
1	FRAME ASM WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (B)	8-98099-881-2	01	1	0807-0910	●	●
1	FRAME ASM WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> (B)	8-98099-881-2	01	1	0911-	●
1	FRAME ASM WHEEL BASE 3800MM(38W) FUEL TANK 140L,37GAL<N19> EXC. MINI BUS CHASSIS<V4B> (B)	8-98099-881-2	01	1	0911-		●
1	FRAME ASM WHEEL BASE 3800MM(38W) EXC. FUEL TANK 140L,37GAL<N19> (B)	8-98101-801-2	01	1	0807-	●	●
1	FRAME ASM WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> (B)	8-98099-882-3	01	1	0807-		●
1	FRAME ASM WHEEL BASE 4500MM(45W) EXC. FUEL TANK 140L,37GAL<N19> (B)	8-98101-802-2	01	1	0807-		●

249 542 20 42 506 74 34 344 74 75 139 345 198 75 198

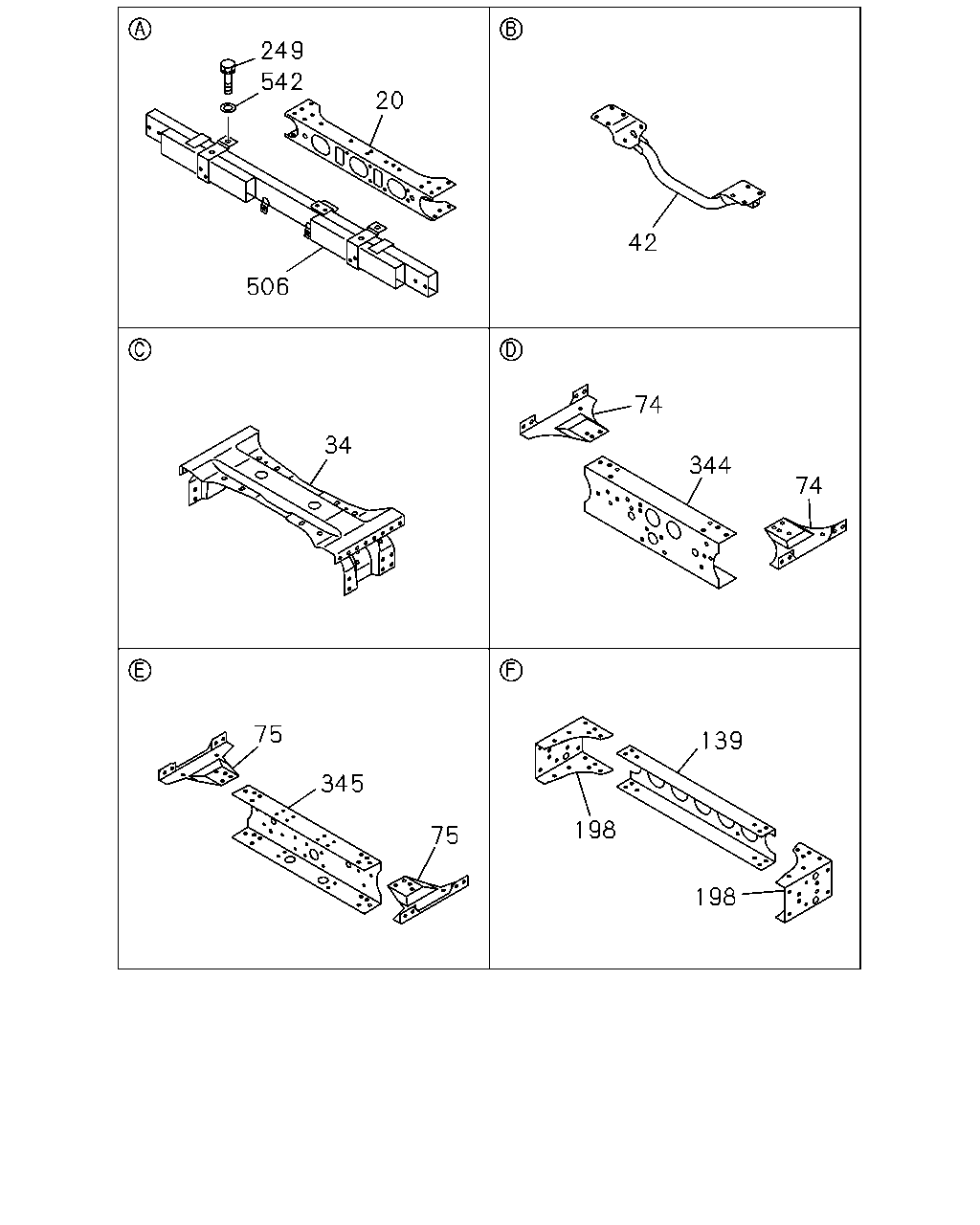

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	MEMBER; CROSS,2ND	8-98014-074-7	01	1	0807-	●	●
34	MEMBER; CROSS,3RD WHEEL BASE 2800MM(28W) FUEL TANK 140L,37GAL<N19>	8-98297-173-0	01	1	1412-	●	●
34	MEMBER; CROSS,3RD	8-98072-038-1	01	1	0807-1411	●	●
34	MEMBER; CROSS,3RD WHEEL BASE 2800MM(28W) EXC. FUEL TANK 140L,37GAL<N19>	8-98072-038-1	01	1	1412-	●	●
34	MEMBER; CROSS,3RD WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W)	8-98072-038-1	01	1	1412-	●	●
42	MEMBER; CROSS,ENG MTG	8-98032-389-0	01	1	0807-	●	●
74	GUSSET; 4TH C/MBR WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) RH LOWER & LH UPPER	8-98000-583-0	02	1	0807-	●	●
74	GUSSET; 4TH C/MBR WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) RH UPPER & LH LOWER	8-98000-584-0	02	1	0807-	●	●
75	GUSSET; 5TH C/MBR RH UPPER & LH LOWER	8-98000-583-0	02	1	0807-	●	●
75	GUSSET; 5TH C/MBR RH LOWER & LH UPPER	8-98000-584-0	02	1	0807-	●	●
139	MEMBER; CROSS,6TH WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19>	8-97107-384-0	01	1	0807-0808	●	●
139	MEMBER; CROSS,6TH WHEEL BASE 2800MM(28W) FUEL TANK 125L,33GAL<NL7>	8-97107-384-0	01	1	0807-0808	●	●
139	MEMBER; CROSS,6TH WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) EXC. FUEL TANK 140L,37GAL<N19>	8-97326-394-0	01	1	0807-0808	●	●
139	MEMBER; CROSS,6TH WHEEL BASE 2800MM(28W) EXC. FUEL TANK 125L,33GAL<NL7>	8-97326-394-0	01	1	0807-0808	●	●
139	MEMBER; CROSS,6TH	8-97326-394-0	01	1	0809-	●	●
198	GUSSET; 6TH C/MBR	8-98014-079-1	02	1	0807-	●	●
249	BOLT; REINF TO FRAME WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) FUEL TANK 140L,37GAL<N19> M10X40 W/WASHER	8-94411-010-0	06	1	0807-1411	●	●
249	BOLT; REINF TO FRAME WHEEL BASE 2800MM(28W) FUEL TANK 125L,33GAL<NL7> M10X40 W/WASHER	8-94411-010-0	06	1	0807-1411	●	●
249	BOLT; REINF TO FRAME FUEL TANK 140L,37GAL<N19> M10X40 W/WASHER	8-94411-010-0	06	1	1412-	●	●
249	BOLT; REINF TO FRAME WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) EXC. FUEL TANK 140L,37GAL<N19>	8-97359-036-0	06	1	0807-1411	●	●
249	BOLT; REINF TO FRAME WHEEL BASE 2800MM(28W) EXC. FUEL TANK 125L,33GAL<NL7>	8-97359-036-0	06	1	0807-1411	●	●
249	BOLT; REINF TO FRAME EXC. FUEL TANK 140L,37GAL<N19>	8-97359-036-0	06	1	1412-	●	●
344	MEMBER; CROSS,4TH WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W)	8-97080-871-1	01	1	0807-	●	●
345	MEMBER; CROSS,5TH	8-97080-871-1	01	1	0807-	●	●
506	REINFORCEMENT; C/MBR	8-98014-072-1	01	1	0807-	●	●
542	WASHER; REINFORCEMENT ID=10.5 OD=26	0-91614-710-0	06	1	0807-	●	●
