◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#75858) — 34 parça

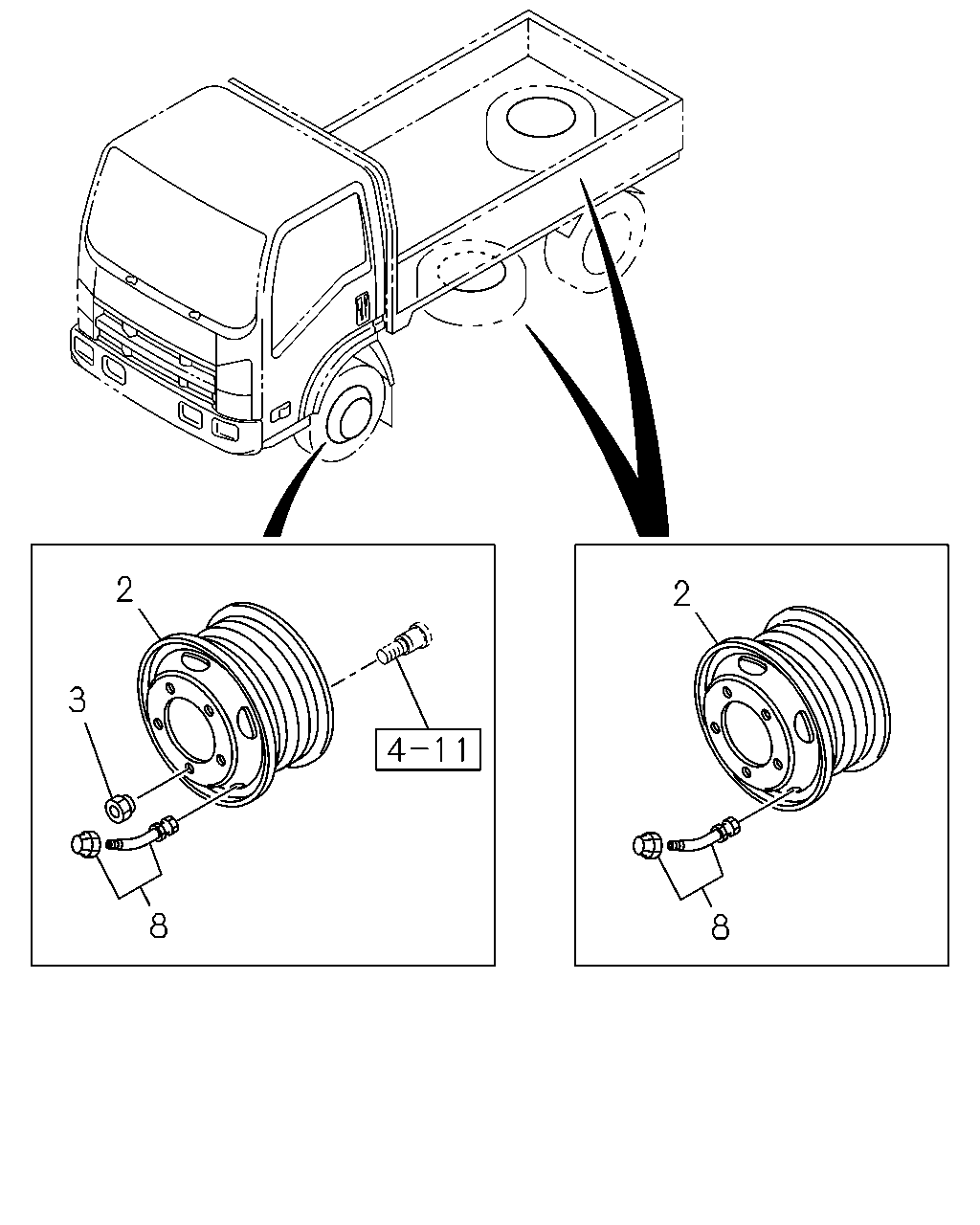

çizim 185876
8 2 3 2 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X6K OFF SET=128 WHITE 6-HOLE 		8-97145-113-2 01 1 0807- ●
2 WHEEL; DISC
FRONT,REAR 16X6K OFF SET=128 WHITE 6-HOLE 		8-97145-113-2 06 1 0807- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 01 1 0807-1406 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 01 1 1407- ●
2 WHEEL; DISC
REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 04 1 0807-1406 ●
2 WHEEL; DISC
REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 04 1 1407- ●
2 WHEEL; DISC
FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-1 02 1 0807-1406 ●
2 WHEEL; DISC
FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-809-0 02 1 1407- ●
3 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-97359-807-0 06 1 0807- ● ●
3 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-97359-808-0 06 1 0807- ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		1-42370-010-1 01 1 0807-1406 ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-112-0 01 1 1407- ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-010-1 06 1 0807-1406 ●
8 VALVE; TIRE
FRONT,REAR 		8-98221-112-0 06 1 1407- ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 0807- ●
8 VALVE; TIRE
FRONT,REAR 		8-98221-106-0 06 1 0807- ●

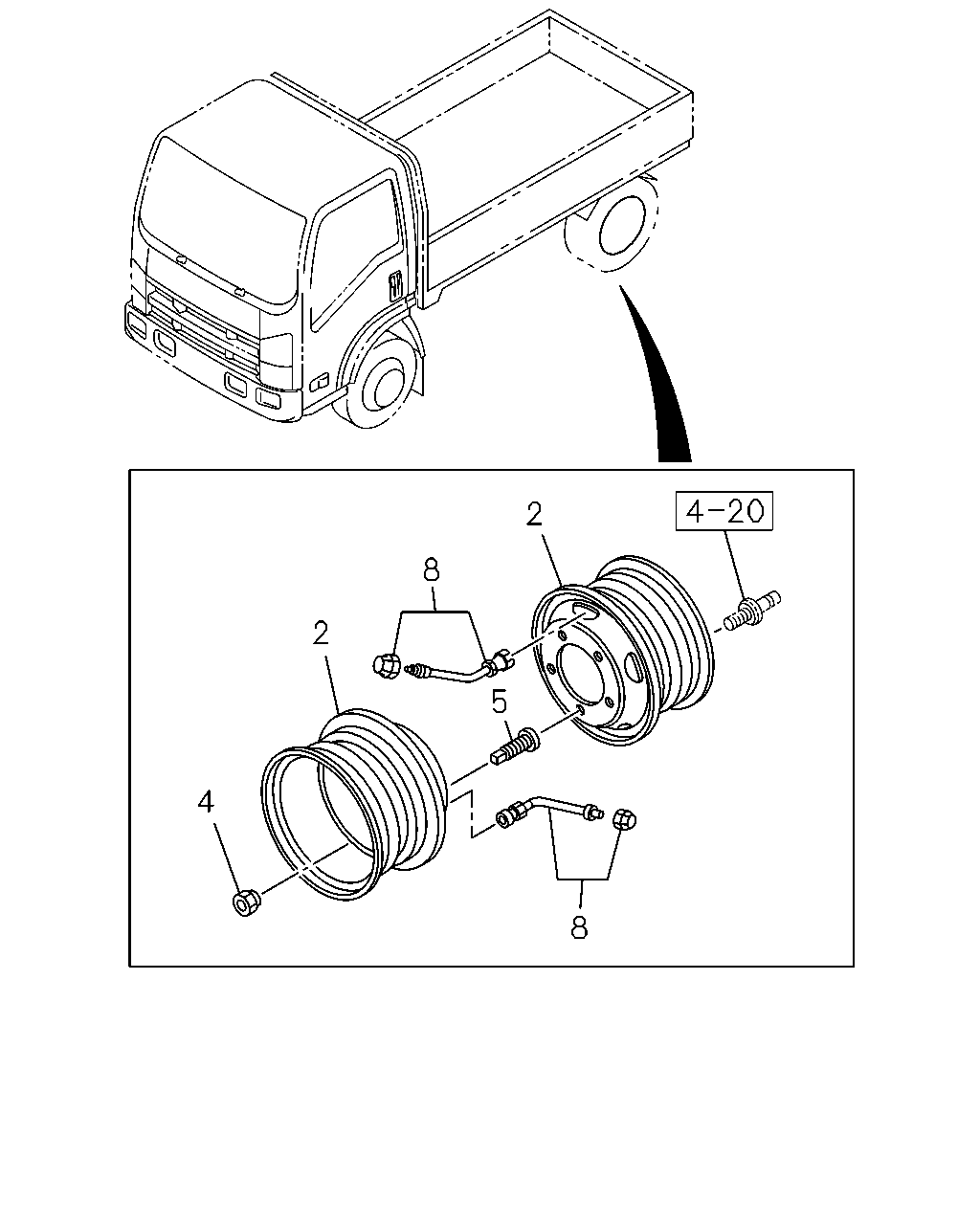

çizim 185912
2 8 2 4 5 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X6K OFF SET=128 WHITE 6-HOLE 		8-97145-113-2 01 1 0807- ●
2 WHEEL; DISC
FRONT,REAR 16X6K OFF SET=128 WHITE 6-HOLE 		8-97145-113-2 06 1 0807- ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 01 1 0807-1406 ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 01 1 1407- ●
2 WHEEL; DISC
REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 04 1 0807-1406 ●
2 WHEEL; DISC
REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 04 1 1407- ●
2 WHEEL; DISC
FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-1 02 1 0807-1406 ●
2 WHEEL; DISC
FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-809-0 02 1 1407- ●
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 0807- ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 0807- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0807- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0807- ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		1-42370-010-1 01 1 0807-1406 ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-112-0 01 1 1407- ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-010-1 06 1 0807-1406 ●
8 VALVE; TIRE
FRONT,REAR 		8-98221-112-0 06 1 1407- ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 0807- ●
8 VALVE; TIRE
FRONT,REAR 		8-98221-106-0 06 1 0807- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
