◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65D - REAR LEAF SPRING ▶
4-65D — REAR LEAF SPRING (#75857) — 18 parça

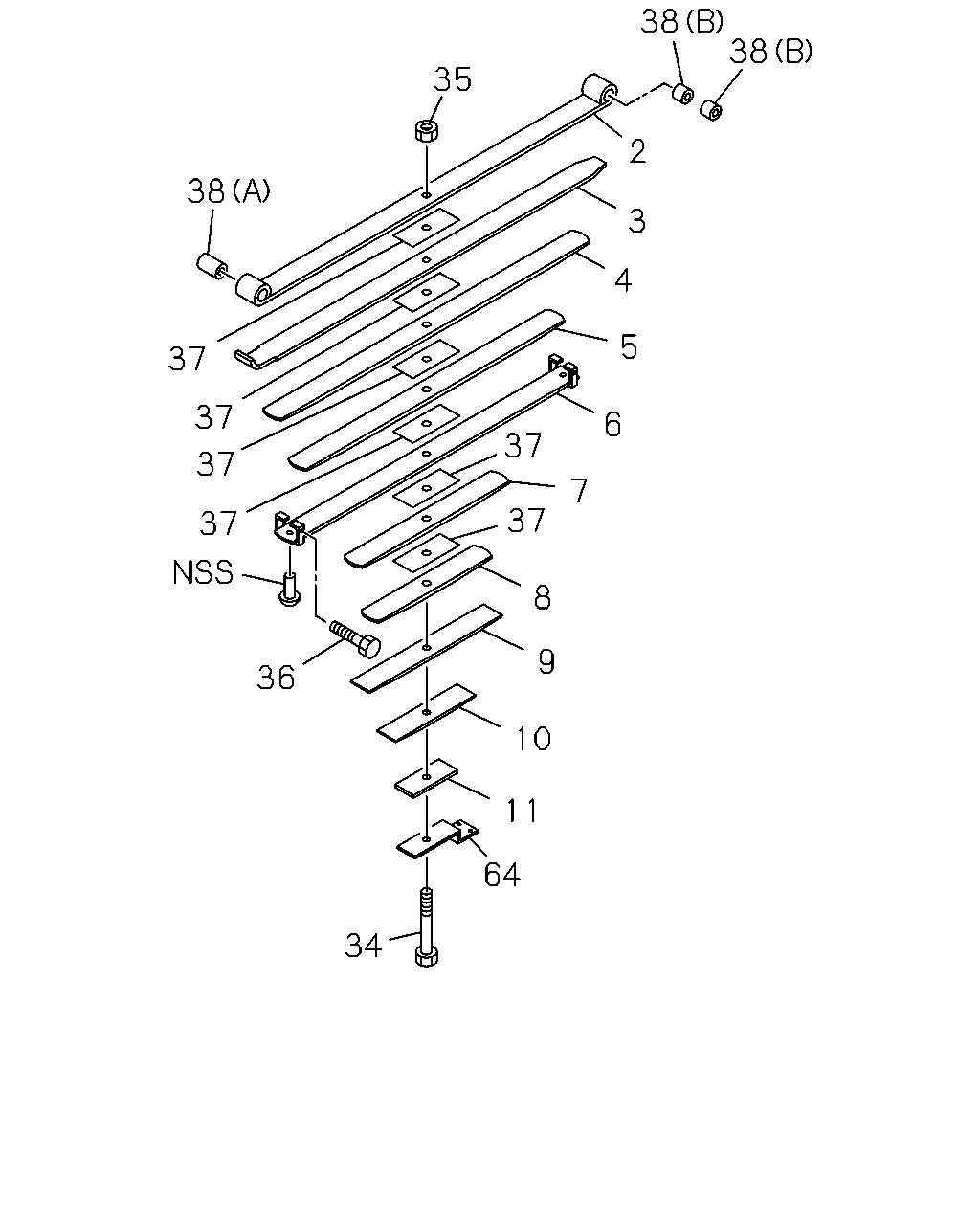

çizim 124722
38 38 35 2 38 3 4 5 37 37 6 37 37 7 37 37 8 9 36 10 11 64 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98025-060-0 		8-98094-342-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98025-060-0 		8-98094-343-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98025-060-0 		8-98094-344-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98025-060-0 		8-98094-345-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98025-060-0 		8-98094-346-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-98025-060-0 		8-98094-347-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 8-98025-060-0 		8-98094-348-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 8-98025-060-0 		8-98094-349-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
ASM PART: A = 8-98025-060-0 		8-98094-350-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
ASM PART: A = 8-98025-060-0 		8-98094-351-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=140 ASM PART: A = 8-98025-060-0 		8-98041-356-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-98025-060-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X89 ASM PART: A = 8-98025-060-0 		8-98040-332-0 02 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-98025-060-0 		8-97084-102-0 06 1 -
38 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98025-060-0 		5-87610-163-0 01 1 -
38 BUSHING; LEAF SPR,RR
(B), OD=40 L=43.7 ASM PART: A = 8-98025-060-0 		8-94118-588-1 02 1 -
38 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98025-060-0 		8-97074-826-0 01 1 -
64 SUPPORT; RR SPR
ASM PART: A = 8-98025-060-0 		8-97225-579-1 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
