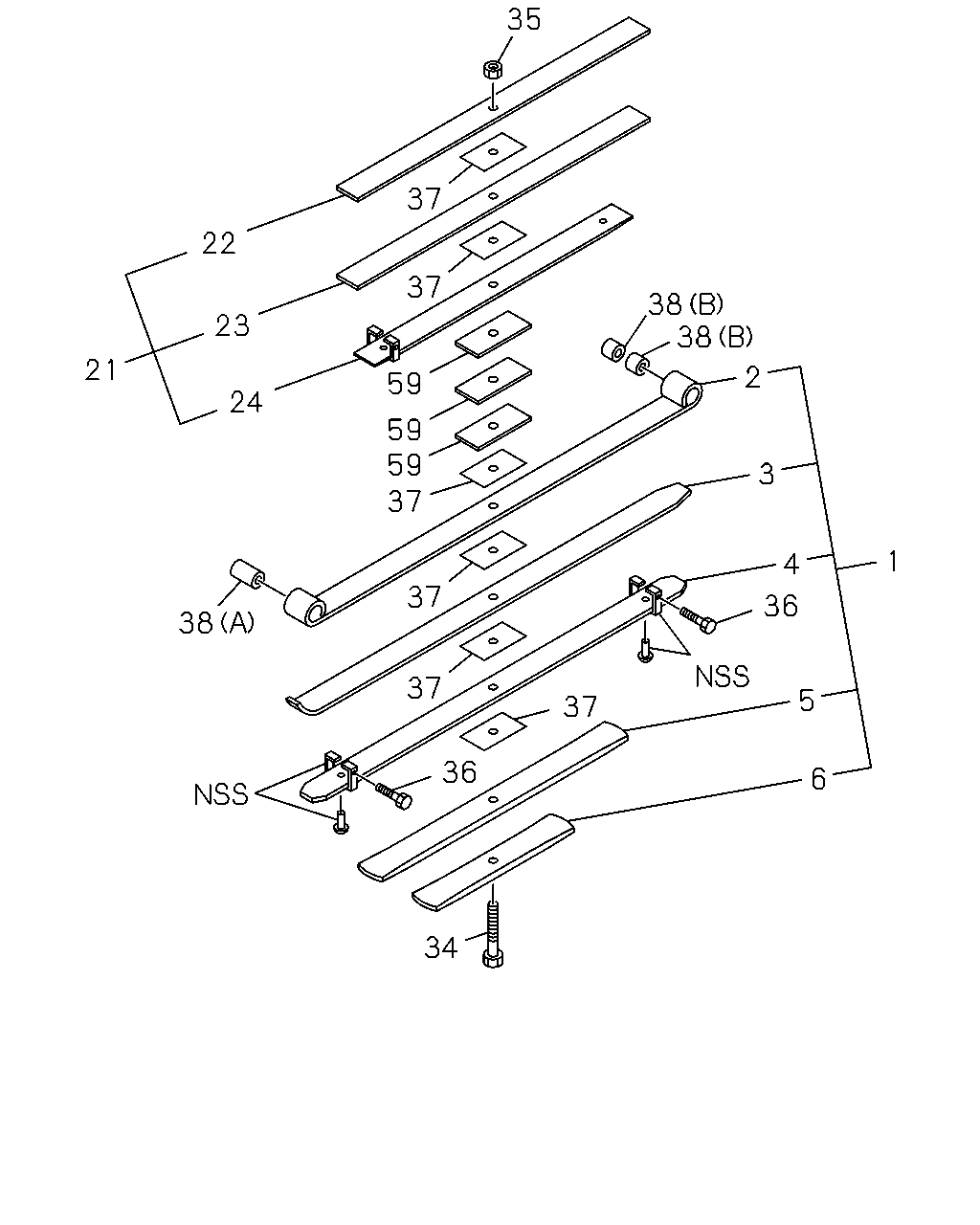

4-65B — REAR LEAF SPRING (#75855) — 18 parça

35 37 22 37 38 38 23 21 2 59 24 59 59 37 3 1 4 37 36 38 37 5 37 36 6 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98079-904-0	8-98101-930-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98079-904-0	8-98101-931-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98079-904-0	8-98101-932-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98079-904-0	8-98101-933-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98079-904-0	8-98101-934-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98079-904-0	8-98101-935-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98079-904-0	8-98101-936-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98079-904-0	8-98101-937-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98079-904-0	8-98101-938-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-98079-904-0	8-98101-939-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=150 ASM PART: A = 8-98079-904-0	8-98040-308-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-98079-904-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: A = 8-98079-904-0	8-98040-333-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98079-904-0	8-97084-102-0	06	1	-
38	BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-98079-904-0	5-87610-163-0	01	1	-
38	BUSHING; LEAF SPR,RR (B), OD=40 L=43.7 ASM PART: A = 8-98079-904-0	8-94118-588-1	02	1	-
38	BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-98079-904-0	8-97074-826-0	01	1	-
59	SEAT; RR SPRING,SUB T=8 ASM PART: A = 8-98079-904-0	8-98040-779-0	03	1	-
