◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65A - REAR LEAF SPRING ▶
4-65A — REAR LEAF SPRING (#75854) — 17 parça

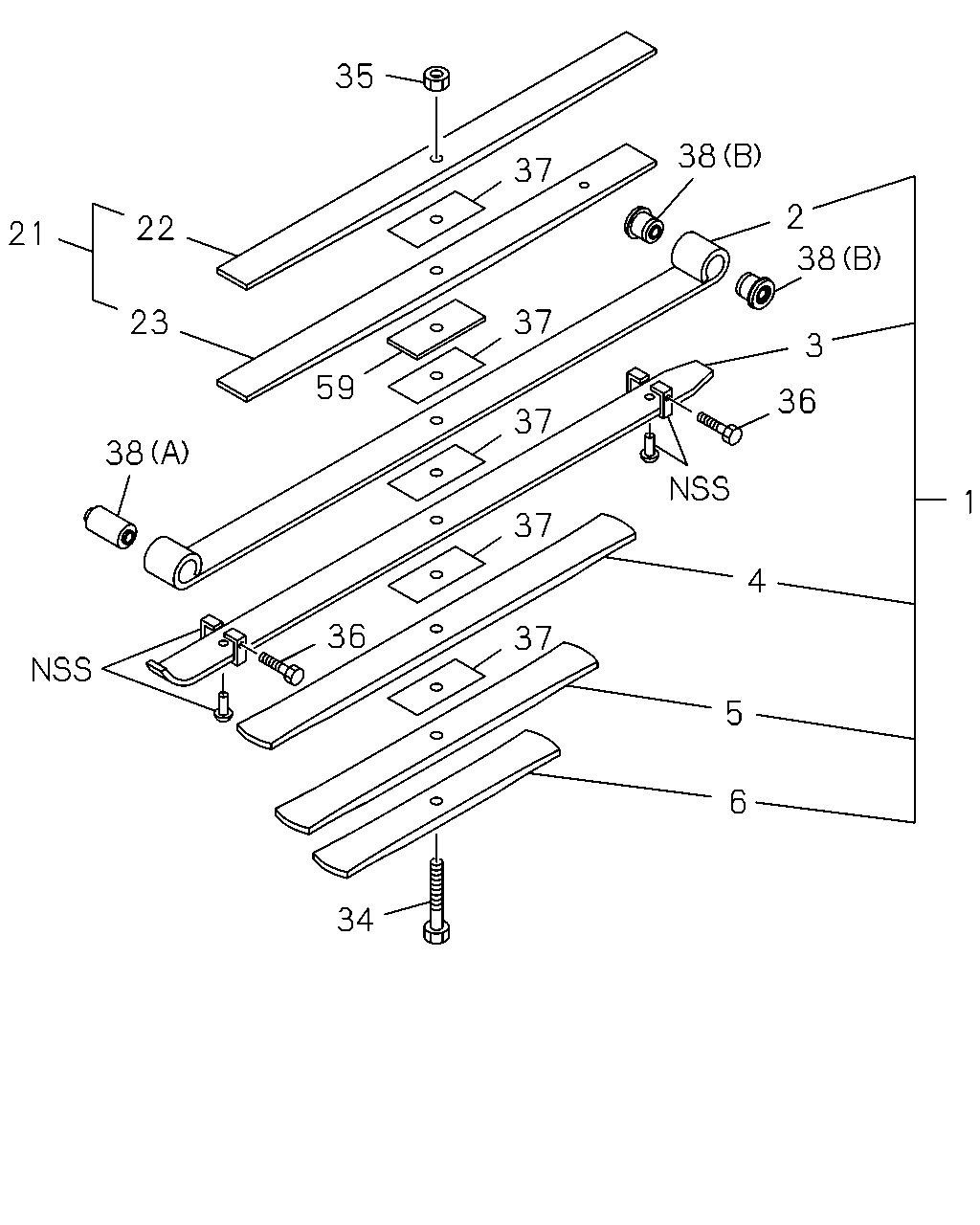

çizim 124873
35 38 37 2 22 21 38 23 37 3 59 36 37 38 1 37 4 36 37 5 6 34
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98006-955-0 		8-98022-668-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98006-955-0 		8-98022-669-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98006-955-0 		8-98022-670-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98006-955-0 		8-98022-671-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98006-955-0 		8-98022-672-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98006-955-0 		8-98022-673-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98006-955-0 		8-98022-674-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98006-955-0 		8-98022-675-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98006-955-0 		8-98022-676-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=115 ASM PART: A = 8-98006-955-0 		8-98040-302-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-98006-955-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X90.5 ASM PART: A = 8-98006-955-0 		8-98040-333-0 02 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-98006-955-0 		8-97084-102-0 05 1 -
38 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98006-955-0 		5-87610-163-0 01 1 -
38 BUSHING; LEAF SPR,RR
(B), OD=40 L=43.7 ASM PART: A = 8-98006-955-0 		8-94118-588-1 02 1 -
38 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98006-955-0 		8-97074-826-0 01 1 -
59 SEAT; RR SPRING,SUB
T=6 ASM PART: A = 8-98006-955-0 		8-98034-524-0 01 1 -
