Isuzu WW
▶
TRUCKS
▶
ELF
▶
51174 - ELF400/500/600/BUS
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶

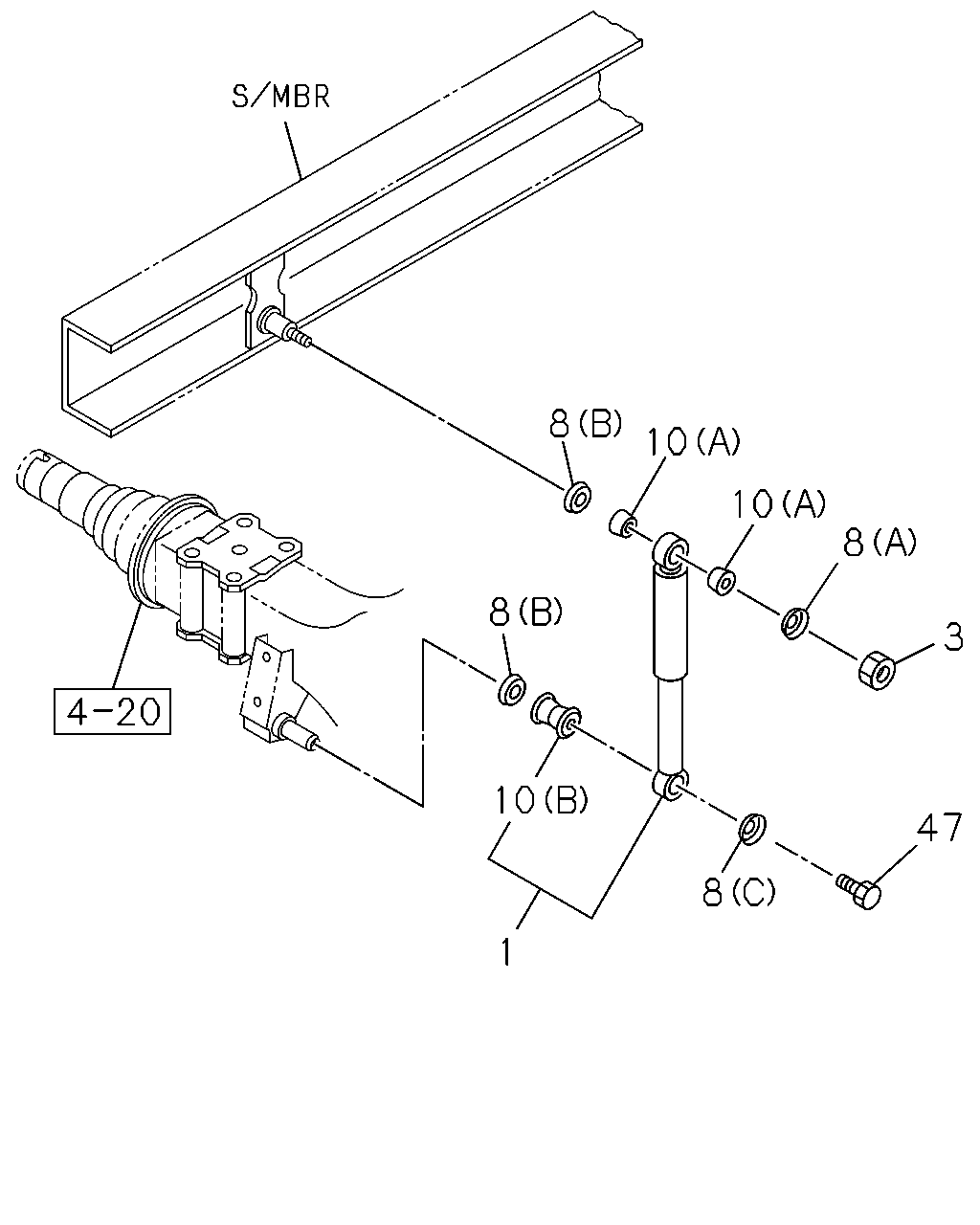

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#75853) — 14 parça
Tümü
A - NPR7SS
B - NPR7SN
8
10
10
8
8
3
10
47
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ABSORBER ASM; SHOCK,RR
MINI BUS CHASSIS<V4B>
8-97253-662-2
02
1
0911-
●
1
ABSORBER ASM; SHOCK,RR
8-98098-058-1
02
1
0807-1506
●
1
ABSORBER ASM; SHOCK,RR
8-98316-227-0
02
1
1507-
●
1
ABSORBER ASM; SHOCK,RR
8-98098-059-1
02
1
0807-0910
●
1
ABSORBER ASM; SHOCK,RR
EXC. MINI BUS CHASSIS<V4B>
8-98098-059-1
02
1
0911-1506
●
1
ABSORBER ASM; SHOCK,RR
EXC. MINI BUS CHASSIS<V4B>
8-98316-228-0
02
1
1507-
●
1
ABSORBER ASM; SHOCK,RR
MINI BUS CHASSIS<V4B> BEST VALUE PARTS
5-87610-156-0
02
1
1105-
●
3
NUT; S/ABS
M14
0-91110-514-0
02
1
0807-
●
●
8
WASHER; S/ABS
(A) ID=15
8-97360-056-0
02
1
0807-
●
●
8
WASHER; S/ABS
(B) ID=20.0
8-97360-057-0
04
1
0807-
●
●
8
WASHER; S/ABS
(C) ID=10.5
8-97360-058-0
02
1
0807-
●
●
10
BUSHING; RUBBER,S/ABS
(B) TOKICO
8-94382-149-0
02
1
0807-
●
●
10
BUSHING; RUBBER,S/ABS
(A) TOKICO
9-51631-014-0
04
1
0807-
●
●
47
PIN; S/ABS SETTING
M10X16 FLANGE
0-28051-016-0
02
1
0807-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
