4-60 — REAR SUSPENSION
(#75852) — 47 parça
Tümü
A - NPR7SS
B - NPR7SN
◀

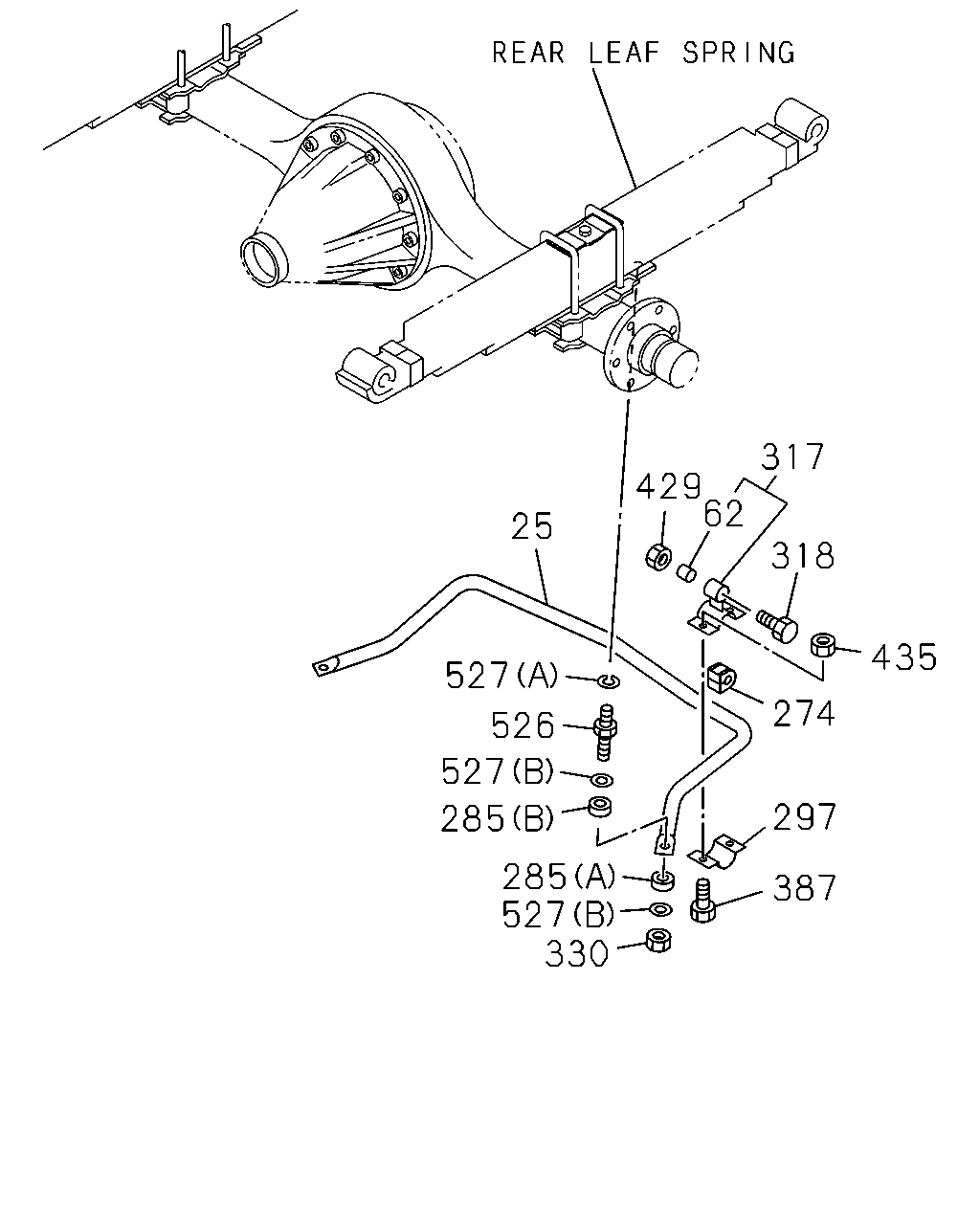

[460A] REAR STABILIZER (15 parça)

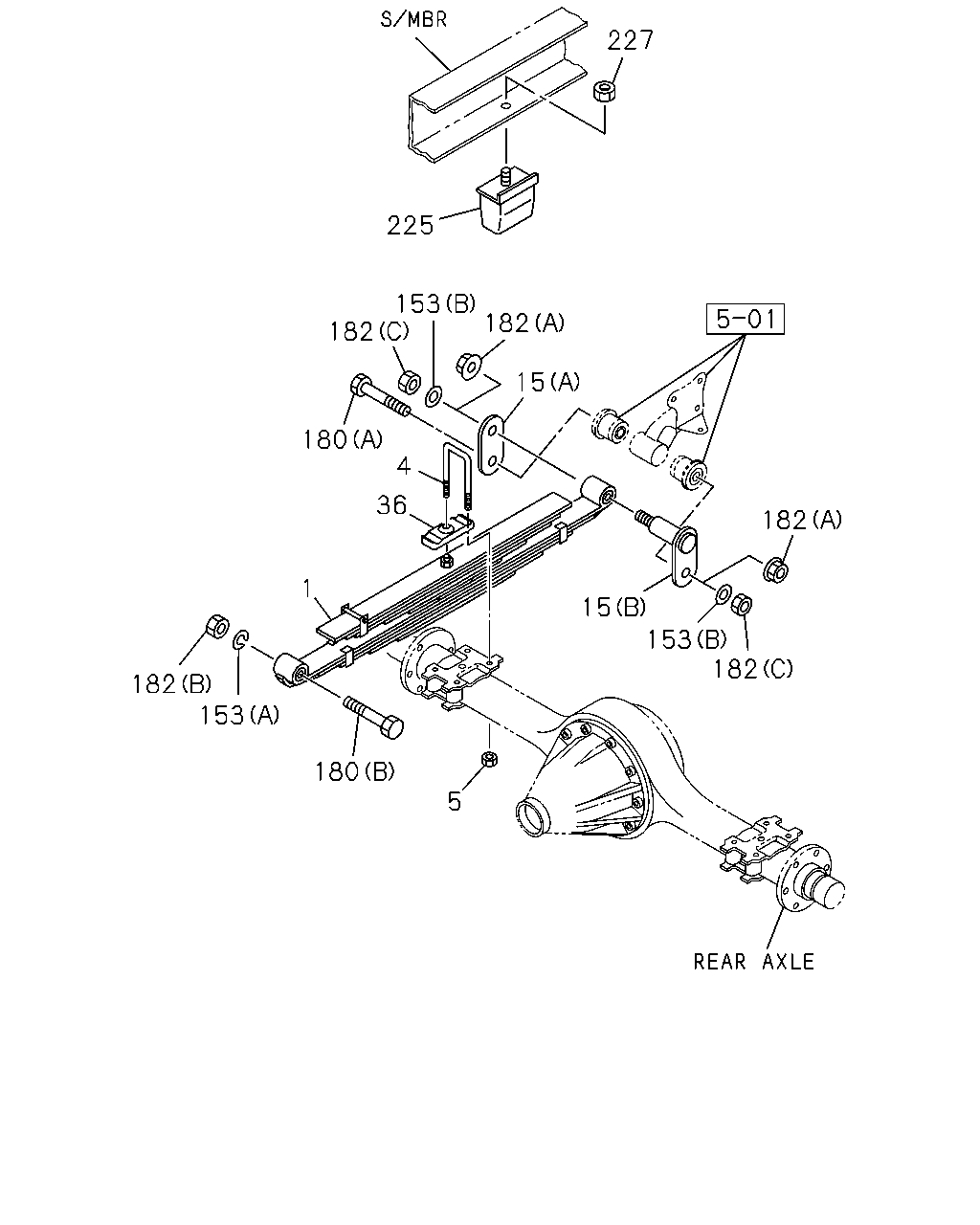

[460A] FIXING;LEAF SPRING (32 parça)
▶
317
429
62
25
318
435
527
274
526
527
297
285
285
527
330
387
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
25
BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1>
8-98067-239-0
01
1
0911-
●
62
BUSHING; LINK ROD
STABILIZER REAR<GN1>
8-97239-911-0
02
1
0911-
●
274
BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1>
8-94440-793-0
02
1
0911-
●
285
BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (A) L=18
8-97089-556-0
02
1
0911-
●
285
BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (B) L=29
8-97089-557-0
02
1
0911-
●
297
CAP; STAB BAR
STABILIZER REAR<GN1>
8-94178-430-2
02
1
0911-
●
317
ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1>
8-97239-907-0
02
1
0911-
●
318
BOLT; LINK ROD
STABILIZER REAR<GN1> M14X70 FLANGE
0-28851-470-0
02
1
0911-
●
330
NUT; STAB
STABILIZER REAR<GN1> M12 LOCK NUT
0-91370-012-0
02
1
0911-
●
387
BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> M10X25 FLANGE
0-28651-025-0
04
1
0911-
●
429
NUT; LINK
STABILIZER REAR<GN1> M14 FLANGE
8-97360-124-0
02
1
0911-
●
435
NUT; CAP
STABILIZER REAR<GN1> M10 FLANGE
0-91180-210-0
04
1
0911-
●
526
STUD; STABILIZER
STABILIZER REAR<GN1>
8-97360-120-0
02
1
0911-
●
527
WASHER; STABILIZER
STABILIZER REAR<GN1> (A) ID=14.2
0-91510-514-0
02
1
0911-
●
527
WASHER; STABILIZER
STABILIZER REAR<GN1> (B) ID=12.5
8-97360-055-0
04
1
0911-
●
227
225
153
182
182
15
180
4
36
182
1
15
153
182
182
153
180
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS<V4B> 10-LEAF
8-98025-060-0
02
1
0911-1105
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS<V4B> 9-LEAF
8-98190-548-0
02
1
1106-
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 7-LEAF
8-98006-955-0
02
1
0807-
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 8-LEAF
8-98079-904-0
02
1
0807-0910
●
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. MINI BUS CHASSIS<V4B> 8-LEAF
8-98079-904-0
02
1
0911-
●
4
U-BOLT; RR SPR
L=315
1-51371-194-2
04
1
0807-0910
●
4
U-BOLT; RR SPR
L=315
1-51371-194-2
04
1
0911-
●
4
U-BOLT; RR SPR
MINI BUS CHASSIS<V4B> L=315
1-51371-194-2
04
1
0911-
●
4
U-BOLT; RR SPR
L=345
1-51371-195-2
04
1
0807-0910
●
4
U-BOLT; RR SPR
EXC. MINI BUS CHASSIS<V4B> L=345
1-51371-195-2
04
1
0911-
●
5
NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
0807-
●
●
15
SHACKLE; RR SPR
(A)
8-94118-511-3
02
1
0807-
●
●
15
SHACKLE; RR SPR
(B)
8-97360-011-0
02
1
0807-
●
●
36
SEAT; HELPER RUBBER,RR SPR
1-51372-059-0
02
1
0807-
●
●
153
WASHER; PL,SPRING PIN
IDENTIFICATION LABEL FOR KD<6UT> (B) ID=16.5
8-98011-489-0
04
1
0811-
●
153
WASHER; PL,SPRING PIN
(A) ID=19
8-97360-119-0
02
1
0807-
●
●
180
PIN; RR SPR
IDENTIFICATION LABEL FOR KD<6UT> (A) M16X122
8-98011-487-0
02
1
0811-
●
180
PIN; RR SPR
IDENTIFICATION LABEL FOR KD<6UT> (B) M18X130
8-98011-488-0
02
1
0811-
●
180
PIN; RR SPR
(A) M16X122 FLANGE
8-97360-110-0
02
1
0807-0810
●
●
180
PIN; RR SPR
(A) M16X122 FLANGE
8-97360-110-0
02
1
0811-
●
180
PIN; RR SPR
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M16X122 FLANGE
8-97360-110-0
02
1
0811-
●
180
PIN; RR SPR
(B) M18X130 FLANGE
8-97360-112-0
02
1
0807-0810
●
●
180
PIN; RR SPR
(B) M18X130 FLANGE
8-97360-112-0
02
1
0811-
●
180
PIN; RR SPR
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) M18X130 FLANGE
8-97360-112-0
02
1
0811-
●
182
NUT; PIN,RR SPR
IDENTIFICATION LABEL FOR KD<6UT> (C) M16
0-91110-516-0
04
1
0811-
●
182
NUT; PIN,RR SPR
(B) M18
0-91110-518-0
02
1
0807-
●
●
182
NUT; PIN,RR SPR
(A) M16 FLANGE
8-97360-125-0
04
1
0807-0810
●
●
182
NUT; PIN,RR SPR
(A) M16 FLANGE
8-97360-125-0
04
1
0811-
●
182
NUT; PIN,RR SPR
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M16 FLANGE
8-97360-125-0
04
1
0811-
●
225
RUBBER; CUSHION,RR SPR
8-94379-470-1
02
1
0807-1103
●
●
225
RUBBER; CUSHION,RR SPR
8-98187-342-0
02
1
1104-
●
●
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-112-0
02
1
0807-
●
●
