◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55B - FRONT LEAF SPRING ▶
4-55B — FRONT LEAF SPRING (#75850) — 15 parça

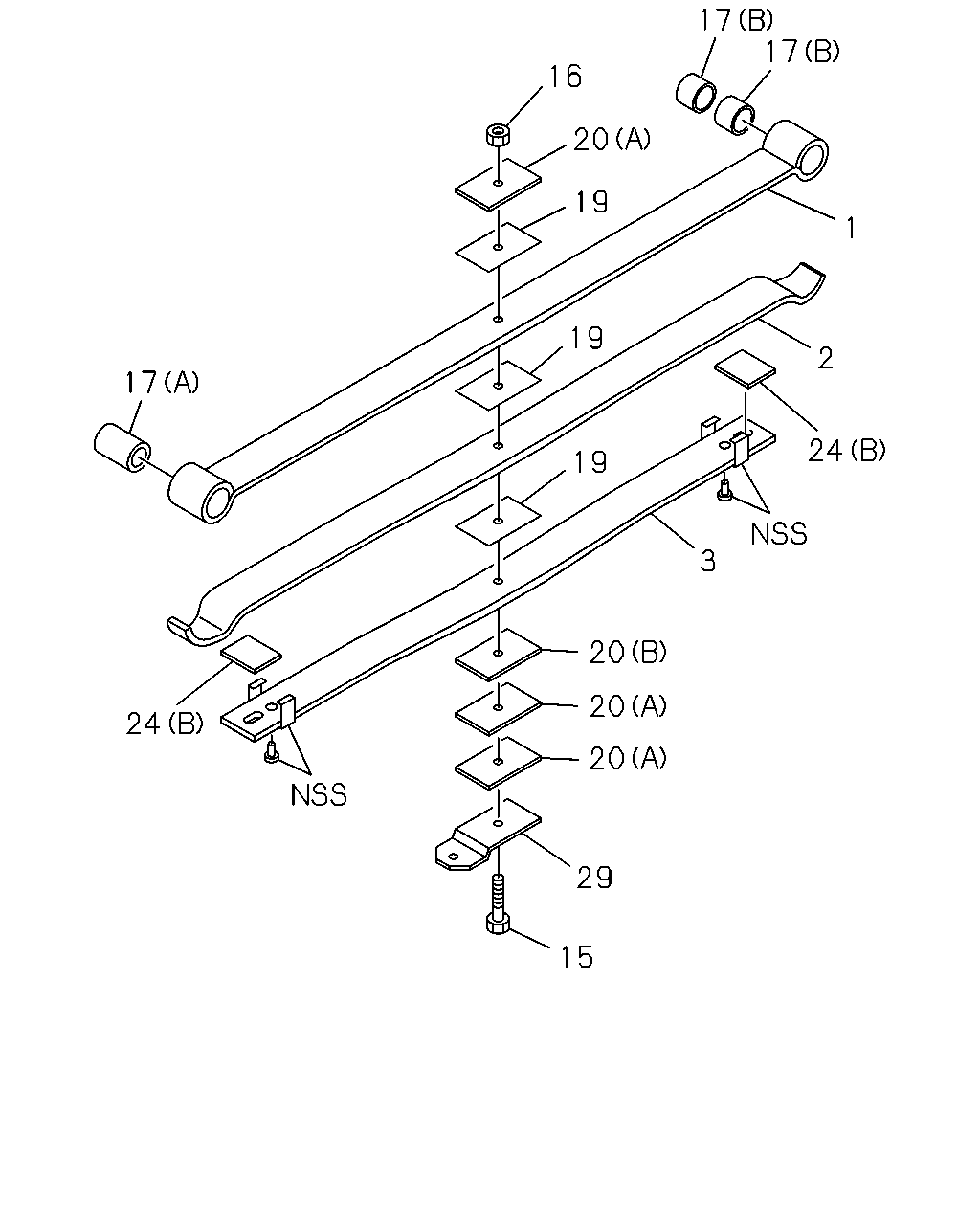

çizim 124668
17 17 16 20 19 1 19 2 17 24 19 3 20 20 24 20 29 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98079-965-0 		8-98077-437-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98079-966-0 		8-98077-441-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98079-965-0 		8-98077-438-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98079-966-0 		8-98077-442-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98079-965-0 		8-98115-639-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98079-966-0 		8-98115-640-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=100 ASM PART: A = 8-98079-965-0, B = 8-98079-966-0 		8-98063-771-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98079-965-0, B = 8-98079-966-0 		1-09400-055-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=40 L=43.7 ASM PART: A = 8-98079-965-0, B = 8-98079-966-0 		8-94118-588-1 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 L=81 ASM PART: A = 8-98079-965-0, B = 8-98079-966-0 		8-94130-354-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98079-965-0, B = 8-98079-966-0 		8-97084-845-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98079-965-0, B = 8-98079-966-0 		8-98034-521-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98079-965-0, B = 8-98079-966-0 		8-98034-522-0 01 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: A = 8-98079-965-0, B = 8-98079-966-0 		8-97084-848-0 02 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: A = 8-98079-965-0, B = 8-98079-966-0 		8-97141-927-1 01 1 -
