2-30 — GEAR SHIFTER AND QUADRANT BOX (#7585) — 96 parça

382 383

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-1	01	1	0101-
	383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	0101-

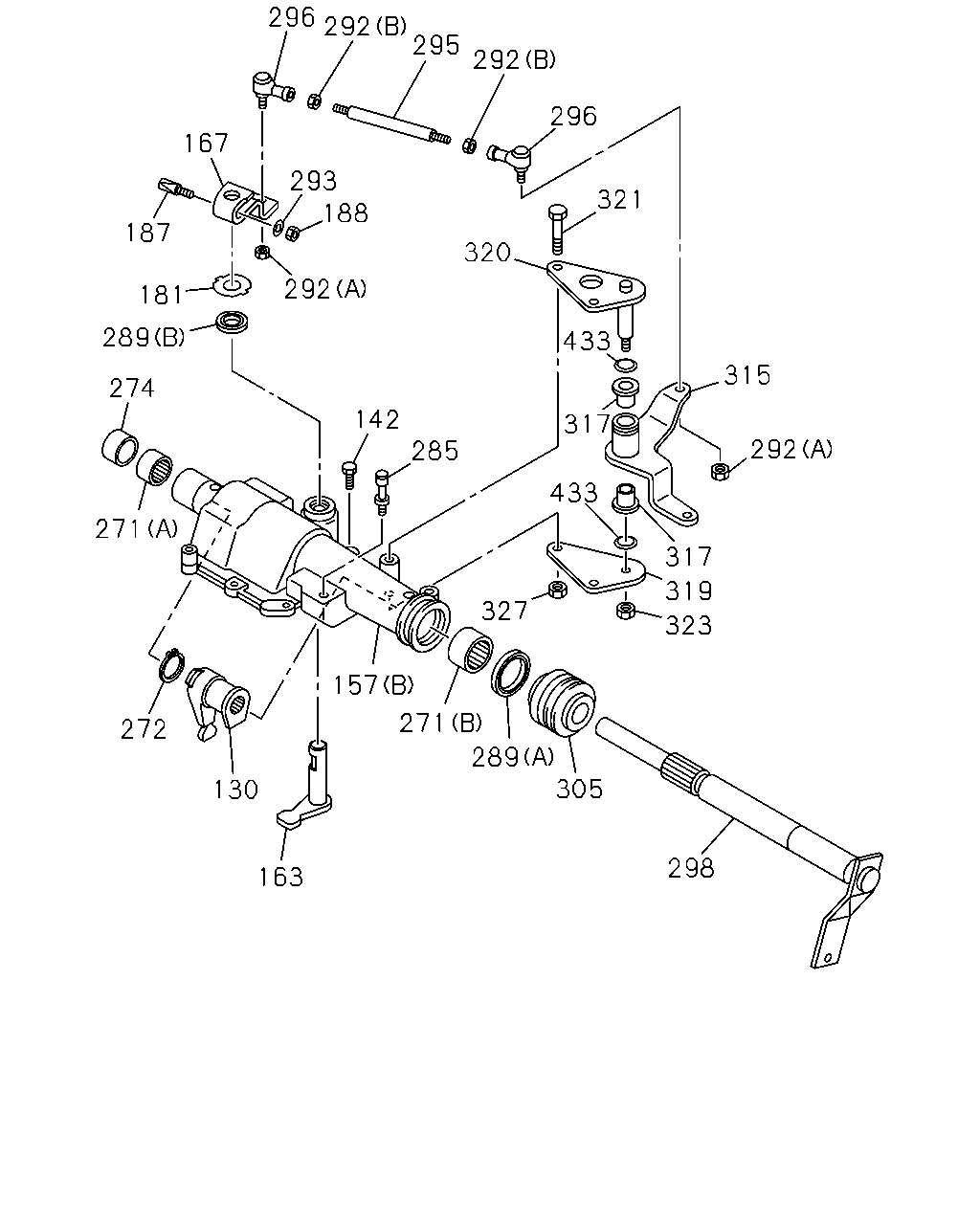

296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 317 292 285 433 271 317 319 327 323 157 271 272 289 305 130 298 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0101-
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	0101-
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	0101-
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0101-
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	0101-
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0101-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0101-
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0101-
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	0101-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0101-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0101-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0101-
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0101-
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0101-
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0101-
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0101-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0101-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0101-0307
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). OD=41	1-09625-647-0	01	1	0308-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0101-
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0101-
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0101-
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0101-
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0101-
296	ROD END L=48	1-09760-038-1	02	1	0101-0309
296	ROD END L=45.5	1-09760-118-1	02	1	0310-
298	SHAFT; SHIFT LEVER	1-33522-168-0	01	1	0101-0307
298	SHAFT; SHIFT LEVER	1-33522-189-0	01	1	0308-
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	0101-
315	LEVER; SELECT	1-33651-704-0	01	1	0101-
317	BUSHING; LEVER	1-09330-119-0	02	1	0101-
319	BRACKET; SELECT LEVER	1-33657-515-0	01	1	0101-
320	SHAFT; LEVER	1-33619-474-0	01	1	0101-
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	0101-
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0101-
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	0101-
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	0101-
433	GASKET; BUSHING	1-09623-594-0	02	1	0101-

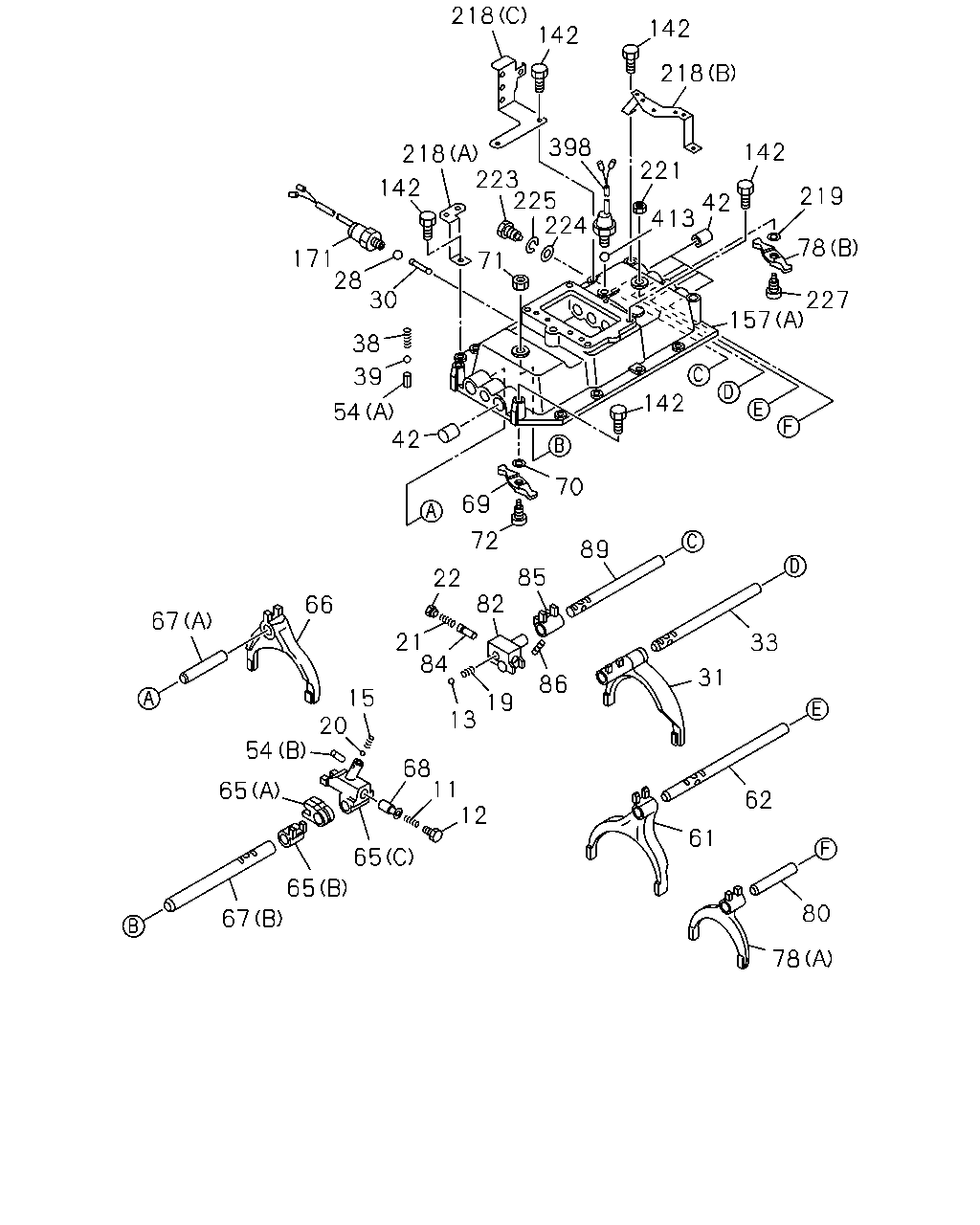

218 142 142 218 398 142 218 223 225 224 221 142 219 42 413 78 171 28 30 71 227 157 38 142 39 54 42 70 69 72 89 85 22 82 66 67 21 84 33 31 86 15 20 19 13 54 68 11 12 65 62 61 65 65 80 67 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0101-
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0101-
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0101-
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0101-
19	SPRING; COIL COMP	1-09580-441-0	01	1	0101-
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0101-
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0101-
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0101-
28	BALL; INTER LK	9-00097-501-0	04	1	0101-
30	PIN; INTER LK	9-33534-003-0	03	1	0101-
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0101-
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0101-
38	SPRING; DETENT	1-09580-419-0	04	1	0101-
39	BALL; DETENT	1-09843-012-0	04	1	0101-
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0101-
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	0101-0201
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0101-
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0101-
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0101-
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0101-
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0101-
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0101-
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0101-
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0101-
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0101-
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0101-
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0101-
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0101-
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	0101-
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0101-
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0101-
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0101-
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0101-
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0101-
84	SLEEVE; REV	1-33516-025-0	01	1	0101-
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0101-
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0101-
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0101-
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	0101-
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	0101-
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0101-
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	0101-
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0101-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0101-
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0101-
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0101-
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-663-1	01	1	0101-
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-733-0	01	1	0101-
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0101-
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0101-
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0101-
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0101-
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0101-
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0101-
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0101-
413	BALL; BACK SW	9-00097-013-0	01	1	0101-
