4-50 — FRONT SUSPENSION (#75848) — 64 parça

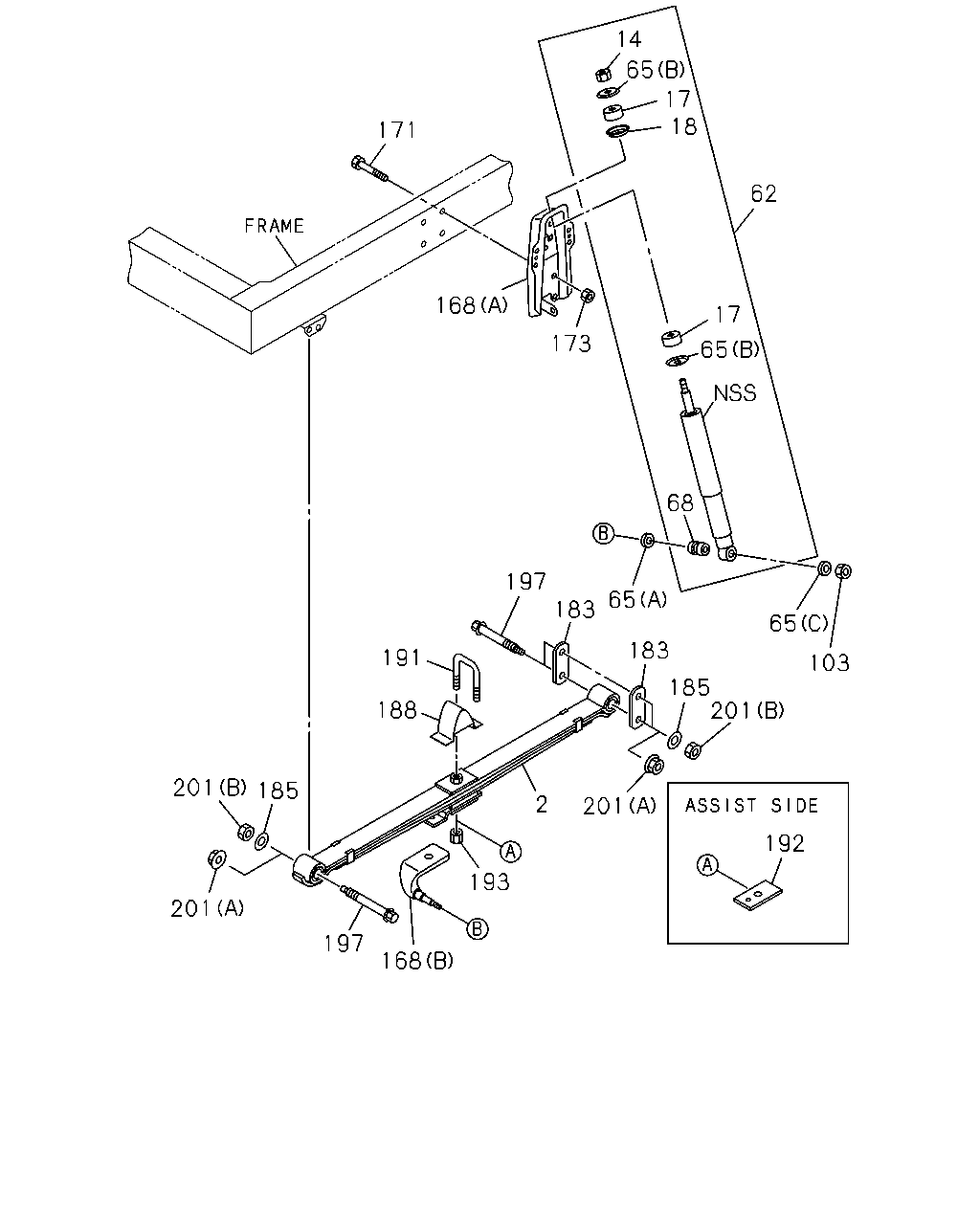

çizim 124182
14 65 17 18 171 62 168 17 173 65 68 197 65 183 65 183 191 103 185 201 188 201 185 2 201 192 193 201 197 168
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. GVWR CLASS-5 18001-19500LBS(RQQ) MINI BUS CHASSIS<V4B> FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-545-1 01 1 1111- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. GVWR CLASS-5 18001-19500LBS(RQQ) MINI BUS CHASSIS<V4B> FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-546-1 01 1 1111- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS<V4B> 6-LEAF 		8-98079-920-0 01 1 0911-1105 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS<V4B> 6-LEAF 		8-98190-541-0 01 1 1106-1110 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. GVWR CLASS-5 18001-19500LBS(RQQ) MINI BUS CHASSIS<V4B> EXC. FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-541-1 01 1 1111- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS<V4B> 6-LEAF 		8-98079-922-0 01 1 0911-1105 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MINI BUS CHASSIS<V4B> 6-LEAF 		8-98190-542-0 01 1 1106-1110 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. GVWR CLASS-5 18001-19500LBS(RQQ) MINI BUS CHASSIS<V4B> EXC. FRONT WIDE TREAD<7GV> 6-LEAF 		8-98190-542-1 01 1 1111- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF 		8-98098-118-0 01 1 0807- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF 		8-98098-120-0 01 1 0807- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98079-965-0 01 1 0807-0910 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. MINI BUS CHASSIS<V4B> 3-LEAF 		8-98079-965-0 01 1 0911- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98079-966-0 01 1 0807-0910 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. MINI BUS CHASSIS<V4B> 3-LEAF 		8-98079-966-0 01 1 0911- ●
14 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 0807- ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0807- ● ●
18 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 0807- ● ●
62 ABSORBER ASM; SHOCK,FRT
GVWR CLASS-5 18001-19500LBS(RQQ) MINI BUS CHASSIS<V4B> FRONT WIDE TREAD<7GV> 		8-98154-636-0 02 1 1111- ●
62 ABSORBER ASM; SHOCK,FRT
MINI BUS CHASSIS<V4B> 		8-98080-129-0 02 1 0911-1002 ●
62 ABSORBER ASM; SHOCK,FRT
MINI BUS CHASSIS<V4B> 		8-98080-130-0 02 1 1003-1110 ●
62 ABSORBER ASM; SHOCK,FRT
GVWR CLASS-5 18001-19500LBS(RQQ) MINI BUS CHASSIS<V4B> EXC. FRONT WIDE TREAD<7GV> 		8-98080-130-1 02 1 1111- ●
62 ABSORBER ASM; SHOCK,FRT 8-98098-125-0 02 1 0807-1303 ●
62 ABSORBER ASM; SHOCK,FRT 8-98232-671-1 02 1 1304- ●
62 ABSORBER ASM; SHOCK,FRT 8-98098-127-0 02 1 0807-0910 ●
62 ABSORBER ASM; SHOCK,FRT
EXC. MINI BUS CHASSIS<V4B> 		8-98098-127-0 02 1 0911-1303 ●
62 ABSORBER ASM; SHOCK,FRT
EXC. MINI BUS CHASSIS<V4B> 		8-98232-672-1 02 1 1304- ●
65 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 0807- ● ●
65 WASHER; S/ABS
(C) ID=15 		8-97360-056-0 02 1 0807- ● ●
65 WASHER; S/ABS
(B) OD=40 		9-51631-614-0 04 1 0807- ● ●
68 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 0807- ● ●
103 NUT; S/ABS TO LWR LINK
M14 		0-91110-514-0 02 1 0807- ● ●
168 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (B) 		8-98139-556-0 01 1 1111- ●
168 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (B) 		8-98139-557-0 01 1 1111- ●
168 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (A) 		8-98150-404-1 01 1 1111- ●
168 BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV> (A) 		8-98150-405-1 01 1 1111- ●
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98006-958-1 01 1 0807-1110 ● ●
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98006-958-1 01 1 1111- ●
168 BRACKET; S/ABS,FRT SUSP
EXC. FRONT WIDE TREAD<7GV> (A) 		8-98006-958-1 01 1 1111- ●
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98006-959-1 01 1 0807-1110 ● ●
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98006-959-1 01 1 1111- ●
168 BRACKET; S/ABS,FRT SUSP
EXC. FRONT WIDE TREAD<7GV> (A) 		8-98006-959-1 01 1 1111- ●
171 BOLT; S/ABS BRKT
FRONT WIDE TREAD<7GV> M12X40 FLANGE 		0-28651-240-0 08 1 1111- ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE 		0-28651-235-0 08 1 0807-1110 ● ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE 		0-28651-235-0 08 1 1111- ●
171 BOLT; S/ABS BRKT
EXC. FRONT WIDE TREAD<7GV> M12X35 FLANGE 		0-28651-235-0 08 1 1111- ●
173 NUT; S/ABS
M12 		8-97360-126-0 08 1 0807- ● ●
183 SHACKLE; FRT SUSP 8-94110-399-3 04 1 0807- ● ●
185 WASHER; LK,PIN
IDENTIFICATION LABEL FOR KD<6UT> ID=16.5 		8-98011-489-0 06 1 0811- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-516-0 02 1 0807- ● ●
191 U-BOLT; FRT SPR
MINI BUS CHASSIS<V4B> L=165 		9-51171-075-1 04 1 0911- ●
191 U-BOLT; FRT SPR
L=125 		8-94119-671-5 04 1 0807- ●
191 U-BOLT; FRT SPR
L=135 		9-51171-073-2 04 1 0807-0910 ●
191 U-BOLT; FRT SPR
EXC. MINI BUS CHASSIS<V4B> L=135 		9-51171-073-2 04 1 0911- ●
192 PIECE; DIST 8-97254-823-1 01 1 0807- ● ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 0807- ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0807- ●
197 PIN; FRT SPR,FRT
IDENTIFICATION LABEL FOR KD<6UT> M16X122 		8-98011-487-0 06 1 0811- ●
197 PIN; FRT SPR,FRT
M16X122 FLANGE 		8-97360-110-0 06 1 0807-0810 ● ●
197 PIN; FRT SPR,FRT
M16X122 FLANGE 		8-97360-110-0 06 1 0811- ●
197 PIN; FRT SPR,FRT
EXC. IDENTIFICATION LABEL FOR KD<6UT> M16X122 FLANGE 		8-97360-110-0 06 1 0811- ●
201 NUT; PIN LK
IDENTIFICATION LABEL FOR KD<6UT> (B) M16 		0-91110-516-0 06 1 0811- ●
201 NUT; PIN LK
(A) M16 FLANGE 		8-97360-125-0 06 1 0807-0810 ● ●
201 NUT; PIN LK
(A) M16 FLANGE 		8-97360-125-0 06 1 0811- ●
201 NUT; PIN LK
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M16 FLANGE 		8-97360-125-0 06 1 0811- ●
