◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#75845) — 12 parça

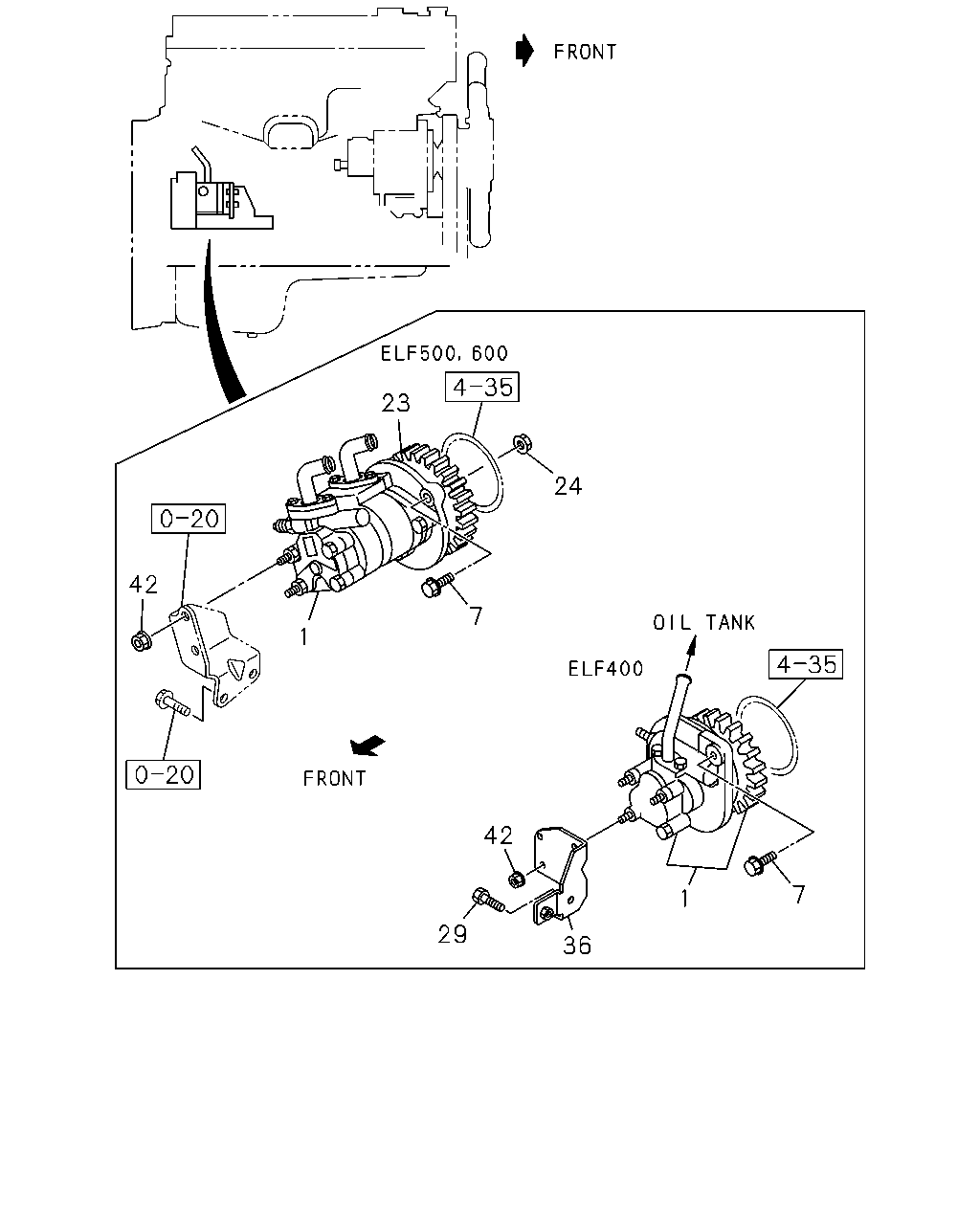

çizim 124320
23 24 42 7 1 42 7 1 29 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97388-651-1 01 1 0807-0812 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98138-131-2 01 1 0901- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97258-461-3 01 1 0807- ●
7 BOLT; OIL PUMP,P/S
M10X28 FLANGE 		8-98044-944-0 02 1 0807-1010 ● ●
7 BOLT; OIL PUMP,P/S
M10X30 FLANGE 		0-28751-030-0 02 1 1011- ● ●
23 GEAR; OIL PUMP 8-97114-550-1 01 1 0807- ●
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-212-0 01 1 0807- ●
29 BOLT; BRKT,POWER STRG
M14X20 FLANGE 		0-28851-420-0 01 1 0807- ●
36 BRACKET; PLATE,P/S PUMP 8-97112-866-0 01 1 0807- ●
42 NUT; ADJ PLATE
M8 FLANGE 		0-91180-108-0 02 1 0807- ●
42 NUT; ADJ PLATE
M8 FLANGE 		0-91180-108-0 01 1 0807-0808 ●
42 NUT; ADJ PLATE
M8 FLANGE 		0-91180-108-0 01 1 0809- ● ●
