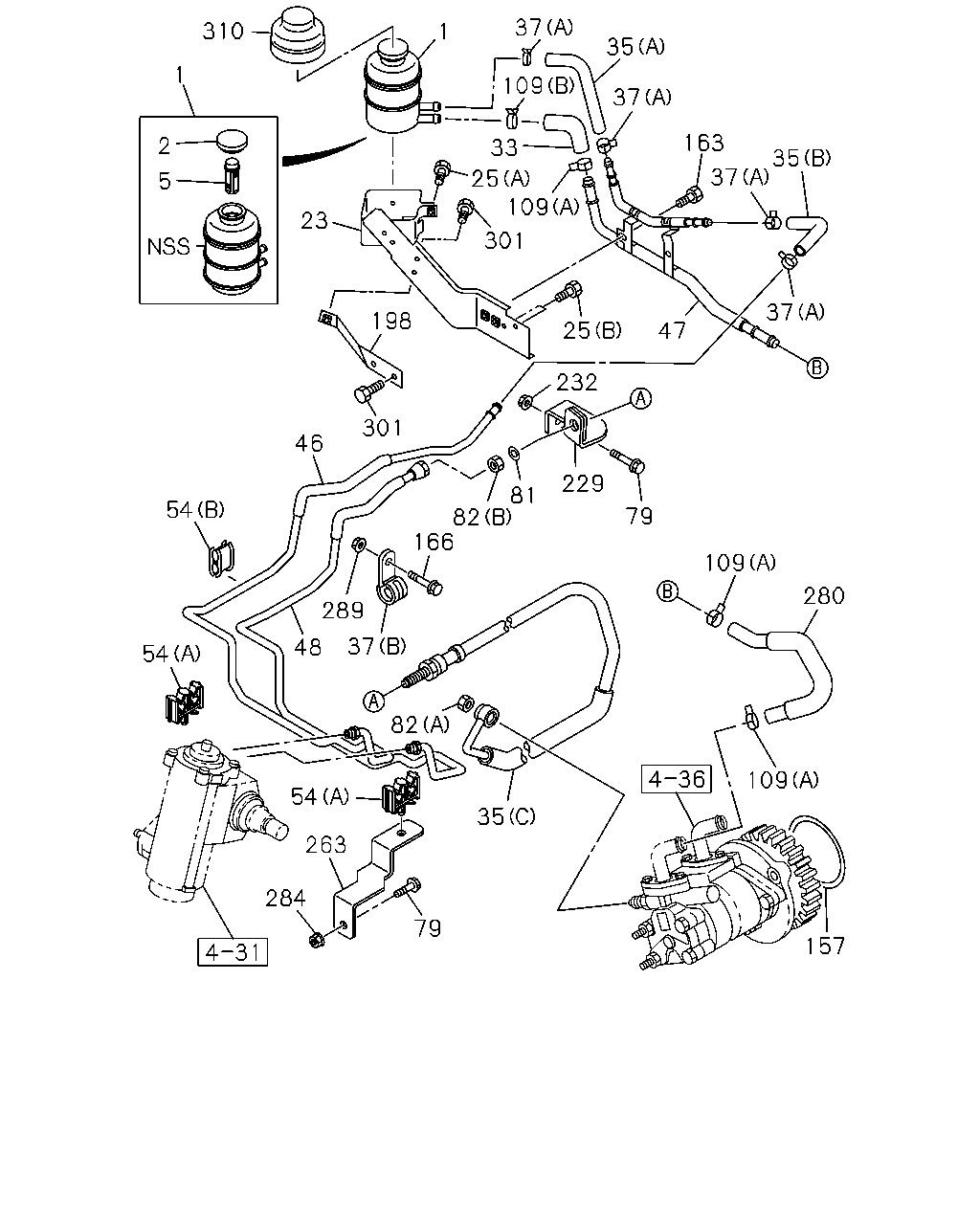

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#75844) — 48 parça

37 310 1 35 1 109 37 163 2 33 35 37 25 109 5 23 301 37 198 25 47 232 301 46 229 81 82 166 54 79 109 280 289 37 48 54 82 109 54 35 263 284 79 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0807-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0807-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0807-	●	●
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0807-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0807-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0807-	●	●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0807-	●	●
35	HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	0807-	●	●
35	HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0807-	●	●
35	HOSE; RETURN,P/S TANK (A)	8-98101-363-0	01	1	0807-	●	●
37	CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	0807-	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	04	1	0807-0911	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	04	1	0912-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> L=2610	8-98135-831-0	01	1	1111-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2625	8-98095-543-1	01	1	0807-0809	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2651	8-98131-674-0	01	1	0810-1110	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2651	8-98131-674-0	01	1	1111-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. FRONT WIDE TREAD<7GV> L=2651	8-98131-674-0	01	1	1111-		●
47	PIPE; RETURN	8-98101-312-1	01	1	0807-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> L=2809	8-98135-829-0	01	1	1111-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2830	8-98095-541-1	01	1	0807-0809	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2846	8-98131-673-0	01	1	0810-1110	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2846	8-98131-673-0	01	1	1111-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRONT WIDE TREAD<7GV> L=2846	8-98131-673-0	01	1	1111-		●
54	CLIP; OIL PIPE (B) ID=10X2 H=22	8-94252-455-2	01	1	0807-	●	●
54	CLIP; OIL PIPE (A) ID=10X2 H=37.5	8-97018-546-0	04	1	0807-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0807-	●	●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0807-	●	●
82	NUT; FLEX HOSE,P/S (B) M16	8-94370-339-0	01	1	0807-	●	●
82	NUT; FLEX HOSE,P/S (A) M12 SELF LOCK	8-97028-390-1	01	1	0807-	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	03	1	0807-0911	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	03	1	0912-	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0807-1003	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0807-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0807-	●	●
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0807-	●	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0807-	●	●
229	BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	0807-	●	●
232	NUT; BRKT M10 FLANGE	0-91180-110-0	01	1	0807-	●	●
263	BRACKET; P/S PIPE	8-98034-113-0	01	1	0807-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98082-973-0	01	1	0807-0807	●
280	HOSE; P/S OIL PUMP,INL	8-98128-015-0	01	1	0807-	●
280	HOSE; P/S OIL PUMP,INL	8-98114-578-1	01	1	0807-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0807-	●	●
289	NUT; BRKT,POWER STRG M8 FLANGE	0-91180-108-0	01	1	0807-	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0807-	●	●
310	COVER; OIL TANK	8-97188-846-1	01	1	0807-	●	●
