◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#75842) — 39 parça

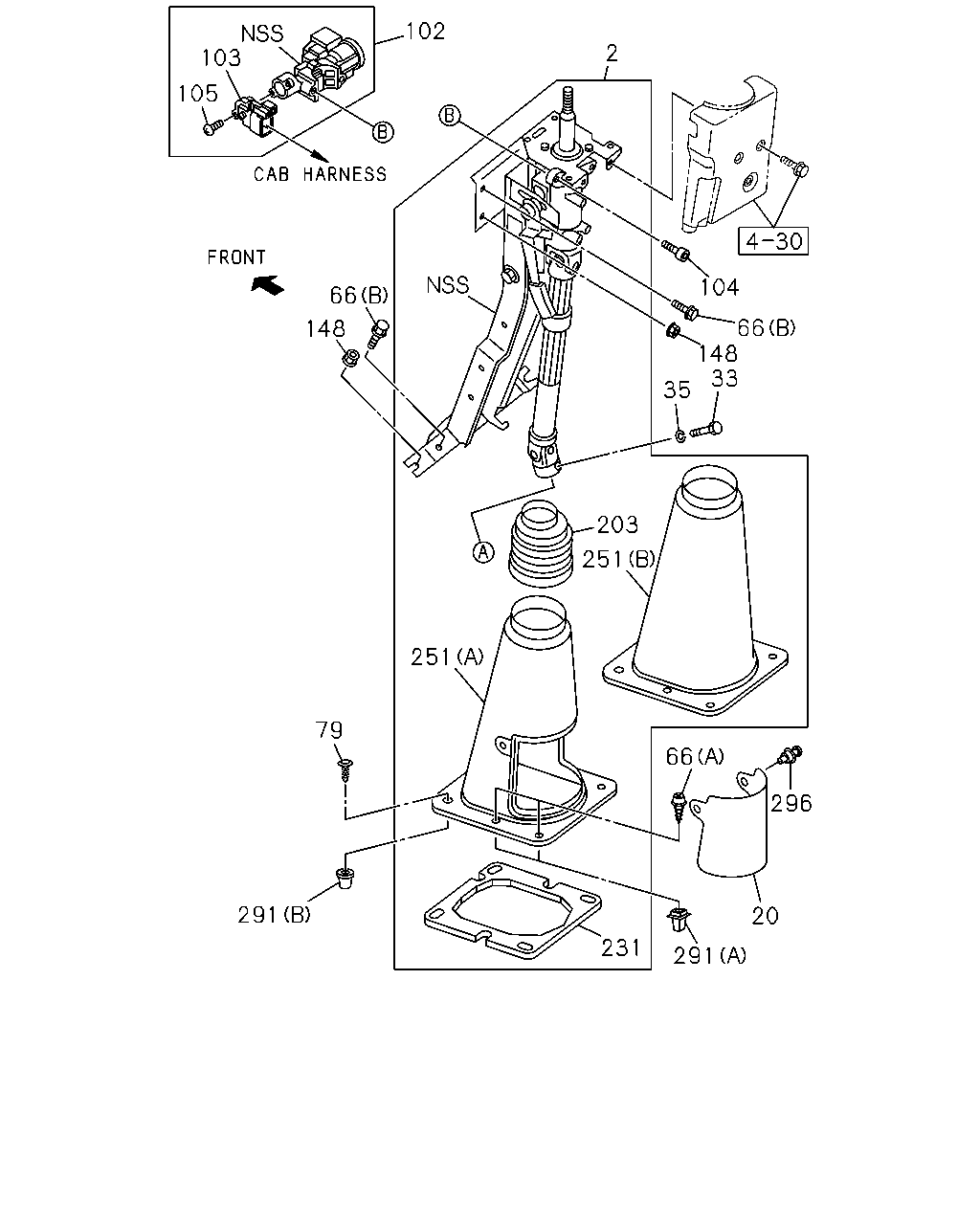

çizim 122987
102 2 105 104 66 66 148 33 148 35 203 251 251 79 66 296 291 20 231 291 103
BalonParca AdiParca NoAdetTipApplied Date A B
2 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> BLACK 		8-97418-802-2 01 1 1008- ● ●
2 SHAFT ASM; STRG
BLACK 		8-97406-375-6 01 1 0807-1007 ● ●
2 SHAFT ASM; STRG
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97406-375-8 01 1 1008- ● ●
20 COVER; STRG SHAFT
BLACK 		8-97405-159-0 01 1 0807-1007 ● ●
20 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97405-159-0 01 1 1008- ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 0807- ● ●
35 WASHER; LK,STRG SHAFT
ID=8.2 		0-91510-808-0 01 1 0807- ● ●
66 BOLT; STRG COLUMN
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1201- ● ●
66 BOLT; STRG COLUMN
(A) M5X18 TAPPING 		0-72180-518-0 04 1 0807- ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0807-1112 ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201- ● ●
79 CLIP; STRG COLUMN COVER
L=19 BLACK 		8-94363-776-0 02 1 0807- ● ●
102 LOCK ASM; STRG 8-98006-150-0 01 1 0807- ● ●
103 SWITCH; IGNITION 8-98045-349-0 01 1 0807- ● ●
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 0807- ● ●
105 SCREW; IGN SW 8-98045-346-0 02 1 0807- ● ●
148 NUT; COLUMN TO BRKT
M8 W/DISHED WASHER 		8-97329-625-0 03 1 0807- ● ●
203 BOOT; STRG COLUMN LWR 8-98137-331-0 01 1 0807- ● ●
231 SEAL; RUBBER,STRG COLUMN 8-98137-329-0 01 1 0807- ● ●
251 COVER; LWR
MANUAL TILT CAB<RWZ> (B) BLACK 		8-97418-804-0 01 1 1008- ● ●
251 COVER; LWR
(A) BLACK 		8-97417-049-0 01 1 0807-1007 ● ●
251 COVER; LWR
EXC. MANUAL TILT CAB<RWZ> (A) BLACK 		8-97417-049-0 01 1 1008- ● ●
291 GROMMET; STRG SHAFT COVER
(A) H=15 		8-94463-268-1 04 1 0807- ● ●
291 GROMMET; STRG SHAFT COVER
(B) 		8-98029-442-1 02 1 0807- ● ●
296 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0807-1007 ● ●
296 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 1008- ● ●

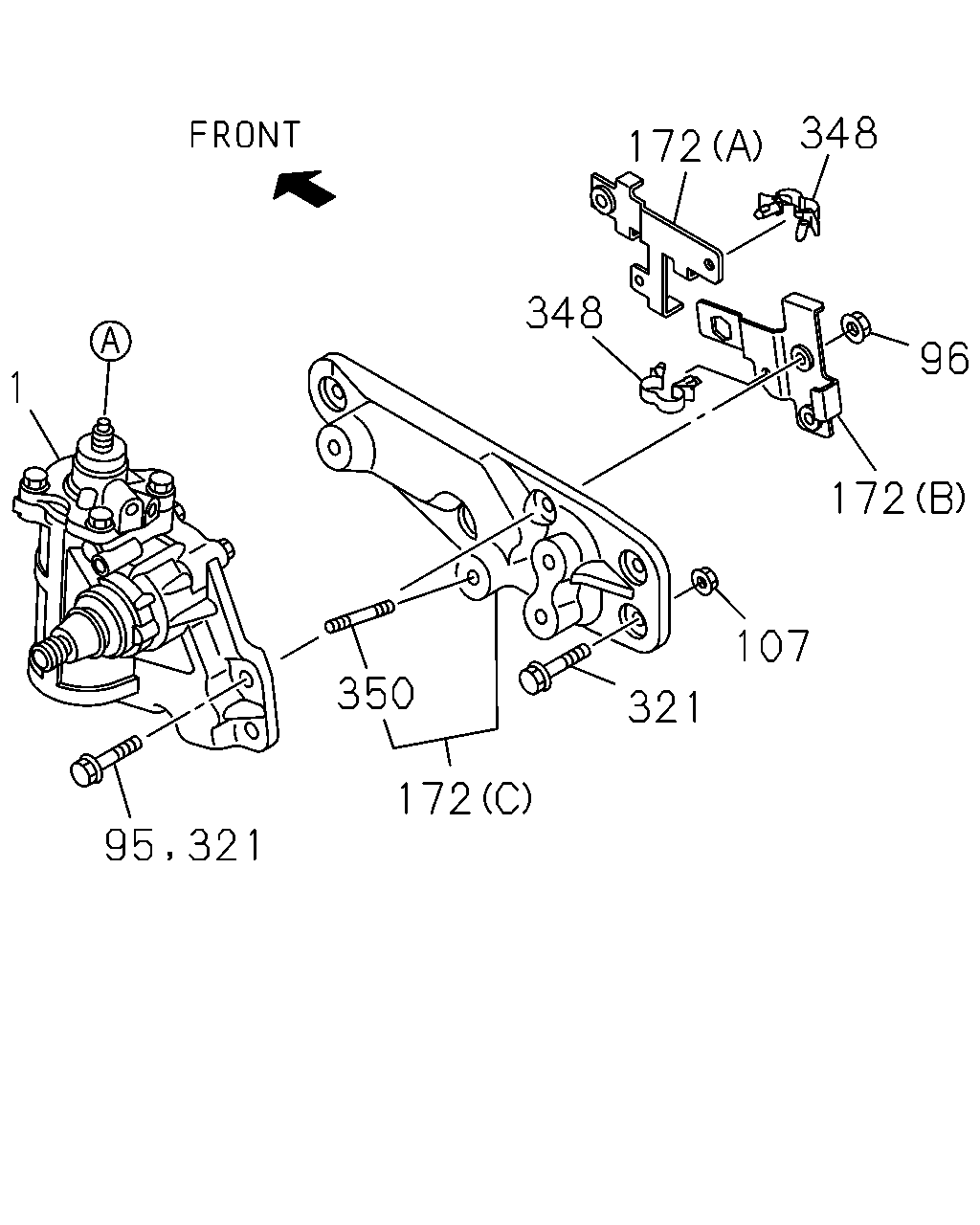

çizim 123043
348 172 348 96 1 172 107 350 321 172 95 321
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98110-220-5 01 1 0807- ● ●
95 BOLT; STRG UNIT
FRONT WIDE TREAD<7GV> M12X47 FLANGE 		8-98055-055-0 03 1 1202- ●
95 BOLT; STRG UNIT
M12X47 FLANGE 		8-98055-055-0 04 1 0807-1201 ● ●
95 BOLT; STRG UNIT
M12X47 FLANGE 		8-98055-055-0 04 1 1202- ●
95 BOLT; STRG UNIT
EXC. FRONT WIDE TREAD<7GV> M12X47 FLANGE 		8-98055-055-0 04 1 1202- ●
96 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 01 1 0807- ● ●
107 NUT; BRKT
FRONT WIDE TREAD<7GV> M12 FLANGE 		8-97359-618-0 03 1 1202- ●
172 BRACKET; STRG
FRONT WIDE TREAD<7GV> (C) 		8-98196-128-0 01 1 1202- ●
172 BRACKET; STRG
(A) 		8-98055-258-1 01 1 0807- ● ●
172 BRACKET; STRG
(B) 		8-98055-259-0 01 1 0807- ● ●
321 BOLT; BRKT,STRG
FRONT WIDE TREAD<7GV> M12X47 FLANGE 		8-98055-055-0 06 1 1202- ●
348 CLIP; BRKT,STRG
ID=5-12 L=22 		1-09709-288-0 02 1 0807- ● ●
350 STUD; BRACKET
FRONT WIDE TREAD<7GV> 		8-98196-098-0 01 1 1202- ●
