◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#75841) — 39 parça

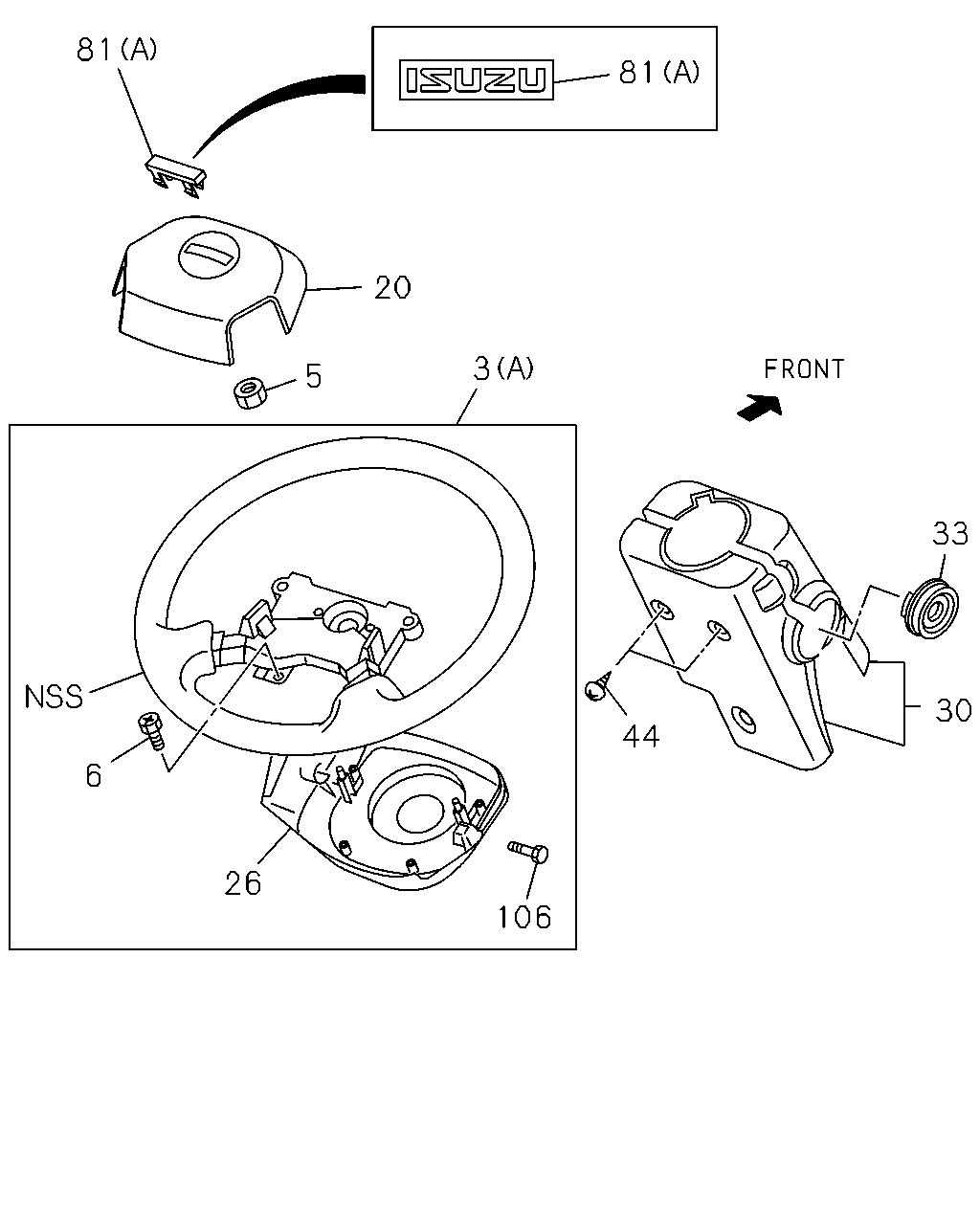

çizim 185951
20 81 5 3 33 30 44 106 26 6 81
BalonParca AdiParca NoAdetTipApplied Date A B
3 WHEEL; STRG
FACE LIFT MODEL<TX7> (B) DARK GRAY 		8-97465-649-2 01 1 1412- ● ●
3 WHEEL; STRG
(A) DARK GRAY 		8-97412-556-1 01 1 0807-1411 ● ●
3 WHEEL; STRG
EXC. FACE LIFT MODEL<TX7> (A) DARK GRAY 		8-97412-556-1 01 1 1412- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0807- ● ●
6 SCREW; HORN SPR CONTACT
M4X12 		8-97167-588-0 04 1 0807-1411 ● ●
6 SCREW; HORN SPR CONTACT
EXC. FACE LIFT MODEL<TX7> M4X12 		8-97167-588-0 04 1 1412- ● ●
20 SHROUD; PAD,STRG WHEEL
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-647-0 01 1 1412- ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97405-985-1 01 1 0807-1411 ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97405-985-1 01 1 1412- ● ●
26 COVER; STRG WHEEL,LWR
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-650-0 01 1 1412- ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97409-275-2 01 1 0807-1411 ● ●
26 COVER; STRG WHEEL,LWR
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97409-275-2 01 1 1412- ● ●
30 COWL; STEERING
DARK GRAY 		8-97405-356-5 01 1 0807-1110 ● ●
30 COWL; STEERING
DARK GRAY 		8-97418-761-1 01 1 1111- ● ●
33 COVER; STRG COWL
DARK GRAY 		8-97409-495-0 01 1 0807- ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 0807- ● ●
81 EMBLEM; STRG WHEEL
(A) DARK GRAY 		8-97405-986-0 01 1 0807-1411 ● ●
81 EMBLEM; STRG WHEEL
EXC. FACE LIFT MODEL<TX7> (A) DARK GRAY 		8-97405-986-0 01 1 1412- ● ●
81 EMBLEM; STRG WHEEL
FACE LIFT MODEL<TX7> (B) DARK GRAY 		8-97465-648-0 01 1 1412- ● ●
106 BOLT; TORX 8-98231-397-0 02 1 0807-1411 ● ●
106 BOLT; TORX
EXC. FACE LIFT MODEL<TX7> 		8-98231-397-0 02 1 1412- ● ●

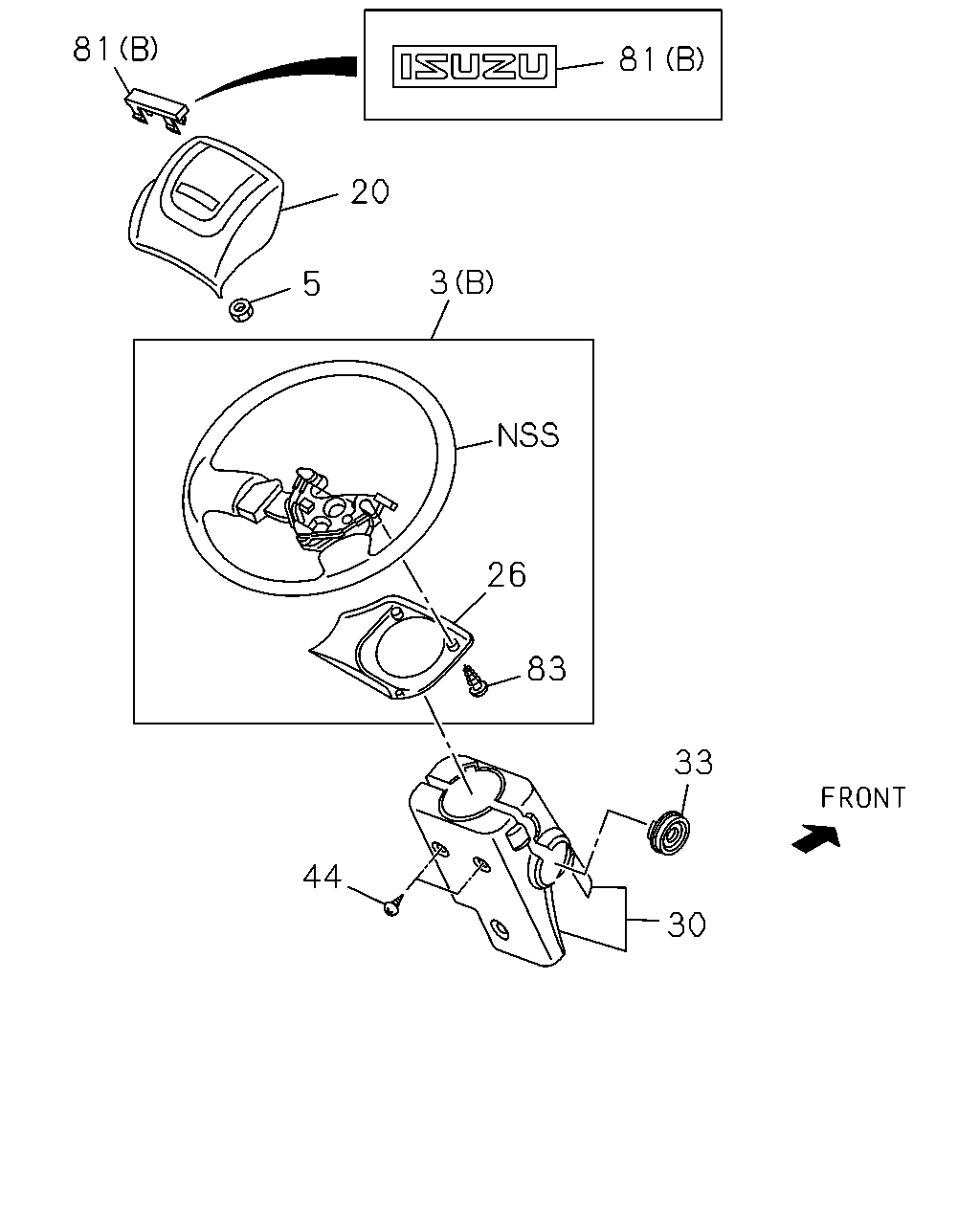

çizim 471861
81 20 3 5 81 26 83 33 30 44
BalonParca AdiParca NoAdetTipApplied Date A B
3 WHEEL; STRG
FACE LIFT MODEL<TX7> (B) DARK GRAY 		8-97465-649-2 01 1 1412- ● ●
3 WHEEL; STRG
(A) DARK GRAY 		8-97412-556-1 01 1 0807-1411 ● ●
3 WHEEL; STRG
EXC. FACE LIFT MODEL<TX7> (A) DARK GRAY 		8-97412-556-1 01 1 1412- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0807- ● ●
20 SHROUD; PAD,STRG WHEEL
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-647-0 01 1 1412- ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97405-985-1 01 1 0807-1411 ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97405-985-1 01 1 1412- ● ●
26 COVER; STRG WHEEL,LWR
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-650-0 01 1 1412- ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97409-275-2 01 1 0807-1411 ● ●
26 COVER; STRG WHEEL,LWR
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97409-275-2 01 1 1412- ● ●
30 COWL; STEERING
DARK GRAY 		8-97405-356-5 01 1 0807-1110 ● ●
30 COWL; STEERING
DARK GRAY 		8-97418-761-1 01 1 1111- ● ●
33 COVER; STRG COWL
DARK GRAY 		8-97409-495-0 01 1 0807- ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 0807- ● ●
81 EMBLEM; STRG WHEEL
(A) DARK GRAY 		8-97405-986-0 01 1 0807-1411 ● ●
81 EMBLEM; STRG WHEEL
EXC. FACE LIFT MODEL<TX7> (A) DARK GRAY 		8-97405-986-0 01 1 1412- ● ●
81 EMBLEM; STRG WHEEL
FACE LIFT MODEL<TX7> (B) DARK GRAY 		8-97465-648-0 01 1 1412- ● ●
83 SCREW; LWR COVER TO WHEEL
FACE LIFT MODEL<TX7> M4X10 TAPPING 		0-71240-410-0 03 1 1412- ● ●
