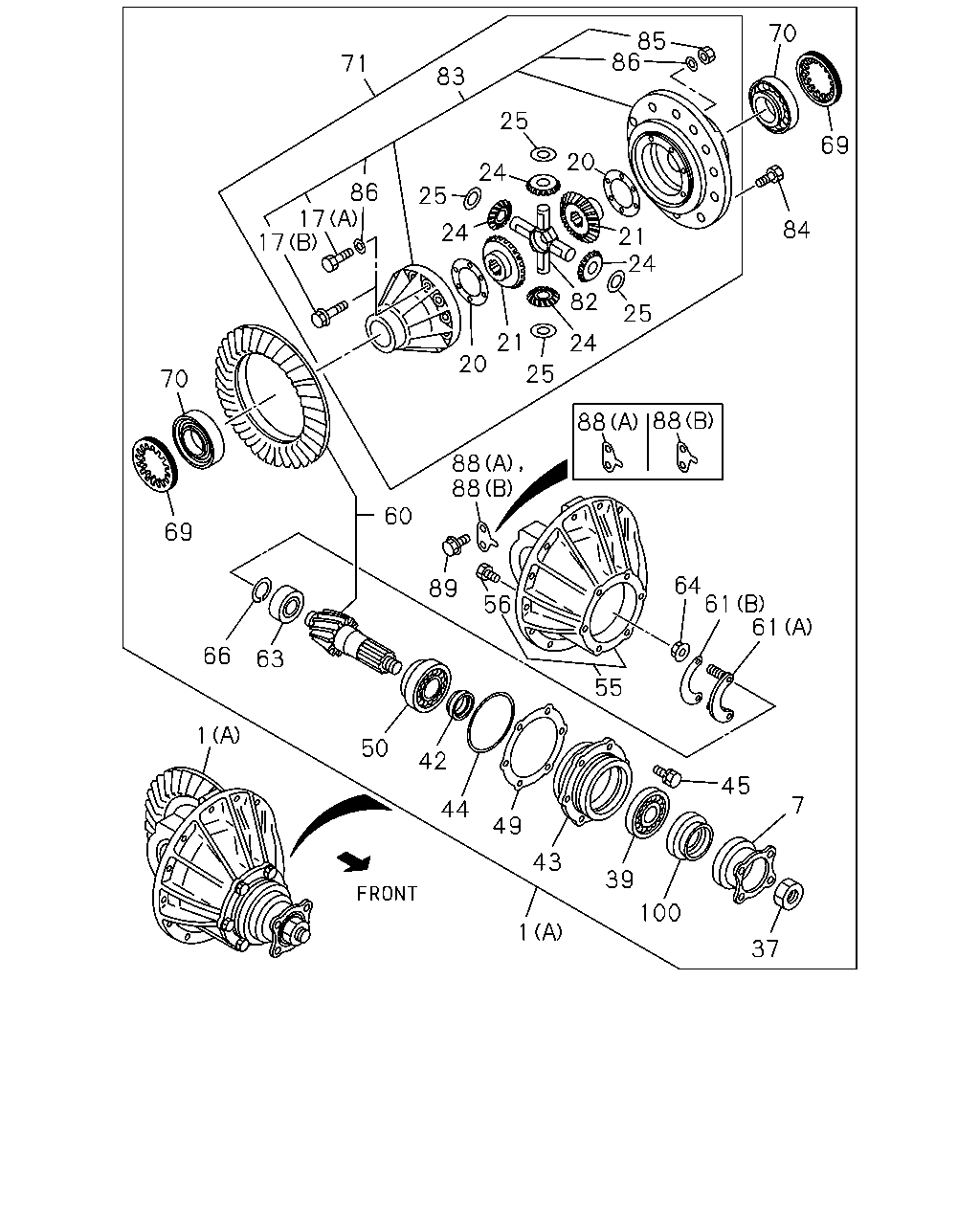

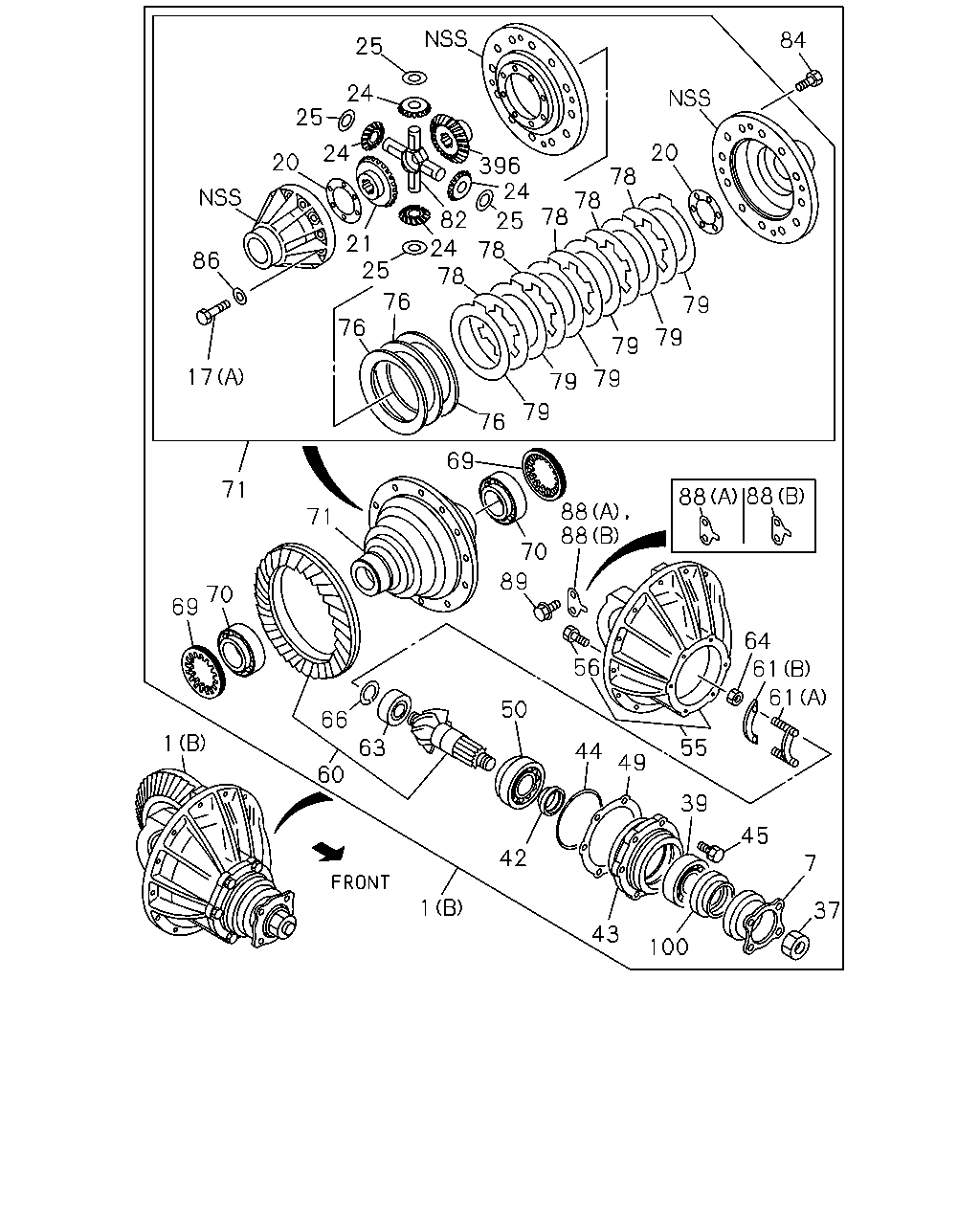

4-25 — REAR FINAL DRIVE (#75840) — 154 parça

84 69 70 85 86 83 71 25 20 21 24 25 24 82 25 24 24 86 17 17 20 21 25 88 88 88 88 64 61 61 60 89 56 55 45 7 37 100 39 43 49 44 42 50 63 66 69 70 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) (A) 43/9	8-98163-689-0	01	1	1002-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> (B) 43/10	8-98093-917-0	01	1	0807-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> (A) 43/10	8-97388-701-0	01	1	0807-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> (B) 41/9	8-98093-915-0	01	1	0807-1001	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) LIMITED SLIP DIFF<6LV> (B) 41/9	8-98093-915-0	01	1	1002-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> (A) 41/9	8-97388-702-0	01	1	0807-1001	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) EXC. LIMITED SLIP DIFF<6LV> (A) 41/9	8-97388-702-0	01	1	1002-	●
7	FLANGE; FINAL	8-97047-095-2	01	1	0807-	●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-98107-373-0	12	1	0807-	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M12X90	8-97047-295-0	12	1	0807-1208	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (B) M12X90	8-98219-448-0	12	1	1209-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0807-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0807-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0807-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0807-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0807-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0807-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0807-	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0807-1004	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0807-1004	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0807-1004	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-	●	●
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	0807-	●	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0807-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1002-	●	●
39	BEARING; FINAL PINION FINAL GEAR RATIO 43/9(S2J) NSK	5-09812-063-0	01	1	1002-1002	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0807-1001	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	1002-1002		●
39	BEARING; FINAL PINION FINAL GEAR RATIO 41/9(HC6) NSK	1-09812-026-0	01	1	1002-1002	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0807-	●	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	0807-	●	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	0807-	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0807-0909	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0807-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0807-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0807-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0807-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	0807-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0807-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0807-	●	●
55	CARRIER; DIFF	8-97094-637-0	01	1	0807-	●	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0807-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-98163-694-0	01	1	1002-	●
60	GEAR SET; FINAL DRIVE,RR 43/10	8-97047-115-0	01	1	0807-		●
60	GEAR SET; FINAL DRIVE,RR 41/9	8-97078-635-1	01	1	0807-1001	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	1002-	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0807-	●	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0807-	●	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0807-	●	●
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0807-	●	●
64	NUT; RET M6 FLANGE	0-91180-106-0	02	1	0807-	●	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0807-	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0807-	●	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0807-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97138-032-1	01	1	0807-1004	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-221-2	01	1	1005-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-099-4	01	1	0807-	●	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	0807-1004	●	●
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-1309	●	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1310-	●	●
83	CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97047-101-2	01	1	0807-1208	●	●
83	CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-98219-705-0	01	1	1209-	●	●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0807-	●	●
85	NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0807-	●	●
86	WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0807-	●	●
86	WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0807-1208	●	●
86	WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	8-97087-821-0	AR	1	0807-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	AR	1	0807-	●	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	04	1	0807-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0807-	●	●

45 39 7 37 100 43 42 1 60 63 66 1 69 70 50 55 49 44 61 61 64 56 89 70 71 71 69 88 88 88 88 79 79 79 79 79 79 76 76 76 78 78 25 78 78 78 20 82 24 25 21 86 17 20 24 24 25 25 24 396 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) (A) 43/9	8-98163-689-0	01	1	1002-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> (B) 43/10	8-98093-917-0	01	1	0807-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> (A) 43/10	8-97388-701-0	01	1	0807-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> (B) 41/9	8-98093-915-0	01	1	0807-1001	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) LIMITED SLIP DIFF<6LV> (B) 41/9	8-98093-915-0	01	1	1002-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> (A) 41/9	8-97388-702-0	01	1	0807-1001	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) EXC. LIMITED SLIP DIFF<6LV> (A) 41/9	8-97388-702-0	01	1	1002-	●
7	FLANGE; FINAL	8-97047-095-2	01	1	0807-	●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-98107-373-0	12	1	0807-	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M12X90	8-97047-295-0	12	1	0807-1208	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (B) M12X90	8-98219-448-0	12	1	1209-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0807-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0807-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0807-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0807-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0807-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0807-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0807-	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0807-1004	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0807-1004	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0807-1004	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-	●	●
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	0807-	●	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0807-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1002-	●	●
39	BEARING; FINAL PINION FINAL GEAR RATIO 43/9(S2J) NSK	5-09812-063-0	01	1	1002-1002	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0807-1001	●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	1002-1002		●
39	BEARING; FINAL PINION FINAL GEAR RATIO 41/9(HC6) NSK	1-09812-026-0	01	1	1002-1002	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0807-	●	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	0807-	●	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	0807-	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0807-0909	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0807-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0807-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0807-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0807-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	0807-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0807-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0807-	●	●
55	CARRIER; DIFF	8-97094-637-0	01	1	0807-	●	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0807-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-98163-694-0	01	1	1002-	●
60	GEAR SET; FINAL DRIVE,RR 43/10	8-97047-115-0	01	1	0807-		●
60	GEAR SET; FINAL DRIVE,RR 41/9	8-97078-635-1	01	1	0807-1001	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	1002-	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0807-	●	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0807-	●	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0807-	●	●
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0807-	●	●
64	NUT; RET M6 FLANGE	0-91180-106-0	02	1	0807-	●	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0807-	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0807-	●	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0807-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97138-032-1	01	1	0807-1004	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-221-2	01	1	1005-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-099-4	01	1	0807-	●	●
76	DISC; BEVEL LIMITED SLIP DIFF<6LV>	8-97142-795-0	03	1	0807-	●	●
78	DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0807-	●	●
79	PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0807-	●	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	0807-1004	●	●
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-1309	●	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1310-	●	●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0807-	●	●
86	WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0807-	●	●
86	WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0807-1208	●	●
86	WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	8-97087-821-0	AR	1	0807-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	AR	1	0807-	●	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	04	1	0807-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0807-	●	●
396	GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV>	8-97142-805-0	01	1	0807-1004	●	●
396	GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV>	8-98169-195-0	01	1	1005-	●	●
