◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#75838) — 30 parça

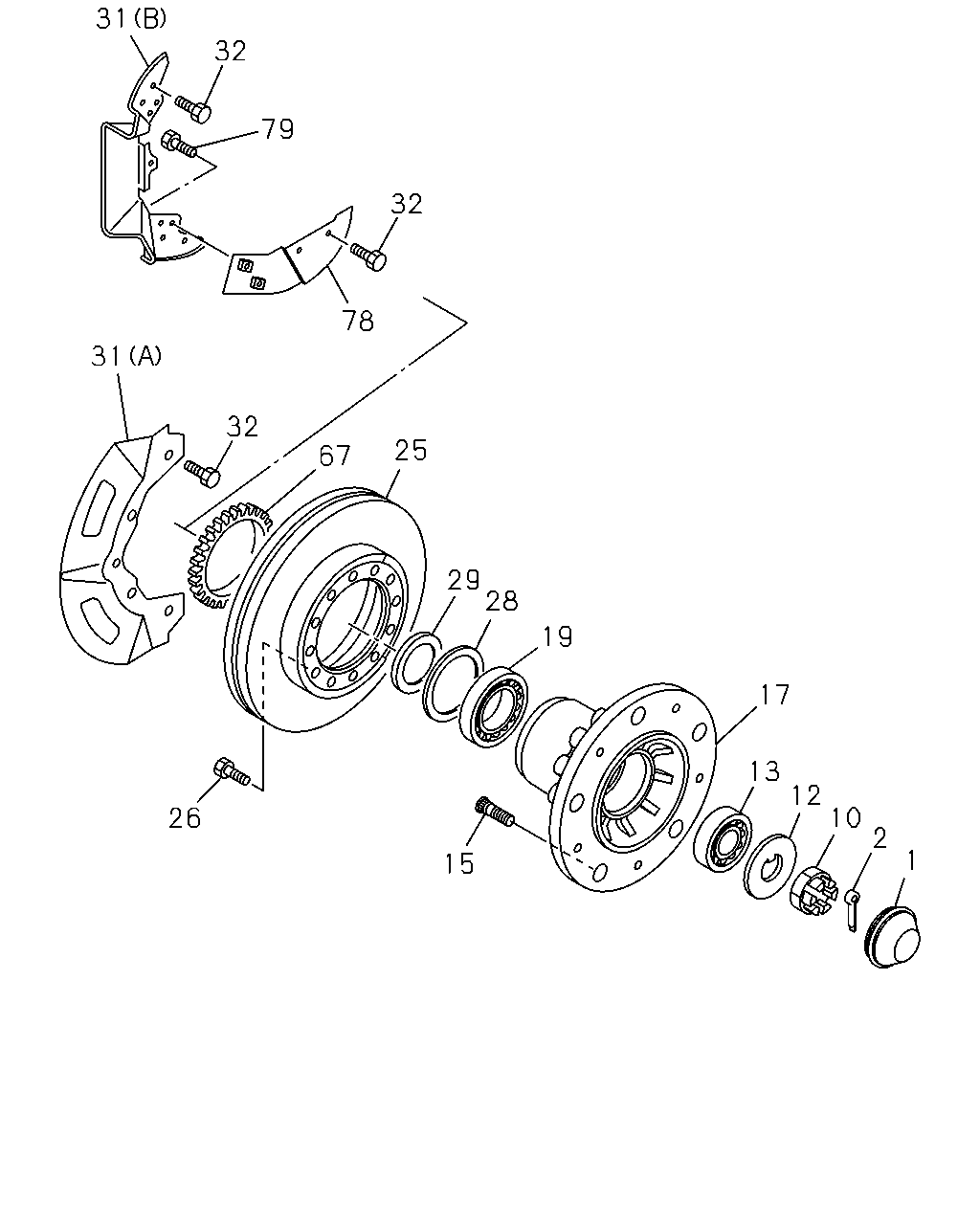

çizim 122405
31 32 79 32 78 31 32 25 67 29 28 19 17 13 12 10 2 26 1 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0807-1407 ● ●
1 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408- ● ●
2 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0807- ● ●
10 NUT; FRT HUB BRG 8-94247-357-1 02 1 0807- ● ●
12 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0807-1502 ● ●
12 WASHER; LK,FRT HUB BRG 8-98282-435-0 02 1 1503- ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0807- ● ●
13 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0807- ● ●
15 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD 		8-97168-456-2 06 1 0807- ● ●
15 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD 		8-97168-457-2 06 1 0807- ● ●
17 HUB; FRT AXLE 8-97168-460-0 02 1 0807- ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0807-1009 ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0807-1009 ● ●
19 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ●
25 ROTOR; DISC BRK,FRT 8-97387-229-0 02 1 0807- ●
25 ROTOR; DISC BRK,FRT 8-98006-395-0 02 1 0807- ●
26 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0807- ● ●
28 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0807- ● ●
29 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0807- ● ●
31 COVER; DUST,FRT BRAKE
(A) 		8-98037-377-0 02 1 0807- ●
31 COVER; DUST,FRT BRAKE
(B) 		8-97333-375-0 01 1 0807-1107 ●
31 COVER; DUST,FRT BRAKE
(B) 		8-98152-300-0 01 1 1108- ●
31 COVER; DUST,FRT BRAKE
(B) 		8-97333-376-0 01 1 0807-1107 ●
31 COVER; DUST,FRT BRAKE
(B) 		8-98152-301-0 01 1 1108- ●
32 BOLT; DUST COVER TO KNUCKLE
M8X12 FLANGE 		0-28050-812-0 08 1 0807- ● ●
67 ROTOR; SENSOR 8-97387-159-0 02 1 0807- ● ●
78 BRACKET; DUST COVER 8-97207-172-1 01 1 0807- ●
78 BRACKET; DUST COVER 8-97207-173-1 01 1 0807- ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0807- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
