4-01 — PROPELLER SHAFT (#75836) — 56 parça

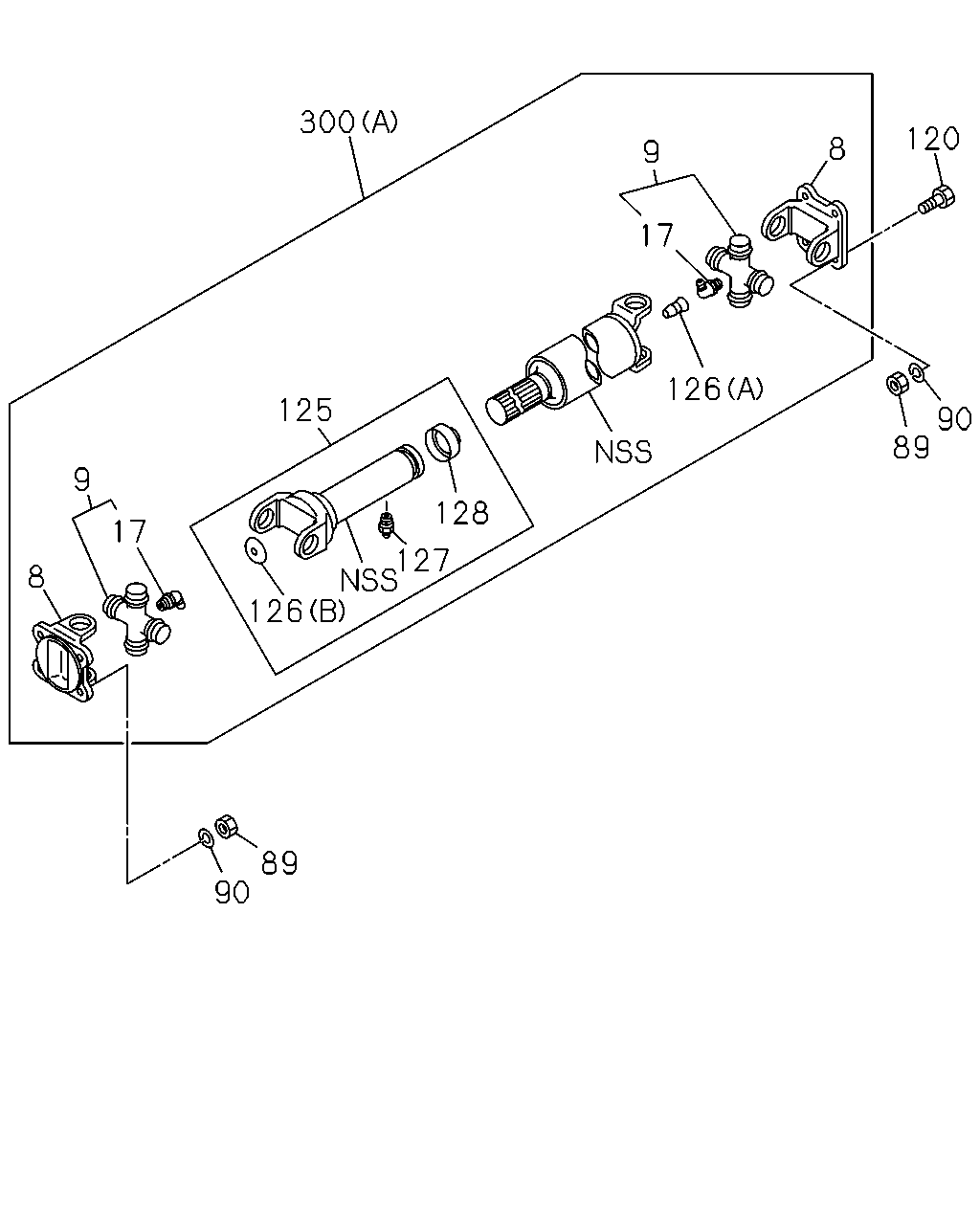

300 120 8 9 17 126 125 90 89 9 128 17 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0807-	●	●
8	YOKE; FLANGE,PROP SHAFT WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) D=80	1-37211-037-4	01	1	0807-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	0807-	●	●
9	JOURNAL ASM; PROP SHAFT WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W)	8-98020-789-1	01	1	0807-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0807-	●	●
17	NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) PT1/8 ELBOW	0-90301-610-0	01	1	0807-	●	●
89	NUT; YOKE TO RR AXLE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) M12	8-97365-450-1	04	1	0807-	●	●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	0807-	●	●
90	WASHER; LK,YOKE TO RR AXLE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) ID=12.2	0-91510-812-0	04	1	0807-	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	08	1	0807-	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	0807-	●	●
120	BOLT; YOKE TO RR AXLE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) M12X35	8-97365-451-1	04	1	0807-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	0807-	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0807-	●	●
126	PLUG; SPLINED YOKE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) (A)	1-09600-023-0	01	1	0807-	●	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0807-	●	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	0-90301-406-0	01	1	0807-	●	●
128	SEAL; SLEEVE	8-97145-746-0	01	1	0807-	●	●
300	SHAFT ASM; PROP,RR WHEEL BASE 2800MM(28W) (A) L=1101	8-98052-154-1	01	1	0807-	●	●
300	SHAFT ASM; PROP,RR WHEEL BASE 3400MM(34W) (B) L=683	8-98006-982-1	01	1	0807-	●	●
300	SHAFT ASM; PROP,RR WHEEL BASE 3400MM(34W) (C) L=1001	8-98024-923-1	01	1	0807-	●	●
300	SHAFT ASM; PROP,RR WHEEL BASE 3800MM(38W) (C) L=1011	8-98040-477-1	01	1	0807-	●	●
300	SHAFT ASM; PROP,RR WHEEL BASE 3800MM(38W) (B) L=1127	8-98040-793-1	01	1	0807-	●	●
300	SHAFT ASM; PROP,RR WHEEL BASE 4500MM(45W) (B) L=1367	8-98019-423-1	01	1	0807-		●
300	SHAFT ASM; PROP,RR WHEEL BASE 4500MM(45W) (C) L=1302	8-98024-925-1	01	1	0807-		●

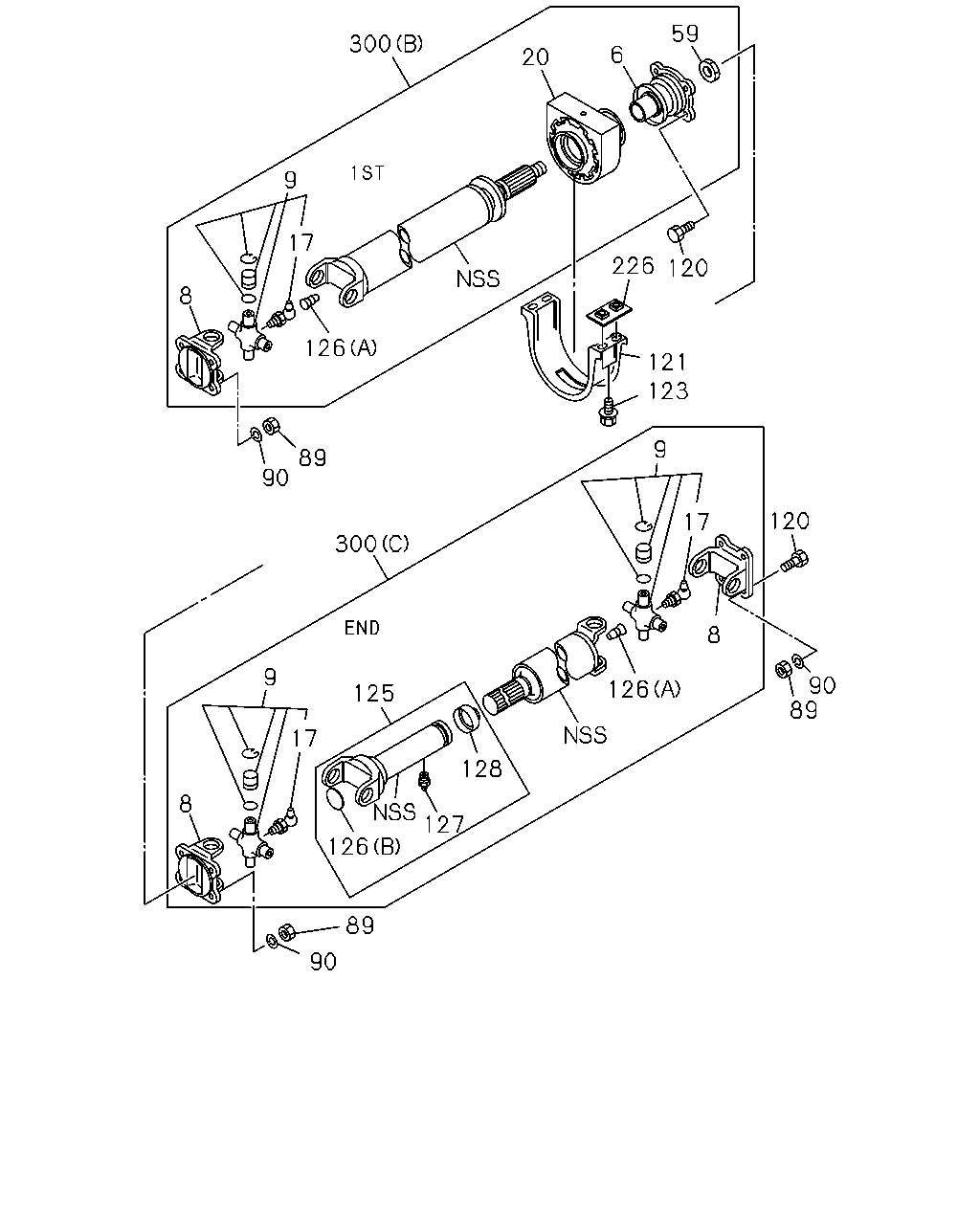

59 300 6 20 9 17 226 120 8 126 121 123 9 89 90 120 17 300 8 9 90 89 126 125 17 128 127 8 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	COUPLING ASM; DRIVER,PROP SHAFT WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W)	8-98020-796-0	01	1	0807-	●	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0807-	●	●
8	YOKE; FLANGE,PROP SHAFT WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) D=80	1-37211-037-4	01	1	0807-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	0807-	●	●
9	JOURNAL ASM; PROP SHAFT WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W)	8-98020-789-1	01	1	0807-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0807-	●	●
17	NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) PT1/8 ELBOW	0-90301-610-0	01	1	0807-	●	●
20	BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W)	8-98020-880-0	01	1	0807-	●	●
59	NUT; RET TO SUPPORT WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) M30	8-97160-857-0	01	1	0807-	●	●
89	NUT; YOKE TO RR AXLE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) M12	8-97365-450-1	04	1	0807-	●	●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	0807-	●	●
90	WASHER; LK,YOKE TO RR AXLE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) ID=12.2	0-91510-812-0	04	1	0807-	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	08	1	0807-	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	0807-	●	●
120	BOLT; YOKE TO RR AXLE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) M12X35	8-97365-451-1	04	1	0807-	●	●
121	RETAINER; CUSHION RUBBER WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W)	8-97035-623-1	01	1	0807-	●	●
123	BOLT; RET WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0807-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	0807-	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0807-	●	●
126	PLUG; SPLINED YOKE WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W) (A)	1-09600-023-0	01	1	0807-	●	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0807-	●	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	0-90301-406-0	01	1	0807-	●	●
128	SEAL; SLEEVE	8-97145-746-0	01	1	0807-	●	●
226	PLATE; LK,CENTER BRG WHEEL BASE 3400MM(34W),WHEEL BASE 3800MM(38W), WHEEL BASE 4500MM(45W)	8-97371-572-0	02	1	0807-	●	●
300	SHAFT ASM; PROP,RR WHEEL BASE 2800MM(28W) (A) L=1101	8-98052-154-1	01	1	0807-	●	●
300	SHAFT ASM; PROP,RR WHEEL BASE 3400MM(34W) (B) L=683	8-98006-982-1	01	1	0807-	●	●
300	SHAFT ASM; PROP,RR WHEEL BASE 3400MM(34W) (C) L=1001	8-98024-923-1	01	1	0807-	●	●
300	SHAFT ASM; PROP,RR WHEEL BASE 3800MM(38W) (C) L=1011	8-98040-477-1	01	1	0807-	●	●
300	SHAFT ASM; PROP,RR WHEEL BASE 3800MM(38W) (B) L=1127	8-98040-793-1	01	1	0807-	●	●
300	SHAFT ASM; PROP,RR WHEEL BASE 4500MM(45W) (B) L=1367	8-98019-423-1	01	1	0807-		●
300	SHAFT ASM; PROP,RR WHEEL BASE 4500MM(45W) (C) L=1302	8-98024-925-1	01	1	0807-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
