3-55 — BRAKE PIPING; OIL,REAR
(#75833) — 20 parça
Tümü
A - NPR7SN
B - NPR7SS
◀
[355A] NO.1 (15 parça)

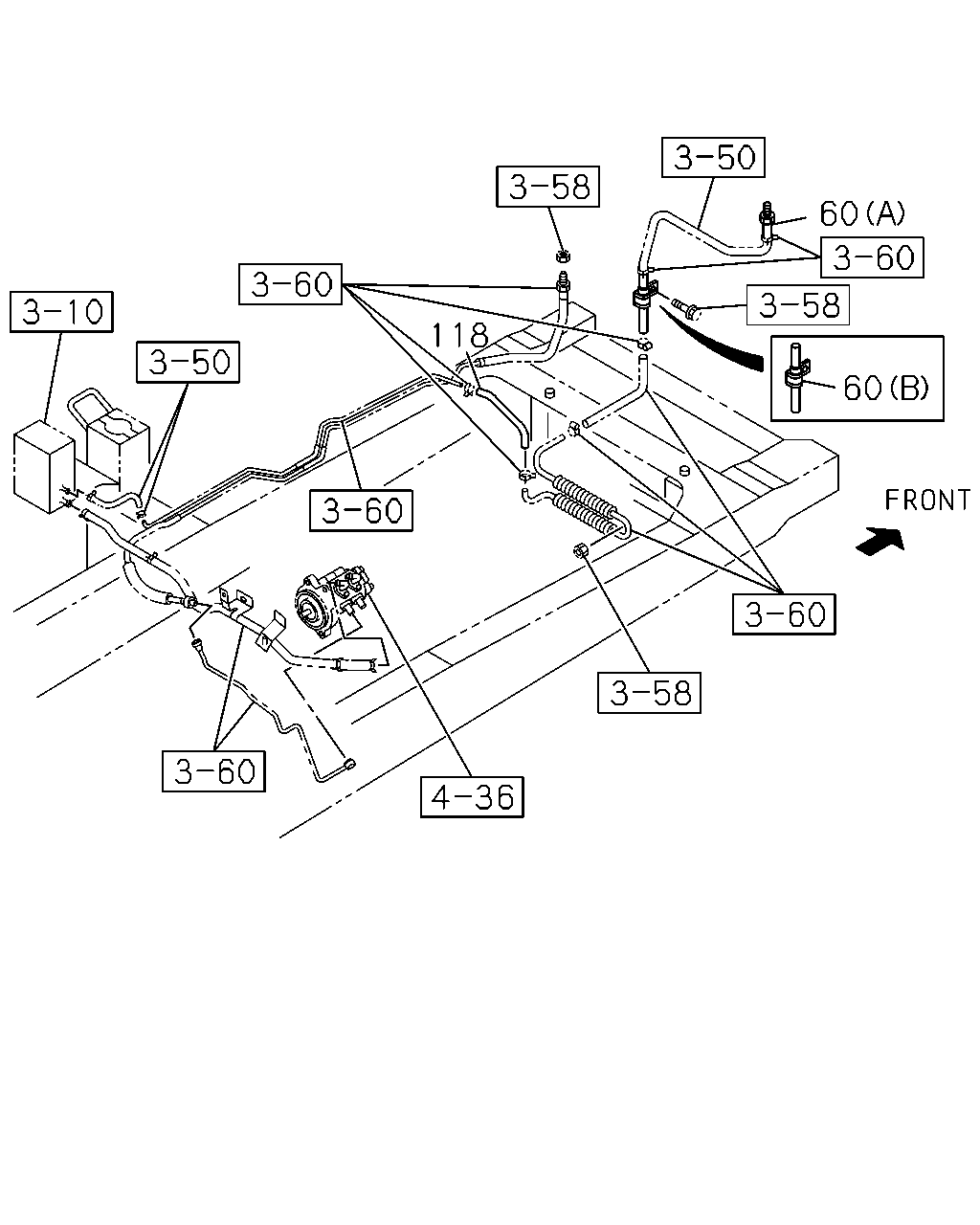

[355A] NO.2 (5 parça)
▶
135
1
8
135
8
3
4
14
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,RR BRK
8-97253-569-0
02
1
0807-
●
●
3
BRACKET; FLEX HOSE,RR BRK
8-97205-714-1
01
1
0807-
●
●
3
BRACKET; FLEX HOSE,RR BRK
8-97205-715-1
01
1
0807-
●
●
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
0807-
●
●
8
CLIP; RR BRK
8-97360-054-0
04
1
0807-
●
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
GVWR CLASS-5 18001-19500LBS(RQQ)
8-98006-755-0
01
1
0811-
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
GVWR CLASS-5 18001-19500LBS(RQQ)
8-98006-757-0
01
1
0811-
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97359-746-0
01
1
0807-
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97359-747-0
01
1
0807-
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97359-748-0
01
1
0807-0810
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
GVWR CLASS-5 16001-18000LBS(RQH)
8-97359-748-0
01
1
0811-
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97359-749-0
01
1
0807-0810
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
GVWR CLASS-5 16001-18000LBS(RQH)
8-97359-749-0
01
1
0811-
●
25
CONNECTOR
M10 STRAIGHT
0-92107-005-0
02
1
0807-
●
●
135
CLIP; FLEX HOSE
8-97207-699-0
04
1
0807-
●
●
60
118
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
60
PIPE ASM; BRK
(A)
8-98080-549-0
01
1
0807-
●
60
PIPE ASM; BRK
(B)
8-98081-319-0
01
1
0807-0909
●
60
PIPE ASM; BRK
(B)
8-98127-815-0
01
1
0910-
●
118
HOSE; PIPE TO PIPE
8-97181-217-2
01
1
0807-1001
●
118
HOSE; PIPE TO PIPE
8-98158-200-0
01
1
1002-
●
