3-52 — BRAKE PIPING; OIL,FRONT (#75832) — 39 parça

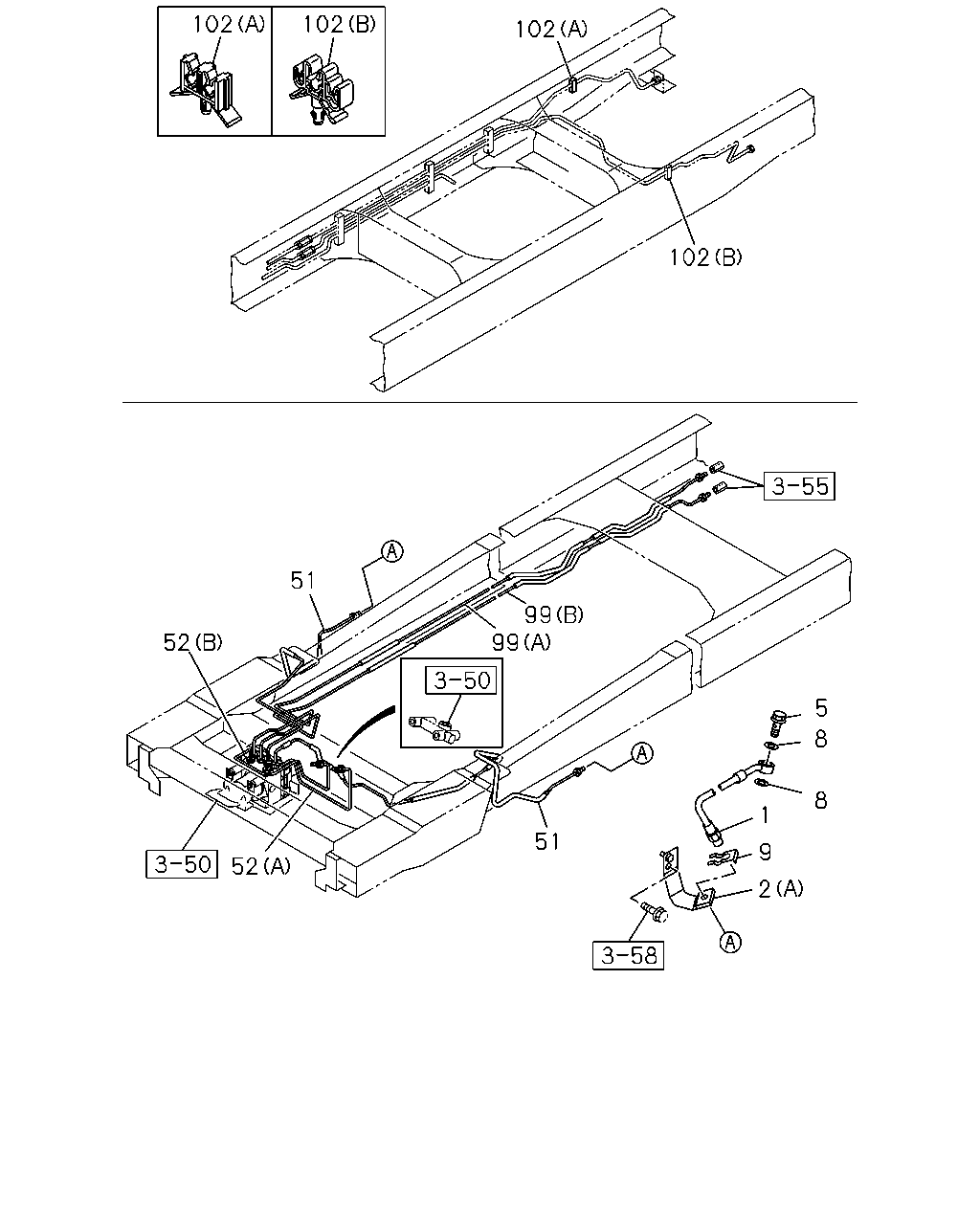

çizim 119809
102 102 102 102 51 99 99 52 5 8 8 1 51 9 52 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-98205-441-1 02 1 1202- ●
1 HOSE; FLEX,FRT BRK 8-97365-481-1 02 1 0807- ●
1 HOSE; FLEX,FRT BRK 8-97365-482-0 02 1 0807-1201 ●
1 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97365-482-1 02 1 1202- ●
2 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-776-3 01 1 0807- ●
2 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-778-3 01 1 0807- ●
2 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-777-3 01 1 0807-1110 ●
2 BRACKET; FLEX HOSE,FRT BRK
EXC. FRONT WIDE TREAD<7GV> (A) 		8-97365-777-3 01 1 1111- ●
2 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-779-3 01 1 0807-1110 ●
2 BRACKET; FLEX HOSE,FRT BRK
EXC. FRONT WIDE TREAD<7GV> (A) 		8-97365-779-3 01 1 1111- ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98033-964-2 01 1 0807-0909 ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-772-0 01 1 0910- ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0807- ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 		9-09571-410-0 04 1 0807- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0807- ● ●
51 PIPE; BRK
FRONT WIDE TREAD<7GV> HU TO 2WAY,FRONT 		8-98135-962-0 01 1 1111- ●
51 PIPE; BRK
FRONT WIDE TREAD<7GV> HU TO 2WAY,FRONT 		8-98135-964-0 01 1 1111- ●
51 PIPE; BRK
HU TO 2WAY,FRONT 		8-98033-765-2 01 1 0807-1110 ● ●
51 PIPE; BRK
HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1111- ●
51 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> HU TO 2WAY,FRONT 		8-98033-765-2 01 1 1111- ●
51 PIPE; BRK
HU TO 2WAY,FRONT 		8-98033-766-4 01 1 0807-1110 ● ●
51 PIPE; BRK
HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1111- ●
51 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> HU TO 2WAY,FRONT 		8-98033-766-4 01 1 1111- ●
52 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0807- ● ●
52 PIPE; BRK
(B) 4WAY TO HU,REAR 		8-97389-372-2 01 1 0807- ● ●
99 PIPE ASM; 4/5/6 WAY
(A) HU TO 2WAY,REAR 		8-98033-767-1 01 1 0807- ● ●
99 PIPE ASM; 4/5/6 WAY
(B) HU TO 2WAY,REAR 		8-98033-768-1 01 1 0807- ● ●
102 CLIP; PIPE
(A) ID=4.8X2 		8-94455-816-0 01 1 0807- ● ●
102 CLIP; PIPE
(B) ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 0807- ● ●

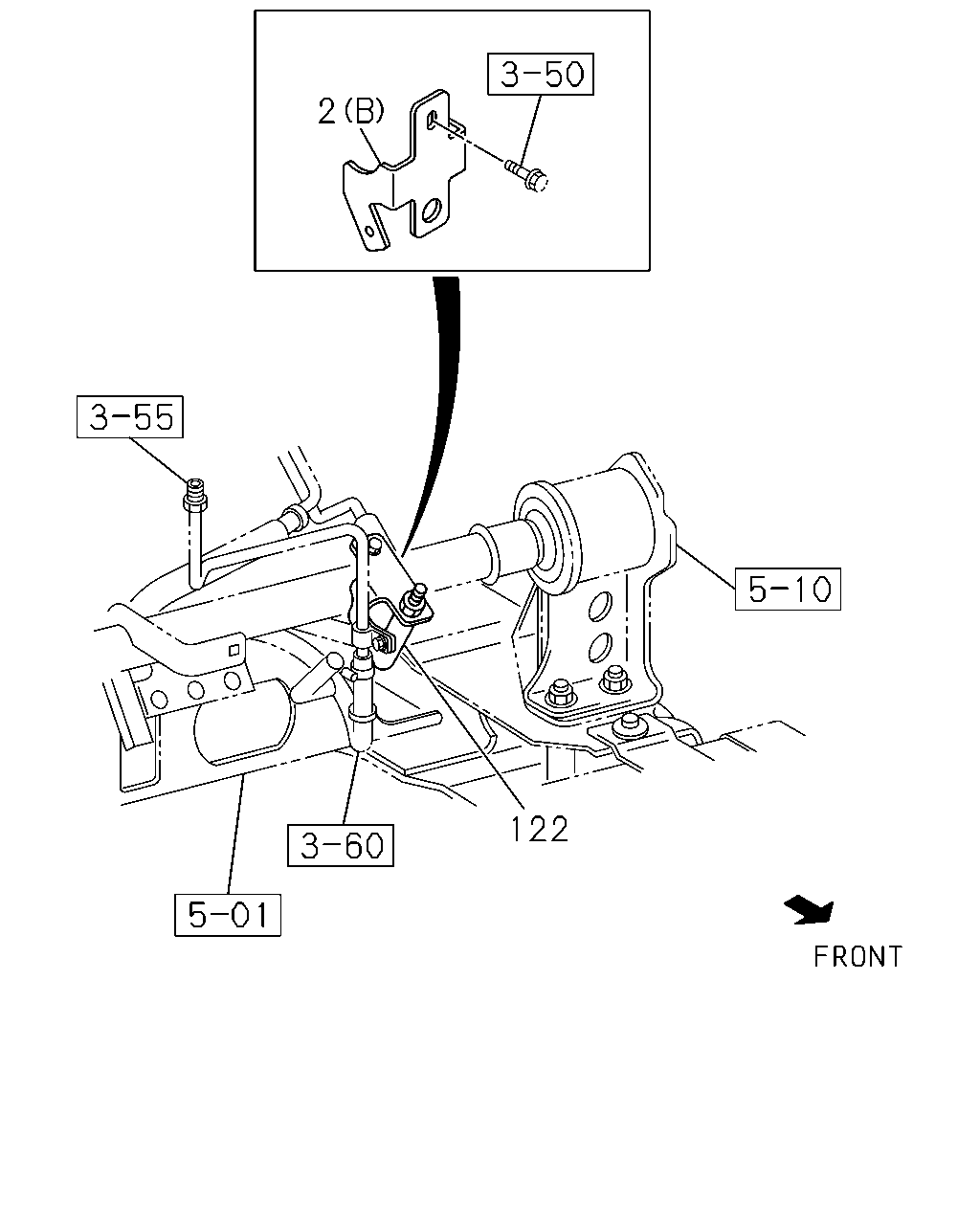

çizim 185946
2 122
BalonParca AdiParca NoAdetTipApplied Date A B
2 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-776-3 01 1 0807- ●
2 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-778-3 01 1 0807- ●
2 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-777-3 01 1 0807-1110 ●
2 BRACKET; FLEX HOSE,FRT BRK
EXC. FRONT WIDE TREAD<7GV> (A) 		8-97365-777-3 01 1 1111- ●
2 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-97365-779-3 01 1 0807-1110 ●
2 BRACKET; FLEX HOSE,FRT BRK
EXC. FRONT WIDE TREAD<7GV> (A) 		8-97365-779-3 01 1 1111- ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98033-964-2 01 1 0807-0909 ●
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-772-0 01 1 0910- ●
122 PIPE ASM; BRK,2 WAY 8-98082-684-1 01 1 0807-0909 ●
122 PIPE ASM; BRK,2 WAY
L=1251 		8-98141-426-0 01 1 0910- ●
