3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#75831) — 103 parça

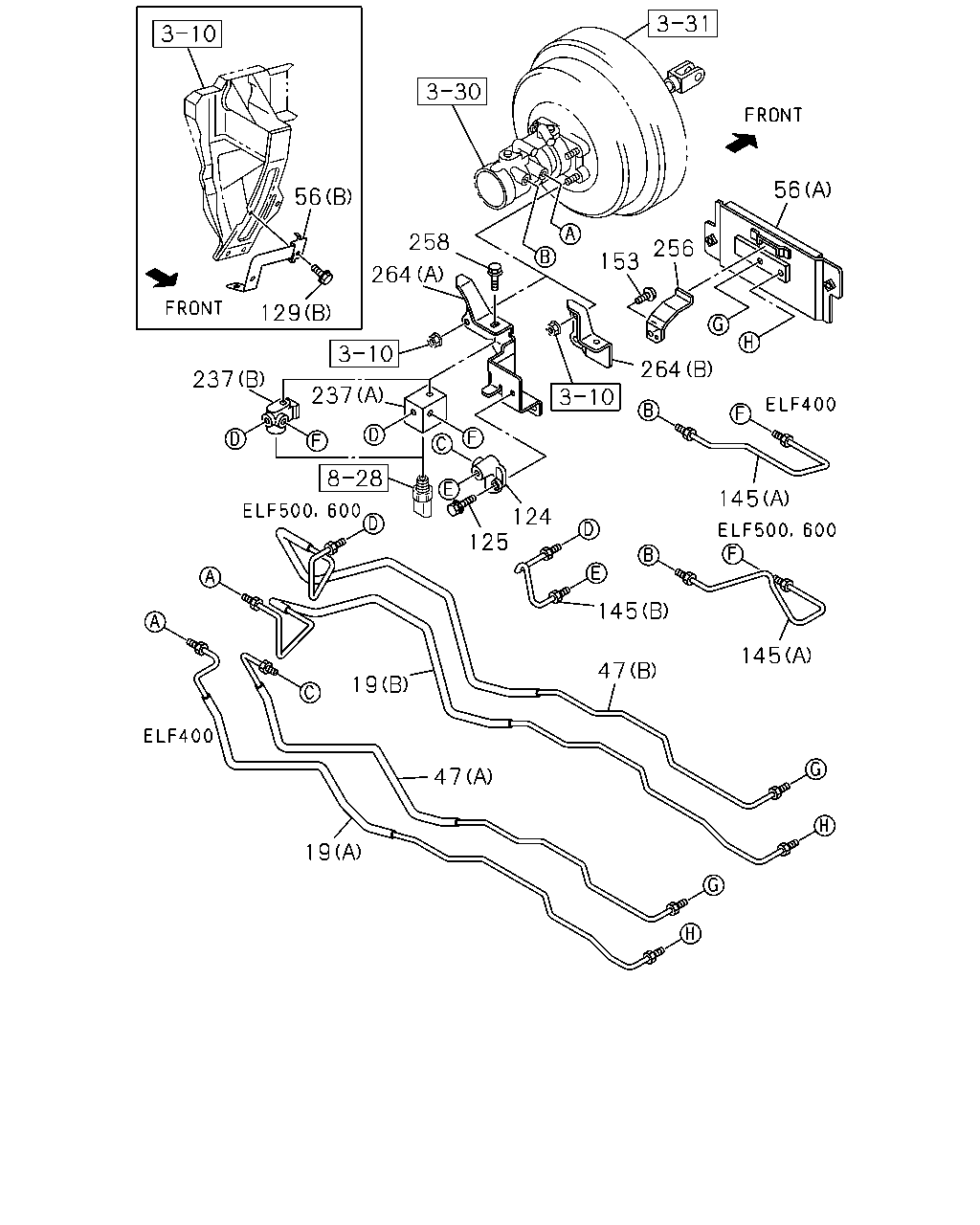

çizim 118468
56 56 258 256 153 264 129 264 237 237 145 124 125 145 145 47 19 47 19
BalonParca AdiParca NoAdetTipApplied Date A B
19 PIPE; BRK,M/CYL TO UNION
(C) 		8-98056-155-1 02 1 0807- ●
19 PIPE; BRK,M/CYL TO UNION
(A) 		8-98076-015-0 01 1 0807- ●
19 PIPE; BRK,M/CYL TO UNION
(B) 		8-98055-945-2 01 1 0807- ●
19 PIPE; BRK,M/CYL TO UNION
(C) 		8-98080-579-1 02 1 0807- ●
47 PIPE; OIL,FRT BRK
(A) 		8-98076-013-0 01 1 0807- ●
47 PIPE; OIL,FRT BRK
(B) 		8-98055-944-2 01 1 0807-0906 ●
47 PIPE; OIL,FRT BRK
(B) L=1054 		8-98133-416-0 01 1 0907- ●
56 BRACKET; UNION,BRK
(A) 		8-98056-774-1 01 1 0807-1005 ●
56 BRACKET; UNION,BRK
(A) 		8-98154-268-1 01 1 1006- ●
56 BRACKET; UNION,BRK
(B) 		8-98034-299-3 01 1 0807- ● ●
56 BRACKET; UNION,BRK
(A) 		8-98034-288-4 01 1 0807-1005 ●
56 BRACKET; UNION,BRK
(A) 		8-98154-270-1 01 1 1006- ●
124 VALVE; METERING 8-97042-955-3 01 1 0807- ●
125 BOLT; VALVE
M6X35 W/LK&PL WASHER 		0-50640-635-0 01 1 0807- ●
129 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0807- ● ●
129 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0807- ● ●
129 BOLT; BRKT
(C) M6X12 FLANGE 		0-28050-612-0 01 1 0807- ●
145 PIPE; BRK,METERING VLV TO UNION
(A) 		8-98033-956-1 01 1 0807-0906 ●
145 PIPE; BRK,METERING VLV TO UNION
(A) L=247 		8-98133-410-0 01 1 0907- ●
145 PIPE; BRK,METERING VLV TO UNION
(B) 		8-98033-958-0 01 1 0807-0906 ●
145 PIPE; BRK,METERING VLV TO UNION
(B) L=173 		8-98133-417-0 01 1 0907- ●
145 PIPE; BRK,METERING VLV TO UNION
(A) 		8-98033-954-2 01 1 0807-0906 ●
145 PIPE; BRK,METERING VLV TO UNION
(A) L=228 		8-98133-411-0 01 1 0907- ●
153 SCREW; BRKT FIX
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 0807- ● ●
237 CONNECTOR; MODULATOR
(A) 		8-98007-865-3 01 1 0807-0906 ● ●
237 CONNECTOR; MODULATOR
(B) 		8-98111-748-1 01 1 0907- ● ●
256 BRACKET; BRK PIPE 8-98039-683-4 01 1 0807-1005 ● ●
256 BRACKET; BRK PIPE 8-98163-521-0 01 1 1006- ● ●
258 BOLT; PIPE,BRK
M8X12 FLANGE 		0-28050-812-0 01 1 0807- ● ●
264 BRACKET; SENSOR,PRESSURE
(B) 		8-97387-683-2 01 1 1103- ●
264 BRACKET; SENSOR,PRESSURE
(A) 		8-98007-925-2 01 1 0807-1102 ● ●
264 BRACKET; SENSOR,PRESSURE
(A) 		8-98126-661-1 01 1 1103- ●

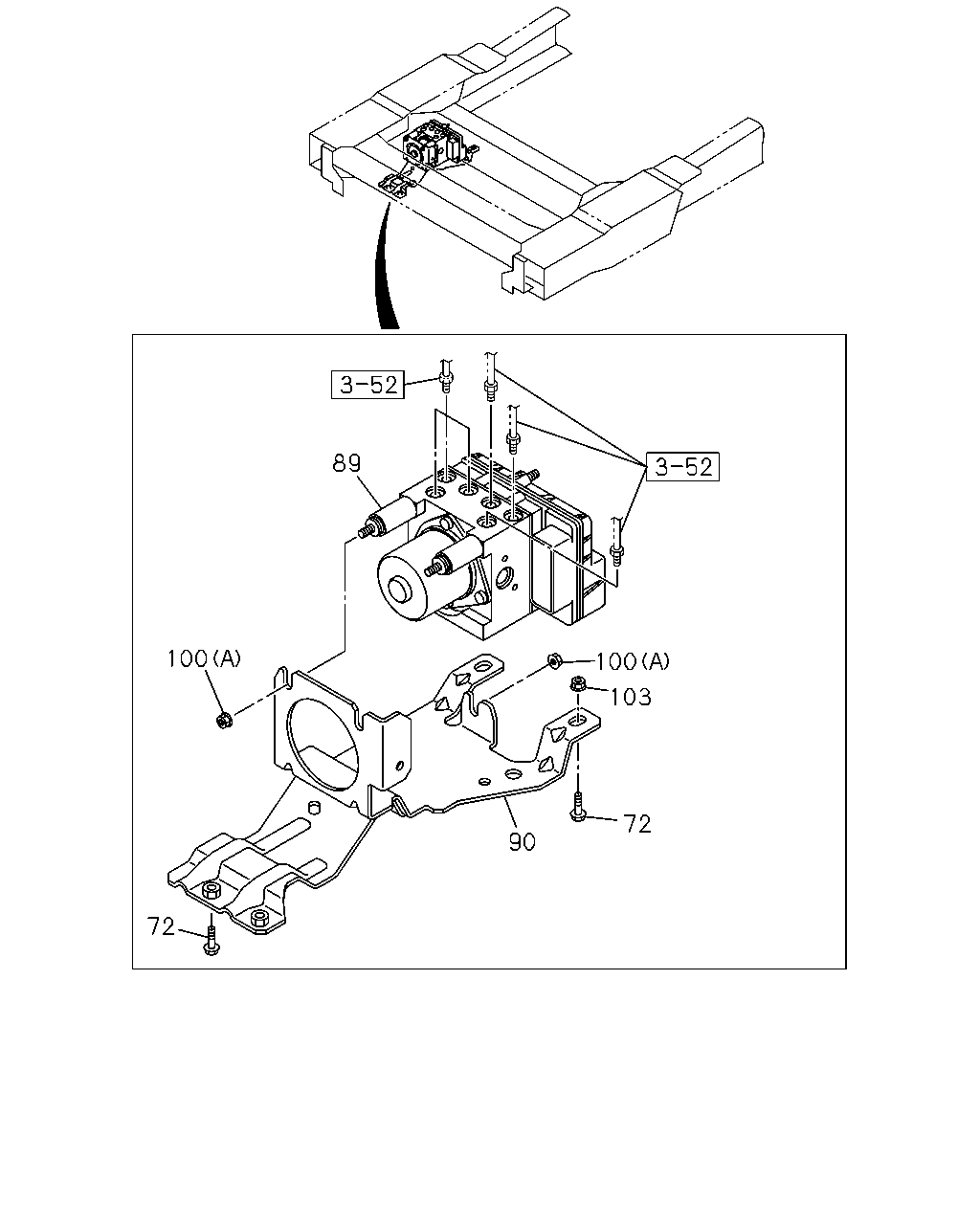

çizim 119749
89 100 100 103 72 90 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 BOLT; BRKT TO BODY
M8X25 FLANGE 		0-28650-825-0 04 1 0807- ● ●
89 HYDRAULIC UNIT; ANTI LOCK BRK 8-98089-418-1 01 1 0807-1006 ● ●
89 HYDRAULIC UNIT; ANTI LOCK BRK 8-98155-376-0 01 1 1007- ● ●
90 BRACKET; HYDRAULIC UNIT,ABS 8-98080-984-0 01 1 0807-1205 ● ●
90 BRACKET; HYDRAULIC UNIT,ABS 8-97386-355-0 01 1 1206- ● ●
100 NUT; HYDRAULIC UNIT
(A) M8 FLANGE 		8-98040-024-0 03 1 0807-1205 ● ●
100 NUT; HYDRAULIC UNIT
(A) M8 FLANGE 		0-91180-108-0 03 1 1206- ● ●
100 NUT; HYDRAULIC UNIT
(B) M8 FLANGE 		0-91180-108-0 01 1 0807- ●
103 NUT; HYDRAULIC UNIT BRKT
M8 FLANGE 		0-91180-108-0 02 1 0807- ● ●

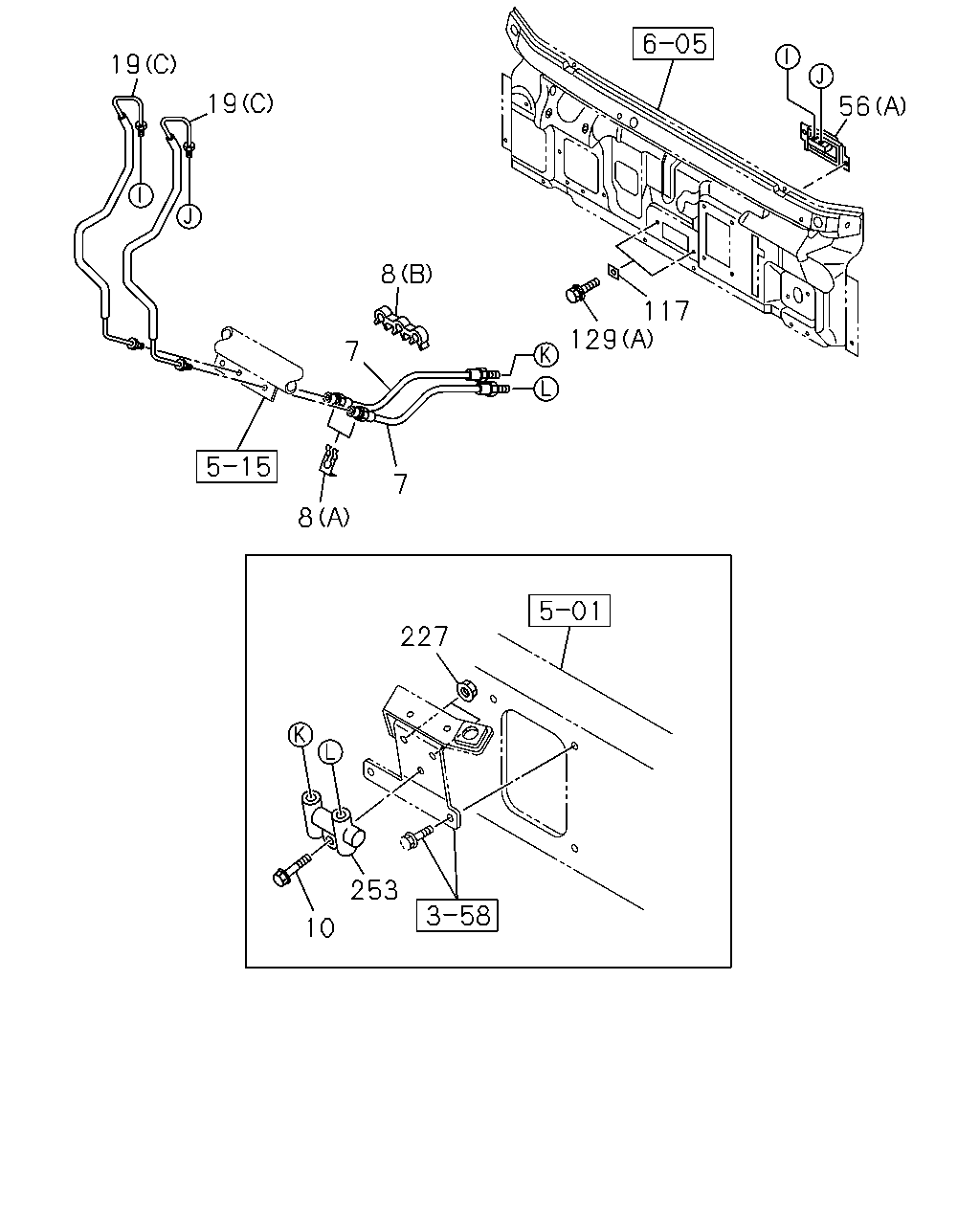

çizim 119788
19 19 56 8 117 129 7 7 8 227 253 10
BalonParca AdiParca NoAdetTipApplied Date A B
7 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98029-865-0 02 1 0807- ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-97076-471-0 01 1 0807- ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 0807- ● ●
10 BOLT; JOINT
M6X40 FLANGE 		0-28650-640-0 01 1 0807- ● ●
19 PIPE; BRK,M/CYL TO UNION
(C) 		8-98056-155-1 02 1 0807- ●
19 PIPE; BRK,M/CYL TO UNION
(A) 		8-98076-015-0 01 1 0807- ●
19 PIPE; BRK,M/CYL TO UNION
(B) 		8-98055-945-2 01 1 0807- ●
19 PIPE; BRK,M/CYL TO UNION
(C) 		8-98080-579-1 02 1 0807- ●
56 BRACKET; UNION,BRK
(A) 		8-98056-774-1 01 1 0807-1005 ●
56 BRACKET; UNION,BRK
(A) 		8-98154-268-1 01 1 1006- ●
56 BRACKET; UNION,BRK
(B) 		8-98034-299-3 01 1 0807- ● ●
56 BRACKET; UNION,BRK
(A) 		8-98034-288-4 01 1 0807-1005 ●
56 BRACKET; UNION,BRK
(A) 		8-98154-270-1 01 1 1006- ●
117 SEAL; UNION,BRK PIPE JOINT 8-97856-616-0 02 1 0807- ● ●
129 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0807- ● ●
129 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0807- ● ●
129 BOLT; BRKT
(C) M6X12 FLANGE 		0-28050-612-0 01 1 0807- ●
227 NUT; JOINT
M8 FLANGE 		0-91180-108-0 02 1 0807- ● ●
253 JOINT 8-97038-940-1 01 1 0807- ● ●

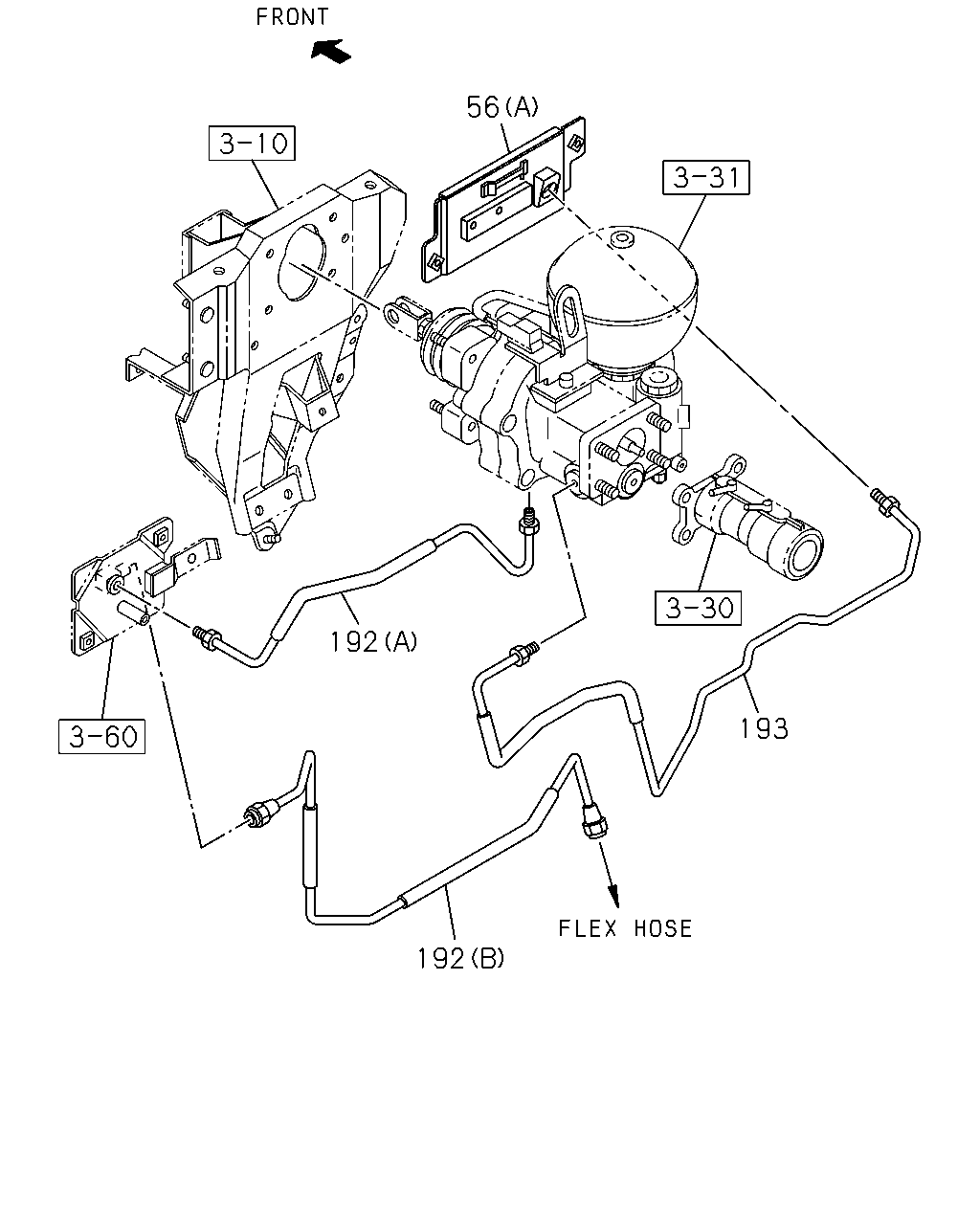

çizim 119902
56 192 193 192
BalonParca AdiParca NoAdetTipApplied Date A B
56 BRACKET; UNION,BRK
(A) 		8-98056-774-1 01 1 0807-1005 ●
56 BRACKET; UNION,BRK
(A) 		8-98154-268-1 01 1 1006- ●
56 BRACKET; UNION,BRK
(B) 		8-98034-299-3 01 1 0807- ● ●
56 BRACKET; UNION,BRK
(A) 		8-98034-288-4 01 1 0807-1005 ●
56 BRACKET; UNION,BRK
(A) 		8-98154-270-1 01 1 1006- ●
192 PIPE; PRESSURE
(A) 		8-98033-960-0 01 1 0807- ●
192 PIPE; PRESSURE
(B) 		8-98033-961-3 01 1 0807- ●
193 PIPE; RETURN 8-98090-257-0 01 1 0807- ●

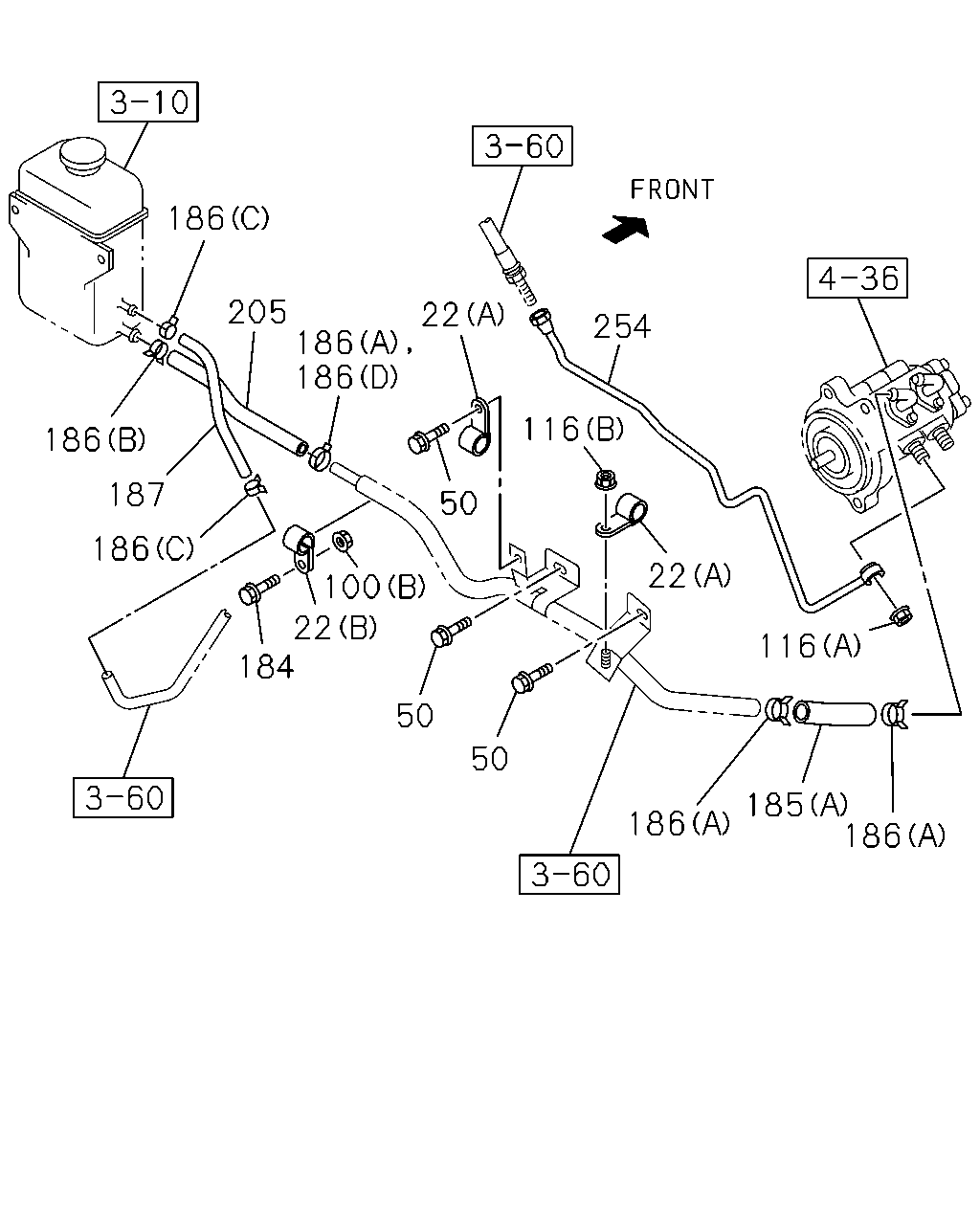

çizim 119948
186 205 186 186 22 254 116 186 187 50 186 100 22 184 22 116 50 50 185 186 186
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLIP
(A) ID=10 L=16.5 		8-98082-034-0 02 1 0807- ●
22 CLIP
(B) ID=17 L=21 		8-98082-035-0 01 1 0807- ●
50 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 03 1 0807-0906 ●
50 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0907- ●
100 NUT; HYDRAULIC UNIT
(A) M8 FLANGE 		8-98040-024-0 03 1 0807-1205 ● ●
100 NUT; HYDRAULIC UNIT
(A) M8 FLANGE 		0-91180-108-0 03 1 1206- ● ●
100 NUT; HYDRAULIC UNIT
(B) M8 FLANGE 		0-91180-108-0 01 1 0807- ●
116 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0807- ●
116 NUT
(A) 		8-97358-958-0 01 1 0807- ●
184 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0807- ●
185 HOSE; RUBBER,SUCTION
(A) 		8-97330-513-0 01 1 0807- ●
185 HOSE; RUBBER,SUCTION
(B) 		8-98082-497-0 01 1 0807- ●
186 CLIP; HOSE
(D) ID=21 		8-98150-355-0 01 1 0912- ●
186 CLIP; HOSE
(C) ID=16 		8-94238-568-0 02 1 0807-0911 ●
186 CLIP; HOSE
(C) ID=16 		8-98008-098-0 02 1 0912- ●
186 CLIP; HOSE
(A) ID=21 		8-94242-034-0 03 1 0807-0911 ●
186 CLIP; HOSE
(A) ID=21 		8-94242-034-0 02 1 0912- ●
186 CLIP; HOSE
(B) ID=22 		8-94382-401-0 01 1 0807-1003 ●
186 CLIP; HOSE
(B) ID=22 		8-97359-141-0 01 1 1004- ●
187 HOSE; RUBBER,OIL TANK
L=220 SERVICED BY L=3000 		0-19809-300-0 01 1 0807- ●
205 HOSE; TANK TO PIPE
SERVICED BY L=300 		0-09814-300-0 01 1 0807- ●
254 PIPE; BRAKE,2WAY 8-97311-386-2 01 1 0807- ●

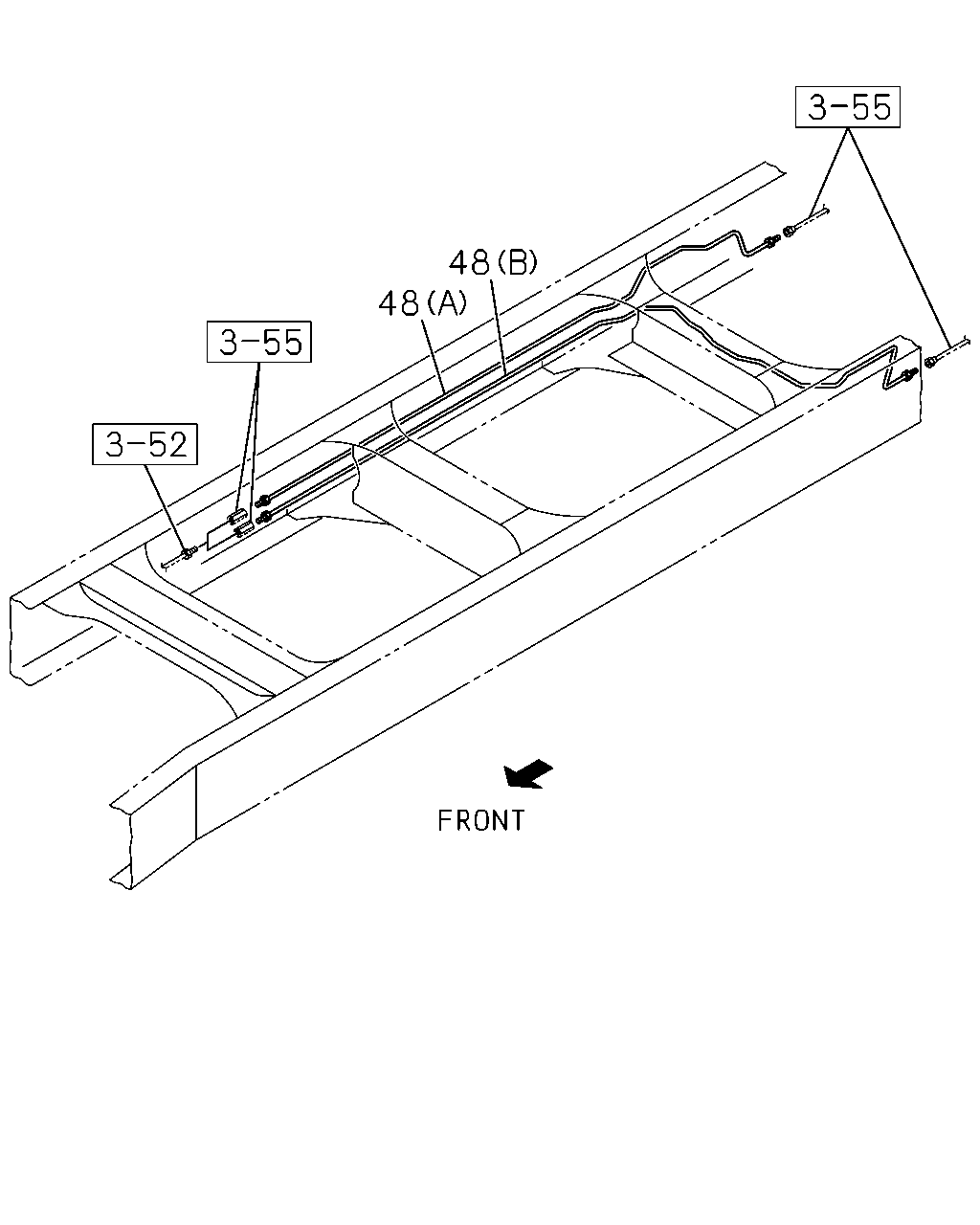

çizim 185943
48 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 PIPE; OIL,RR BRK
WHEEL BASE 2800MM(28W) (A) 2WAY TO REAR 		8-98033-771-0 01 1 0807- ● ●
48 PIPE; OIL,RR BRK
WHEEL BASE 2800MM(28W) (B) 2WAY TO REAR 		8-98033-776-1 01 1 0807- ● ●
48 PIPE; OIL,RR BRK
WHEEL BASE 3400MM(34W) (A) 2WAY TO REAR 		8-98033-772-0 01 1 0807- ● ●
48 PIPE; OIL,RR BRK
WHEEL BASE 3400MM(34W) (B) 2WAY TO REAR 		8-98033-777-1 01 1 0807- ● ●
48 PIPE; OIL,RR BRK
WHEEL BASE 3800MM(38W) (A) 2WAY TO REAR 		8-98033-773-0 01 1 0807- ● ●
48 PIPE; OIL,RR BRK
WHEEL BASE 3800MM(38W) (B) 2WAY TO REAR 		8-98033-778-1 01 1 0807- ● ●
48 PIPE; OIL,RR BRK
WHEEL BASE 4500MM(45W) (A) 2WAY TO REAR 		8-98033-775-0 01 1 0807- ●
48 PIPE; OIL,RR BRK
WHEEL BASE 4500MM(45W) (B) 2WAY TO REAR 		8-98033-779-1 01 1 0807- ●

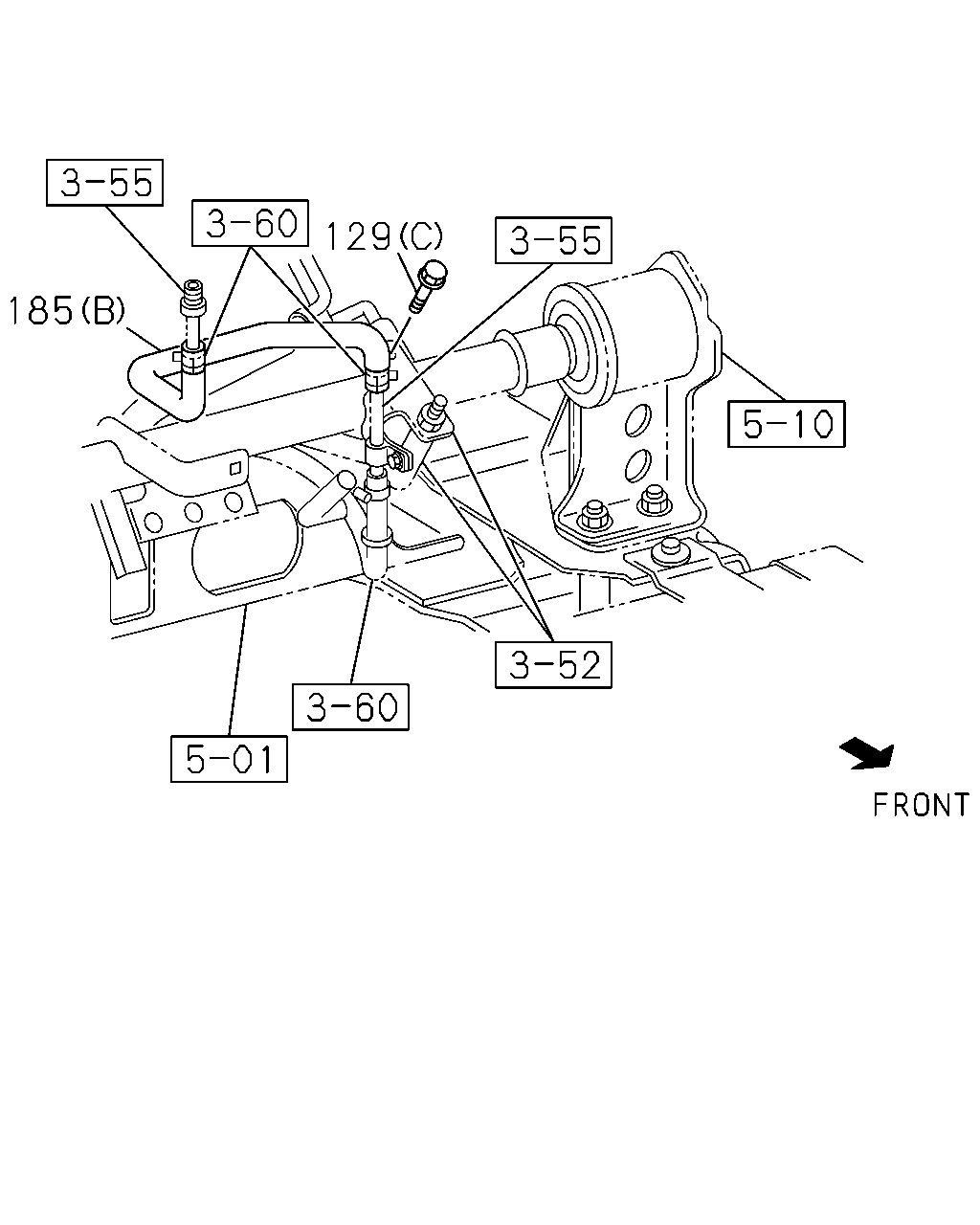

çizim 185944
129 185
BalonParca AdiParca NoAdetTipApplied Date A B
129 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0807- ● ●
129 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0807- ● ●
129 BOLT; BRKT
(C) M6X12 FLANGE 		0-28050-612-0 01 1 0807- ●
185 HOSE; RUBBER,SUCTION
(A) 		8-97330-513-0 01 1 0807- ●
185 HOSE; RUBBER,SUCTION
(B) 		8-98082-497-0 01 1 0807- ●
